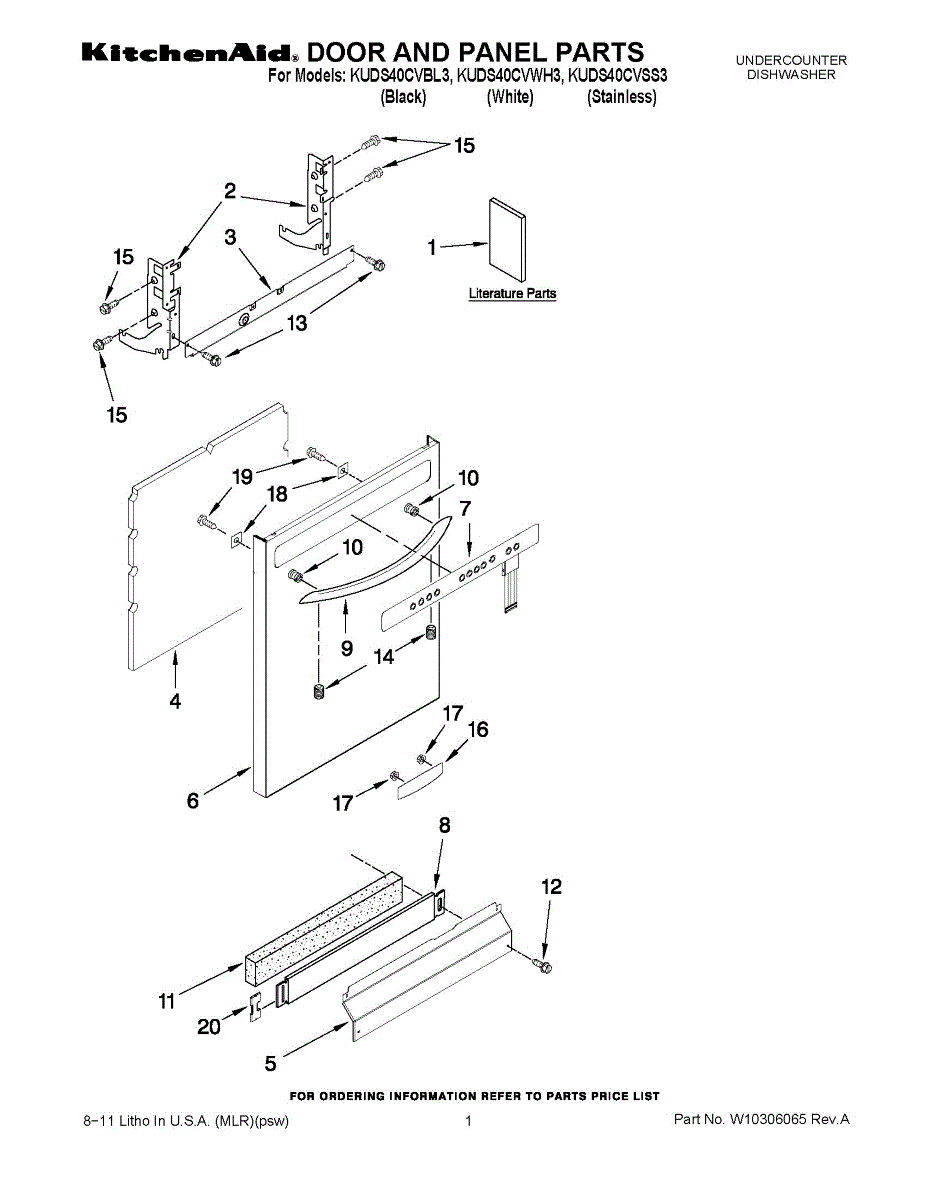

Parts for Kitchenaid KUDS40CVSS3: 01 - Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly is an OEM part for Whirlpool dishwashers. This hinge assembly is responsible for attaching the dishwasher door to the main body, allowing it to open and close smoothly while maintaining a proper seal when shut.

Causes of a bad door hinge assembly can include regular wear and tear, damage from excessive force or accidental impacts, and corrosion from exposure to moisture and detergents.

Symptoms of a bad door hinge assembly include:

• The dishwasher door not closing properly or staying open
• Difficulty opening or closing the dishwasher door
• A misaligned dishwasher door
• Unusual noises or resistance when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge (RH) is an OEM replacement part for Whirlpool dishwashers. This hinge is installed on the right-hand side of the dishwasher door, allowing it to open and close smoothly while maintaining the proper tension and alignment. The hinge plays a crucial role in ensuring the door seals securely during operation, preventing leaks and enabling efficient cleaning performance.

Common causes include regular use leading to wear and tear, accidental impacts, or exposure to moisture, which can contribute to rust or corrosion.

Symptoms of a bad door hinge include:

• The dishwasher door not closing completely
• Difficulty opening or closing the door
• A sagging or misaligned door
• Unusual noises when moving the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This foam pad installs between the inner and outer door panels of a dishwasher to dampen sound and help shield the outer panel from heat and moisture, keeping operation quieter and the door better protected. What it does:

• Lines the inside of the outer door panel to reduce operating noise and vibration
• Acts as a thermal and moisture barrier for the outer door panel
• Helps maintain proper door performance when the original insulation is worn or missing
• Replace if torn, degraded, or waterlogged, or if noise/condensation around the door has increased

• 1 door insulation pad

• Disconnect power and shut off water to the dishwasher before servicing
• Support the door; remove perimeter screws to separate the inner and outer door panels
• Note the pad's orientation; seat the new insulation evenly without pinching wires or harnesses
• Reassemble panels and fasteners; verify smooth door/latch operation

This replacement panel restores your appliance's original look while shielding internal components. Install a new panel to replace a dented, cracked, or missing piece and keep the assembly secure, aligned, and protected.

• Covers and protects internal parts while restoring the exterior finish and fit
• Provides the designed mounting surface for trim/handles; helps maintain alignment
• Replace when the panel is dented, cracked, warped, rusted, or mounting tabs are broken
• Helps resolve loose or rattling panels and visible gaps or misalignment

• Disconnect power; turn off water or gas supply if applicable
• Wear gloves and protect finished surfaces; handle carefully to avoid bending or scratching
• Transfer and reuse original screws, clips, insulation, and trim as directed by your service manual
• Fit and alignment before fully tightening fasteners

Color: Black. Includes Items door isulation, nameplate, (2)nuts & (2)mounting studs. For white use WPW10078000. For stainless use WPW10137621

Color: White. Includes Items door isulation, nameplate, (2)nuts & (2)mounting studs. For stainless use WPW10137621. For black use WPW10077999.

Color: Stainless. Includes Items door isulation, nameplate, (2)nuts & (2)mounting studs. For black use WPW10077999. For white use WPW10078000

Color: White

Color: Black - Part has been changed to an Access Panel Kit - The toe panel is no longer used.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: White

Color: Black

Color: Stainless   Note: Comes with Allen wrench, spare set screw, and instructions.

This mounting stud secures appliance panels and components to the cabinet, restoring proper fit and stability. Durable metal construction replaces a damaged or missing stud to keep panels aligned and reduce rattling. What it does:

• Fastens panels, trim, or components to the appliance cabinet for a secure fit
• Restores correct panel alignment to prevent gaps and vibration noise
• Replaces stripped, bent, or missing studs that prevent proper assembly
• Works with the cabinet/frame mounting points used by the original hardware

• Inspect mating threads and holes for damage before installation; replace damaged fasteners as needed
• Hand-start the stud to avoid cross-threading, then tighten with appropriate tool; do not overtighten
• Disconnect power to the appliance before doing any repairs that expose electrical components

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Color: White

The Retainer Clip is an OEM part for Whirlpool dishwashers. It is designed to secure the kickplate in place at the bottom of the dishwasher, ensuring that the kickplate remains securely attached to the dishwasher. It helps prevent the kickplate from becoming loose or falling off during regular use, ensuring that it stays in place to protect the internal components from any potential damage.

A bad Dishwasher Kickplate Retainer Clip can occur due to wear and tear over time or accidental damage.

Symptoms of a bad Retainer Clip include:

• Kickplate coming loose or falling off.
• Excessive noise or vibration during dishwasher operation.
• Difficulty in securing the kickplate in place.
• Visible damage or missing clip.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This replacement screw secures appliance components in place. Swapping a stripped, rusty, or missing fastener restores a tight fit for panels, brackets, and handles, helping reduce vibration, rattling, and premature wear.

• Secures panels, brackets, trim, or hardware to the appliance frame
• Replaces missing, stripped, or corroded fasteners that no longer hold
• Helps eliminate looseness, rattling, or misalignment
• Restores proper fit and finish after service

• Disconnect power; shut off water supply if servicing a dishwasher.
• Match thread and length to the original screw before installing.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• When applicable, replace paired screws together for even clamping.

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

Color: White. For black use W10021860. For stainless use W10021850.

Color: Stainless. For black use W10021860. For white use W10021870

Color: Black. For white use W10021870. For stainless W10021850

This replacement screw secures internal panels and components in compatible Whirlpool appliances, restoring proper fit and stopping loose or rattling parts. It's a straightforward fastener for replacing lost or damaged screws during repairs. What it does

• Secures panels, trim, brackets or small assemblies to prevent movement and vibration
• Replaces missing or stripped screws that allow components to shift or rattle
• Helps restore proper alignment of covers, control panels or access panels
• Prevents further wear or damage caused by loose parts

• Disconnect power before starting any repair to avoid electrical hazard
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to prevent thread damage
• Keep small parts away from children and pets

A small metal clip that secures the appliance's ground wire to the chassis. Restores a reliable ground connection to reduce loose or arcing contacts and help prevent intermittent electrical faults. What it does:

• Secures the ground wire to the appliance frame to maintain a solid earth connection.
• Prevents a loose ground that can cause arcing, intermittent power issues, or visible sparking at the connection.
• Holds the wire in place through normal vibration and movement so terminals stay tight and stable.
• Replaces damaged, bent, or missing grounding fasteners to restore safe electrical continuity.

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the clip.
• Use proper hand tools to remove and reinstall the screw or fastener that holds the clip—do not overtighten.
• Ensure the ground wire is routed and stripped correctly; replace wiring if insulation or conductor is damaged.
