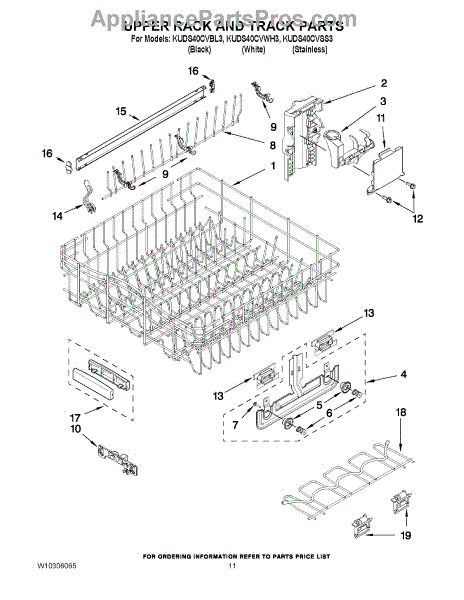

Parts for Kitchenaid KUDS40CVSS3: 09 - Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Upper Dishrack is an OEM part for Whirlpool dishwashers. This dishrack is designed to hold dishes, glasses, and other items securely in the upper part of the dishwasher during the wash cycle, allowing for effective cleaning and efficient use of space.

Causes of a bad upper dishrack can include regular wear and tear, damage from heavy or improperly loaded items, and rust or corrosion from prolonged exposure to water and detergents.

Symptoms of a bad upper dishrack include:

• Broken or missing tines that prevent items from being held securely
• Rust or corrosion on the dishrack
• Difficulty sliding the dishrack in and out of the dishwasher
• The dishrack not fitting correctly or falling off its tracks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement housing restores the appliance's structural enclosure, protecting internal components and helping panels and controls align properly. Use it to replace cracked, warped or damaged housings so the unit fits and functions as intended. What it does:

• Provides the main structural enclosure and mounting surface for internal components and exterior panels
• Replaces cracked, dented or broken housings that can allow misalignment or rubbing of parts
• Helps reduce vibration and movement by restoring proper fit between panels and internal assemblies
• Keeps internal components shielded from debris and wear that can lead to downstream issues

• Disconnect power (and water, if applicable) before starting any repair
• Handle edges carefully; housing edges and sheet metal can be sharp
• Basic hand tools are typically required; follow the appliance service manual for disassembly/reassembly steps

For left hand use W10077839

For right hand use W10077838

This adjuster is a replacement door/hinge adjustment component that restores proper door alignment and closing action for compatible appliances. It helps re-establish correct clearance and reduces rubbing, binding, or uneven gaps. What it does:

• Provides the adjustment point for proper door alignment and smooth operation
• Helps correct doors that sit unevenly, rub, or don't seal consistently
• Restores the ability to fine-tune door position after hinge or cabinet repairs
• Reduces noise and wear caused by misaligned doors or panels

• One adjuster as shown

• Turn power off and disconnect the appliance before starting any repair
• Some disassembly of the door, hinge, or trim may be required
• Keep fasteners and small parts organized; verify orientation before final tightening

This dishrack wheel lets the dishwasher rack glide smoothly in and out. Replacing a worn or broken wheel restores easy rack movement and helps keep the rack aligned during loading and unloading.

• Provides rolling support for the dish rack inside the rail/track
• Helps keep the rack level and properly aligned
• Common symptoms include rack hard to slide, wobbling/sagging rack, or a cracked/missing wheel
• Can reduce scraping or clicking noises when moving the rack

• Disconnect power before servicing; remove the rack from the tracks as needed
• Release the old wheel from its axle/retainer; note its orientation
• Snap the new wheel onto the existing axle/retainer and ensure it spins freely
• Reinstall the rack and test for smooth operation

The Adjuster Axle is an OEM part for Whirlpool dishwashers. It plays a crucial role in the height adjustment mechanism of the upper rack, allowing users to customize the rack's position to accommodate different dish sizes. This axle ensures that the adjustment is smooth and stable, providing flexibility in the dishwasher's loading capacity.

You should replace the adjuster axle if it becomes worn out or damaged. Causes of a bad adjuster axle can include wear from frequent adjustments, breakage from overloading the rack, or damage from mishandling.

Symptoms of a bad adjuster axle include:

• Difficulty in adjusting the height of the upper rack
• The rack not staying in the desired position
• Unusual movement or instability of the rack
• The adjuster mechanism not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

The Adjustable Tine Row is an OEM part for Whirlpool dishwashers. It is designed to provide flexible loading options by allowing users to adjust the position of the tines in the dishwasher rack. This feature accommodates various dish sizes and shapes, enhancing the dishwasher's capacity and versatility.

Over time, the adjustable tine row can wear out or become damaged due to frequent adjustments or the weight of heavy dishes. Causes of a bad adjustable tine row include broken or bent tines, wear from regular use, or damage from overloading the dishwasher rack.

Symptoms of a bad adjustable tine row include:

• Tines not staying in the desired position
• Difficulty adjusting the tines
• Broken or missing tines
• Reduced ability to securely hold dishes in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Tine Row Holder is an OEM part for Whirlpool dishwashers. It is responsible for securing the tines in the dishwasher's rack, keeping them in place to hold dishes, glasses, and utensils securely during the wash cycle.

Over time, the tine row holder can become damaged due to normal wear and tear, repeated loading and unloading of dishes, or accidental mishandling.

Symptoms of a bad tine row holder include:

• Tines that are loose or fall out of place
• Difficulty in loading dishes securely
• Uneven or inadequate cleaning due to improperly spaced items

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This cover is a factory replacement access panel that protects internal components and restores the appliance's finished appearance. It keeps wiring and controls shielded from dust and accidental contact for safer, longer-lasting operation. What it does:

• Shields internal wiring, controls, and components from dust, debris and accidental contact
• Keeps small parts and fasteners secured inside the appliance cabinet
• Restores the appliance's finished exterior where the original cover was damaged or missing
• Helps maintain proper airflow routing and component spacing when installed correctly

• Disconnect power to the appliance before beginning any service to avoid shock or injury.
• Verify the cover orientation and fastener locations before securing; use OEM screws where specified.
• Handle with care to avoid scratching or bending the cover; ensure tabs snap fully into place.
• Inspect for damage and secure any loose parts before installing the cover.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This positioner aligns and secures its mating component in the correct location inside your appliance. Replacing a cracked, worn, or missing positioner restores proper fit so the assembly stays put and operates as designed.

• Holds the related part in the proper position and orientation
• Prevents shifting, sagging, or rattling during use
• Supports smooth adjustment or movement where applicable
• Common symptoms: loose or misaligned component, difficulty adjusting or seating the piece, visible cracks, or a missing clip

• Disconnect power; also shut off gas or water if your appliance uses these utilities
• Note the original orientation and take photos before removal
• Transfer any reused hardware and fully seat tabs/slots to avoid damage
• Wear cut-resistant gloves and check alignment after reassembly

The Tine Clip is an OEM replacement part for Whirlpool dishwashers. This clip is designed to secure the tines in the dishwasher rack, keeping them properly aligned to hold dishes and utensils in place during the wash cycle. It ensures stability and maximizes the rack's capacity and efficiency.

Symptoms of a bad Tine Clip include:

• Tines becoming loose or collapsing during the wash cycle
• Difficulty in organizing dishes due to unstable tines
• The clip appearing cracked, broken, or missing

Causes of a failing Tine Clip can include regular wear from repeated use, stress from heavy loads, or accidental damage during loading and unloading. A damaged clip may lead to inefficient cleaning and reduced rack usability.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Rack Stop Clip is an OEM replacement part for Whirlpool dishwashers. This small but essential component plays a crucial role in ensuring the smooth and secure operation of the dishwasher racks.

Symptoms of needing to replace the dishwasher rack stop clip include:

• Racks rolling out unexpectedly when opening the dishwasher door
• Racks becoming misaligned or sliding out of their tracks
• Difficulty in loading or unloading dishes due to unstable rack positioning

Causes of a faulty rack stop clip can include normal wear and tear over time, accidental impact or damage, or improper installation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

Due to manufacturer changes only one side of cup shelf has a cap.

This small retaining clip secures trim, panels, or components in place to prevent rattling or detachment during normal operation. It's a simple, low-profile fastener that restores fit and function where the original clip has broken or gone missing. What it does:

• Holds panels, bezels, or wiring harnesses in position to stop vibration and movement
• Replaces worn, broken or missing clips that cause loose trim or gaps
• Helps maintain proper alignment of adjacent parts for reliable operation
• Works as a direct-fit fastening solution where the original clip is used

• One retaining clip

• Disconnect power to the appliance before attempting any repair
• Access may require removing panels or trim; use appropriate screwdrivers or trim tools
• Install by aligning the clip with the mating slot or hole and pressing firmly until it snaps into place

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
