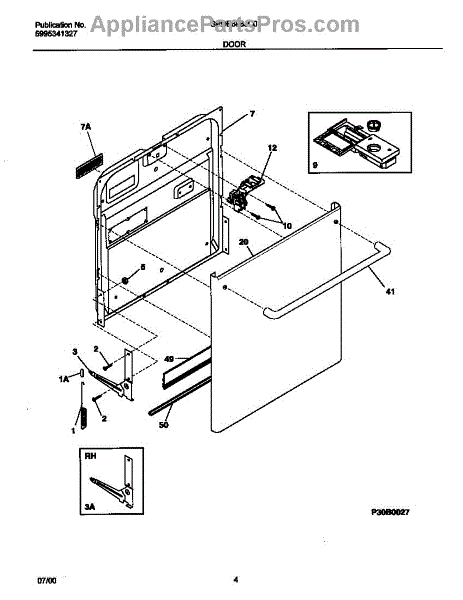

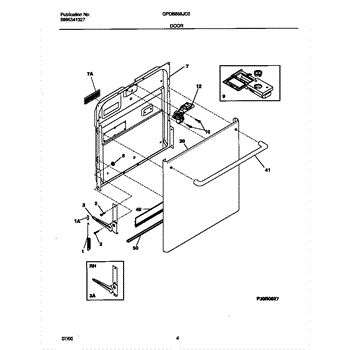

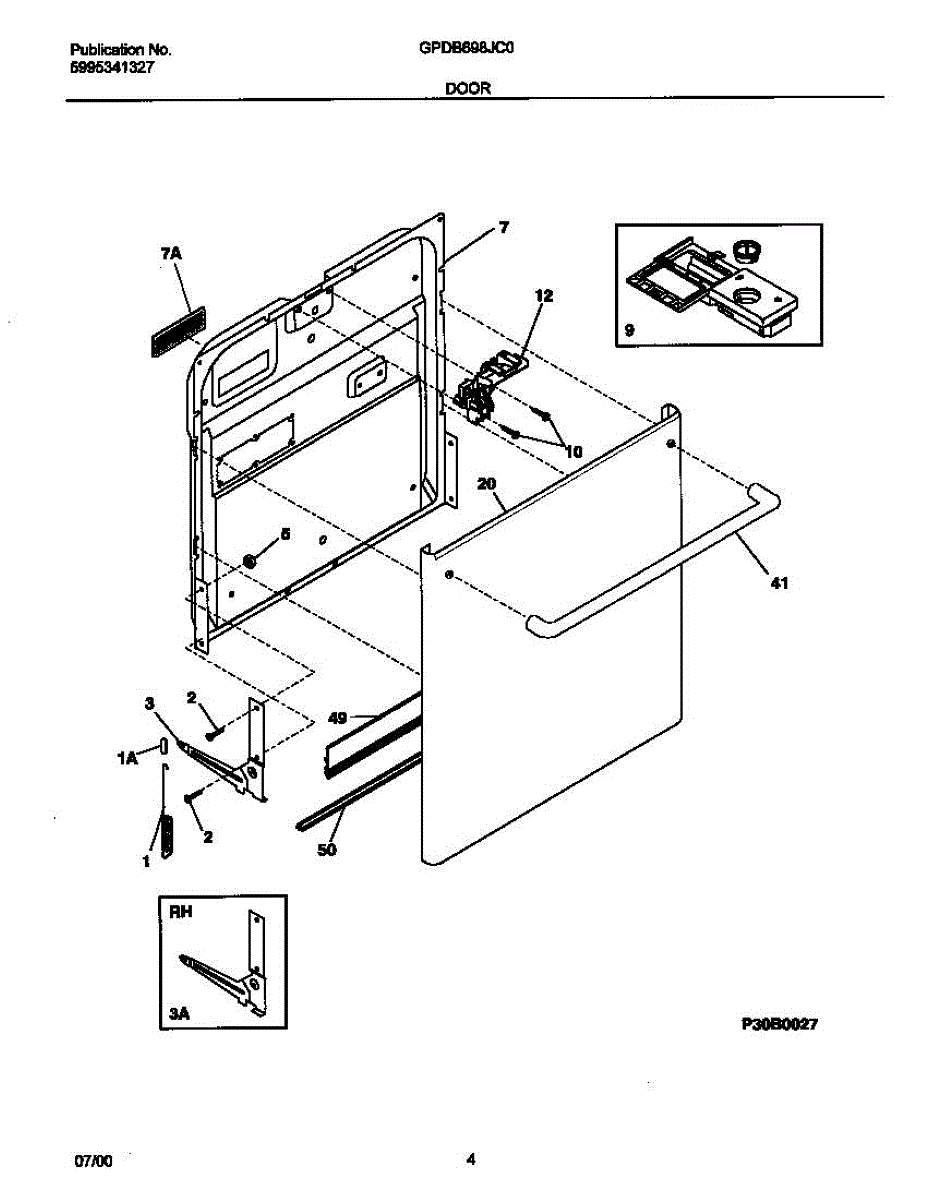

Parts for Frigidaire GPDB698JC0: 03 - Door Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replaces broken or stretched dishwasher door springs that cause the door to drop open too fast or slam shut. Installs on door hinge for proper tension.

Connects door springs to the dishwasher door hinge for smooth, balanced opening and closing. Replace if cracked, broken, or missing due to wear or damage.

Secures spray arm assembly components in your dishwasher. Replace if screw is stripped, loose, missing, or broken to keep the spray arm properly mounted.

Replacement door hinge for dishwashers. Supports and controls door movement for smooth opening and closing. Replace if bent, broken, or worn out.

Replacement door hinge for dishwashers. Supports and controls door movement for smooth opening and closing. Replace if bent, broken, or worn out.

Dispenser door won't close or latch? Replace the detergent dispenser assembly. DIY repair takes 5-10 minutes with video guide. Fixes stuck or broken latch.

Secures the dishwasher door latch assembly to the cabinet. Replace if screw is stripped, missing, or damaged to restore secure latch installation.

Fix a dishwasher that won't start or won't stay closed with this door latch kit. Straightforward repair in under 30 minutes with basic tools.

Seals the gap between the dishwasher tub and door bottom to prevent water leaks. Replace if you notice leaking at the door base or visible wear.

Plastic dispenser mounting screw for dishwashers. Secures detergent dispenser assembly to door. Replace if stripped, cracked, or missing.

Precision shoulder screw for dishwashers. Locates and pivots components, keeping panels and moving parts aligned. Replace when worn, missing, or broken.

F117-20 These are normally open thermostats

Temp boost, high temp wash These are normally open thermostats

Secures dishwasher wire harness and prevents moisture from reaching the dispenser assembly. Replace if cracked, loose, or causing electrical issues.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement mounting screw that secures control switches and switch assemblies to the dishwasher panel. Needed when original hardware is lost or stripped.

Secures dishwasher wire harness and prevents moisture from reaching the dispenser assembly. Replace if cracked, loose, or causing electrical issues.

NO.8 - .625 Truss

Replacement mounting screw for dishwasher panels and internal components. Needed when original screws are stripped, missing, or corroded during repairs.

Stainless steel screw that secures the dishwasher impeller assembly. Replace if stripped, corroded, or missing to properly mount the impeller.

Phillips head mounting screw for dishwashers and ranges. Secures internal components and panels. Replace if stripped, rusted, or missing during repairs.

No.10 - 16 x 3/8

10 - 16 x 3/8 , hex

F117-20 These are normally open thermostats

Temp boost, high temp wash These are normally open thermostats

This replacement part is a bushing, and it is intended for use in different types of appliances. This is a genuine replacement part made by Frigidaire. This bushing is typically found in dishwashers but is compatible with other devices as well. The bushings are an important part of many appliances as they help reduce friction inside the machine during the different washing cycles. A new bushing might be needed if the current ones are broken or damaged. It is common that different machinery needs multiple types of bushings. These small but important parts are placed around tubes or poles and are meant to assist during the rotating or sliding mechanisms. Be sure the machine is completely powered off as the area with the bushings is often hot from friction. See the owner's manual for more exact instructions before attempting to replace this part. These bushings are sold separately and are OEM replacement parts. These bushings are compatible with appliances made by Frigidaire.

Replacement mounting screw for dishwasher panels and components. Secures loose panels, brackets, and trim. Needed when original fasteners are missing, stripped, or worn.

Replacement mounting screws that secure your cooktop to the countertop or cabinet. Essential when original screws are stripped, missing, or damaged during installation or service.

Secures water or drain hoses to fittings, preventing leaks and loose connections. Replace when hoses slip or drip to restore a tight seal.

Precision shoulder screw for dishwashers. Locates and pivots components, keeping panels and moving parts aligned. Replace when worn, missing, or broken.

Plastic dispenser mounting screw for dishwashers. Secures detergent dispenser assembly to door. Replace if stripped, cracked, or missing.

Replacement cabinet insulation panel for dishwashers. Installs inside cabinet to reduce heat transfer and noise. Needed when original is torn, compressed, or missing.

Replacement mounting screw for dishwashers. Secures internal components, panels, and brackets. Order when original screw is stripped, missing, or broken.

Replaces missing, torn, or saturated sound-dampening insulation blanket for dishwashers. Wraps around tub to reduce noise and protect cabinetry.

This side mounting bracket kit includes the hardware needed to secure a dishwasher to the adjacent cabinetry from the sides rather than from the countertop. It is commonly used in kitchens with granite, stone, or other countertops where top-mounting screws cannot be used. Replace this kit if the original brackets are bent, broken, or missing, causing the dishwasher to shift or slide during operation.

Brass nut that secures the heating element to the dishwasher tub. Replace if cracked, split, or causing leaks around the element mounting area.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
