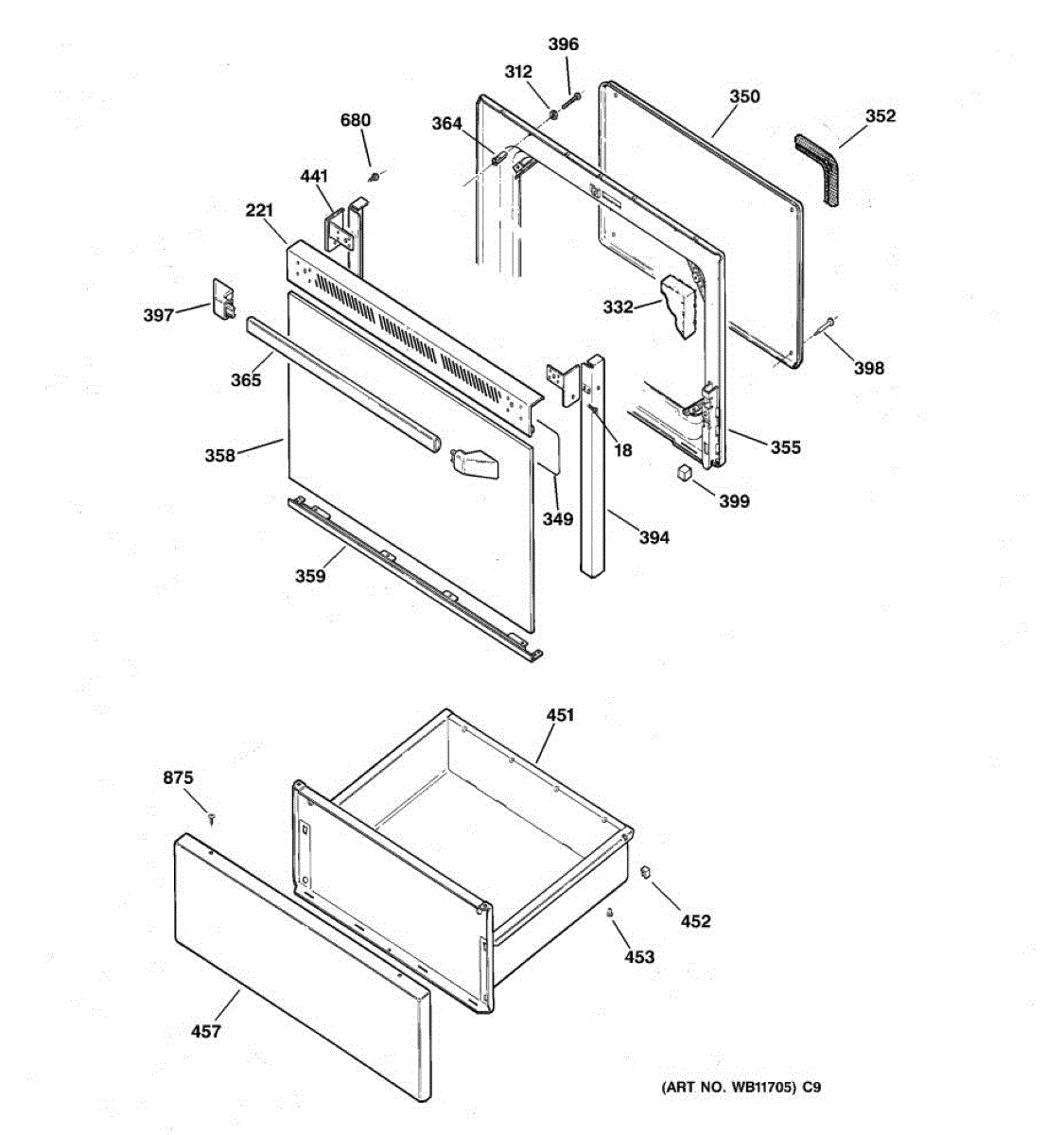

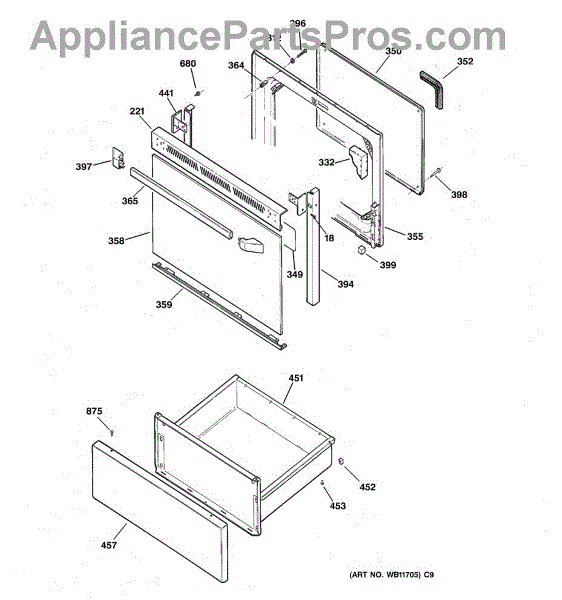

Parts for Ge JBP19BB1: 03 - Door Parts

Includes 12 washers.

The Oven Door Gasket is an OEM replacement part for GE ranges and wall ovens. It provides a secure seal around the oven door to contain heat within the cooking cavity. The gasket is essential for efficient operation as it helps maintain optimal cooking temperatures.

Causes of a bad door gasket can include heat damage over time, warping from repeated door openings and closings, or accidental tears and ruptures.

Symptoms of a bad oven door gasket include:

• Excessive heat loss around the door area
• Inconsistent or inefficient cooking performance
• The door not sealing properly, allowing heat to escape
• Rust or corrosion on interior door parts

This OEM GE part is compatible with GE, Hotpoint, Monogram, and certain Kenmore wall oven models.

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Handle is an OEM part for  GE ovens and ranges. It serves as the primary means of opening and closing the oven door, allowing you to access the interior for cooking, cleaning, or maintenance purposes. Order 2 of part number AP3623187 for the end caps.

Symptoms of a bad Oven Handle:

• Loose or wobbly handle
• Difficulty opening or closing the oven door
• Cracks or breaks in the handle material
•  Sharp edges posing a potential safety hazard

Causes of a bad oven handle can include excessive force during operation, wear and tear from regular use, or accidental impacts that may lead to cracks or breakage.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left hand side

Right hand side

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Door Handle Endcap is an OEM part for GE ovens. This endcap attaches to the ends of the oven door handle, providing a finished look and ensuring a secure grip for opening and closing the oven door.

You should replace the oven door handle endcap if it becomes cracked, broken, or loose. Causes of a bad endcap can include frequent use, accidental impact, or exposure to high temperatures that can weaken the material over time.

Symptoms of a bad oven door handle endcap include:

• The handle feeling loose or wobbly
• Cracks or visible damage on the endcap
• Difficulty in opening or closing the oven door
• The endcap detaching from the handle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

Black. 8-18 AB HXW 3/8
