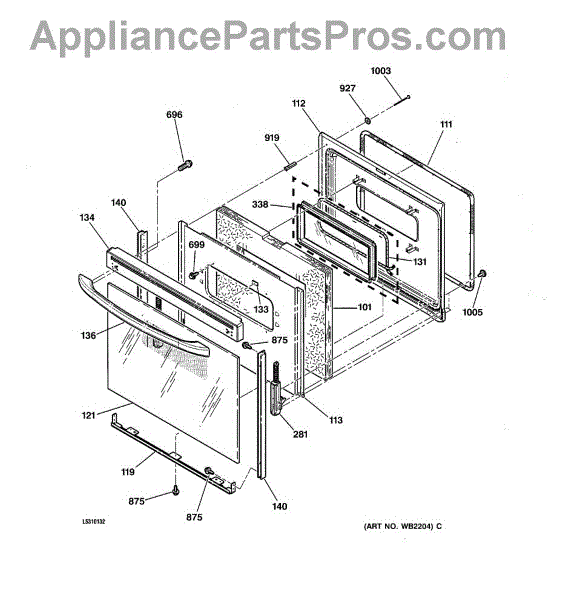

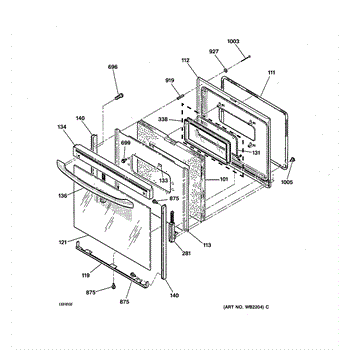

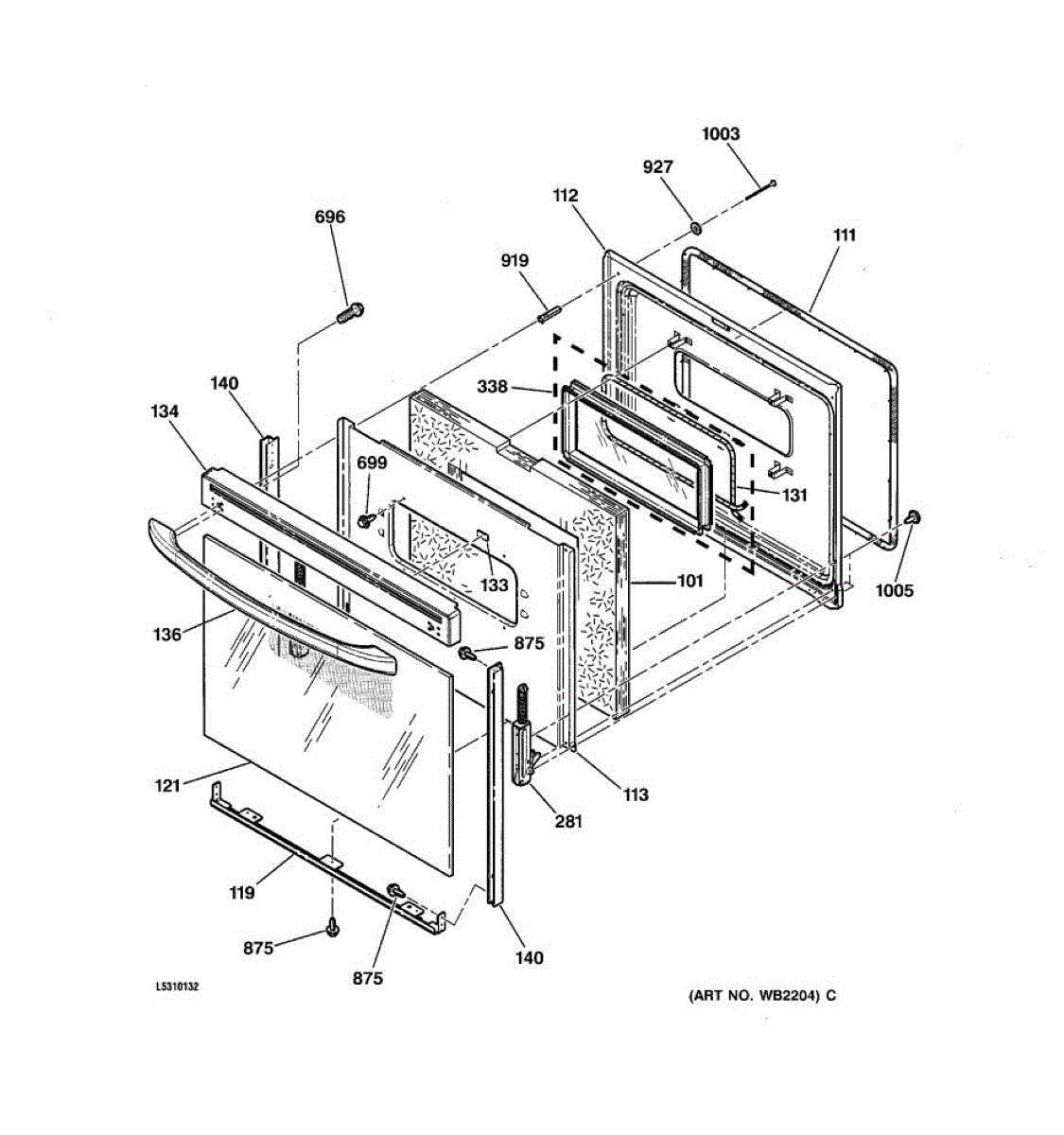

Parts for Ge JBP65WC4WW: 04 - Door Parts

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Trim Channel is an OEM part for GE electric ranges. As an essential cosmetic component, it works to cover and seamlessly conceal the area along the bottom perimeter of the range.

Causes of a faulty trim channel can include damage from impact or abrasion, degradation of material finishes from repeated cleaning, or loose fittings from normal stresses of use over time.

Symptoms include:

• Gaps visible between the channel and appliance bottom
• Scuffs, cracks, or breaks in the trim piece surface
• Loose or improper positioning of channel attachment clips

Color: White

This GE replacement restores a sleek, professional look while protecting internal components from spills and debris ingress. Compatible with Hotpoint, RCA, and select Kenmore models as well, it prevents future repairs from minor aesthetic issues. Keep your range looking its best!


This small, white oven door glass replaces a damaged viewing window on your appliance's door. Restore a clean look and safe visibility while helping the door contain heat and perform as designed.

• Serves as the door's viewing window and part of the multi-pane insulating system
• Replace if the glass is cracked, shattered, scratched, or permanently hazy
• Can help address poor visibility through the window or heat escaping from a damaged pane
• Safety-first: Broken tempered glass should be replaced promptly to avoid injury

• Disconnect power at the breaker (and shut off gas supply for gas units); allow the oven to cool completely
• Wear cut-resistant gloves and eye protection; handle tempered glass carefully
• Removing the door and laying it face-down on a padded surface can simplify the swap
• Transfer any trim/brackets from the old pane; do not overtighten screws and ensure gaskets/spacers are properly seated

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is the door pad. Consider replacing both when replacing trim number WB07T10230

Consider replacing both door pads part number WB01T10026

This White Door Handle is an OEM replacement part for GE ranges. Located on the oven door, this handle provides a means of safely accessing the cooking cavities. As contact points, this durable handle allows withstanding high-heat openings and closings.

Causes can be normal wear and tear over many heating cycles, repeated heavy impacts from storage items, or long-term UV exposure breaking down surface finishes.

Symptoms of a bad door handle may include:

• Breaks, cracks, or splits appearing in the plastic or coating
• Discoloration, fading, or peeling removing their clean look
• Wobble, looseness, or difficulty opening/closing the door due to wear

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Side Door Trim is an OEM part for GE ovens. This trim piece is designed to fit along the edge of the oven door, providing a finished look and helping to seal the door properly when closed. It contributes to the overall aesthetics of the oven and ensures efficient heat retention during cooking.

Causes of a bad side door trim can include accidental impact, heat damage over time, or general wear and tear from frequent use. A damaged trim can lead to inefficient sealing, affecting the oven’s cooking performance and energy efficiency.

Symptoms of a bad side door trim include:

• Visible cracks or damage on the trim
• The oven door not sealing properly
• Heat escaping from the sides of the oven door
• The oven door appearing misaligned

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Window Pack Assembly is an OEM replacement part for GE electric ranges. It provides a safe, transparent barrier for viewing cooking progress inside the oven cavity. The glass measures 17 x 7 inches.

Causes for needing replacement include cracks or chips developing over time due to consistent thermal expansion and contraction during cooking cycles. Surface scratches from harsh or abrasive cleaners are another culprit.

Symptoms of a faulty window pack include:

• Reduced visibility into the oven makes it difficult to monitor foods
• Cracks or fractures compromising the integrity of the glass
• Chips or gouges that could potentially fall into foods being cooked
• An ill-fitting window allowing heat to escape and decreasing efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
