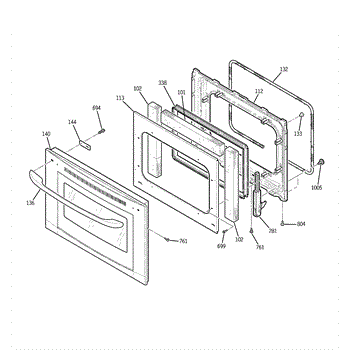

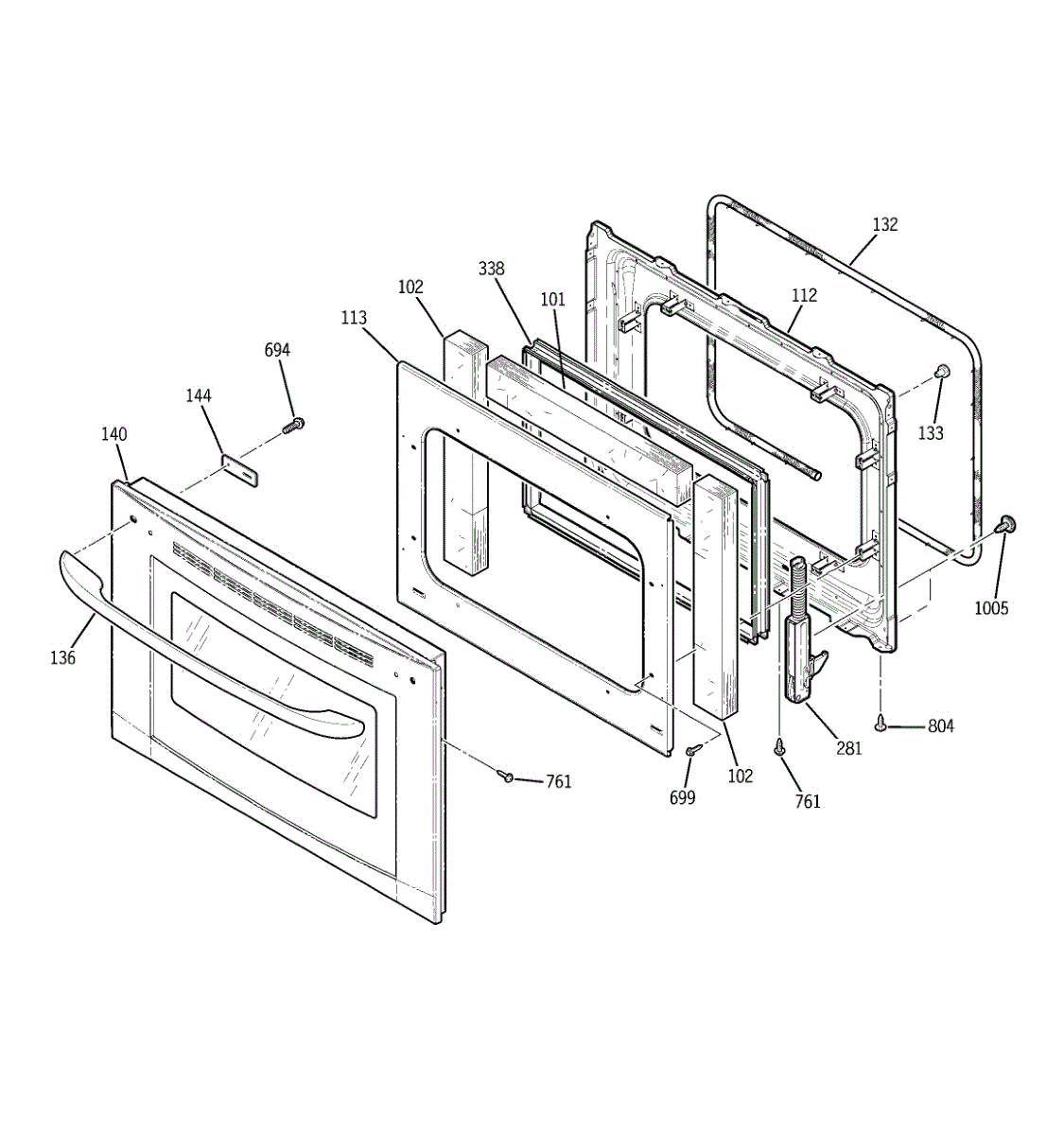

Parts for Kenmore 911.47713201 (91147713201, 911 47713201): Door Parts

Insulation pad that installs behind the oven inner door liner to retain heat. Replace if worn, damaged, water-logged, or missing to restore proper insulation.

Thermal insulation that fits between inner and outer oven door panels along the side edge. Replace when burnt, brittle, cracked, or missing from wear.

Insulation retainer panel that secures the thermal insulation on your oven door. Replace if cracked, broken, or missing to restore proper door assembly.

Seals oven door to retain heat and improve efficiency. Replace when hard, cracked, or damaged to prevent heat loss. Clips on in minutes—no tools needed.

Rubber door bumper cushions and stabilizes your oven door. Replaces worn, cracked, or missing bumpers that cause rattling or uneven door closure.

Seals and cushions your oven door to reduce vibration and rattling. Replace when worn to restore proper spacing and eliminate air leaks. Verify fit.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Inner glass assembly for oven doors. Replace when cracked, shattered, or broken to restore door visibility and insulation. Verify fit with your model number.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

Hex washer head screw secures panels, brackets, and shields inside your appliance. Replace missing, stripped, or corroded fasteners for proper fit.

ST10-16 X 7/16"

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
