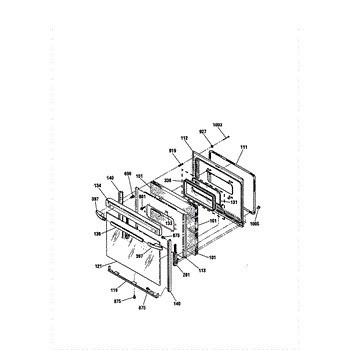

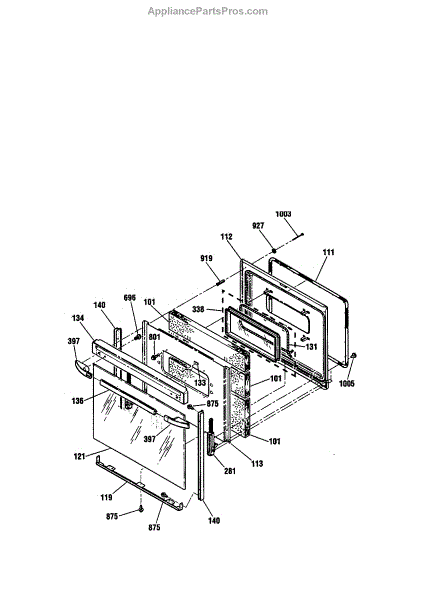

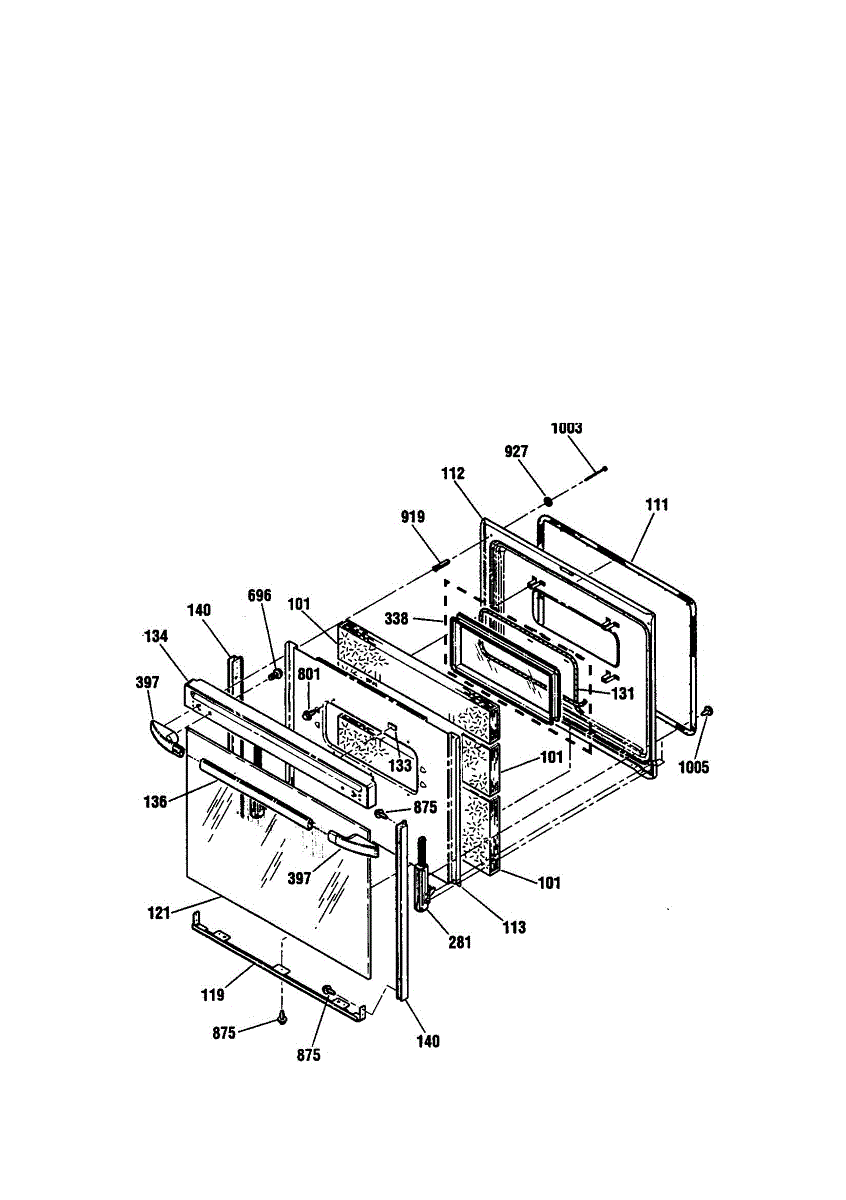

Parts for Kenmore 911.92502990 (91192502990, 911 92502990): Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Trim Channel is an OEM part for GE electric ranges. As an essential cosmetic component, it works to cover and seamlessly conceal the area along the bottom perimeter of the range.

Causes of a faulty trim channel can include damage from impact or abrasion, degradation of material finishes from repeated cleaning, or loose fittings from normal stresses of use over time.

Symptoms include:

• Gaps visible between the channel and appliance bottom
• Scuffs, cracks, or breaks in the trim piece surface
• Loose or improper positioning of channel attachment clips

Color: White

This GE replacement restores a sleek, professional look while protecting internal components from spills and debris ingress. Compatible with Hotpoint, RCA, and select Kenmore models as well, it prevents future repairs from minor aesthetic issues. Keep your range looking its best!


This small, white oven door glass replaces a damaged viewing window on your appliance's door. Restore a clean look and safe visibility while helping the door contain heat and perform as designed.

• Serves as the door's viewing window and part of the multi-pane insulating system
• Replace if the glass is cracked, shattered, scratched, or permanently hazy
• Can help address poor visibility through the window or heat escaping from a damaged pane
• Safety-first: Broken tempered glass should be replaced promptly to avoid injury

• Disconnect power at the breaker (and shut off gas supply for gas units); allow the oven to cool completely
• Wear cut-resistant gloves and eye protection; handle tempered glass carefully
• Removing the door and laying it face-down on a padded surface can simplify the swap
• Transfer any trim/brackets from the old pane; do not overtighten screws and ensure gaskets/spacers are properly seated

This is the door pad. Consider replacing both when replacing trim number WB07T10230

Color: White

The Oven Window Pack Assembly is an OEM replacement part for GE electric ranges. It provides a safe, transparent barrier for viewing cooking progress inside the oven cavity. The glass measures 17 x 7 inches.

Causes for needing replacement include cracks or chips developing over time due to consistent thermal expansion and contraction during cooking cycles. Surface scratches from harsh or abrasive cleaners are another culprit.

Symptoms of a faulty window pack include:

• Reduced visibility into the oven makes it difficult to monitor foods
• Cracks or fractures compromising the integrity of the glass
• Chips or gouges that could potentially fall into foods being cooked
• An ill-fitting window allowing heat to escape and decreasing efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Includes 12 washers.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
