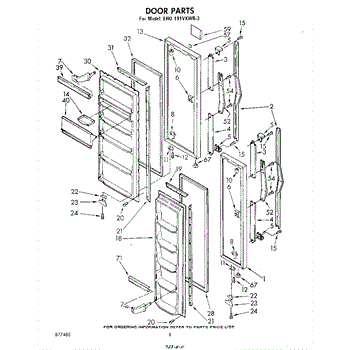

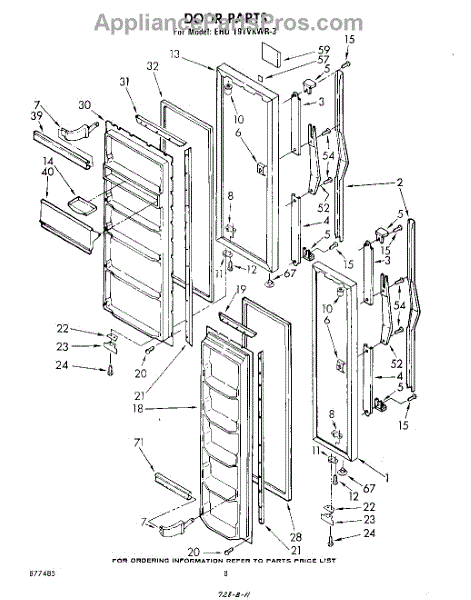

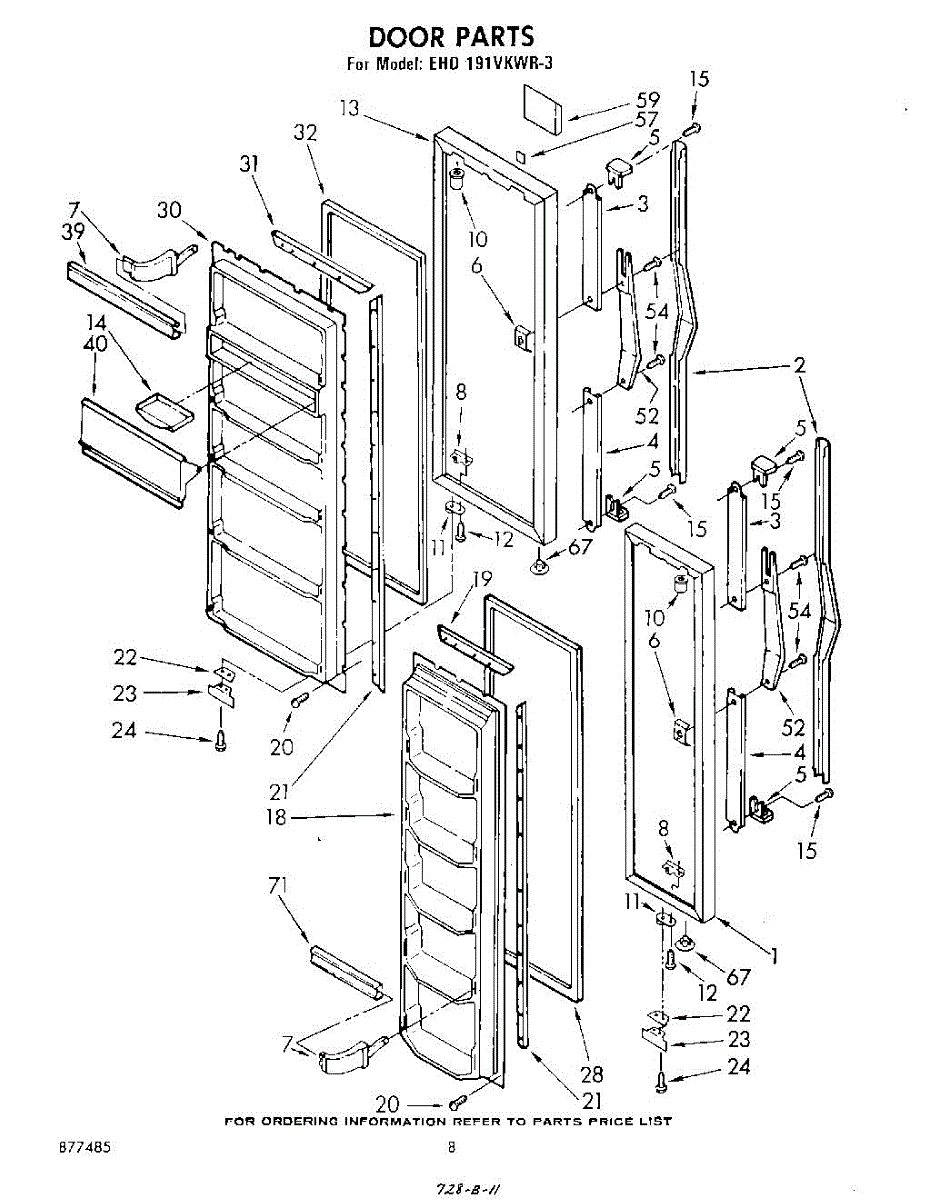

Parts for Whirlpool EHD191VKWR3: 05 - Door , Lit / Optional Parts

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels

The End Cap is an OEM part for Whirlpool refrigerators, designed to cap and secure the ends of refrigerator shelf bars on the door, preventing them from sliding out and providing a finished look.

Causes of a bad End Cap can range from normal wear and tear to accidental damage, such as overloading the door shelves or impact from storing and removing items.

Symptoms of a bad End Cap include:

• Door shelf bars becoming loose or falling out
• Difficulty in keeping items secure on the door shelves
• Visible cracks or breaks in the end caps

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

Chrome. No longer made in black.

This freezer door gasket creates a tight seal around the door to keep cold air in and humid air out. Replacing a worn gasket restores proper temperature control, reduces frost, and helps the door close and seal correctly.

• Seals the gap between the freezer door and cabinet to maintain cold temperatures
• Blocks warm, moist room air that can cause frost and ice buildup
• Helps prevent sweating/condensation around the door perimeter
• Addresses issues from torn, shrunken, brittle, or deformed gaskets that won't seal

• Disconnect power before servicing; clear items from the door
• Lay gasket flat and warm gently (hot water or low heat) to relax kinks before installation
• Loosen inner-liner screws/retainer, press gasket fully into the channel, then tighten screws evenly
• Perform a dollar-bill test around the perimeter; gently warm stiff areas to smooth and adjust door alignment if needed

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the refrigerator door, ensuring that cold air stays inside and warm air remains outside, maintaining the appliance's efficiency and keeping food fresh.

Causes of a bad door gasket can include regular wear and tear, mold or mildew buildup, and physical damage from repeated opening and closing of the door.

Symptoms of a bad refrigerator door gasket include:

• Warm air entering the refrigerator, causing it to run more frequently
• Condensation or frost buildup inside the refrigerator
• Difficulty keeping the door closed
• Visible cracks, tears, or deformation in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Epoxy repair kit - aluminum tubing.

Bottle with brush. Color: New avocado. Size: 0.6 fl.oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
