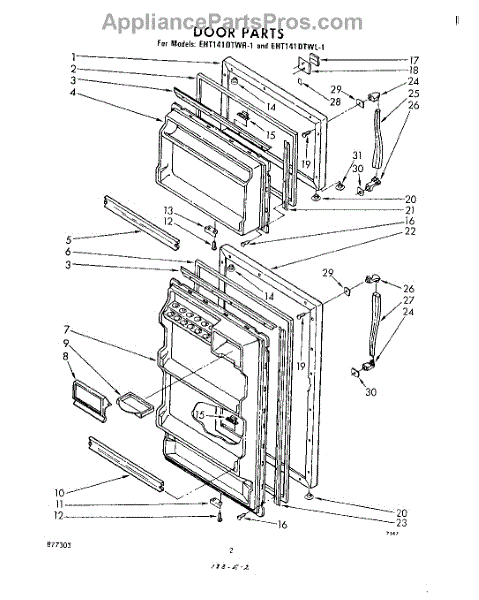

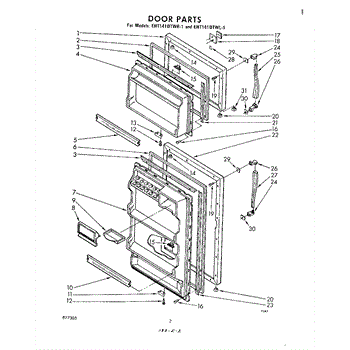

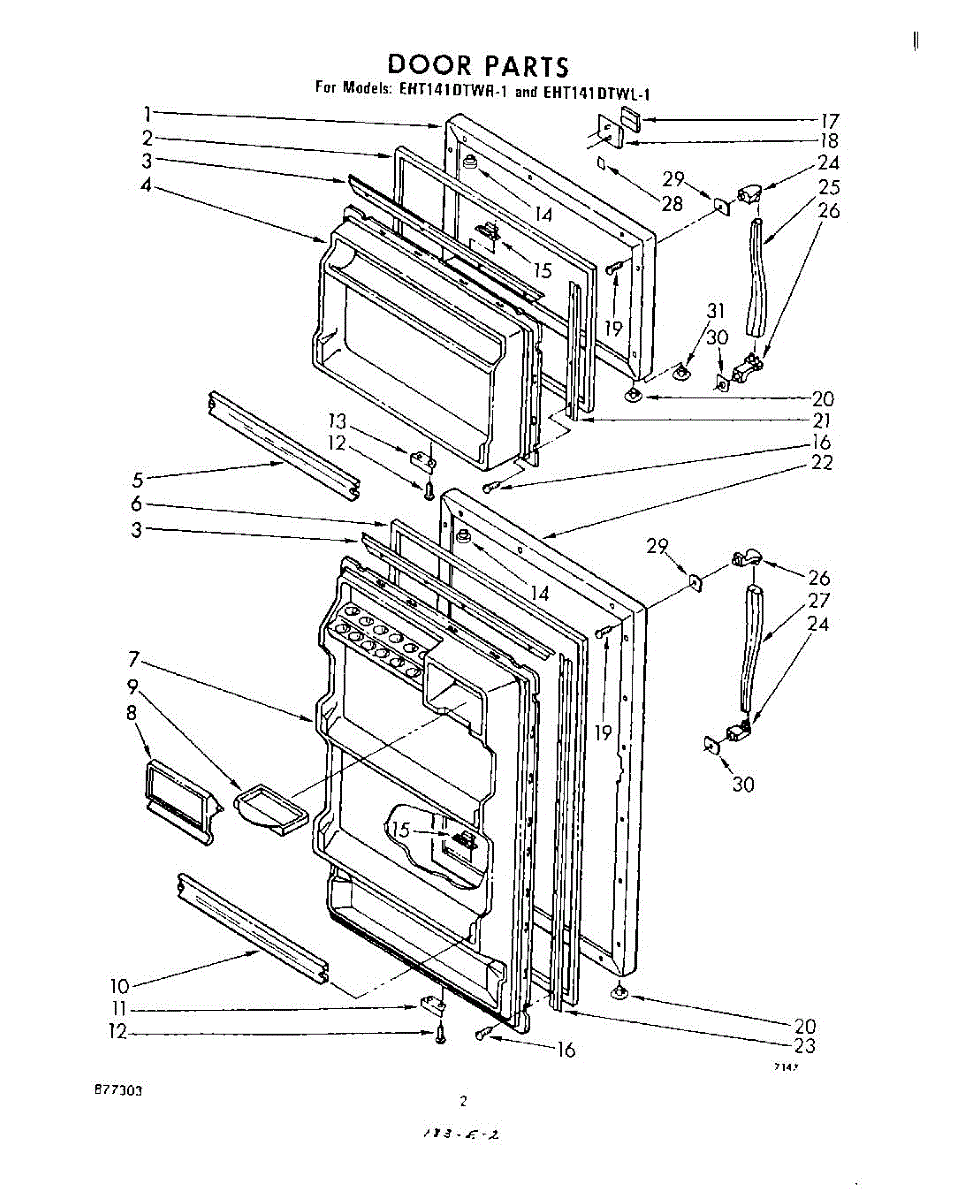

Parts for Whirlpool EHT141DTWR1: 02 - Door , Lit / Optional Parts

This freezer door gasket forms an airtight seal between the door and cabinet to keep cold air in and humid air out. Replacing a worn gasket helps maintain temperature, reduce frost, and improve efficiency. What it does:

• Seals the perimeter of the freezer door to prevent air leaks
• Helps maintain stable freezer temperature and proper freezing performance
• Reduces warm air infiltration that leads to frost and moisture
• Common symptoms of a failing gasket: tears or warping, frost along door edges, condensation around the door, poor sealing or door popping open, longer run times

• 1 freezer door gasket

• Disconnect power before servicing; open the door and clear the work area
• Warm the new gasket in hot water or with low heat to relax folds; clean the sealing surfaces
• If your model uses a screw-on retainer, loosen screws to remove the old gasket and install the new one evenly; if it press-fits, seat the gasket lip fully into the channel, aligning corners
• After installation, verify an even seal all around; adjust hinges/leveling if needed and use low heat to smooth waves; test with a dollar-bill test

This part has been discontinued and is no longer available.

This refrigerator door gasket seals the fresh food compartment door to restore an airtight closure. A proper seal helps keep cold air in, limit moisture intrusion, and support stable temperatures and efficiency.

• Creates a tight seal between the fresh food door and cabinet
• Helps maintain interior temperature and reduce energy loss
• Limits condensation and frost near the door opening
• Worn, torn, or misshapen gaskets may cause warm spots, sweating, or doors that won't close fully

• Unplug the refrigerator before servicing.
• Pull the inner lip from the door retainer to remove; some models require loosening liner screws hidden under the gasket edge.
• Warm the new gasket (warm water or gentle heat) to relax folds, then press the lip fully into the channel.
• Close the door and check for uniform contact; adjust hinges or re-tighten liner screws as needed.

This part has been discontinued and is no longer available.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

Specs: 10-16 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Handle Kit is an OEM part for Whirlpool refrigerators. It contains both door handles, linkage, fasteners, and installation instructions needed to operate the refrigerator doors. Please note: Handle may be longer, this is a "cut to fit" design. For white order WP2162555. No longer made in almond. Includes both refrigerator and freezer door handles.

Symptoms of a bad door handle kit include:

• Difficulty opening the refrigerator door(s)
• Handles no longer latches the doors securely closed
• Loose, wobbly, or sagging door handles
• Damaged finishes on the plastic handle components

Causes can be normal wear and tear over years of use, brute force twisting of the handles, or issues related to over-tightened door gaskets putting pressure on the linkage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Handle Kit is an OEM part for Whirlpool refrigerators. It contains both door handles, linkage, fasteners, and installation instructions needed to operate the refrigerator doors. Please note: Handle may be longer, this is a "cut to fit" design. For white order WP2162555. No longer made in almond. Includes both refrigerator and freezer door handles.

Symptoms of a bad door handle kit include:

• Difficulty opening the refrigerator door(s)
• Handles no longer latches the doors securely closed
• Loose, wobbly, or sagging door handles
• Damaged finishes on the plastic handle components

Causes can be normal wear and tear over years of use, brute force twisting of the handles, or issues related to over-tightened door gaskets putting pressure on the linkage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Epoxy repair kit - aluminum tubing.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Bottle with brush. Color: New avocado. Size: 0.6 fl.oz.

Sealer for refrigerant line insulation.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Almond

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
