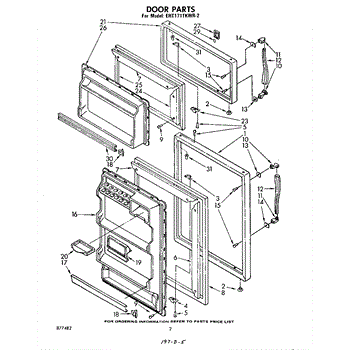

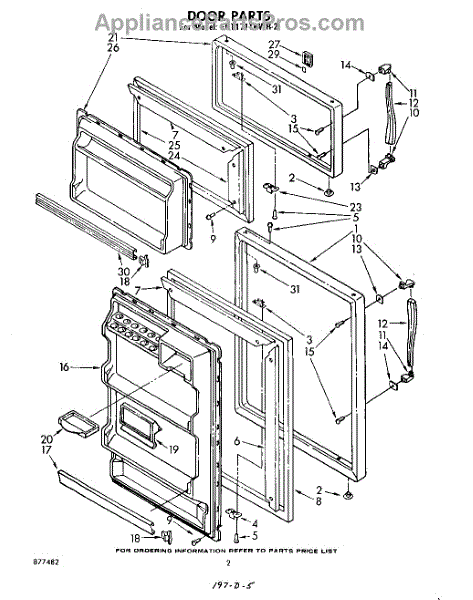

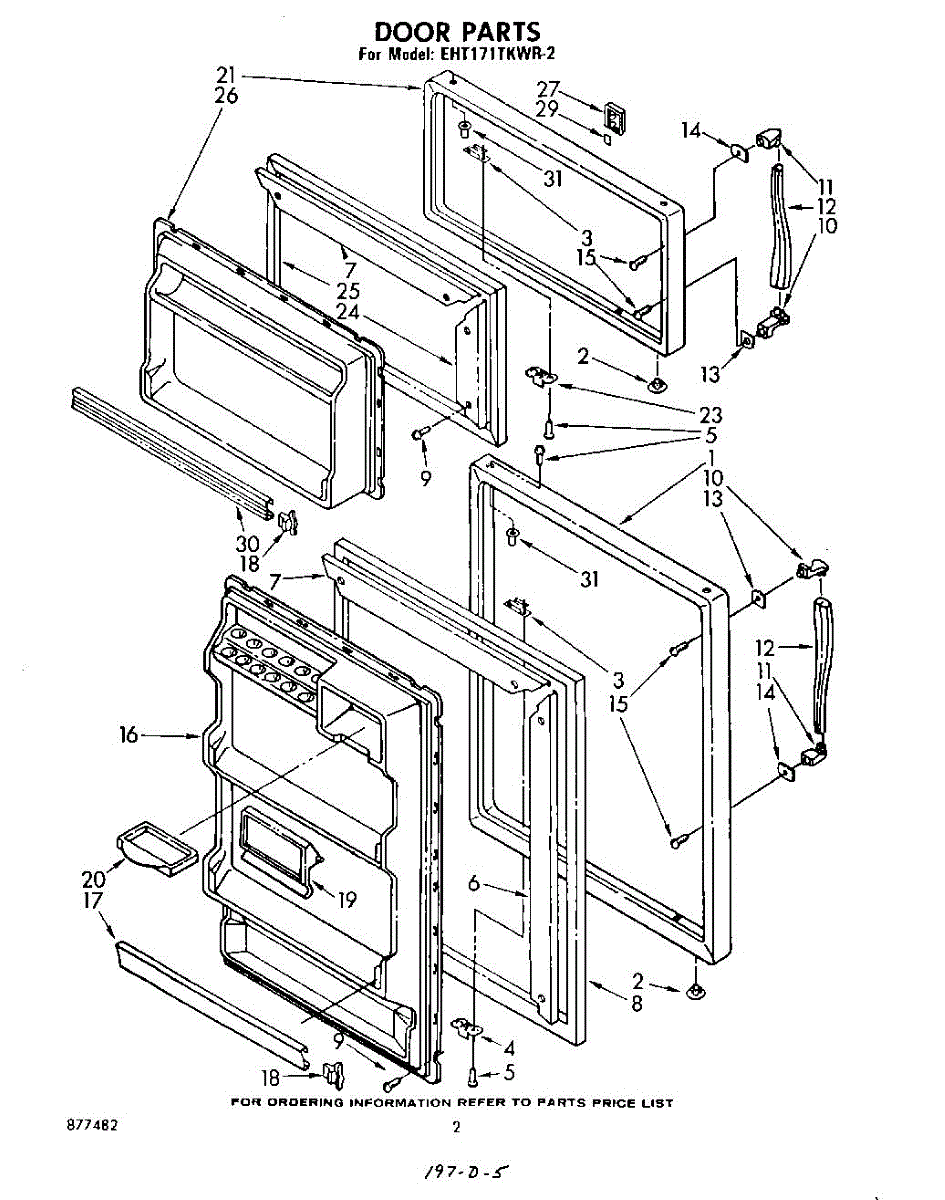

Parts for Whirlpool EHT171TKWR2: 02 - Door, Lit / Optional Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

This is the perimeter seal for the refrigerator's fresh food compartment door. It restores an airtight seal to keep cold air in and humid room air out, helping maintain temperature, reduce condensation, and improve overall efficiency.

• Seals the fresh food door opening to prevent air leaks
• Helps stabilize internal temperature and reduce run time
• Replace if torn, cracked, deformed, or not sealing evenly
• Symptoms can include condensation or moisture around the door, warm spots, frost near the door edge, or the door not closing fully

• Disconnect power; allow the door area and new gasket to warm to room temperature
• Soften the new gasket in warm water to relax bends before installation
• Remove the old gasket; seat the new one fully into the channel, starting at the corners—do not stretch
• Use gentle, low heat (hair dryer) to smooth waves; perform a "paper test" around the perimeter and adjust hinges if needed

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

The Door Handle Kit is an OEM part for Whirlpool refrigerators. It contains both door handles, linkage, fasteners, and installation instructions needed to operate the refrigerator doors. Please note: Handle may be longer, this is a "cut to fit" design. For white order WP2162555. No longer made in almond. Includes both refrigerator and freezer door handles.

Symptoms of a bad door handle kit include:

• Difficulty opening the refrigerator door(s)
• Handles no longer latches the doors securely closed
• Loose, wobbly, or sagging door handles
• Damaged finishes on the plastic handle components

Causes can be normal wear and tear over years of use, brute force twisting of the handles, or issues related to over-tightened door gaskets putting pressure on the linkage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door trim retainer replaces a broken or missing end cap that holds the door shelf rail/retainer bar in place on the refrigerator or freezer door. It keeps the rail secured so door-shelf contents are properly contained.

• Secures the door shelf trim/retainer bar to the door liner
• Helps keep the rail aligned and prevents it from loosening or falling off
• Replace when the end cap is cracked, missing, or won't hold the rail
• Common symptoms: loose or sagging door rail, bar popping off, gaps at the rail ends

• Disconnect power before servicing
• Support the rail, then release and remove the damaged end cap
• Reuse existing screws/fasteners if your model uses them
• Align and snap/secure the new end cap; ensure the rail is fully seated

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This freezer door gasket seals the door to the cabinet to keep cold air in and humid air out. Replacing a worn gasket restores a proper seal, helping maintain temperature and reducing frost and condensation around the door.

• Creates a continuous perimeter seal between the freezer door and cabinet
• Helps stabilize freezer temperatures and limits warm-air leaks that can lead to frost/ice buildup
• Common failure signs: torn or hardened gasket, visible gaps, moisture or ice near the door
• Almond color to match compatible units

• Disconnect power to the refrigerator before servicing
• Warm the new gasket in hot water or with low heat to relax folds, then start at the corners and work evenly around the door
• On screw-retained styles, loosen perimeter screws and tuck the gasket lip under the retainer; tighten evenly
• After installation, check seal with a dollar-bill test and allow up to 24 hours for the gasket to fully conform

Epoxy repair kit - aluminum tubing.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Bottle with brush. Color: New avocado. Size: 0.6 fl.oz.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
