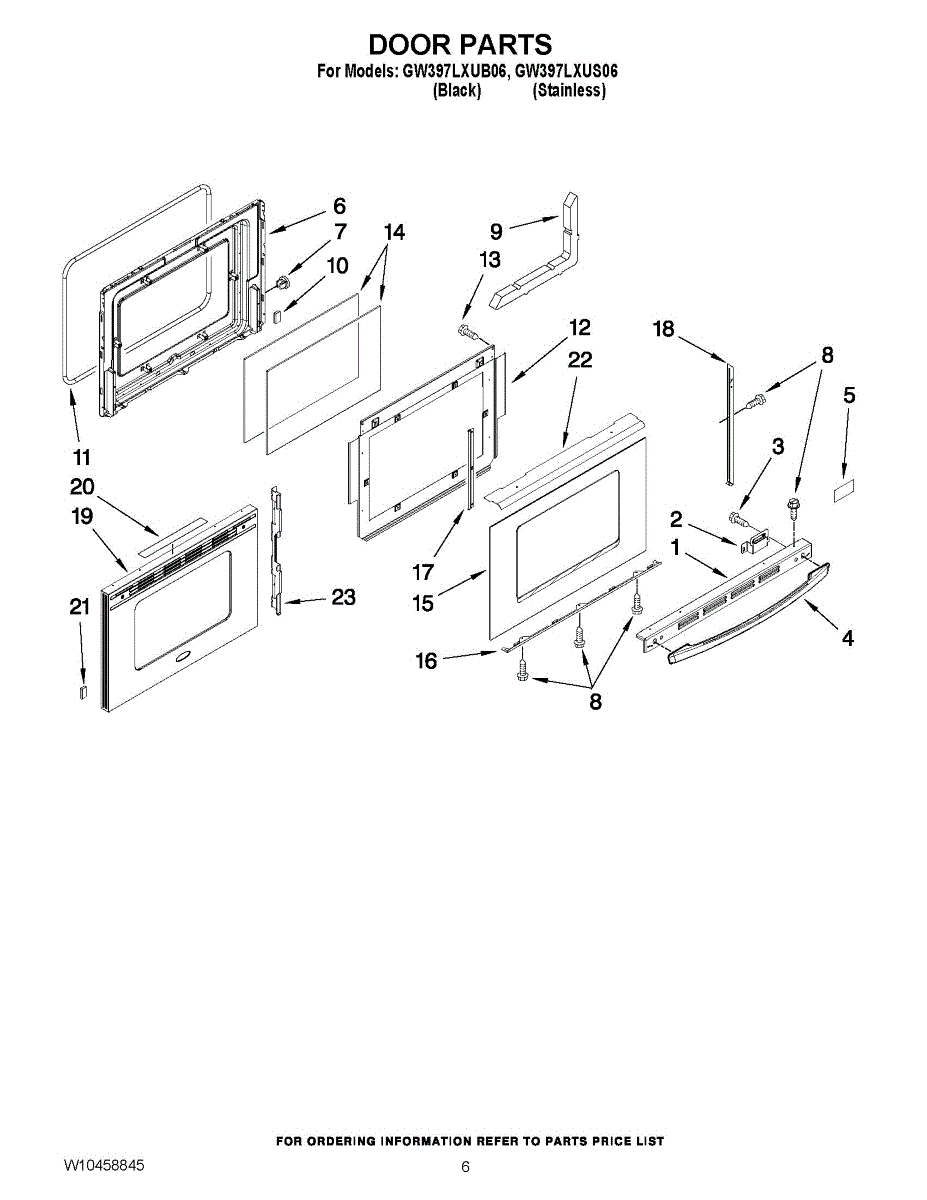

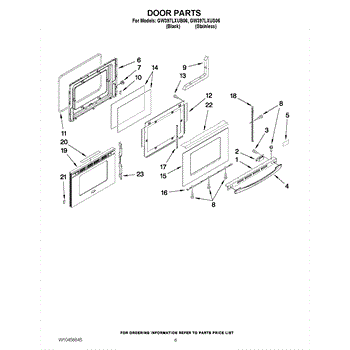

Parts for Whirlpool GW397LXUS06: 04 - Door Parts

This mounting bracket secures internal appliance components to the cabinet or frame, restoring stable support and proper alignment for the attached assembly. It's a direct-fit replacement when the original bracket is bent, broken, or missing. What it does:

• Provides a solid attachment point to keep components aligned and secure
• Prevents vibration, rattling, or movement caused by a damaged or missing bracket
• Restores correct positioning for connected parts so they operate reliably
• Helps maintain sealing and clearance by holding panels or assemblies in place

• One mounting bracket as pictured

• Inspect surrounding fasteners and mounting points; replace any stripped screws or clips
• Use the same screw locations and hardware type as the original for proper fit
• Disconnect power and remove any nearby panels before accessing the bracket to avoid injury

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Stainless

Color: Black. Round

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Oven Door Gasket is an OEM part for Whirlpool ovens. This gasket is essential for maintaining a proper seal around the oven door, preventing heat from escaping and ensuring efficient cooking performance. The gasket measures approximately 76.66" in total length with a diameter of about 0.47", it features 25 built-in metal retaining clips.

Causes of a bad oven door gasket can include regular wear and tear, exposure to high temperatures over time, or accidental damage from cleaning or handling. A compromised gasket can lead to heat loss, which affects cooking times and energy efficiency.

Symptoms of a bad oven door gasket include:

• Heat escaping from the oven door
• Longer cooking times
• Visible cracks or tears in the gasket
• The oven door not closing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

This glass mounting bracket secures the oven door glass to the door frame, restoring a stable, properly aligned door and helping prevent rattling or loose glass. Designed to replace a worn, broken, or missing bracket. What it does:

• Holds the oven door glass in place so the door closes and seals correctly
• Prevents glass from shifting, rattling, or coming loose during use
• Restores proper alignment after a cracked, bent, or missing bracket
• Works with the door assembly to maintain safe, reliable operation

• Disconnect power to the appliance before beginning any repair; allow surfaces to cool.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Replacement typically requires partial door disassembly; keep fasteners organized for reassembly.
• Tighten fasteners securely but avoid over-torquing; inspect surrounding clips and gaskets while installing.
