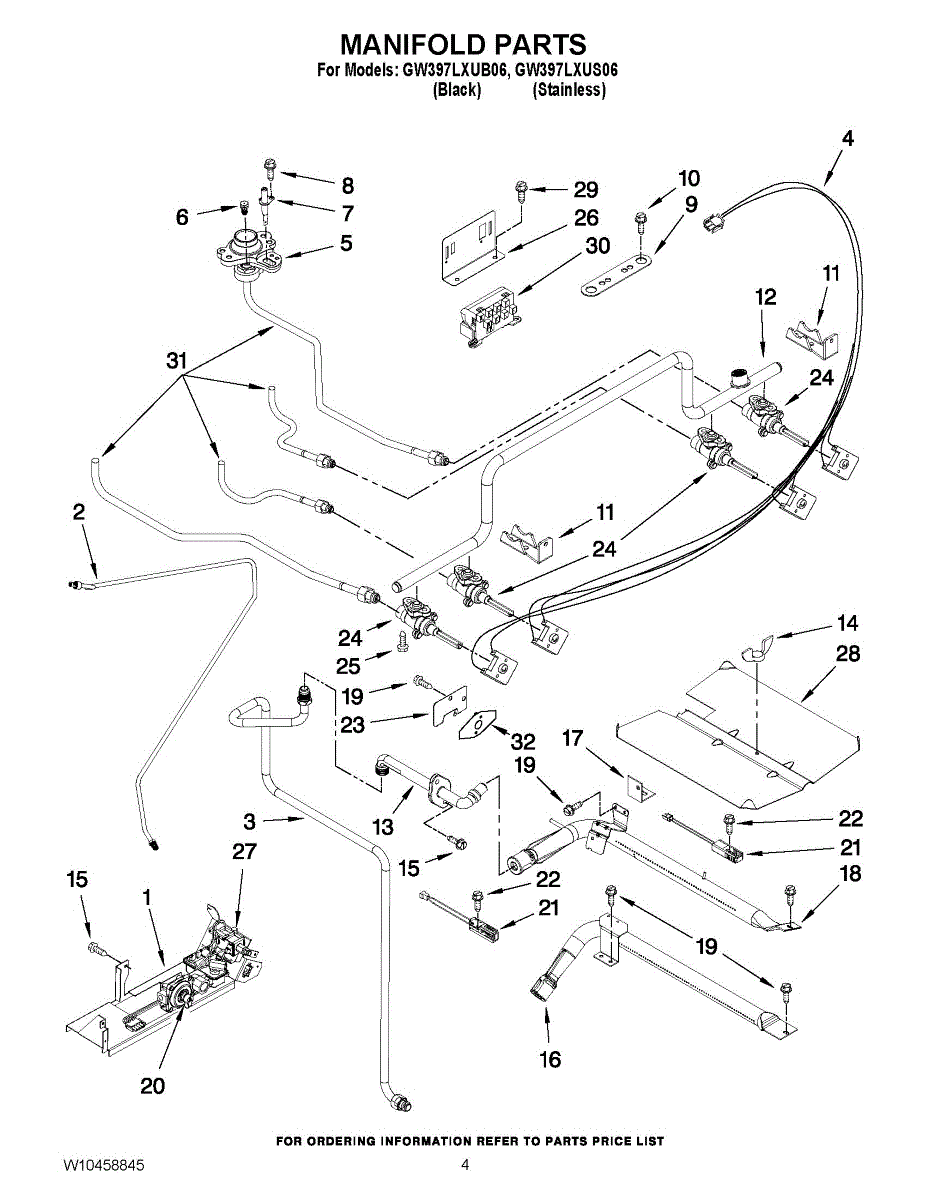

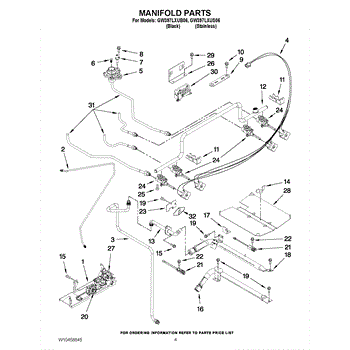

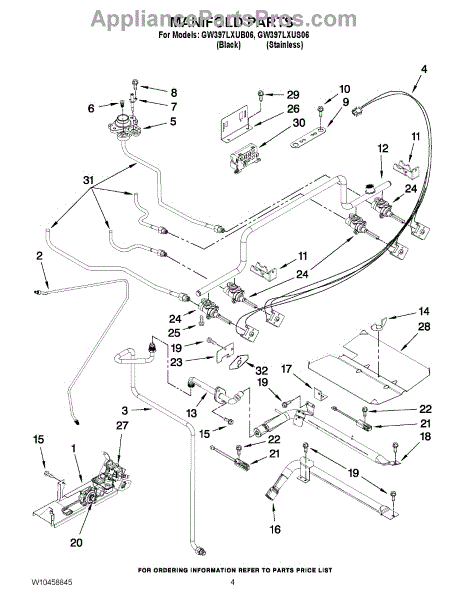

Parts for Whirlpool GW397LXUS06: 03 - Manifold Parts

This orifice holder secures the gas orifice/nozzle at the burner to help deliver fuel for consistent ignition and flame performance. It's a direct-replacement part used on compatible gas cooktop and range burners. What it does:

• Holds the gas orifice/nozzle in the correct position for proper gas flow to the burner
• Helps maintain steady ignition and an even flame across the burner
• Can prevent gas leaks or misdirected flow when installed correctly
• Commonly replaced when burners have weak, uneven, or no flame

• One orifice holder

• Turn off the appliance, shut off the gas supply, and disconnect power before servicing
• Use appropriate hand tools; avoid overtightening to prevent damage
• Inspect or replace any damaged gaskets or fittings and test for leaks after installation

G4 orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for reliable ignition and a consistent flame. Replaces a damaged or worn holder to help restore proper burner flame behavior. What it does:

• Holds and positions the gas orifice in the burner tube for correct flame pattern and stability.
• Ensures consistent ignition and steady flame when the burner is operating normally.
• Common symptom indicators: burner won't light reliably, flame is weak or uneven, or burner performance is inconsistent.

• Turn off the appliance power and shut off the gas supply before beginning work.
• Inspect the orifice and burner tube for debris and proper alignment during installation.
• Tighten fasteners snugly but avoid overtightening; ensure the orifice is properly seated and oriented.
• After installation, check for correct ignition and perform a gas-leak check.

This surface burner spark electrode creates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode helps restore quick, reliable ignition and can reduce excessive clicking at the affected burner. What it does:

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure fast, consistent ignition for the specific burner
• Common symptoms can include no spark/no light at one burner, weak or intermittent sparking, or continuous clicking from a damaged/contaminated insulator
• For the surface burner ignition circuit

• 1 spark electrode

• Disconnect power and shut off gas before servicing; allow the cooktop to cool completely
• Remove burner cap and head to access the electrode; note wire routing and connection
• Transfer/reuse any mounting hardware; avoid stressing or cracking the ceramic insulator
• Align the tip to the burner per service information and ensure all connections are secure before restoring power and gas

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Size: 10-24X5/16-NI

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

A small replacement screw used to secure appliance components and panels. This genuine-style fastener restores proper fit and function when original screws are missing, loose, or damaged. What it does:

• Secures panels, brackets, or small components in place
• Restores proper alignment and prevents rattling or movement
• Replaces stripped, corroded, or lost fasteners
• Works where the appliance design calls for this specific screw size and thread

• Use the matching driver size and apply firm, even pressure to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power or move appliance away from utilities when working near electrical or gas components
• Inspect and repair the threaded hole before installing the new screw

This pressure regulator controls the appliance's gas flow to maintain stable burner performance and consistent flames. Use this replacement regulator to address pressure-related burner or ignition issues and help restore normal operation. What it does:

• Regulates incoming gas pressure to the oven/range burners for steady flame height and even heating.
• Helps maintain reliable ignition and consistent cooking temperatures.
• Commonly used when burners sputter, flame height is too high or too low, or ignition is intermittent.
• Works as the pressure-control component in the appliance's gas supply path.

• Turn off the appliance, shut off the gas supply, and disconnect power before servicing.
• Use proper fittings and thread sealant rated for gas; tighten connections to OEM torque specs if available.
• After installation, test all fittings for leaks with an approved method (soap solution or gas leak detector) and restore gas and power only when safe.

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-24X5/16-NI

This surface burner valve regulates gas flow to the 16K burner on your gas range or cooktop, providing smooth flame control from low to high. Replacing a worn valve helps restore proper ignition and precise heat at that high-output position.

• Regulates gas flow to the 16K surface burner through the control knob
• Helps fix issues such as no flame, weak flame, or flame that won't adjust properly
• Replace if the stem is seized, leaking, or will not shut off completely
• Intended for the 16K/high-output burner position—match the valve to its location per the product diagram

• Disconnect electrical power and shut off the gas supply before servicing
• Work in a well-ventilated area; keep open flames and ignition sources away
• Note the valve orientation and tubing connections; install in the correct 16K burner location
• After reassembly, leak-test all gas connections with an approved leak-detection solution before restoring service

This surface burner valve controls the gas flow to a single cooktop burner, providing smooth flame adjustment and positive shutoff. Replacing a worn valve restores safe operation and consistent, controllable burner performance.

• Regulates and meters gas to one surface burner as the control knob is turned
• Provides complete shutoff when the knob is set to Off
• Common symptoms of a failing valve include a stiff/hard-to-turn knob, gas odor at the valve, a burner that won't light even with spark, or a flame that won't adjust or shut off
• Intended for the surface burner manifold

• Disconnect power and shut off the gas supply; allow the appliance to cool before service
• Access the manifold, note/label tube and wire positions, and match the valve's orientation before removal
• Tighten fittings securely; do not overtighten; leak-test all connections with an approved leak-detection solution before restoring gas and power
• After reassembly, verify proper burner operation and flame control

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven valve that controls gas flow to the oven burner, restoring proper ignition and heat so the oven reaches and holds cooking temperature reliably. Replaces a failed valve assembly to recover normal oven operation. What it does:

• Regulates gas to the bake/broil burner so the oven can heat when the ignition system calls for flame.
• Replaces a worn or leaking valve that can cause no-heat or intermittent heating issues.
• Stops or starts gas flow in response to the oven control for safe temperature control.
• Fits the factory mounting and fuel connections used on the original assembly.

• Always shut off electrical power and the gas supply before beginning service.
• After installation, check all gas connections for leaks and verify proper ignition and oven operation before regular use.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This 4-spark ignition module controls the spark for gas burners so your cooktop or range lights reliably. It replaces a worn or failed module to restore consistent ignition and reduce click/no-spark issues. What it does:

• Sends timed spark to up to four burner electrodes for ignition
• Enables safe ignition sequence when burner control is turned on
• Helps eliminate symptoms like intermittent sparking, no spark, or continuous clicking
• Works with the range/cooktop's control system to coordinate ignition

• One 4-spark ignition module

• Disconnect power and shut off gas before attempting service
• Handle module and wiring harnesses carefully to avoid damage to connectors
• Verify proper electrode gap and burner alignment when reassembling
