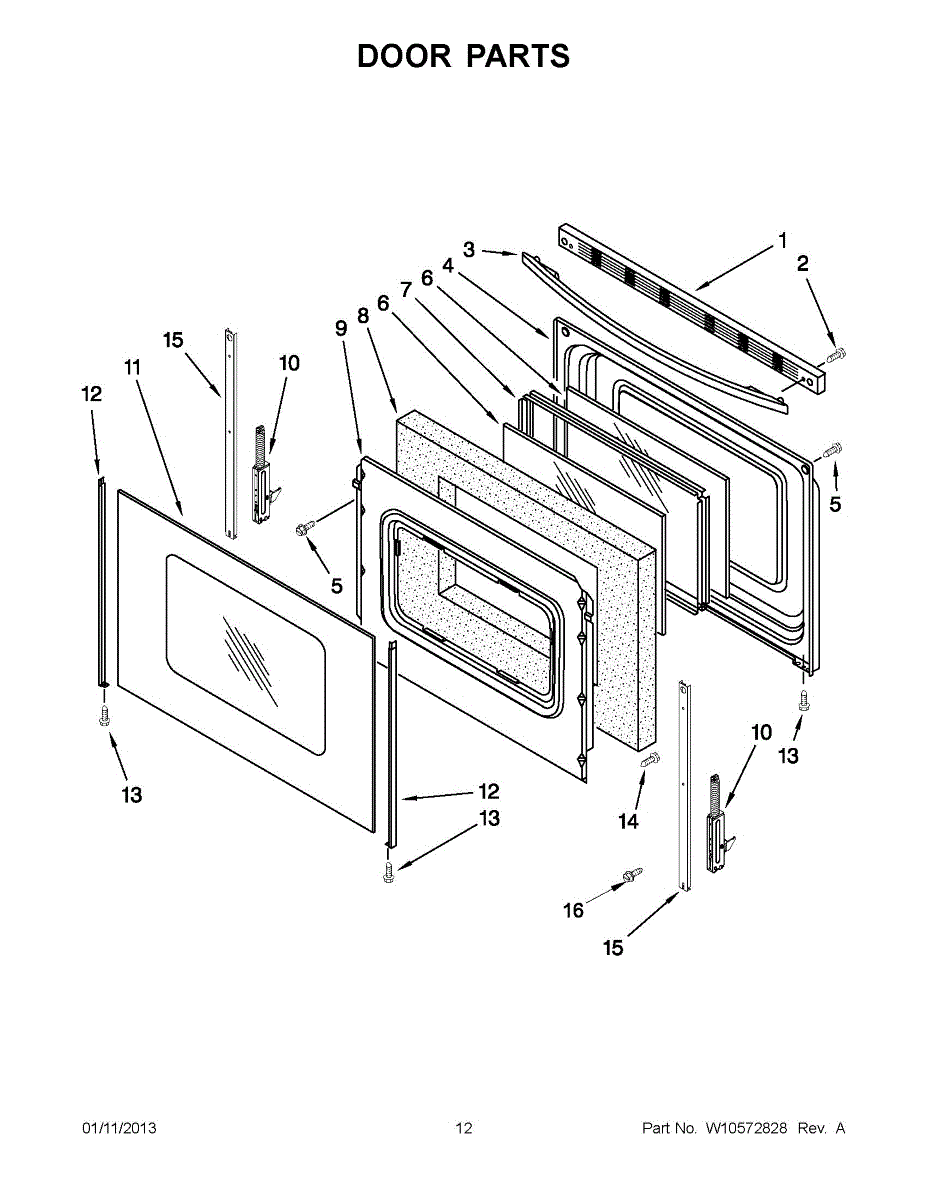

Parts for Whirlpool IGS426AS0: 06 - Door Parts

The Vent Trim is an OEM part for Whirlpool ovens. It is designed to cover and protect the vent openings, which allow heat and steam to escape from the oven cavity. This trim piece not only contributes to the oven's overall aesthetic but also ensures proper ventilation, promoting even cooking and preventing overheating.

Common causes of a bad vent trim include exposure to high temperatures, physical damage from cleaning or impact, or discoloration due to prolonged use. Damaged vent trim can impair ventilation and affect the oven's performance.

Symptoms of a bad Oven Vent Trim include:

• Visible cracks or warping
• Discoloration or fading
• The vent trim not fitting securely or becoming loose
• Reduced ventilation leading to uneven cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Color: Stainless

This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

The Door Hinge is an OEM replacement part for Whirlpool ranges. It acts as the pivot point to allow access to the oven cavity.

Causes of a bad hinge can include wear over time through repeated use. Damage from excessive force or improper handling are also causes.

Symptoms of a bad hinge include:

• Difficulty latching or locking the door securely
• Gaps appearing around the door seal when closed
• The door not staying firmly in the fully open or closed position
• Grinding or grinding noises coming from the hinge area
• Visible damage, bending, or separation of hinge components

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Door Hinge is an OEM replacement part for Whirlpool ranges. This door hinge consists of three parts, the spring, the hinge receiver and the hinge arm, which work together to support the weight of the door and ensure proper alignment. It allows the door to swing open and close securely, providing easy access to the appliance's interior.

Causes of a faulty door hinge can include wear and tear over time, loose or damaged hinge parts, or broken springs.

Symptoms of a bad door hinge:

• Difficulty in opening or closing the oven door
• Loose or sagging door
• Uneven or improper sealing, leading to heat loss

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a glass door outer panel assembly that has been manufactured by Whirlpool for use with ovens. The glass door outer panel assembly contains everything needed to replace a broken or deteriorated door. The door needs to be in proper working order to keep heat-sealed inside the oven, as well as allow the user to easily access the oven. Over time, this part could become dented, bent, scratched, cracked, or otherwise rendered ineffective, requiring replacement. This part may require two people to install as it is heavy. Unplug the oven and allow it to cool down entirely before attempting any repairs.As a genuine OEM part, this part has been sourced directly from the manufacturer and is only sold individually. This glass door outer panel assembly is manufactured from high quality and durable materials to ensure sturdiness. It is intended for use with ovens and ranges manufactured by Whirlpool, Maytag, Kitchenaid, Amana, and Magic Chef.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
