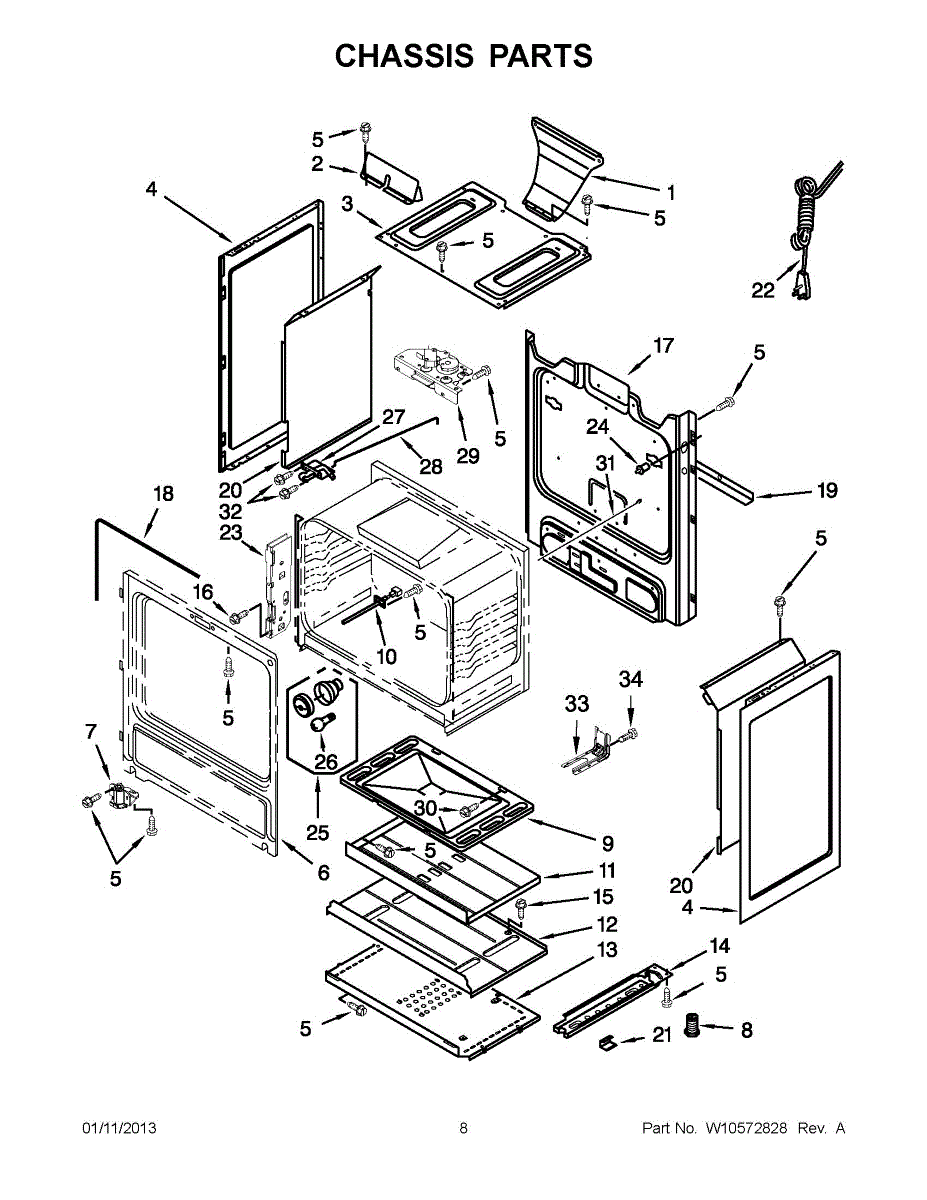

Parts for Whirlpool IGS426AS0: 04 - Chassis Parts

This replacement burner box routes gas and supports the burner components under a gas range cooktop, restoring proper burner alignment and operation. It helps ensure stable flame delivery and safe fuel flow to the surface burner assembly. What it does:

• Houses and positions the burner, orifice and ignition components for proper combustion
• Channels gas from the manifold to the surface burner for consistent flame
• Helps prevent gas leaks by securing fittings and seals in the burner area
• Addresses symptoms such as uneven flames, burner misalignment, or gas smell near the cooktop

• One burner box assembly

• Turn off gas supply and disconnect power before servicing; work only if qualified
• Inspect gaskets, fittings and orifice for wear and replace as needed
• Verify proper seating and alignment of the burner and igniter during reassembly
• Test for leaks with a soap solution and restore gas/electrical connections before normal use

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This leveling foot adjusts the appliance's height at the front to keep the cabinet stable and level. A properly leveled unit helps reduce vibration and noise and ensures doors, drums, and drawers operate smoothly.

• Supports the appliance and provides front height adjustment
• Helps correct rocking, vibration, and excessive noise from an unlevel appliance
• Can improve door alignment and smooth operation when the cabinet is leveled
• Common wear or damage can cause wobbling or difficulty staying level

• Unplug the appliance and, if applicable, turn off the water supply before servicing
• Tip or lift the unit carefully; use a helper to avoid injury
• Thread the new foot into the base and adjust until the cabinet is level and stable
• Tighten any applicable lock nut and recheck level after repositioning the appliance

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This panel forms the floor of the oven, sitting above the bake element or burner to shield it from spills and provide a smooth, stable surface. Replace a warped or damaged panel to help maintain proper heating and easier cleanup. What it does:

• Forms the oven floor above the bake element or burner
• Shields the heat source from drips and debris to help prevent scorching and odors
• Supports designed airflow and heat distribution in the cavity
• Common replacement signs: warped or dented panel, rust or chipped finish, smoke/odors from spills beneath the panel, or uneven baking results

• 1 oven bottom panel

• Disconnect power (and shut off gas supply for gas ranges) before servicing; allow the oven to cool completely
• Remove oven racks; release front fasteners or clips and lift the old panel out of the rear tabs (method varies by model)
• Seat the new panel into rear tabs, align the front edge, and secure as originally installed
• Verify the panel sits flat and clear of the bake element or burner before reassembling

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This burner baffle sits under the cooktop burner to direct heat and protect surrounding components, helping maintain even flame distribution and preventing debris from falling into the burner area. What it does:

• Shields the area under the burner from spills, grease and food debris.
• Helps route heat and combustion gases away from sensitive components.
• Supports stable burner operation and consistent heating performance.
• Commonly replaced when warped, corroded or damaged by spills.

• Turn off gas and power to the appliance before servicing; follow all safety precautions.
• Remove burner grates and caps to access the baffle; use basic hand tools.
• Inspect surrounding components (burner head, igniter) while the baffle is removed.

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

Size: 8-18 x 1/4 inch. Self tapping.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Seal is an OEM part specifically designed for Whirlpool wall ovens. It provides an airtight barrier between the door and oven interior during cooking and baking. Made of heat-resistant materials, the door seal withstands high oven temperatures.

Causes of a bad door seal can include normal wear and tear from repeated use over many years of cooking. Exposure to extremely high heat cycles may also degrade the seal prematurely.

Symptoms of a bad door seal include:

• Excess heat loss from the oven when cooking
• Visible cracks, tears, or looseness in the seal material
• Hot or warm air leaking from the sides or bottom of the closed oven door
• Difficulty maintaining optimal oven temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall ovens.

This 18-inch supply power cord delivers a reliable electrical connection to restore appliance power and safe operation. It replaces a damaged or missing cord so the unit can receive power from the wall outlet. What it does:

• Provides the main AC connection between the appliance and household power
• Replaces frayed, melted, or broken cords that cause intermittent power or no power
• Restores secure plug and strain-relief connection to reduce arcing and overheating risks
• Matches factory-style terminal ends for a direct fit when compatible

• One 18-inch supply power cord

• Disconnect power at the breaker or unplug the appliance before starting
• Inspect terminals and cord routing; secure with the factory strain relief
• Tighten terminal connections firmly but do not overtighten; confirm proper insulation

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

This door-activated switch detects when the oven door opens or closes and signals the appliance to control the interior light. Replacing a worn or failed switch restores dependable light operation and accurate door-status feedback.

• Senses oven door position and opens/closes the light circuit
• Controls the oven's interior light based on door position
• Provides door-status input to the control for normal operation
• Typical symptoms: light stays on, won't turn on, or flickers with door movement; door-ajar messages may appear

• Disconnect power at the breaker or unplug the unit before servicing
• Access the switch from behind the front frame or control area, depending on model
• Move wires to the new switch one at a time to maintain correct positions; secure with existing hardware
• Restore power and verify light operation with door open/closed before reassembly

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement front door assembly that restores proper door closure and exterior appearance on compatible Whirlpool appliances. Use this assembly when the original front door is cracked, dented, or no longer secures or aligns properly. What it does:

• Replaces a damaged or warped front door to restore proper fit and appearance.
• Helps resolve doors that won't latch, sit flush, or rub against the cabinet.
• Aligns with original mounting points so the latch and hinges operate correctly.
• Matches the original exterior finish for a consistent look after repair.

• Disconnect power to the appliance before beginning any repair.
• Support the door during removal and installation to prevent drops or damage.
• Handle any glass or trim carefully to avoid breakage and injury.
• Follow the OEM service manual or manufacturer instructions for proper alignment and fastening.

Includes lock latch motor and switch

This is a genuine replacement screw used to fasten panels, trim, and small appliance components. Replacing a damaged or missing screw restores secure mounting and reduces vibration or rattling. What it does:

• Secures panels, brackets, or trim pieces to appliance frames or assemblies
• Prevents loose parts that can vibrate, rattle, or misalign controls
• Replaces stripped, corroded, or lost screws to restore proper fit
• Small hardware solution for routine repairs and maintenance

• Use the matching screw hole and thread carefully to avoid cross-threading
• Hand-start the screw, then tighten with the correct driver until snug; do not over-tighten
• Disconnect power and follow appliance safety procedures before accessing internal parts
• Apply penetrating oil and proceed gently if the original screw is corroded or seized

This rod-style door switch actuator moves the door-mounted switch striker to signal open/closed door positions, restoring proper door-sensing and interior light functions. It's a small replacement part that helps the appliance detect door position reliably. What it does:

• Engages the door switch when the door closes so the appliance recognizes a closed door
• Allows the interior light to turn on/off based on door position
• Prevents intermittent door-open errors and related operation interruptions
• Works with the door latch/switch assembly to ensure consistent door sensing

• Disconnect power before starting any repair to avoid shock or injury
• Access may require removing the door trim or inner panel—keep fasteners organized
• Align the rod with the switch actuator and door bracket; verify smooth movement before reassembly

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.
