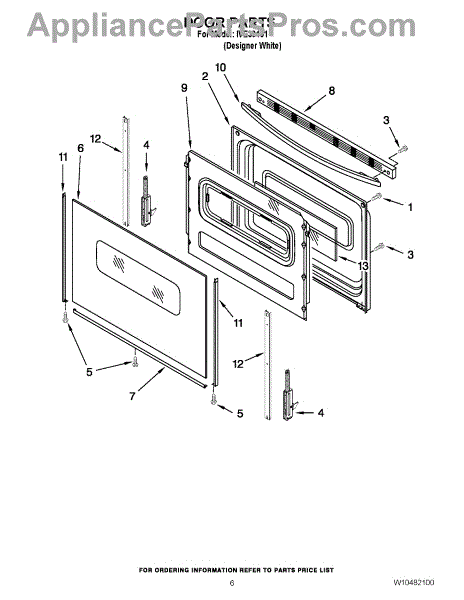

Parts for Whirlpool IVE30101: 05 - Door Parts

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door hinge supports and pivots the appliance door so it opens smoothly and closes securely. Replacing a worn hinge restores proper alignment and sealing to help the door latch correctly and operate as designed.

• Provides the pivot point and maintains door alignment
• Helps ensure smooth opening/closing and proper latching
• Supports a tight seal to prevent gaps, rattles, or temperature/moisture loss
• Typical failure signs: door sags, binds, squeaks, or won't stay closed/aligned

• Disconnect power before service; wear gloves to protect from sharp edges
• Support the door and control any spring tension; remove mounting hardware and the old hinge
• Install the new hinge in the same orientation; transfer any reusable hardware
• Adjust as needed

The Door Hinge is an OEM replacement part for Whirlpool ranges. It acts as the pivot point to allow access to the oven cavity.

Causes of a bad hinge can include wear over time through repeated use. Damage from excessive force or improper handling are also causes.

Symptoms of a bad hinge include:

• Difficulty latching or locking the door securely
• Gaps appearing around the door seal when closed
• The door not staying firmly in the fully open or closed position
• Grinding or grinding noises coming from the hinge area
• Visible damage, bending, or separation of hinge components

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Outer Door Glass is an OEM part for Whirlpool ovens. Specifically designed for the oven door, it serves as a protective barrier while allowing you to observe the cooking process. It helps maintain the desired temperature inside the oven while protecting it from external elements.

This particular outer door glass is white in color and measures 29.44" by 20.11", providing a precise fit for your oven model.

Causes of a faulty outer door glass can include accidental impact, cracks, or shattered glass. These factors can compromise the aesthetics, insulation, and safety of the oven.

Symptoms of a bad outer door glass may include:

• Visible cracks or breakage in the glass
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White.

Color: White.

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.
