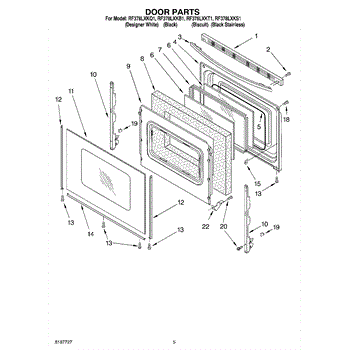

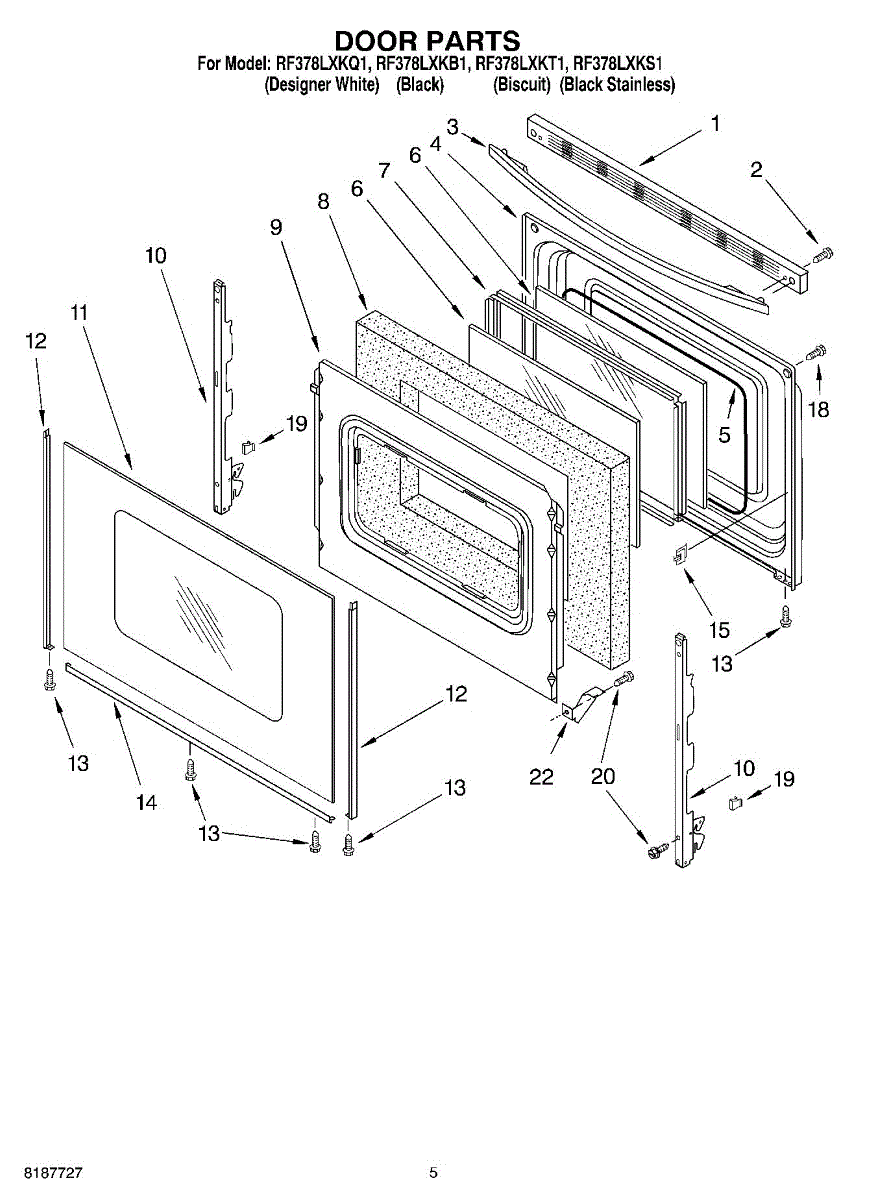

Parts for Whirlpool RF378LXKT1: 04 - Door Parts

Color: Black.

Color: Biscuit.

Color: White.

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: White. For black order WPW10202217. For almond order 8522446. If your unable to use your old mounting screws order WP3196164.

Color: Black. For white order WPW10202216. For almond order 8522446.New mounting screws need to also be ordered WP3196164.

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

This hinge is for painted door only. For stainless steel door use WP8272822.

Color: Bisque. For stainless order WPW10330077.

This is a glass door outer panel assembly that has been manufactured by Whirlpool for use with ovens. The glass door outer panel assembly contains everything needed to replace a broken or deteriorated door. The door needs to be in proper working order to keep heat-sealed inside the oven, as well as allow the user to easily access the oven. Over time, this part could become dented, bent, scratched, cracked, or otherwise rendered ineffective, requiring replacement. This part may require two people to install as it is heavy. Unplug the oven and allow it to cool down entirely before attempting any repairs.As a genuine OEM part, this part has been sourced directly from the manufacturer and is only sold individually. This glass door outer panel assembly is manufactured from high quality and durable materials to ensure sturdiness. It is intended for use with ovens and ranges manufactured by Whirlpool, Maytag, Kitchenaid, Amana, and Magic Chef.

Color: White

The Door Glass is an OEM replacement part for Whirlpool ranges. This transparent glass forms the inner window of the oven door, allowing users to conveniently view food cooking inside without needing to open the door.

Causes of a bad door glass can include cracks, chips, or scratches occurring from daily use or accidental impact over time. The glass may also become excessively dirty or coated in baked-on cooking residue.

Symptoms of a bad door glass include:

• Reduced visibility into the oven cavity
• Potential leaks if cracks or chips penetrate the glass surface
• An unappealing appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Color: Bisque. For black order 8184858. For white order 8184859. Kit includes two side pieces and one bottom piece. NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

The Oven Door Trim Kit is an OEM part for Whirlpool ranges. This kit includes trim pieces that frame the oven door, providing a finished look and helping to seal the door properly.

Causes of a bad oven door trim can include wear and tear from regular use, exposure to high temperatures, or physical damage from impacts or mishandling.

Symptoms of a bad oven door trim include:

• Visible cracks or damage to the trim
• The oven door not sealing properly
• Heat escaping from around the oven door
• The trim becoming loose or detaching

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Trim Kit is an OEM replacement part for Whirlpool ranges.

Causes of faulty trim pieces involve normal wear from opening and closing the oven door hundreds of times over the years. Exposure to high heat cycles can dull finishes or cause cracking in lower-quality materials.

Symptoms of inadequate trim include:

• Loose, wobbly or missing door handles
• Gaps appearing around door perimeter
• Scratches or deterioration on visible surfaces
• Broken trim detracting from clean aesthetic

Color: White. For black order 8184858. For bisque order 8184860. The kit includes two side pieces and one bottom piece.

NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

This OEM Whirlpool replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana and Magic Chef ranges.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Bisque. For black order 8184858. For white order 8184859. Kit includes two side pieces and one bottom piece. NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

The Oven Door Trim Kit is an OEM part for Whirlpool ranges. This kit includes trim pieces that frame the oven door, providing a finished look and helping to seal the door properly.

Causes of a bad oven door trim can include wear and tear from regular use, exposure to high temperatures, or physical damage from impacts or mishandling.

Symptoms of a bad oven door trim include:

• Visible cracks or damage to the trim
• The oven door not sealing properly
• Heat escaping from around the oven door
• The trim becoming loose or detaching

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Trim Kit is an OEM replacement part for Whirlpool ranges.

Causes of faulty trim pieces involve normal wear from opening and closing the oven door hundreds of times over the years. Exposure to high heat cycles can dull finishes or cause cracking in lower-quality materials.

Symptoms of inadequate trim include:

• Loose, wobbly or missing door handles
• Gaps appearing around door perimeter
• Scratches or deterioration on visible surfaces
• Broken trim detracting from clean aesthetic

Color: White. For black order 8184858. For bisque order 8184860. The kit includes two side pieces and one bottom piece.

NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

This OEM Whirlpool replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana and Magic Chef ranges.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This door stop clip mounts at the oven door hinge area to limit how far the door opens. Replacing a bent or missing clip restores the correct stop point and helps protect the hinge from overextension.

• Limits the oven door opening angle to a designed stop
• Helps prevent overextension that can strain or damage the hinge mechanism
• Common symptoms include the door dropping open too far, loose-feeling travel, or difficulty reinstalling the door
• Visual clues: bent, cracked, or missing clip at the hinge area

• Disconnect power or shut off gas; allow the appliance to cool completely
• Support the door; removal may be required to access the hinge area
• Install the clip in the same orientation/location as the original; replace on both hinges if your model uses two
• Verify smooth movement and that the door stops at the normal open position before use

Size: 8-18 x 1/2 inch.
