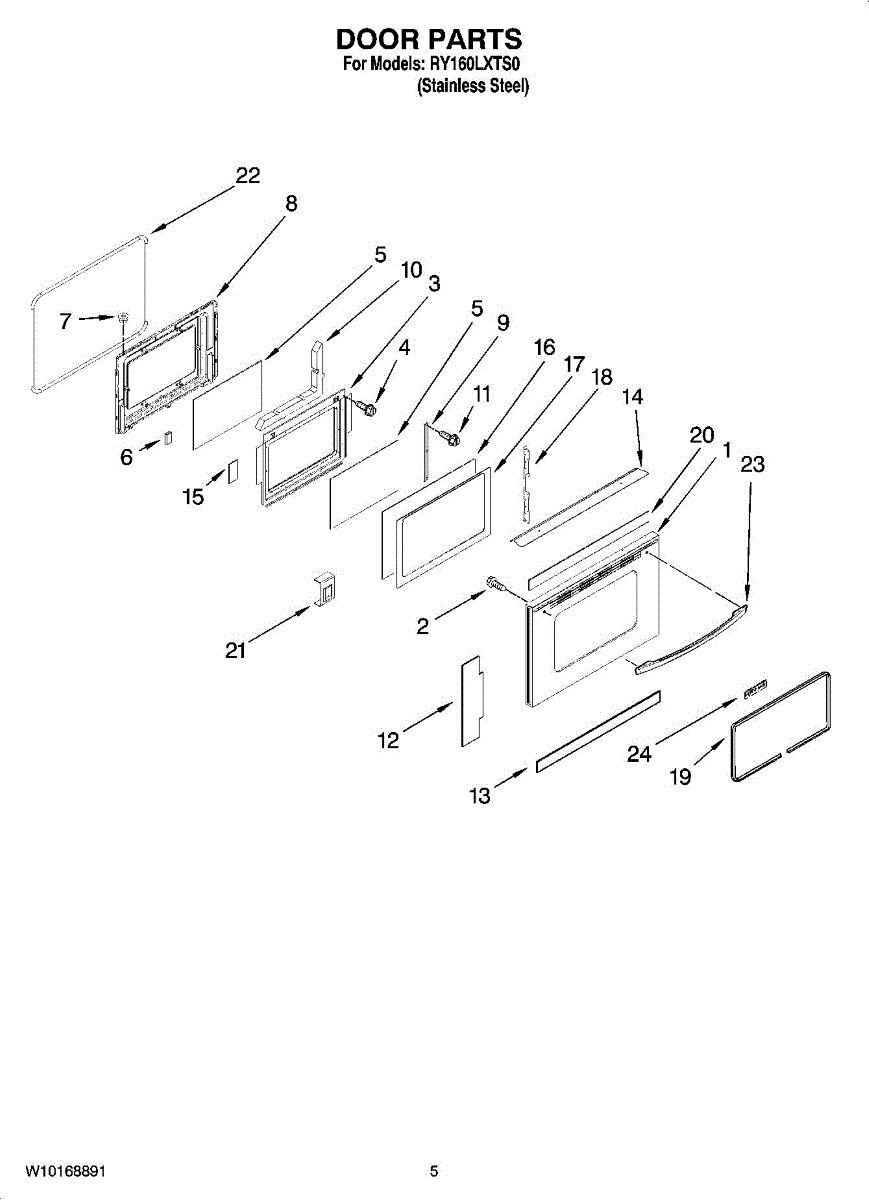

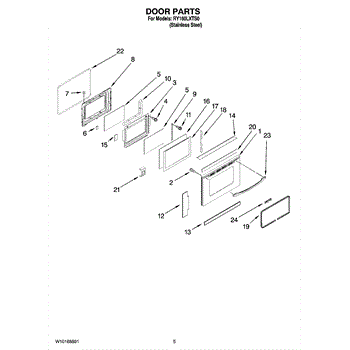

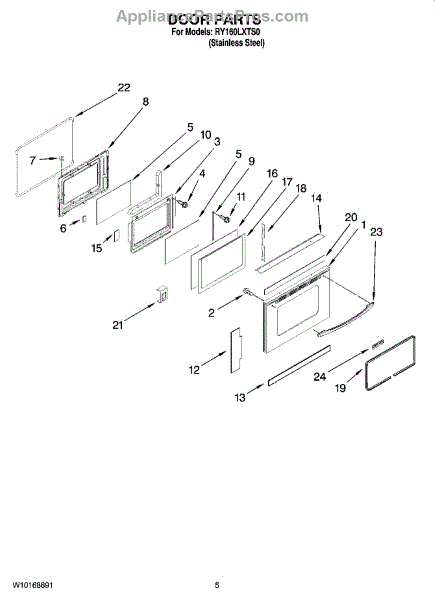

Parts for Whirlpool RY160LXTS0: 04 - Door Parts

The Oven Door Panel Screw is an OEM replacement part for Whirlpool ovens and ranges. It is a component used to fasten the outer panel to the interior metal door frame.

Causes of a bad oven door panel screw can include normal wear from repeated opening and closing of the door, damage such as stripped threads from overtightening, or corrosion over time inhibiting its fastening function.

Symptoms of a bad oven door panel screw include:

• The outer panel becoming loose, wobbly, or detached
• Gaps appearing around the door seam
• Scratches or other damage to the door panel
• Reduced insulation quality of the door assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black. Round

This glass mounting bracket secures the oven door glass to the door frame, restoring a stable, properly aligned door and helping prevent rattling or loose glass. Designed to replace a worn, broken, or missing bracket. What it does:

• Holds the oven door glass in place so the door closes and seals correctly
• Prevents glass from shifting, rattling, or coming loose during use
• Restores proper alignment after a cracked, bent, or missing bracket
• Works with the door assembly to maintain safe, reliable operation

• Disconnect power to the appliance before beginning any repair; allow surfaces to cool.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Replacement typically requires partial door disassembly; keep fasteners organized for reassembly.
• Tighten fasteners securely but avoid over-torquing; inspect surrounding clips and gaskets while installing.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: White

Size: 22 3/8 inches x 14 inches. For the glass measuring 20 5/8 inches x 13 1/8 inches order 74003645.

Size: 22 3/8 inches x 14 inches. For the glass measuring 20 5/8 inches x 13 1/8 inches order 74003645.

This door window gasket seals the oven door glass to help contain heat and prevent steam or smoke from escaping. It restores a tight seal to keep cooking temperatures consistent and the kitchen cooler. What it does:

• Forms a heat-resistant seal around the oven door window to reduce heat loss.
• Helps prevent steam, smoke, and odors from leaking into the kitchen.
• Can improve oven temperature stability when the original gasket is worn or damaged.
• Common symptoms: visible gaps, brittle or torn gasket, excessive heat felt near the door edge.

• One door window gasket

• Inspect the door glass and channel for debris before installing; clean the area to ensure a proper seal.
• Installation typically requires removing the oven door or inner glass panel—follow the oven manufacturer's instructions.
• Use heat-resistant gloves and allow the oven to cool completely before attempting service.

The Oven Door Gasket is an OEM part for Whirlpool ovens. This gasket is essential for maintaining a proper seal around the oven door, preventing heat from escaping and ensuring efficient cooking performance. The gasket measures approximately 76.66" in total length with a diameter of about 0.47", it features 25 built-in metal retaining clips.

Causes of a bad oven door gasket can include regular wear and tear, exposure to high temperatures over time, or accidental damage from cleaning or handling. A compromised gasket can lead to heat loss, which affects cooking times and energy efficiency.

Symptoms of a bad oven door gasket include:

• Heat escaping from the oven door
• Longer cooking times
• Visible cracks or tears in the gasket
• The oven door not closing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
