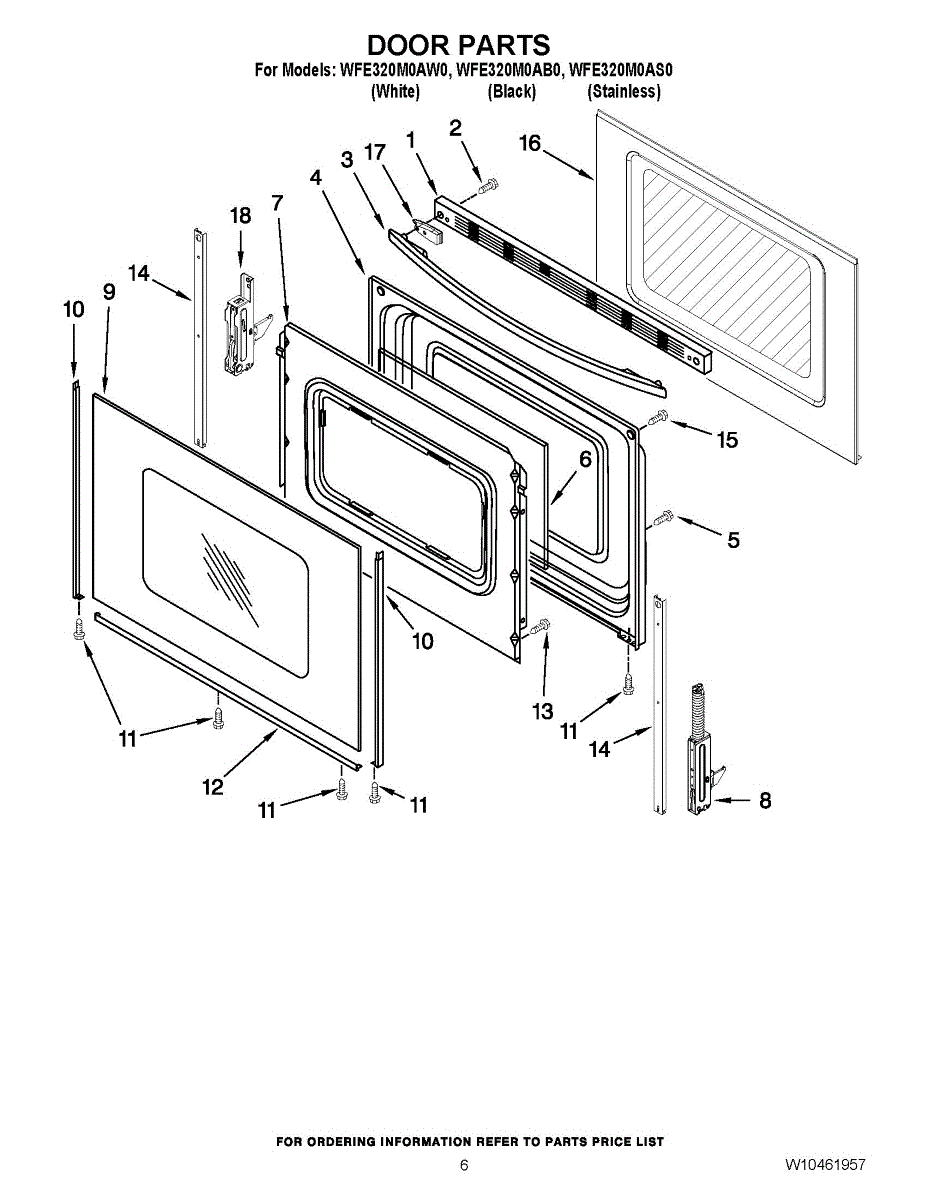

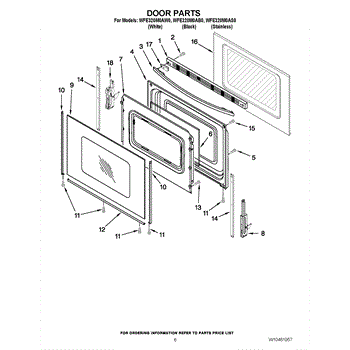

Parts for Whirlpool WFE320M0AB0: 05 - Door Parts

The Vent Trim is an OEM part for Whirlpool ranges. It is designed to cover and protect the ventilation system of the range, ensuring that air flows properly and that internal components are shielded from dust and debris. The vent trim also contributes to the overall aesthetic of the appliance, providing a clean and finished look.

Replace the vent trim if it becomes damaged due to impact, exposure to high temperatures, or wear and tear over time.

Symptoms of a bad vent trim include:

• Visible cracks or breaks in the trim
• Loose or misaligned trim pieces
• Reduced efficiency in ventilation
• Accumulation of dust and debris in the ventilation system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vent Trim is an OEM part for Whirlpool ovens. It is designed to cover and protect the vent openings, which allow heat and steam to escape from the oven cavity. This trim piece not only contributes to the oven's overall aesthetic but also ensures proper ventilation, promoting even cooking and preventing overheating.

Common causes of a bad vent trim include exposure to high temperatures, physical damage from cleaning or impact, or discoloration due to prolonged use. Damaged vent trim can impair ventilation and affect the oven's performance.

Symptoms of a bad Oven Vent Trim include:

• Visible cracks or warping
• Discoloration or fading
• The vent trim not fitting securely or becoming loose
• Reduced ventilation leading to uneven cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory-spec screw secures panels and components in your appliance. Replacing a missing or stripped fastener restores a tight, rattle-free fit so parts stay aligned and operate as designed.

• Fastens brackets, panels, and internal components to their mounting points
• Maintains alignment and reduces vibration during operation
• Replaces missing, worn, rusted, or stripped hardware
• Helpful when you notice rattling, loose panels, gaps, or parts shifting out of position

• Disconnect power; shut off water or gas supply if applicable
• Align the part being secured and remove any damaged hardware
• Hand-start threads to avoid cross-threading; tighten with the correct driver
• Do not overtighten; verify the assembly is secure and operates freely

Color: White

Color: Stainless)

The Door Handle is an OEM replacement part for Whirlpool electric ranges. This black door handle is ergonomically designed for the comfortable and safe opening of the range door.

Causes of a bad handle can include normal wear and tear from repeated use over time, accidental damage from forced pulling or impacts, or breakdown of internal mounting components.

Symptoms of a failed handle include:

• Loose or unstable mounting allowing the handle to detach
• Cracks or breaks in the plastic rendering it unusable
• Difficulty opening the door smoothly

This OEM handle is also compatible with Maytag, KitchenAid, Jenn-Air, and  Magic Chef electric ranges.

This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door hinge supports and guides the appliance door so it opens and closes smoothly and stays aligned with the latch and gasket. Replacing a worn hinge restores proper fit and closing action to reduce rubbing and poor sealing.

• Provides the pivot point and supports the door's weight during operation
• Maintains alignment for an even gap and consistent seal
• Helps correct sagging, scraping, or a door that won't close flush
• Common signs of wear: bent/cracked hinge, squeaking or popping, misalignment

• Disconnect power before servicing and support the door to prevent strain or damage
• Remove mounting fasteners; transfer any reusable screws, spacers, or covers from the old hinge
• Install and snug fasteners, then check door alignment and closure; adjust as needed
• Open and close the door several times to verify smooth operation and recheck fasteners

This door hinge supports and pivots the appliance door so it opens smoothly and closes securely. Replacing a worn hinge restores proper alignment and sealing to help the door latch correctly and operate as designed.

• Provides the pivot point and maintains door alignment
• Helps ensure smooth opening/closing and proper latching
• Supports a tight seal to prevent gaps, rattles, or temperature/moisture loss
• Typical failure signs: door sags, binds, squeaks, or won't stay closed/aligned

• Disconnect power before service; wear gloves to protect from sharp edges
• Support the door and control any spring tension; remove mounting hardware and the old hinge
• Install the new hinge in the same orientation; transfer any reusable hardware
• Adjust as needed

Color: White

The Outer Door Glass is an OEM replacement part for Whirlpool gas and electric ranges. This is the white outer glass. It serves as the protective barrier for the inner oven cavity door.

Causes of an outer door glass needing replacement include cracks or chips developed over time from heavy use and repeated extreme temperature fluctuations. Condensation or limescale deposits that remain trapped behind the glass can also cause premature glass corrosion.

Symptoms of a damaged white outer door glass assembly include:

• Visible cracks, chips, or pitting of the glass surface
• Stained or discolored white finish that detracts from aesthetics
• Reduced thermal insulation between outer glass and inner door seal
• Access points for grime or debris behind the sealed glass assembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Oven Glass Door is an OEM replacement part for Whirlpool ovens. Made with durable heat-resistant tempered glass, this outer glass allows for viewing of baking and roasting within the oven. Color: Black

Causes usually relate to accidental impacts if the door is struck or slammed, which glass surfaces are vulnerable to.

Symptoms of a problematic glass door can include:

• cracks, chips, or scratches that compromise structural integrity
• Fogging or discoloration from prolonged high-heat exposure

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Black

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This is a glass door outer panel assembly that has been manufactured by Whirlpool for use with ovens. The glass door outer panel assembly contains everything needed to replace a broken or deteriorated door. The door needs to be in proper working order to keep heat-sealed inside the oven, as well as allow the user to easily access the oven. Over time, this part could become dented, bent, scratched, cracked, or otherwise rendered ineffective, requiring replacement. This part may require two people to install as it is heavy. Unplug the oven and allow it to cool down entirely before attempting any repairs.As a genuine OEM part, this part has been sourced directly from the manufacturer and is only sold individually. This glass door outer panel assembly is manufactured from high quality and durable materials to ensure sturdiness. It is intended for use with ovens and ranges manufactured by Whirlpool, Maytag, Kitchenaid, Amana, and Magic Chef.

The Door Handle End Cap is an OEM part for Whirlpool ranges. This part attaches to the end of the oven door handle, securing it in place and providing a finished look. It helps ensure the handle remains firmly attached to the door, allowing for easy opening and closing of the oven.

Causes of a bad door handle end cap can include frequent use, accidental impacts, or degradation of materials over time.

Symptoms of a bad door handle end cap include:

• Loose or wobbly oven door handle
• Cracks or breaks in the end cap
• Difficulty opening or closing the oven door
• Visible damage to the end cap

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge is an OEM replacement part for Whirlpool ranges. It acts as the pivot point to allow access to the oven cavity.

Causes of a bad hinge can include wear over time through repeated use. Damage from excessive force or improper handling are also causes.

Symptoms of a bad hinge include:

• Difficulty latching or locking the door securely
• Gaps appearing around the door seal when closed
• The door not staying firmly in the fully open or closed position
• Grinding or grinding noises coming from the hinge area
• Visible damage, bending, or separation of hinge components

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
