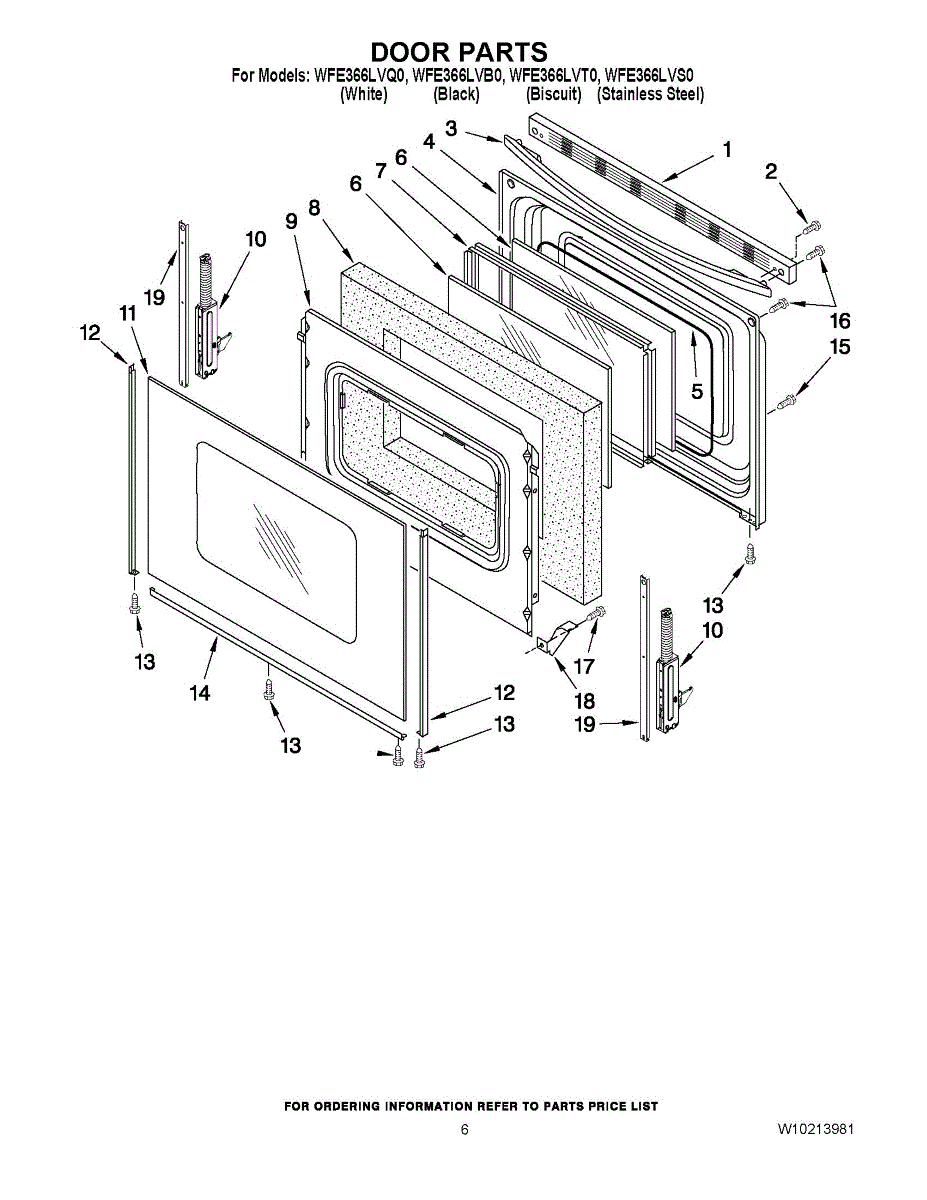

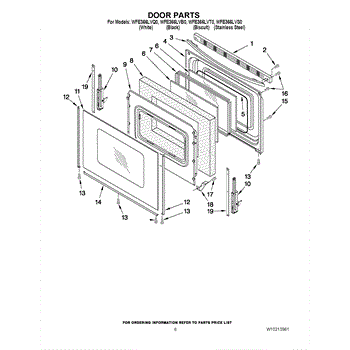

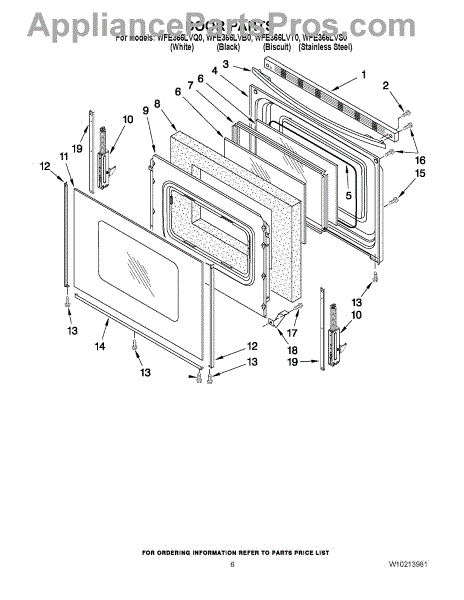

Parts for Whirlpool WFE366LVS0: 05 - Door Parts

This vent trim is the finishing piece that frames the vent opening and directs airflow. Replace a cracked, warped, or missing trim to restore a secure fit and a clean, factory look at the vent area.

• Covers and finishes the vent opening for a clean appearance
• Helps guide exhaust air/steam away from the cabinet as designed
• Replaces broken tabs, cracks, discoloration, or a missing trim piece
• Can reduce rattling or vibration from a loose or damaged vent surround

• Disconnect power before servicing
• Access the vent area and remove screws or clips securing the old trim
• Reuse existing mounting hardware; align and tighten evenly without overtightening
• Handle carefully to avoid scratching or cracking the new trim

The Vent Trim is an OEM part for Whirlpool ranges. It is designed to cover and protect the ventilation system of the range, ensuring that air flows properly and that internal components are shielded from dust and debris. The vent trim also contributes to the overall aesthetic of the appliance, providing a clean and finished look.

Replace the vent trim if it becomes damaged due to impact, exposure to high temperatures, or wear and tear over time.

Symptoms of a bad vent trim include:

• Visible cracks or breaks in the trim
• Loose or misaligned trim pieces
• Reduced efficiency in ventilation
• Accumulation of dust and debris in the ventilation system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vent Trim is an OEM part for Whirlpool ovens. It is designed to cover and protect the vent openings, which allow heat and steam to escape from the oven cavity. This trim piece not only contributes to the oven's overall aesthetic but also ensures proper ventilation, promoting even cooking and preventing overheating.

Common causes of a bad vent trim include exposure to high temperatures, physical damage from cleaning or impact, or discoloration due to prolonged use. Damaged vent trim can impair ventilation and affect the oven's performance.

Symptoms of a bad Oven Vent Trim include:

• Visible cracks or warping
• Discoloration or fading
• The vent trim not fitting securely or becoming loose
• Reduced ventilation leading to uneven cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory-spec screw secures panels and components in your appliance. Replacing a missing or stripped fastener restores a tight, rattle-free fit so parts stay aligned and operate as designed.

• Fastens brackets, panels, and internal components to their mounting points
• Maintains alignment and reduces vibration during operation
• Replaces missing, worn, rusted, or stripped hardware
• Helpful when you notice rattling, loose panels, gaps, or parts shifting out of position

• Disconnect power; shut off water or gas supply if applicable
• Align the part being secured and remove any damaged hardware
• Hand-start threads to avoid cross-threading; tighten with the correct driver
• Do not overtighten; verify the assembly is secure and operates freely

Color: Bisque

Color: Stainless

Color: Black

The Door Handle is an OEM part for Whirlpool ranges. This handle ensures a secure and comfortable grip for opening and closing the oven door, contributing to the range's ease of use and overall safety.

Door handles on ranges can experience wear over time due to the high-heat environment, accumulation of cooking residues, or physical stress from regular operation. A damaged or loose handle can impair the functionality of the oven door, making it difficult to operate and potentially affecting cooking performance or safety.

Symptoms that may indicate the need for a new Door Handle include:

• A loose or wobbly handle that compromises the secure opening and closing of the oven door.
• Visible wear, cracks, or damage to the handle that affects its structural integrity.
• Difficulty in gripping or using the handle.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

This door hinge supports and guides the appliance door so it opens and closes smoothly and stays properly aligned, helping the door seal engage correctly for safe, reliable operation.

• Supports the weight of the door and controls opening/closing motion
• Helps maintain door alignment so latches/seals engage properly
• Wear or damage can cause sagging, rubbing, squeaking, or difficulty closing
• A misaligned door may prevent the unit from starting or sealing correctly

• Disconnect power and allow the appliance to cool before servicing
• Use gloves and eye protection; doors can be heavy and spring-loaded
• Support the door during removal to prevent damage
• Transfer any hardware from the old hinge to the new one if re-usable

Color: Bisque. For stainless order WPW10330077.

This is a glass door outer panel assembly that has been manufactured by Whirlpool for use with ovens. The glass door outer panel assembly contains everything needed to replace a broken or deteriorated door. The door needs to be in proper working order to keep heat-sealed inside the oven, as well as allow the user to easily access the oven. Over time, this part could become dented, bent, scratched, cracked, or otherwise rendered ineffective, requiring replacement. This part may require two people to install as it is heavy. Unplug the oven and allow it to cool down entirely before attempting any repairs.As a genuine OEM part, this part has been sourced directly from the manufacturer and is only sold individually. This glass door outer panel assembly is manufactured from high quality and durable materials to ensure sturdiness. It is intended for use with ovens and ranges manufactured by Whirlpool, Maytag, Kitchenaid, Amana, and Magic Chef.

The Outer Door Glass is an OEM part for Whirlpool ranges. It serves as the exterior glass panel on the oven door, providing visibility into the oven while protecting the internal components and maintaining the oven’s aesthetic appeal.

Causes of a bad outer door glass can include accidental impacts, thermal stress from frequent heating and cooling, or general wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven door
• Difficulty in maintaining consistent oven temperature
• Potential safety hazards due to broken glass shards

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Glass is an OEM replacement part for Whirlpool ranges. This transparent glass forms the inner window of the oven door, allowing users to conveniently view food cooking inside without needing to open the door.

Causes of a bad door glass can include cracks, chips, or scratches occurring from daily use or accidental impact over time. The glass may also become excessively dirty or coated in baked-on cooking residue.

Symptoms of a bad door glass include:

• Reduced visibility into the oven cavity
• Potential leaks if cracks or chips penetrate the glass surface
• An unappealing appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Color: Biscuit. Left hand side. For right hand use WP8523167

Color: Biscuit. Right hand side. For left hand use WP8523173

The Oven Door Trim Kit is an OEM part for Whirlpool ranges. This kit includes trim pieces that frame the oven door, providing a finished look and helping to seal the door properly.

Causes of a bad oven door trim can include wear and tear from regular use, exposure to high temperatures, or physical damage from impacts or mishandling.

Symptoms of a bad oven door trim include:

• Visible cracks or damage to the trim
• The oven door not sealing properly
• Heat escaping from around the oven door
• The trim becoming loose or detaching

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lower Trim is an OEM replacement part for Whirlpool ranges. This black stainless steel trim is positioned at the bottom of the range, providing a finished look by covering the gap between the floor and the appliance. Additionally, the lower trim helps to protect internal components from debris and ensures the appliance fits securely within your kitchen setup.

Over time, the lower trim can become damaged due to exposure to heat, accidental impacts, or general wear and tear. A damaged or missing lower trim may lead to the appliance looking unfinished and could allow debris to accumulate underneath.

Symptoms of a bad lower trim include:

• Visible damage, such as dents or cracks
• The trim not fitting securely
• Gaps between the floor and the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Biscuit.

Color: Black

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.
