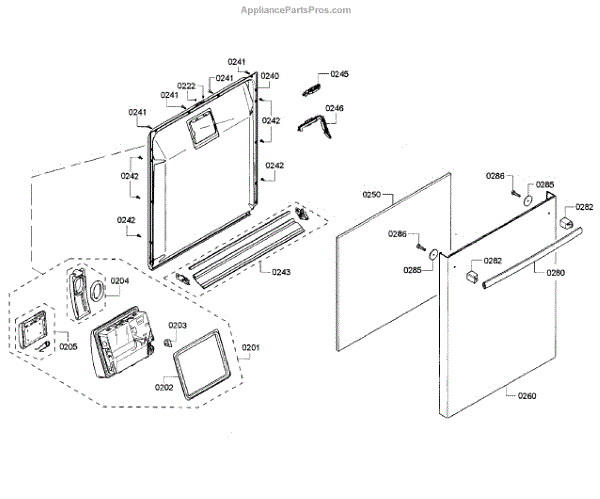

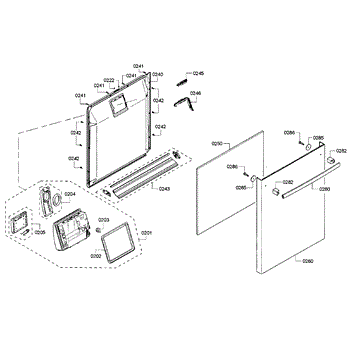

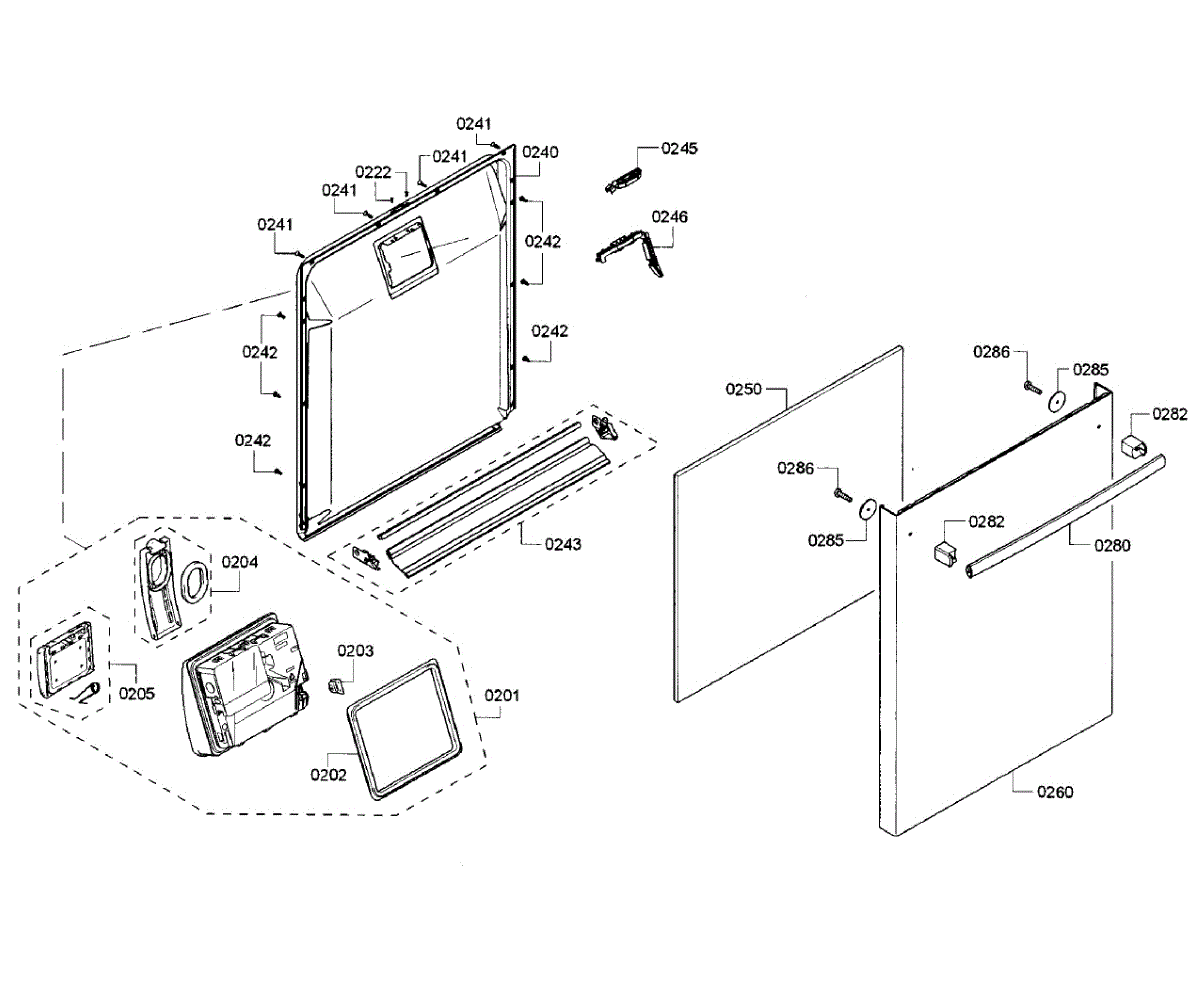

Parts for Bosch SHX3AR76UC/22: Door Section Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Detergent Dispenser is an OEM replacement part for Bosch dishwashers. It is located inside the dishwasher and is responsible for properly delivering detergent at the appropriate time during wash cycles. The detergent dispenser has a compartment that holds detergent tablets or pods, and a mechanism that releases the correct amount to efficiently clean dishes.

Causes of a bad dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process.

Symptoms of a bad detergent dispenser include:

• Detergent not dispensing or residue left in the dispenser
• Dirty dishes due to insufficient or improper detergent delivery
• Corrosion or buildup inside the dispenser area
• Dispenser door or cover cracked or damaged

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Detergent Dispenser Seal is an OEM part for Bosch dishwashers. Located inside the detergent dispenser compartment, it creates a water-tight barrier, preventing premature detergent dissolution and leaks. Working seamlessly with the dispenser system, the seal facilitates controlled detergent release for optimum cleaning performance cycle after cycle.

Causes for a bad detergent dispenser seal can include wear and tear from repeated use, deformations due to temperature fluctuations, and cracks or splits from general use.

Symptoms of a bad detergent dispenser seal include:

• Detergent residue or puddles inside the dishwasher
• Premature detergent dissolution before the main wash
• Leaks or drips from the dispenser area when closed
• Ineffective or inconsistent cleaning ability

This genuine Bosch detergent dispenser seal replacement will restore its water-tight barrier. It is also compatible with some Thermador, Siemens, and select Kenmore models.

This temperature sensor (NTC) monitors wash temperature and reports it to the control so the cycle heats and advances correctly. Replacing a faulty sensor can restore proper cleaning performance and normal cycle times. What it does:

• Measures water temperature and sends resistance changes (NTC) to the control
• Helps the control regulate heating and cycle progression
• Failure symptoms can include no/insufficient heat, extended cycles, or poor drying
• May trigger a temperature-sensor fault (e.g., E11 on some models)

• 1 temperature sensor

• Disconnect power and turn off water supply before servicing
• Access is typically at the sump/heat-pump area; remove the toe-kick/lower panel as needed
• Expect some residual water; place a towel or tray to catch drips
• Ensure the sensor seats fully and the seal is in good condition to prevent leaks

The Rinse Aid Lid is an OEM part for Bosch dishwashers. It is a component of the rinse aid dispenser system, responsible for covering and sealing the compartment where the rinse aid is stored.

Causes of a bad rinse aid lid may include wear and tear over time, physical impact, or compatibility issues with certain types of rinse aid.

Symptoms of a faulty Rinse Aid Lid include:

• Leaks or drips of rinse aid from the dispenser area
• Improper or inconsistent dispensing of rinse aid during cycles
• The lid not closing or sealing properly
• Visible cracks, warping, or damage to the lid itself

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This factory fastener secures panels, brackets, and internal components in your appliance. Replacing a missing or damaged screw restores a snug fit, reduces vibration and rattles, and keeps assemblies properly aligned during service or reassembly.

• Anchors panels, trim, and internal parts to the appliance frame or subassemblies
• Helps prevent vibration, buzzing, and loose or shifting components
• Ideal replacement for lost, stripped, or corroded hardware
• Common symptoms include loose panels, gaps, rattling noises, or parts that won't stay secured

• Disconnect power and shut off water or gas before servicing
• Match this screw to the original and replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; use the correct driver and do not overtighten
• Inspect the mating clip/insert; replace if stripped or damaged for a secure hold

The Dishwasher Inner Door Panel is an OEM part for Bosch dishwashers. It is located inside the dishwasher door and protects internal components.

Symptoms of a bad inner door panel include:

• Scratches, cracks, or damage impairing the appearance of the door interior
• Loose screws or mounting points causing rattling
• Difficulty closing or sealing the door properly

Causes of a bad inner door panel can include prolonged exposure to heat and steam, damage from impact or mishandling of dishes, or normal wear over time compromising the integrity of the panel.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

• Fastens components to the appliance frame or assemblies
• Replaces a missing, stripped, or rusted original screw
• Helps reduce rattling or vibration from loose hardware
• Restores proper alignment of panels or brackets

• Disconnect power and shut off water before servicing
• Refer to your model's parts diagram to locate and place
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

The Lower Door Seal is an  OEM replacement part for Bosch dishwashers. It provides a water-tight barrier around the perimeter of the lower dishwasher door during cycle operation. Proper sealing is necessary to contain high-temperature water, steam and noise within the wash chamber.

Causes of a bad lower door seal can include deterioration of the sealing material over many years of use and exposure to hot chemicals. Physical damage such as tears or compression marks from over-tightening the door may also compromise sealing ability.

Symptoms of a bad lower door seal include:

• Puddles or leaks at the base of the dishwasher door
• Excess moisture, mineral deposits or mold growth outside the unit
• Inability to reach high temperatures or pressure inside the chamber
• Noise complaints as sound escapes during washing

This genuine Bosch OEM part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This part is an OEM replacement part for Bosch brand appliances. The lock and latch kit is responsible for securely locking and latching the appliance door during operation, ensuring that the door remains closed to prevent water leakage and maintain safety.

For the sensor only order 00611312
For the latch-only order 00630628

This part fixes the following symptoms:

• Difficulty closing, latching, or locking the appliance door
• The washing machine or dishwasher does not start or stops mid-cycle
• Error codes related to the door not being properly closed or locked
• The appliance door pops open during operation, causing water leakage
• Visible damage, wear, or malfunction of the lock and latch components

The Bosch Door Lock Assembly can also be used on Thermador and Gaggenau appliances.

This insulating part cushions and thermally isolates internal components to help reduce heat transfer and vibration noise in the appliance. It's a small replacement piece that restores proper spacing and protection around sensitive parts. What it does:

• Provides thermal separation between hot components and surrounding cabinet parts to help prevent heat damage
• Cushions components to reduce vibration and rattling noises during operation
• Helps maintain correct part clearances for safe, reliable performance
• Used where original insulation was damaged, missing, or deteriorated

• Disconnect power and, if applicable, water before beginning any repair
• Handle carefully; avoid compressing or tearing the insulation during installation
• Verify correct orientation and secure fit against the intended component or cabinet surface

This is a replacement door handle for Bosch appliances that restores a secure grip and original appearance to a worn, cracked, or broken handle. It helps make opening and closing the appliance door easier and safer. What it does:

• Replaces a damaged or loose door handle so the door can be opened and closed reliably
• Restores proper user grip and door alignment when original handle is cracked or stripped
• Helps prevent injury from sharp edges on broken handle pieces
• Improves the appliance's exterior appearance when the original handle is worn or cosmetically damaged

• Basic hand tools needed; keep fasteners and trim pieces organized for reassembly
• Disconnect power to the appliance before starting work if panels or wiring will be exposed
• Handle screws may be hidden under trim—refer to model-specific service instructions for removal steps
• If mounting points are damaged, inspect surrounding trim and fasteners for proper repair

The Handle-Cap Shaped part is an OEM part for Bosch dishwashers. It makes up the cap on the end of the dishwasher door handle.

Causes of a bad handle cap can include wear and tear from ongoing opening and closing motions of the door. Repeated grasping and lifting places stress on this high-contact area.

Symptoms of a bad handle cap include:

• Exposed or sharp metal edges on the handle where the cap is missing
• Looseness, wobbling or detachment of the cap from the handle
• Reduced ability to firmly grab and maneuver the door easily

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This small hardware washer distributes clamping force and protects surfaces under a screw or nut in your appliance. Replacing a worn or missing washer helps restore a secure fit and reduces vibration or movement in the assembly.

• Distributes fastener load to prevent gouging or deformation of mating surfaces
• Maintains proper spacing and alignment where a washer is specified
• Helps resist loosening from vibration over time
• Common signs: loose or shifting components, rattling, or visible wear around the fastener

• Disconnect power and any water/gas supplies before servicing
• Support the component and remove the fastener to access the washer
• Install the new washer in the same position/orientation as the original; do not overtighten
• Reassemble and verify the fastened joint is secure and operates smoothly

This genuine screw secures panels, brackets, and internal components in your appliance, keeping them tight and aligned. Replace worn or missing fasteners to stop rattles and restore a proper fit.

• Fastens sheet-metal panels, brackets, or hardware in place
• Helps maintain alignment and reduce vibration or noise
• Restores secure attachment when a screw is stripped, corroded, or missing
• Typical signs: loose or shifting parts, rattling, or gaps at joints

• Disconnect power; shut off water or gas before servicing.
• Match this screw to the original location and size; replace one at a time.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver type/size required by your model.
