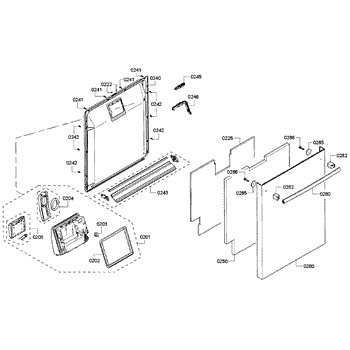

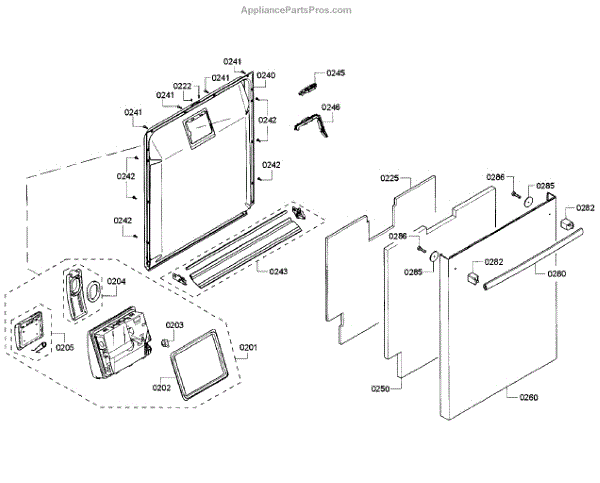

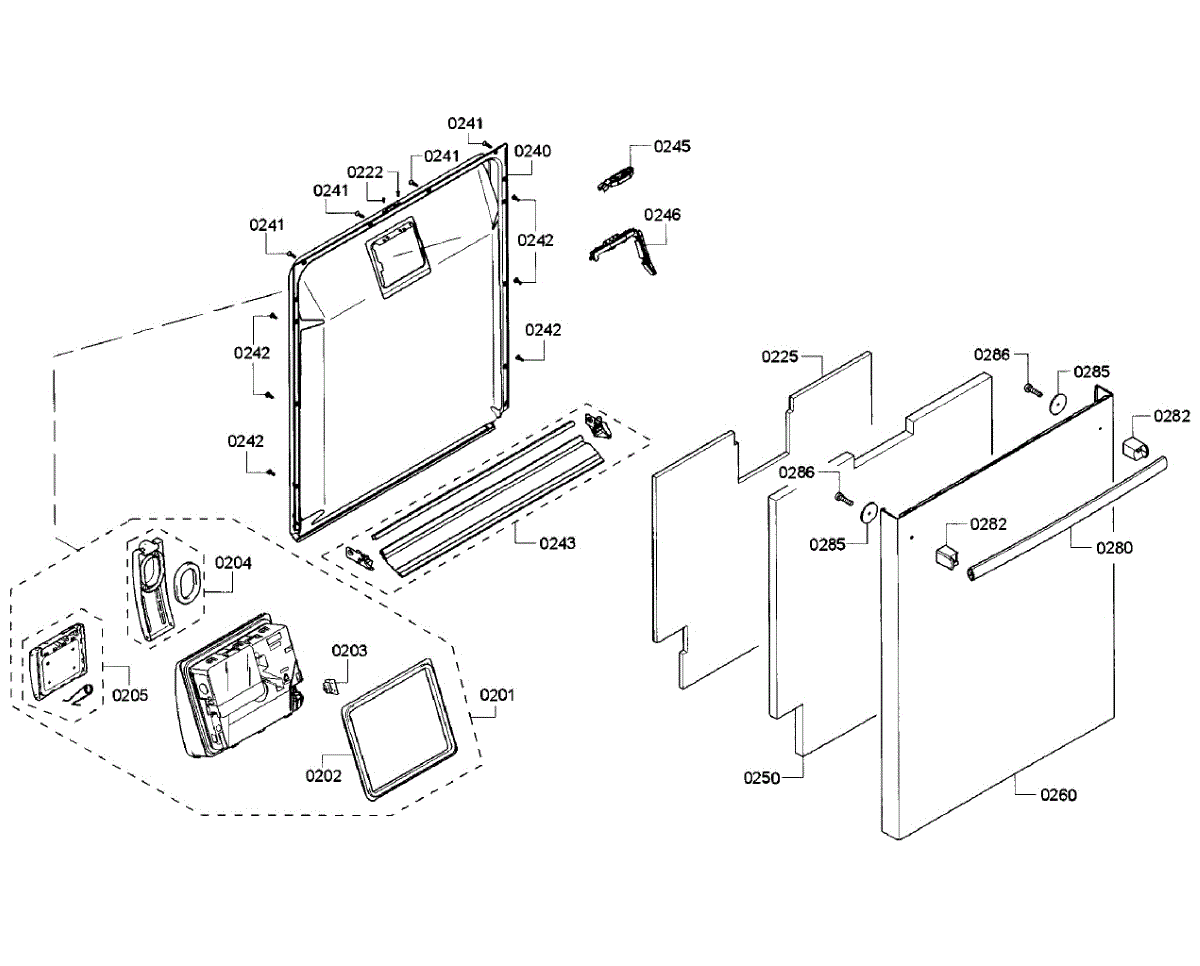

Parts for Bosch SHX5AV55UC/22: Door Section Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Detergent Dispenser is an OEM replacement part for Bosch dishwashers. It is located inside the dishwasher and is responsible for properly delivering detergent at the appropriate time during wash cycles. The detergent dispenser has a compartment that holds detergent tablets or pods, and a mechanism that releases the correct amount to efficiently clean dishes.

Causes of a bad dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process.

Symptoms of a bad detergent dispenser include:

• Detergent not dispensing or residue left in the dispenser
• Dirty dishes due to insufficient or improper detergent delivery
• Corrosion or buildup inside the dispenser area
• Dispenser door or cover cracked or damaged

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Detergent Dispenser Seal is an OEM part for Bosch dishwashers. Located inside the detergent dispenser compartment, it creates a water-tight barrier, preventing premature detergent dissolution and leaks. Working seamlessly with the dispenser system, the seal facilitates controlled detergent release for optimum cleaning performance cycle after cycle.

Causes for a bad detergent dispenser seal can include wear and tear from repeated use, deformations due to temperature fluctuations, and cracks or splits from general use.

Symptoms of a bad detergent dispenser seal include:

• Detergent residue or puddles inside the dishwasher
• Premature detergent dissolution before the main wash
• Leaks or drips from the dispenser area when closed
• Ineffective or inconsistent cleaning ability

This genuine Bosch detergent dispenser seal replacement will restore its water-tight barrier. It is also compatible with some Thermador, Siemens, and select Kenmore models.

This temperature sensor (NTC) monitors wash temperature and reports it to the control so the cycle heats and advances correctly. Replacing a faulty sensor can restore proper cleaning performance and normal cycle times. What it does:

• Measures water temperature and sends resistance changes (NTC) to the control
• Helps the control regulate heating and cycle progression
• Failure symptoms can include no/insufficient heat, extended cycles, or poor drying
• May trigger a temperature-sensor fault (e.g., E11 on some models)

• 1 temperature sensor

• Disconnect power and turn off water supply before servicing
• Access is typically at the sump/heat-pump area; remove the toe-kick/lower panel as needed
• Expect some residual water; place a towel or tray to catch drips
• Ensure the sensor seats fully and the seal is in good condition to prevent leaks

The Rinse Aid Lid is an OEM part for Bosch dishwashers. It is a component of the rinse aid dispenser system, responsible for covering and sealing the compartment where the rinse aid is stored.

Causes of a bad rinse aid lid may include wear and tear over time, physical impact, or compatibility issues with certain types of rinse aid.

Symptoms of a faulty Rinse Aid Lid include:

• Leaks or drips of rinse aid from the dispenser area
• Improper or inconsistent dispensing of rinse aid during cycles
• The lid not closing or sealing properly
• Visible cracks, warping, or damage to the lid itself

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This factory fastener secures panels, brackets, and internal components in your appliance. Replacing a missing or damaged screw restores a snug fit, reduces vibration and rattles, and keeps assemblies properly aligned during service or reassembly.

• Anchors panels, trim, and internal parts to the appliance frame or subassemblies
• Helps prevent vibration, buzzing, and loose or shifting components
• Ideal replacement for lost, stripped, or corroded hardware
• Common symptoms include loose panels, gaps, rattling noises, or parts that won't stay secured

• Disconnect power and shut off water or gas before servicing
• Match this screw to the original and replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; use the correct driver and do not overtighten
• Inspect the mating clip/insert; replace if stripped or damaged for a secure hold

This insulating part is a molded insulator that protects nearby components by reducing heat transfer and providing electrical isolation, helping prevent heat damage and short circuits for safer, more reliable appliance operation. What it does:

• Provides thermal insulation to limit heat transfer from hot components to surrounding parts
• Offers electrical isolation to help prevent shorts between conductors or grounded metal
• Maintains proper spacing and support for wiring or small assemblies
• Helps prevent symptoms such as scorch marks, melted wiring insulation, burning smells, or intermittent electrical behavior

• Disconnect power to the appliance before attempting any repair
• Inspect the surrounding area and the old insulator's location and orientation before removal
• Replace with the same part and orientation; avoid compressing or deforming the insulator

The Dishwasher Inner Door Panel is an OEM part for Bosch dishwashers. It is located inside the dishwasher door and protects internal components.

Symptoms of a bad inner door panel include:

• Scratches, cracks, or damage impairing the appearance of the door interior
• Loose screws or mounting points causing rattling
• Difficulty closing or sealing the door properly

Causes of a bad inner door panel can include prolonged exposure to heat and steam, damage from impact or mishandling of dishes, or normal wear over time compromising the integrity of the panel.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

• Fastens components to the appliance frame or assemblies
• Replaces a missing, stripped, or rusted original screw
• Helps reduce rattling or vibration from loose hardware
• Restores proper alignment of panels or brackets

• Disconnect power and shut off water before servicing
• Refer to your model's parts diagram to locate and place
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Lower Door Seal is an  OEM replacement part for Bosch dishwashers. It provides a water-tight barrier around the perimeter of the lower dishwasher door during cycle operation. Proper sealing is necessary to contain high-temperature water, steam and noise within the wash chamber.

Causes of a bad lower door seal can include deterioration of the sealing material over many years of use and exposure to hot chemicals. Physical damage such as tears or compression marks from over-tightening the door may also compromise sealing ability.

Symptoms of a bad lower door seal include:

• Puddles or leaks at the base of the dishwasher door
• Excess moisture, mineral deposits or mold growth outside the unit
• Inability to reach high temperatures or pressure inside the chamber
• Noise complaints as sound escapes during washing

This genuine Bosch OEM part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This part is an OEM replacement part for Bosch brand appliances. The lock and latch kit is responsible for securely locking and latching the appliance door during operation, ensuring that the door remains closed to prevent water leakage and maintain safety.

For the sensor only order 00611312
For the latch-only order 00630628

This part fixes the following symptoms:

• Difficulty closing, latching, or locking the appliance door
• The washing machine or dishwasher does not start or stops mid-cycle
• Error codes related to the door not being properly closed or locked
• The appliance door pops open during operation, causing water leakage
• Visible damage, wear, or malfunction of the lock and latch components

The Bosch Door Lock Assembly can also be used on Thermador and Gaggenau appliances.

This outer door panel is the exterior front skin of the door assembly. It restores the appliance's appearance and shields internal door components when the original panel is dented, bent, or otherwise damaged.

• Forms the visible outer surface of the door and mounts over the inner door assembly
• Shields internal door components from impact and exposure
• Replaces panels that are dented, scratched, creased, or visibly worn
• Can help correct door appearance issues caused by a warped or loose outer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Open and support the door; remove perimeter screws to release the outer panel
• Transfer handle/trim and any reusable hardware from the old panel to the new one
• Align the new panel and tighten screws evenly; verify smooth door operation and proper latching

The Door Handle is an OEM part for Bosch dishwashers. It is installed on the outer edge of the dishwasher door and is used to open and close the door.

The door handle is responsible for providing an easy and secure grip point to facilitate loading and unloading of dishes. It allows for controlled movement of the door through its range of motion.

Symptoms of a bad door handle can include:

• Looseness, wobbling, or detachment from the door
• Chipping, cracking or general wear and tear of the handle surface
• Difficulty grasping or lifting the door with the handle
• The door failing to securely latch in the closed position

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Dishwasher Handle End Cap is an OEM part for Bosch dishwashers. This part provides a finishing touch to the dishwasher's door handle, covering the ends for a smooth, finished appearance. Over time, these end caps can become lost, damaged, or worn, affecting the overall look and use of the dishwasher.

Symptoms of a bad Dishwasher Handle End Cap include:

• Missing or loose end caps
• Visible damage or wear
• Diffiuculty opening the door

Causes of a bad handle end cap can range from accidental damage during cleaning or use, to natural wear and tear from repeated handling.

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This small hardware washer distributes clamping force and protects surfaces under a screw or nut in your appliance. Replacing a worn or missing washer helps restore a secure fit and reduces vibration or movement in the assembly.

• Distributes fastener load to prevent gouging or deformation of mating surfaces
• Maintains proper spacing and alignment where a washer is specified
• Helps resist loosening from vibration over time
• Common signs: loose or shifting components, rattling, or visible wear around the fastener

• Disconnect power and any water/gas supplies before servicing
• Support the component and remove the fastener to access the washer
• Install the new washer in the same position/orientation as the original; do not overtighten
• Reassemble and verify the fastened joint is secure and operates smoothly

This genuine screw secures panels, brackets, and internal components in your appliance, keeping them tight and aligned. Replace worn or missing fasteners to stop rattles and restore a proper fit.

• Fastens sheet-metal panels, brackets, or hardware in place
• Helps maintain alignment and reduce vibration or noise
• Restores secure attachment when a screw is stripped, corroded, or missing
• Typical signs: loose or shifting parts, rattling, or gaps at joints

• Disconnect power; shut off water or gas before servicing.
• Match this screw to the original location and size; replace one at a time.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver type/size required by your model.
