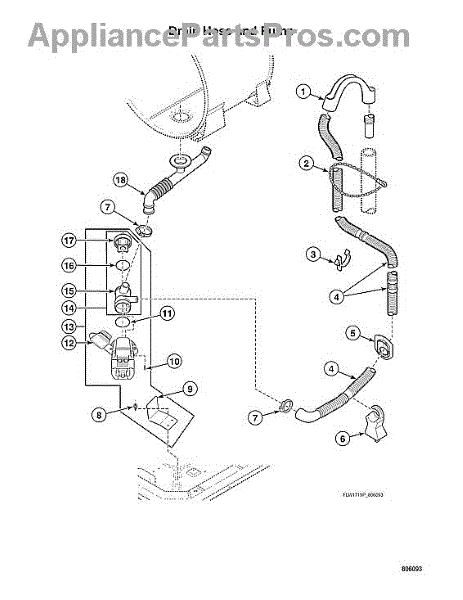

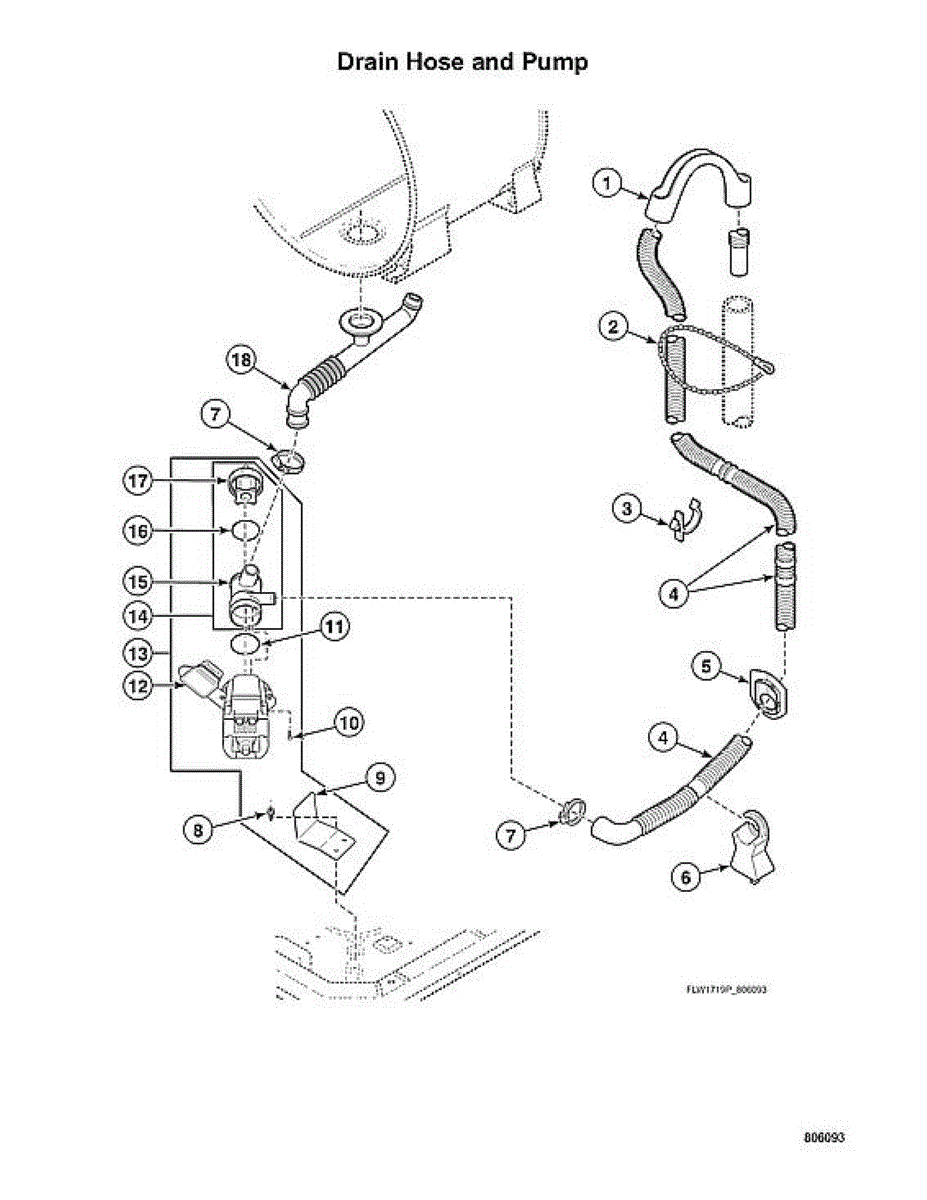

Parts for Speed Queen ATEE9ASP176TW01: Drain Hose / Pump Parts

A size #20 hose clamp used to secure flexible hoses to fittings on laundry appliances, helping prevent leaks and keep hoses firmly attached during operation. Simple, low-profile design for reliable hose connections. What it does:

• Secures washer drain and inlet hoses to fittings to reduce leak risk.
• Prevents hoses from slipping off under pressure or vibration.
• Helps maintain consistent water flow by keeping connections tight.
• Fits standard #20 hose diameter applications commonly used on laundry equipment.

• One size #20 hose clamp.

• Use a flathead screwdriver or nut driver to tighten; turn until snug—do not overtighten to avoid hose damage.
• Inspect hose and fitting for cracks or corrosion and replace if needed before installing the clamp.
• After installation, run a short test cycle and check for leaks; retighten if necessary.
• Disconnect power and water supply before servicing the appliance.

This drain pump assembly removes wastewater from the tub during the drain and spin cycles, helping your washer empty quickly and complete cycles reliably. Replace a failing pump to fix standing water, aborted cycles, or drain-related error codes. What it does:

• Pumps water from the tub to the household drain during drain and spin
• Restores proper draining so cycles can finish as intended
• Common failure symptoms: no or slow draining, water left in tub, loud humming/grinding from the pump area, small leaks near the pump, or drain fault errors
• 100–127V, 60 Hz "yellow" variant per OEM specification

• One drain pump assembly

• Disconnect power and turn off water supply before servicing
• Expect residual water; place towels or a pan to catch spills
• Note hose and wire positions; transfer any mounting hardware from the old pump
• Inspect and clear the drain hose and tub-to-pump hose for blockages before testing for leaks

This pump housing is the molded case that holds the washer's drain pump and channels wastewater out of the tub. Replacing a cracked or damaged housing restores proper drainage and helps stop leaks. What it does:

• Houses and secures the drain pump assembly
• Directs discharged water from the pump to the drain line
• Helps maintain pump alignment and prevents leaks from the pump area
• Common symptoms indicating replacement: leaking near the pump, poor or slow draining, and unusual pump noise

• Disconnect power and shut off water supply before starting any repair
• Drain the washer tub and remove surrounding panels to access the pump housing
• Inspect pump, seals, gaskets, and mounting hardware; replace any worn components
• Tighten fasteners snugly but avoid overtightening; test for leaks after reassembly

This tub-to-pump drain hose connects the washer tub to the drain pump, routing wastewater from the wash tub to the pump for removal. Replacing a worn or damaged hose helps stop leaks and restore reliable draining. What it does:

• Channels wastewater from the tub to the drain pump so the washer can expel water
• Commonly replaced when you see leaks at the hose, cracks, or split seams
• Can resolve symptoms like standing water in the tub, slow or no drain, or water on the floor near the washer
• Works with the factory clamps and fittings at the tub outlet and pump inlet

• One tub-to-pump drain hose

• Disconnect power to the washer and turn off the water supply before starting
• Drain remaining water from the tub and position towels to catch any spills
• Inspect and reuse or replace hose clamps as needed; ensure secure, leak-free connections
