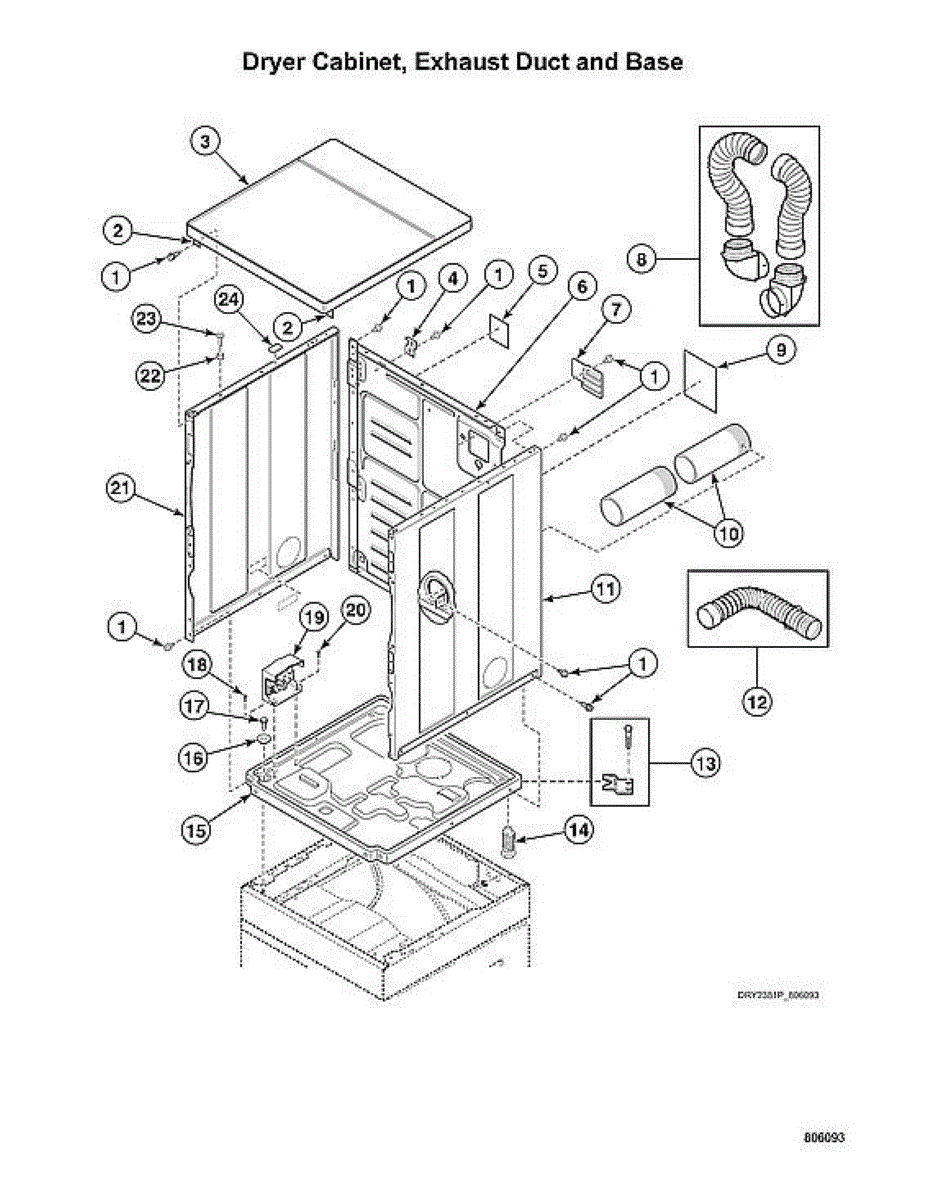

Parts for Speed Queen ATEE9ASP176TW01: Dryer Cabinet / Exhaust Duct / Base Parts

This appliance screw replaces a missing or damaged fastener to secure panels and brackets. With a 10B-16 thread and 0.34-inch length, it restores a tight fit to help reduce vibration, rattles, and loosening.

• Fastens sheet-metal parts, brackets, and covers in the appliance cabinet
• Helps maintain alignment and support of components subject to vibration
• Direct replacement for stripped, rusted, or missing hardware
• Can help resolve symptoms like loose panels, rattling noises, or gaps

• Disconnect power; shut off gas/water as applicable before servicing
• Start threads by hand in the original hole or clip to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping
• If the receiving clip/nut is damaged, repair or replace it for a secure hold

This painted rear cabinet panel replaces a dented, rusted or damaged back cover to restore the appliance's fit and finish and provide a secure enclosure for internal components. Matches Sahara finish. What it does

• Restores the rear exterior appearance after dents, scratches or corrosion.
• Secures internal components and helps maintain proper cabinet alignment.
• Keeps dust and debris out of the appliance interior.
• Helps maintain factory airflow paths and access points for service.

• One painted rear panel (Sahara) as shown.

• Disconnect power (and gas if applicable) before starting any repair.
• Basic hand tools required; support the appliance when removing or reinstalling the cabinet.
• Handle painted surfaces carefully to avoid scratches; use proper fasteners and torque to manufacturer guidance.

A one-piece rolled exhaust duct that routes dryer exhaust and lint from the appliance to the home vent. Durable sheet-metal construction keeps airflow consistent and helps maintain dryer performance. What it does:

• Channels hot, moist air and lint from the dryer to the external vent
• Prevents exhaust air from leaking into the laundry area
• Helps reduce lint buildup in the cabinet and transition ducting
• Supports proper airflow to improve drying consistency and odor control

• One one-piece rolled exhaust duct

• Disconnect power (and shut off gas supply for gas dryers) before servicing
• Inspect surrounding venting and housing; replace if crushed or heavily corroded
• Secure with the proper clamps or fasteners and maintain an unobstructed, smooth airflow path
• Follow the dryer manufacturer's venting guidelines and local codes

This shoulder screw secures and positions moving or mounted components, keeping assemblies aligned for smooth operation and reliable performance. It's a direct-fit fastener used where a precise spacing or pivot point is required. What it does:

• Provides a fixed shoulder surface to accurately locate parts and control movement
• Secures panels, linkages or brackets while allowing rotation where designed
• Helps prevent misalignment that can cause noise, binding or uneven wear
• Commonly replaced when worn, stripped, or when a fastener becomes loose

• Disconnect power and follow all safety precautions before servicing
• Use the correct hex key or driver to avoid stripping the socket
• Do not overtighten; snug to OEM torque or until properly seated against the shoulder
• Keep small parts organized to avoid loss during reassembly

This dryer output control kit replaces the dryer's output-control assembly to restore correct electronic signaling and normal cycle operation. Use it to address intermittent starts, unexpected stops, or cycles that end prematurely. What it does:

• Replaces the dryer's output-control assembly to restore proper output signaling between components.
• Helps correct intermittent operation, failure to start, unexpected shutdowns, or incorrect cycle termination.
• Restores worn or damaged control hardware so the dryer can complete selected cycles.

• Disconnect electrical power (and turn off gas supply for gas dryers) before beginning any work.
• Handle electronic components carefully and avoid static discharge; do not force connectors.
• Follow OEM wiring and mounting orientation exactly; tight mounting prevents misalignment and noise.

This Dryer Output Control Assembly is the electronic board that directs power to the dryer's major components. Replacing a failing board restores reliable motor, heat, and auxiliary output control for consistent cycle operation.

• Routes power from the control system to key loads such as the drive motor, heater, and other output devices
• Helps coordinate starting, running, heating, and timed functions during a cycle
• Failure symptoms include: dryer won't start, no heat, won't tumble, intermittent or erratic operation, or error codes

• Disconnect power before servicing; verify no power is present
• Use ESD protection; handle the board by edges and avoid touching components
• Transfer and seat all wire connectors one at a time; photograph/label before removal
• Secure the board and recheck connections before restoring power and testing

This left-side cabinet panel restores the exterior side of the washer/dryer cabinet for a clean, finished appearance and cabinet stability. It replaces a dented, rusted, or damaged side panel to improve looks and protect internal components. What it does:

• Replaces a damaged or corroded left cabinet side to restore cabinet strength and appearance
• Covers and protects internal components from dust and accidental contact
• Helps prevent moisture and debris from reaching internal parts that can cause wear
• Returns the cabinet to a flush, finished profile for proper enclosure fit

• One left cabinet side panel (single piece, as shown)

• Disconnect power and water before starting work
• Remove adjacent panels or trim as needed to access mounting screws; keep hardware for re-use unless damaged
• Handle edges carefully—wear gloves to avoid cuts and alignment damage
• Test fit and align before tightening fasteners to ensure proper panel gaps and secure fit

A replacement self-tapping pan-head screw sized 10 x 5/8 in for securing appliance panels, trim and small assemblies. Restores proper fastening where original screws are missing, stripped or corroded. What it does

• Cuts its own mating thread in sheet metal or plastic for secure fastening
• Commonly used to attach control panels, trim pieces and small brackets
• Helps stop rattles, loose panels and misaligned trim when original fasteners fail
• Corrosion-resistant finish resists rust in typical laundry appliance environments

• Use the correctly sized screwdriver or driver bit to avoid stripping the head
• Start in a pilot hole if material is brittle or if reinstalling into worn threads
• Do not over-torque; stop when the head seats flush to avoid cracking or stripping
• Disconnect power and follow appliance-specific safety procedures before working

This replacement porcelain touch-up paint restores small chips, scratches and worn spots on enamel-coated appliance surfaces to help improve appearance and slow surface corrosion. Easy to apply for spot repairs. What it does:

• Covers small chips, scratches and scuffs on porcelain/enamel surfaces
• Helps protect exposed metal from moisture that can lead to surface rust
• Matches factory finish color on compatible porcelain-coated panels (spot repairs only)
• Useful for finishing edges around dings and improving visual appearance

• One bottle of porcelain touch-up paint

• Clean and dry the repair area thoroughly; remove loose paint and rust before applying
• Test paint in an inconspicuous spot to confirm color match and adhesion
• Apply sparingly with a fine brush or applicator; allow recommended drying time between coats
• Keep away from open flame; store and dispose of per local regulations; keep out of reach of children
