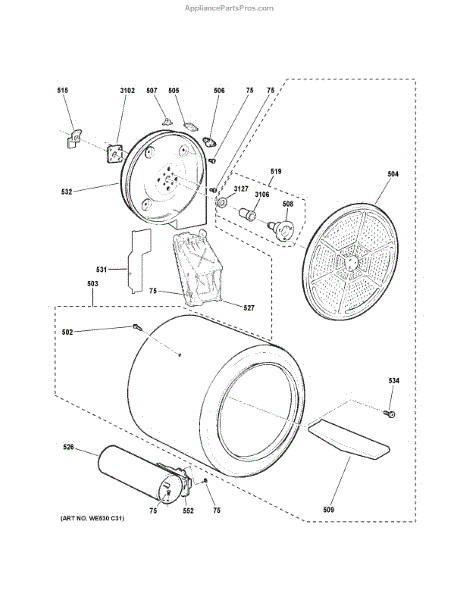

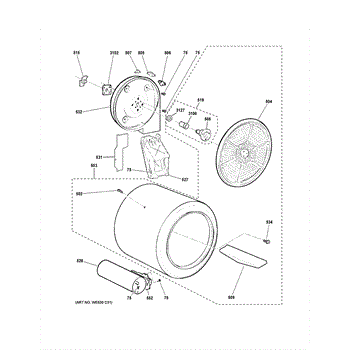

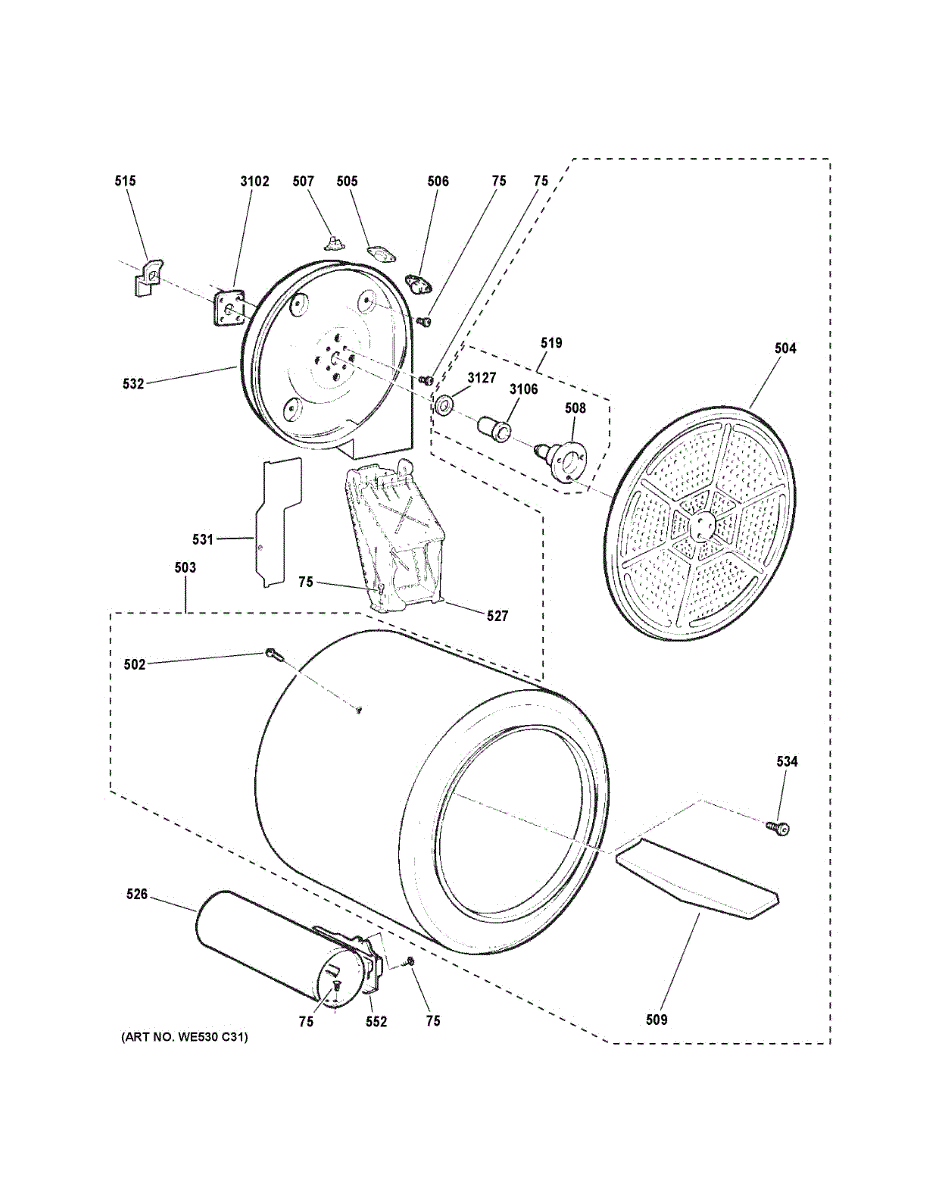

Parts for Ge GTD33GASK0WW: Drum Parts

Secures dryer panels and internal components to the cabinet frame. Replace if screw is stripped, missing, or loose to prevent vibration and rattling.

Fix a dryer that won't tumble or makes grinding noises with a complete drum assembly replacement. Restores proper rotation and balanced load tumbling.

Fix melted plastic or goop marks on clothes with a new dryer heat diffuser. Replaces damaged diffuser that causes staining. DIY repair with 3 screws.

The Thermostat is an OEM component specifically designed for GE laundry machines. It is a heat-sensing component that monitors and regulates air temperatures inside the dryer drum. Precise thermostat functioning ensures proper drying temperatures are reached and maintained for optimal performance.

Symptoms of a bad thermostat include:

• The dryer failing to heat or only heating intermittently
• Unexpected temperature display readings or error codes
• Inconsistent moisture removal or garments not fully drying

Causes include sensor degradation, electrical faults, or improper ventilation reducing its ability to accurately measure temperatures.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Dryer won't shut off or gets too hot? The cycling thermostat regulates temperature during the cycle. DIY repair with video guide, typically 1 hour.

The High Limit Thermostat is an OEM replacement part for GE electric dryers. Located internally near heating components, this safety device monitors drum temperatures to prevent excessive heat accumulation.

Causes of malfunction relate to water residues creating shorts, loose terminals detaching wiring due to vibrations, or a worn heat sensitive mechanism reacting slower over time.

Symptoms involve:

• Repeated thermal cut-off trips mid-cycle
• Inability to select heat settings without errors shown
• Bleach or smoke smells indicating unregulated temperatures

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Plastic baffle that installs inside the dryer drum to lift and tumble clothes. Replace if cracked, broken, thinning, or missing vanes that may mark fabrics.

Bonds dryer cabinet to ground point for safe operation. Replace if damaged, broken, or missing to restore proper electrical grounding and reduce shock risk.

Supports and stabilizes the dryer drum for smooth rotation. Replace if shaft is worn, bearing is damaged, or drum wobbles or sinks at the rear.

This combustion chamber is the metal housing that surrounds and directs the gas burner flame in a gas dryer, protecting surrounding components and guiding combustion for reliable heating performance. What it does

• Houses and aligns the burner assembly and igniter to ensure proper flame direction
• Channels exhaust and combustion flow away from sensitive parts
• Helps prevent heat damage to the dryer cabinet and nearby components
• Symptoms this can fix: poor or uneven heating, burner flame misalignment, or burner noise from loose housing

• One combustion chamber housing

• Turn off and unplug the dryer and shut off the gas supply before servicing
• Inspect and replace any damaged gaskets or mounting hardware for a proper seal
• Use basic hand tools; avoid bending or deforming the chamber during installation

Transition duct connects your dryer to the wall vent exhaust system. Replace if cracked, torn, or damaged to restore proper airflow and venting.

Flame deflector for gas dryers. Directs burner flame evenly during heating cycles. Replace if cracked, warped, or missing to restore proper operation.

This gas diffuser directs and evens the burner flame for reliable cooking performance. It helps stabilize heat distribution so burners light and heat more consistently across cookware. What it does:

• Spreads and evens gas flame to reduce hot spots and uneven cooking
• Helps stabilize burner ignition and maintain consistent flame shape
• Prevents direct flame contact with surrounding components
• Addresses symptoms like uneven heating, unstable flame, or partial burner operation

• One gas diffuser

• Turn off the gas supply and unplug the appliance before servicing
• Use basic hand tools; avoid overtightening or distorting the part
• If corrosion or sealed fasteners are present, replace affected hardware and check surrounding components

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

The Flame Sensor is an OEM part for GE dryers. This part detects the presence of a flame in gas dryers, ensuring that the gas ignites properly for safe and efficient drying.

Causes of a bad flame sensor can include regular wear and tear, carbon buildup from the gas flame, or electrical malfunctions.

Symptoms of a bad flame sensor include:

• The dryer not heating or taking longer to dry clothes
• The dryer shutting off unexpectedly during a cycle
• The igniter glowing but not igniting the gas
• Error codes related to heating or ignition issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The bearing retainer secures the drum bearing assembly in your dryer. Replace if cracked, broken, or worn to restore proper structural support.

Supports the rear dryer drum for smooth, quiet rotation. Replace if you hear squeaking, screeching, or thumping during cycles. Verify fit with your model.

The O Ring is an OEM part for GE dryers, creating a tight seal in different components for efficient operation. This small part prevents air leaks that can impact drying performance, made from quality materials to withstand high temperatures and frequent use

Causes of a faulty O Ring in a dryer may stem from heat exposure, regular wear and tear, or chemical damage. This can result in reduced elasticity, cracks, or breaks, impacting the seal.

Symptoms of a bad O Ring in your dryer include:

• Reduced efficiency in drying, as air leaks can affect the dryer's ability to maintain the correct temperature.
• Unusual noises stemming from air escaping through the compromised seal.
• Potential for small leaks or condensation within the dryer's internal components, leading to moisture issues.

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
