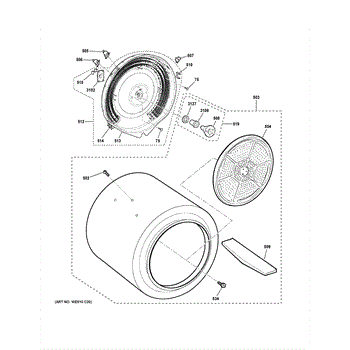

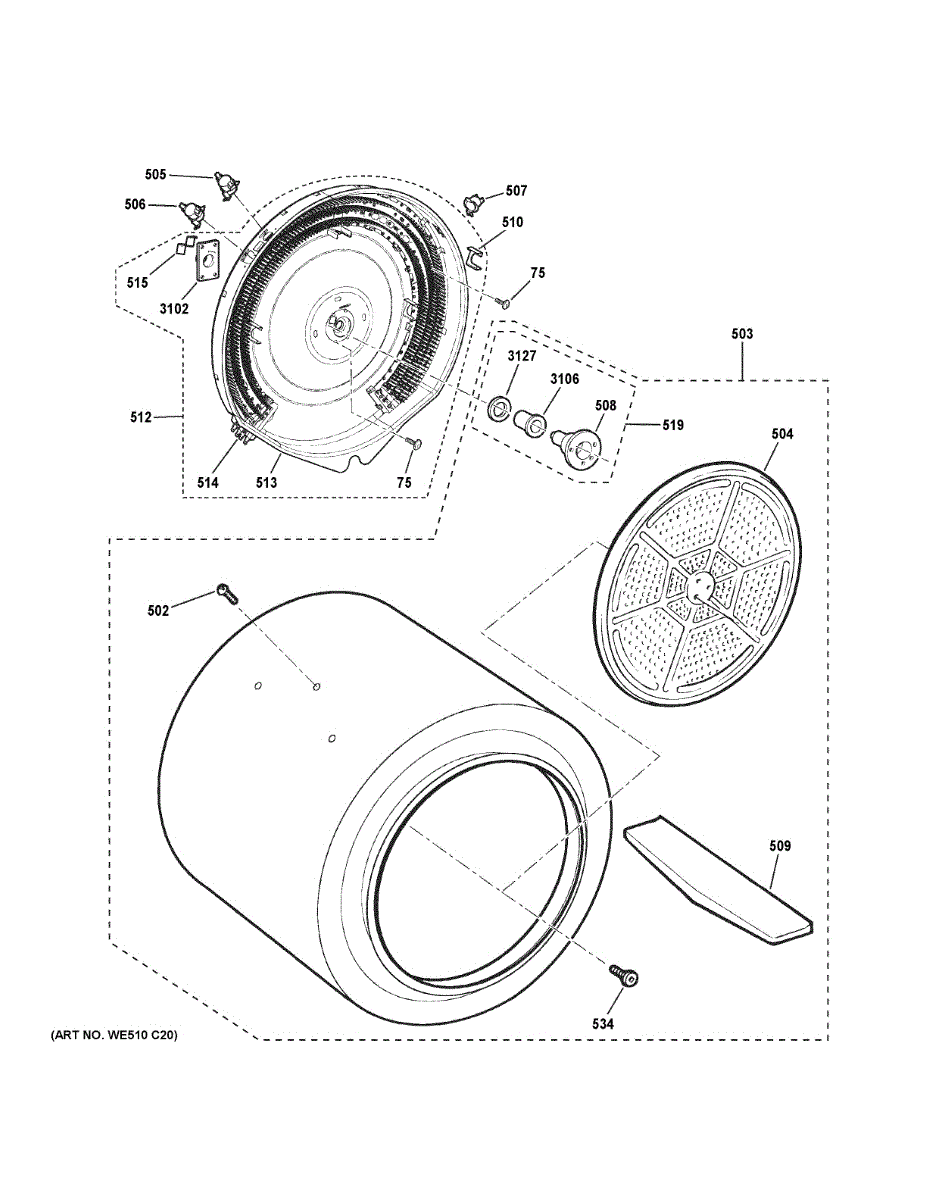

Parts for Ge GTD65EBSJ2WS: Drum Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This drum assembly is the rotating tub that holds and tumbles clothes in the dryer, restoring proper load rotation for efficient drying and gentle fabric handling. It replaces a worn or damaged drum to eliminate rubbing and uneven tumbling. What it does

• Provides the rotating drum surface for clothes to tumble during a dry cycle
• Restores smooth rotation if the original drum was dented, cracked, or worn
• Addresses rubbing, scraping, or fabric-catching noises caused by drum damage
• Helps correct uneven tumbling or garments sticking to the drum surface

• One drum assembly

• Disconnect power (and gas, for gas dryers) before beginning service
• Drum assemblies are heavy and may require two people to remove and install safely
• Inspect or replace related parts (belt, rollers, idler, seals) if they show wear

The Heat Diffuser is an OEM part for GE dryers. It is designed to evenly distribute heat throughout the dryer drum, ensuring efficient and consistent drying of clothes. The heat diffuser helps maintain proper airflow and temperature inside the dryer.

Over time, the heat diffuser can become worn out or damaged due to high heat exposure, lint buildup, or mechanical issues. Regular use and lack of maintenance can also contribute to its deterioration.

Symptoms of a bad Heat Diffuser include:

• Uneven drying of clothes
• Longer drying times
• Overheating or burning smell
• Increased noise during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat is an OEM component specifically designed for GE laundry machines. It is a heat-sensing component that monitors and regulates air temperatures inside the dryer drum. Precise thermostat functioning ensures proper drying temperatures are reached and maintained for optimal performance.

Symptoms of a bad thermostat include:

• The dryer failing to heat or only heating intermittently
• Unexpected temperature display readings or error codes
• Inconsistent moisture removal or garments not fully drying

Causes include sensor degradation, electrical faults, or improper ventilation reducing its ability to accurately measure temperatures.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Inlet Control Thermistor is an OEM part for GE dryers. It monitors and regulates the temperature of the incoming air to ensure optimal drying performance. This thermistor sends temperature readings to the dryer's control board, which adjusts the heating element accordingly to maintain the desired temperature throughout the drying cycle.

You should replace this inlet control thermistor if it becomes faulty or fails to provide accurate temperature readings. Common causes of a bad thermistor include electrical failures, damage from overheating, or wear and tear from regular use.

Symptoms of a bad inlet control thermistor include:

• Dryer not heating properly
• Overheating or uneven drying
• Dryer shutting off prematurely
• Error codes related to temperature issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Limit Thermostat is an OEM replacement part for GE electric dryers. Located internally near heating components, this safety device monitors drum temperatures to prevent excessive heat accumulation.

Causes of malfunction relate to water residues creating shorts, loose terminals detaching wiring due to vibrations, or a worn heat sensitive mechanism reacting slower over time.

Symptoms involve:

• Repeated thermal cut-off trips mid-cycle
• Inability to select heat settings without errors shown
• Bleach or smoke smells indicating unregulated temperatures

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drum Baffle is an OEM replacement part that fits GE dryers. It is responsible for tumbling clothes during drying cycles. Over time, the baffle can become damaged from wear and tear.

Causes of failure include cracks, thinning plastic, and missing vanes.

Symptoms of a bad drum baffle include:

• Uneven drying of clothes
• Excess noise during cycles
• Clothes damage from improper tumbling
• Rattling inside the drum

This GE baffle is also compatible with Hotpoint, RCA, and some Kenmore models

This heater and housing assembly generates and channels heat in your electric dryer. Replace a failed unit to restore proper drying performance when the dryer runs but clothes stay cold or take too long to dry.

• Produces heat with an electric element inside a metal housing; airflow carries the warmed air into the drum
• Restores consistent heat when the original element is burned out or shorted
• Common symptoms include no heat, low heat/long dry times, or clothes remaining damp after a cycle
• Visual cues may include a broken element coil or scorching on the old housing

• Disconnect power before servicing; internal parts can be hot
• Access the heater housing per your model (often from the rear panel); photograph wiring for correct transfer
• Move over any attached thermostats/sensors and wiring from the original assembly as your model requires
• After installation, clean the lint system and verify exterior venting for unrestricted airflow

This heater housing directs heated air from the dryer's heating assembly into the drum and protects internal components. It restores proper airflow routing for consistent drying and helps contain the heating element and sensors. What it does:

• Houses and protects the dryer's heating element and related sensors/thermostats
• Channels heated air into the drum for efficient drying
• Prevents hot spots and directs exhaust airflow to venting system
• Symptoms a failing housing may be linked with: poor or uneven drying, overheating/shutdowns, or unusual smells

• One heater housing

• Disconnect power to the appliance before starting any repair; electric shock and burn hazards exist
• Basic disassembly typically involves removing the dryer front or top and drum to access the housing; follow OEM service instructions
• Inspect heating element, thermostats, and wiring while replacing the housing; replace any damaged components
• Use care handling sharp sheet-metal edges and ensure all seals/gaskets are properly seated for good airflow

The Heating Element is an OEM replacement part for GE electric dryers. As the primary source of heat, it warm circulating air drying wet clothes efficiently.

Causes of failure may be surface fracturing and resistance loss due to deterioration over many heating cycles. Excessive mineral buildup may also hinder heat transfer capabilities.

Symptoms of a faulty element involve:

• Very long or inefficient drying times
• Unevenly dried clothes
• No heat detected during drying cycles

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Mica style heating element.

This ground strap assembly bonds the dryer's cabinet to the designated ground point, helping ensure safe operation. Replace a damaged or missing strap to restore a proper ground path and reduce the risk of shocks or nuisance static.

• Maintains the required electrical bond between the dryer chassis and ground as designed
• Helps prevent electric shock and reduces static by providing a low-resistance path to ground
• Replace if the original strap is loose, corroded, heat-discolored, broken, or missing
• Symptoms can include a slight tingle when touching the appliance or visible damage near the ground/terminal connection

• Disconnect power at the breaker before servicing; verify no power with a meter
• Follow your model's wiring diagram; bonding differs for 3-wire vs 4-wire cord installations per local codes
• Clean contact surfaces and secure fasteners firmly for a solid metal-to-metal bond; replace any heat-damaged hardware
• After installation, verify continuity between the cabinet and the designated ground point

The Drum Support Shaft and Bearing is an OEM part for GE dryers. This component supports the drum and allows it to rotate smoothly during the drying cycle. The bearing reduces friction, ensuring quiet and efficient operation of the drum.

Common causes of a bad support shaft and bearing include normal wear and tear, overloading the dryer, or a lack of lubrication. These issues can lead to increased friction and stress on the components.

Symptoms of a bad Drum Support Shaft and Bearing include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the drum
• Uneven drying of clothes

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

The Bearing Retainer is an OEM replacement part for GE electric dryers. It is an internal component that securely holds the drum bearing assembly in place to enable smooth rotation and provides structural bracing for the bearing during tumbling cycles.

Causes of a faulty retainer can include cracks from heat exposure over years of use. Impact damage from foreign objects inside the drum is also possible.

Symptoms of a bad bearing retainer include:

• Excessive vibration or noise during drying cycles
• Wobbling or misalignment of the rotating drum
• Premature failure of other moving parts due to lost structural support

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Drum Bearing Sleeve is an OEM part for GE dryers. It is designed to support the rear of the dryer drum, ensuring smooth rotation during the drying cycle. This sleeve reduces friction between the drum and the bearing, contributing to efficient and quiet operation of the dryer. This is the dryer rear drum bearing sleeve only. For the rear drum bearing kit order WE25M40.

You should replace the rear drum bearing sleeve if it becomes worn out or damaged. Causes of a bad bearing sleeve can include regular wear and tear, lack of lubrication, or excessive loads that cause undue stress on the component. A malfunctioning bearing sleeve can lead to increased friction, noise, and potential damage to other parts of the dryer.

Symptoms of a bad rear drum bearing sleeve include:

• Squeaking, grinding, or rumbling noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times due to inefficient drum movement
• Visible wear or damage to the sleeve

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The O Ring is an OEM part for GE dryers, creating a tight seal in different components for efficient operation. This small part prevents air leaks that can impact drying performance, made from quality materials to withstand high temperatures and frequent use

Causes of a faulty O Ring in a dryer may stem from heat exposure, regular wear and tear, or chemical damage. This can result in reduced elasticity, cracks, or breaks, impacting the seal.

Symptoms of a bad O Ring in your dryer include:

• Reduced efficiency in drying, as air leaks can affect the dryer's ability to maintain the correct temperature.
• Unusual noises stemming from air escaping through the compromised seal.
• Potential for small leaks or condensation within the dryer's internal components, leading to moisture issues.

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
