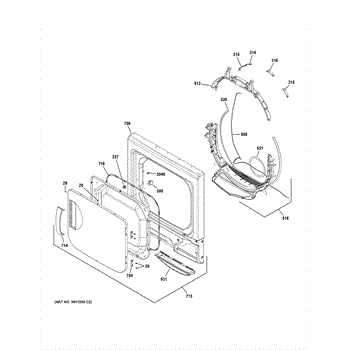

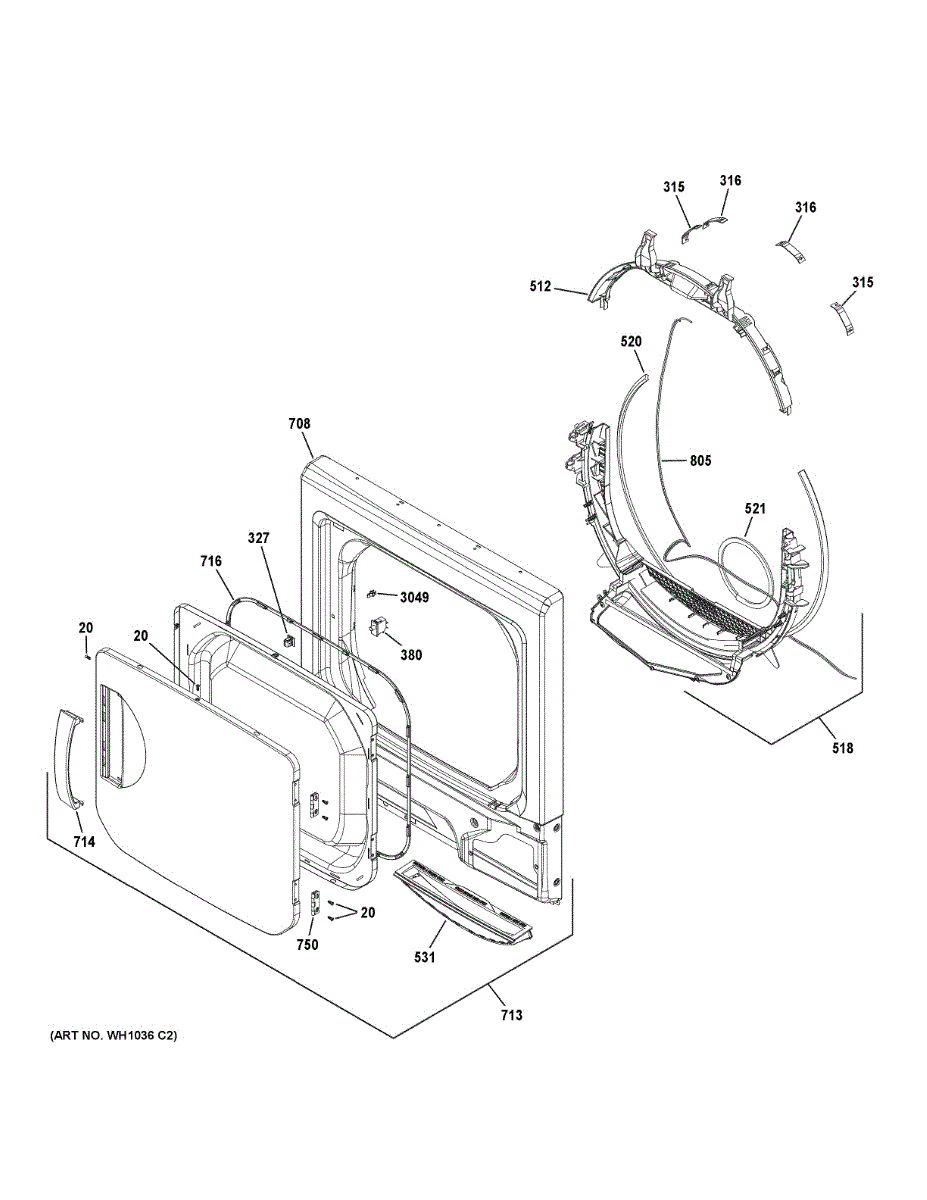

Parts for Ge GUD27ESPM0DG: Dryer Front Panel & Door Parts

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

The Dryer Bearing Slide (2-Pack) is an OEM replacement part for GE dryers. These slides are installed on the front panel of the dryer and support the drum as it rotates. They help reduce friction and wear, ensuring smooth and quiet operation during drying cycles. This pack includes two bearing slides, which are commonly used together in the dryer assembly.

Over time, bearing slides can wear down due to regular use, heat, and friction. When they become worn or damaged, the drum may no longer rotate smoothly, which can affect the dryer's performance and increase noise levels.

Symptoms of bad dryer bearing slides include:

• A loud squeaking or scraping noise during operation
• Difficulty rotating the drum manually
• Clothes taking longer to dry due to improper drum movement
• Visible wear or thinning on the existing slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bearing Slide Assembly is an OEM component for GE electric clothes dryers. As an integral part of the dryer tumbler system, this assembly includes the bearing slides that allow smooth rotation of the tumbler drum during drying cycles.

Symptoms of faulty bearing slides include:

• Abnormal vibrations or shaking of the dryer cabinet
• Noisy operation that gets louder over time
• Rubbing or grinding sounds coming from inside the machine
• Reduced tumbler movement or inability to manually turn the drum

Causes involve general wear of plastic bearing surfaces from years of drum rotation as well as potential damage or misalignment from excess stress on the slides.

This GE OEM replacement helps maintain balanced tumbler movement. Compatible with Hotpoint, RCA, and some Kenmore dryers using the bearing slide assembly design.

The Door Latch is an OEM part for GE dryers. This part ensures the dryer door stays securely closed during operation, activating the safety switch to allow the dryer to operate. The latch mechanism engages with the door strike to lock the door, preventing it from opening while the dryer is running, which is essential for both safety and proper functioning of the appliance.

Causes for replacement can include normal wear and tear, accidental damage, or a misalignment that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dryer door doesn't stay closed during cycles.
• Difficulty in starting the dryer due to the door not activating the safety switch.
• Visible wear or damage to the latch mechanism.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Switch is an OEM part for GE dryers, designed to ensure the dryer does not operate when the door is open. This safety feature is crucial for preventing accidents and ensuring the appliance operates efficiently and safely. The switch signals the dryer's control system about the status of the door—if it's open or closed—thereby allowing or preventing the start of a drying cycle.

Causes of damage to the door switch often include mechanical wear from repeated use, accidental damage from loading or unloading, or electrical issues such as short circuits.

Symptoms of a bad Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened
• Unusual noises or the dryer stopping mid-cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Front Drum Support is an OEM part for GE dryers. It supports the front of the dryer drum, allowing it to rotate smoothly during the drying cycle. This support helps maintain the drum's position and alignment, ensuring efficient and quiet operation.

You should replace the front drum support if it becomes worn out or damaged. Causes of a bad drum support can include regular wear and tear from continuous use, overloading the dryer, or debris causing friction and damage.

Symptoms of a bad front drum support include:

• Unusual noises such as squeaking or grinding during operation
• The drum not rotating smoothly or becoming misaligned
• Clothes taking longer to dry or uneven drying
• Visible wear or damage to the support structure

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Duct Trap Assembly is an OEM part for GE dryers. This part is responsible for capturing lint and debris from your laundry, preventing it from entering the dryer vent and causing potential blockages. The drum bearing supports the drum's rotation, allowing it to spin smoothly and quietly during drying cycles.

A bad duct trap assembly can occur due to wear and tear, damage, or blockage. If you notice symptoms such as lint escaping the lint screen, excessive noise during operation, or the drum not rotating properly, it may be time to replace this assembly.

Symptoms of a bad duct trap assembly include:

• Lint escaping the lint screen
• Excessive noise during operation
• Drum not rotating properly

Ensure the operation of your GE dryer by replacing the faulty duct trap assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Lower Drum Felt seal is an OEM replacement part for GE dryers. The Lower drum felt seal is responsible for creating a seal between the drum and the front panel of the dryer.

This part fixes the following symptoms:

• Air leaking from the dryer drum
• Reduced dryer efficiency and increased energy costs
• Clothes becoming caught in the gap between the drum and front panel
• Potential damage or snags to clothes or the dryer

Causes of a bad Lower Drum Felt Seal can range from normal wear and tear, which degrades the felt material over time, to excessive load sizes that strain the drum and seal. Additionally, over time, the seal can become compressed or damaged, leading to a less effective seal and the potential for heat loss and inefficiency in the drying process.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This exhaust gasket seals the dryer's exhaust duct connection to contain airflow and keep lint out of the cabinet. A tight seal helps maintain drying performance and efficiency while reducing warm, moist air leakage behind the unit.

• Seals the joint between the exhaust duct and outlet/blower housing to prevent air and lint leaks
• Helps maintain proper airflow for consistent drying results
• Wear or damage can cause longer dry times and warm, humid air or lint behind the dryer
• Visible tears, flattening, or missing sections indicate the gasket should be replaced

• Disconnect power; turn off gas supply for gas models before servicing
• Pull the dryer forward, disconnect the vent, and remove panel(s) as needed to access the exhaust connection
• Remove the old gasket and residue; clean mating surfaces; seat the new gasket evenly
• Reassemble, reconnect the vent, ensure the external vent is clear, and check for air leaks

The Filter Lint is an OEM replacement part for GE dryers. Located inside the dryer cabinet behind the lint screen, the lint filter traps microscopic fabric dust and residue. It plays a supportive role in protecting internal components from lint buildup.

Causes for lint filter replacement may be an excessively loaded filter obstructing airflow. Regular cleaning helps prolong the life of this consumable part.

Symptoms include:

• Slow or incomplete drying times even on high heat settings
• Reduced air venting due to a clogged lint filter
• Muffled operation from restricted airflow passageways
• Fabric dust accumulating in undesirable areas inside the dryer

Compatible GE branded models include profiles, Café, and Kenmore dryers as well.

This Door Handle is an OEM replacement part for GE dryers. It is specifically designed to provide a comfortable and secure grip for opening and closing the dryer door.

Door handles can become loose, crack, or break due to frequent usage, material fatigue, or accidental impacts. A faulty handle not only inconveniences the user but can also lead to further damage if the door is not handled correctly.

Symptoms of a bad Door Handle include:

• Difficulty in opening or closing the dryer door due to a loose or broken handle.
• Visible cracks, breaks, or wear on the handle.
• The handle comes off completely or remains in the hand after pulling.
• The a need to use extra force to operate the handle.

This GE OEM replacement part is compatible with Hotpoint, RCA, and Kenmore models.

Door gasket seals the door assembly to limit air leaks and keep heat and moisture inside the drum. Replacing a worn gasket restores airflow, improves drying performance, and reduces lint and warm air escaping at the door.

• Forms a compression seal around the dryer door opening/window to prevent air leaks
• Helps maintain proper drum temperature and airflow for efficient drying
• Replace if the gasket is torn, flattened, brittle, loose, or missing
• Helps with: warm air or lint escaping at the door, longer dry times, door rattle, visible wear on the gasket

• Disconnect power; for gas models, also shut off the gas supply and allow the dryer to cool
• Remove the door and separate inner/outer door panels as needed; note gasket routing/orientation
• Clean mating surfaces; install the new gasket without stretching and seat it evenly around the perimeter
• Reassemble and verify an even seal around the door; run a short test cycle to check for leaks

This replacement hinge supports and pivots the appliance door so it opens and closes smoothly and stays aligned. A worn or bent hinge can lead to door sagging, scraping, or poor latching that impacts performance and safety. What it does

• Supports the door and provides the pivot point for opening/closing
• Maintains door alignment to help ensure a proper seal
• Restores smooth, consistent door motion
• Common symptoms: door sags, squeaks, scrapes, or won't latch/stay closed

• 1 hinge

• Disconnect power before servicing; for gas units, also shut off gas supply
• Support the door while removing/installing fasteners to prevent stress on the panel
• Reuse original mounting screws/hardware unless damaged
• After installation, adjust if needed

The Door Strike is an OEM part for GE dryers. This component is crucial for ensuring that the dryer door latches properly when closed. It interacts with the door catch mechanism to secure the door during operation, preventing it from opening unexpectedly, which ensures the dryer operates safely and efficiently.

Symptoms of a failing Door Strike include:

• The dryer door not staying closed during a cycle
• Difficulty in closing the dryer door or getting it to latch properly
• The dryer not starting because the door switch is not engaged
• Visible damage or wear on the door strike

Causes of a bad door strike can include wear and tear from regular use, physical damage from slamming the door or mishandling, and misalignment caused by repeated opening and closing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: If the door catch is also needed, use part number WE1M1011.
