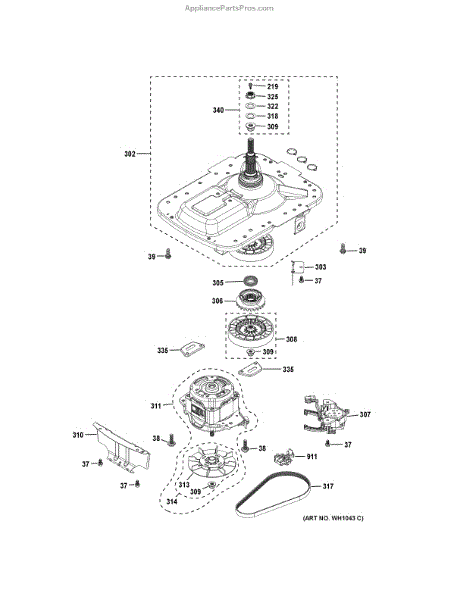

Parts for Ge GUD27ESPM0DG: Motor & Drive Assembly Parts

This 1/4-20 Taptite hex washer-head screw secures panels and internal components in your appliance. Its thread-forming design creates a tight, vibration-resistant hold in untapped metal to keep assemblies aligned when a fastener is missing or stripped.

• Fastens brackets, panels, and hardware to the cabinet/frame
• Taptite design forms threads in pre-punched, untapped holes for a secure fit
• Replaces missing, stripped, or rusted screws
• Helps reduce vibration and rattling from loose mounts

• Unplug the appliance; if servicing a washer, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the appropriate nut driver or socket until snug—do not overtighten

This 5/16-18 hex screw is a genuine replacement fastener for appliance assemblies. It restores secure mounting for panels and components so parts stay aligned and rattle-free during normal use. What it does:

• Fastens and secures panels, brackets, and components in appliance assemblies
• Restores proper alignment when original screws are missing or loose
• Helps stop rattling, vibration, and intermittent contact caused by loose fasteners
• Provides the correct thread size for a reliable, OEM-fit connection

• Use the correct 5/16-inch hex driver or socket; do not force mismatched tools
• Disconnect power (and gas where applicable) and follow appliance safety procedures before working
• Tighten snugly but avoid over-torquing to prevent thread or part damage
• Replace any corroded or stripped mating hardware for best results

This is a hex pan thread screw used to secure appliance panels and components. It replaces missing or damaged fasteners to restore proper fit and reduce vibration or rattling. What it does

• Secures panels, brackets, or components to the appliance frame
• Restores tight fit where a worn or missing screw caused loose panels or rattling
• Provides a hex head drive for easy tightening with the correct socket or bit
• Matches OEM fastening points when replacing the original screw

• One hex pan thread screw

• Use the correct hex socket or driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power or follow appliance safety procedures before servicing
• Keep removed hardware organized to confirm correct replacement

This agitator screw secures the washer's agitator to the drive hub/shaft. Replace a missing, stripped, or rusted screw to restore a tight, stable agitator and proper wash action while helping prevent wobble and rattling during cycles.

• Fastens the agitator to the drive hub/shaft
• Keeps the agitator from lifting or wobbling
• Helps maintain consistent agitation and wash performance
• Typical symptoms: loose or wobbly agitator, rattling/clicking during agitation, reduced cleaning results

• Disconnect power before servicing the washer
• Remove the agitator cap or fabric softener dispenser to access the screw
• Use an appropriate driver or socket; avoid cross-threading and overtightening
• Ensure the agitator is fully seated before tightening; reinstall the cap/dispenser

The GE Transmission Platform Asm & Nut is an OEM component specially designed for GE stackable laundry pairs. This kit includes the transmission platform assembly and nut, which connect the transmission to the tub and drive the wash basket during the wash cycle.

Causes of a bad transmission platform assembly and nut can include wear and tear over time, cracks or breaks due to repeated impacts during washing, or stripped threads on the nut from overtightening.

Symptoms of issues include:

• The wash basket not spinning or agitating during the cycle
• Grinding or rubbing noises coming from the drive train
• Excessive vibration felt through the washer cabinet
• Off-balance loads or laundry not fully extracting

This OEM GE replacement kit is also compatible with some Hotpoint and RCA washers.

This bracket connector is a small metal mounting bracket that secures wiring or components inside the appliance, restoring stable alignment and connection points. It helps stop loose wires or parts from shifting and reduces intermittent electrical contact. What it does

• Provides a secure anchor point for wiring harnesses or small components
• Prevents strain on electrical connections that can cause intermittent operation
• Keeps internal parts aligned to reduce rattle and wear
• Replaces a damaged or missing mounting bracket to restore factory fit

• Inspect surrounding wiring and fasteners; replace any damaged clips or screws.
• Secure bracket with the original screws or the correct-size fasteners; do not overtighten.
• Disconnect power before accessing internal components to avoid shock or injury.

This shifter spring helps engage and return the transmission shifter mechanism in select top-load washers, allowing smooth changes between agitation and spin for reliable wash performance.

• Maintains proper tension on the shift mechanism between agitate and spin
• A worn or broken spring can cause no spin, no agitate, or loud shifting noises
• May also lead to intermittent shifting or incomplete cycles
• Restores consistent mechanical engagement of the drive system

• Unplug the washer and shut off water supply before servicing
• Access is typically from the cabinet/rear; support the tub to prevent movement
• Note spring orientation and attachment points before removal
• Use needle-nose pliers or a spring tool; replace any severely worn mating parts

This washer clutch engages the drive system to spin the basket, providing controlled engagement so loads reach proper spin speed smoothly. Replacing a worn clutch can restore spin performance and reduce noise for better-extracted laundry.

• Transfers drive power to the basket during spin
• Modulates engagement to prevent harsh starts and protect the drive
• Failure may cause no or slow spin, clothes coming out wet, or intermittent spinning
• Can also present as squealing, grinding, or a burning odor during spin

• Disconnect power and water supply before service
• Safely access the drive assembly per your model (often from below or rear) and support the appliance
• Remove retaining hardware, swap the clutch, and reassemble components in their original order
• Run a spin/diagnostic test after installation to ensure smooth operation

The Mode Shifter Assembly is an OEM part for GE washer/dryer units. This part is responsible for shifting between different modes such as washing, spinning, and drying. The mode shifter ensures smooth and accurate shifting, allowing for seamless transitions between the various modes of your GE washer/dryer. It engages and disengages the mode shifter mechanism, ensuring that the appropriate functions are activated at the right times.

A bad mode shifter actuator can occur due to wear and tear, mechanical failure, or electrical issues. If you notice symptoms such as the washer/dryer not shifting modes properly, unusual noises during operation, or error codes indicating a faulty actuator, it may be time to replace the component.

Symptoms of a bad mode shifter actuator include:

• Improper shifting between modes
• Unusual noises during operation
• Error codes indicating a faulty actuator

Restore the smooth operation of your GE washer/dryer by replacing the faulty mode shifter actuator with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Transmission Pulley Kit is an OEM part for GE washers. It includes nuts, washers, and other key components for connecting the transmission to the drive motor. This kit plays an essential role in transmitting power from the motor to spin the basket and turn the agitator during wash cycles.

Symptoms of a bad transmission pulley kit include:

• The washer not spinning or agitating during cycles
• Grinding or clicking noises coming from the transmission area
• Leaks around the transmission seal or pulley area

Causes can be cracked or worn pulley components, stripped threads, or loosened nuts that no longer secure connections properly. Over time and through repeated use, normal wear and tear affect these transmission parts.

Replacing with a genuine GE kit restores like-new operation, transferring optimized power for various cycles. This OEM GE replacement is also compatible with Hotpoint, RCA, and some Kenmore models.

A small retaining nut that secures a dryer pulley in place to keep the idler or drum pulley mounted and stable. Replacing a worn or missing nut restores proper pulley alignment and helps the dryer run quietly and reliably. What it does:

• Secures the pulley to its shaft so the belt tracks correctly
• Prevents pulley wobble that can cause rubbing, squeaks or belt mis-tracking
• Helps stop excessive vibration during tumbling
• Supports normal drum rotation for even drying

• Disconnect power before servicing to avoid electrical shock
• Requires basic hand tools (socket or nut driver) and access to the dryer cabinet
• Hold the pulley/shaft steady while tightening; do not overtighten to avoid stripping threads
• Replace those parts as well for reliable operation

The Motor and Pulley Assembly is an OEM part for GE washers. It contains both the motor and pulley which work synergistically to spin laundry during the spin cycle while removing excess water.

Causes of a bad motor and pulley assembly include normal wear and tear over time, contaminants in the washer tub damaging components, or damage from attempting to spin loads that are too large or unbalanced.

Symptoms of a bad motor and pulley assembly include:

• The washer not spinning clothes during the spin cycle
• Loud grinding or clicking noises coming from the assembly
• The motor overheating during operation
• Vibrations felt in the washer tub or surrounding cabinetry

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


A replacement fan magnet assembly that secures and supports the fan motor rotor, helping the fridge/freezer fan spin smoothly for proper airflow and cooling. Fits into the motor housing and restores normal fan operation. What it does:

• Replaces a worn or damaged magnet assembly that can cause noisy or irregular fan performance
• Helps the fan motor maintain proper rotor alignment for steady, efficient airflow
• Commonly used when fans run loudly, wobble, or fail to start due to magnet/rotor issues
• Prevents contact between the rotor and housing that can lead to grinding or damage

• One fan magnet assembly only

• Disconnect appliance power before starting any repair to avoid shock or injury
• Remove fan blade and motor housing per OEM instructions to access the magnet assembly
• Handle magnets carefully; keep away from credit cards, electronics and pacemakers

This motor pulley and nut kit replaces a worn or damaged drive pulley on a washing machine's motor, restoring proper belt engagement. A true, undamaged pulley helps ensure reliable agitation and spin without slippage or squeal.

• Mounts on the motor shaft to drive the belt for wash and spin cycles
• Worn grooves or wobble can cause belt slippage, squealing, or a burning rubber smell
• Failure may present as slow/no spin or weak/intermittent agitation
• Restoring the pulley helps maintain correct belt tracking and reduces premature belt wear

• Unplug the appliance and disconnect water; wear gloves and ensure stable access to the motor
• Remove the belt, hold the motor shaft, then remove the old nut and pulley
• Clean the motor shaft; seat the new pulley fully and install the new nut, tightening securely
• Reinstall and align the belt; rotate by hand to verify tracking before reassembly and testing

The Drive Belt is an OEM replacement part for GE laundry centers. The belt is specifically designed to fit and function optimally in the compact design of GE laundry centers.

Causes for a malfunctioning Drive Belt can include wear and tear from regular use, overloading the dryer, causing strain on the belt, or the belt becoming misaligned or dislodged from its track.

Symptoms of a bad Drive Belt include:

• The dryer drum failing to turn even though the motor is active
• A thumping or squealing noise during the dryer's operation
• The dryer not starting or failing to produce heat
• Clothes remaining damp after the cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement motor bracket that secures the motor assembly in place and maintains proper alignment for reliable operation. Restores stable motor mounting to reduce vibration and prevent misalignment-related issues. What it does:

• Holds the motor securely in the appliance chassis to maintain correct alignment
• Dampens movement and helps reduce vibration and noise from a loose motor
• Prevents motor shift that can cause belt mis-tracking or rubbing
• Supports consistent motor-to-drive engagement for reliable performance

• One motor bracket

• Disconnect power (and gas if applicable) before servicing to avoid shock or injury
• Use appropriate tools and replacement fasteners; tighten to OEM torque where specified
• Inspect surrounding mounts, fasteners and the motor for wear while replacing the bracket

The Hardware Kit is an OEM part for GE laundry centers. It contains various mounting screws, brackets, and retainers needed to securely attach internal parts like panels and components.

GE laundry centers consolidate washer and dryer functions into one large machine. As an appliance containing multiple moveable metal assemblies, it relies on hardware to maintain structure during vigorous laundry cycles. Vibrations can cause interior connectors to rattle loose without reinforcement.

Causes of insufficient hardware include stripped screws with reduced grip, broken supports no longer performing as designed, or lost clips leaving certain areas unstable.

Symptoms of bad or missing hardware include:

• Loose, rattling, or detached internal components
• Exposed connections between washer and dryer functions
• Reduced integrity in particular sections of the unit

Replacing with the OEM GE kit restores the factory-installed reinforcement. Compatible with some Kenmore combo units containing GE mechanisms.

The Speed Sensor is an OEM replacement part for GE washing machines. It regulates the rotation speed of the wash basket during various cycles like agitation, spin, and rinse modes. Precise speed control allows the washer to thoroughly clean laundry efficiently while preventing damage.

Causes of a bad speed sensor can include wear and tear of internal components from heavy or unbalanced loads over time. Improper installation during manufacturing may also lead to unexpected failures.

Symptoms of a bad speed sensor include:

• The washer failed to agitate, spin, or rotate the basket
• Inconsistent or fluctuating basket speeds
• Vibration and noise during operation
• Inability to complete full cycles

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
