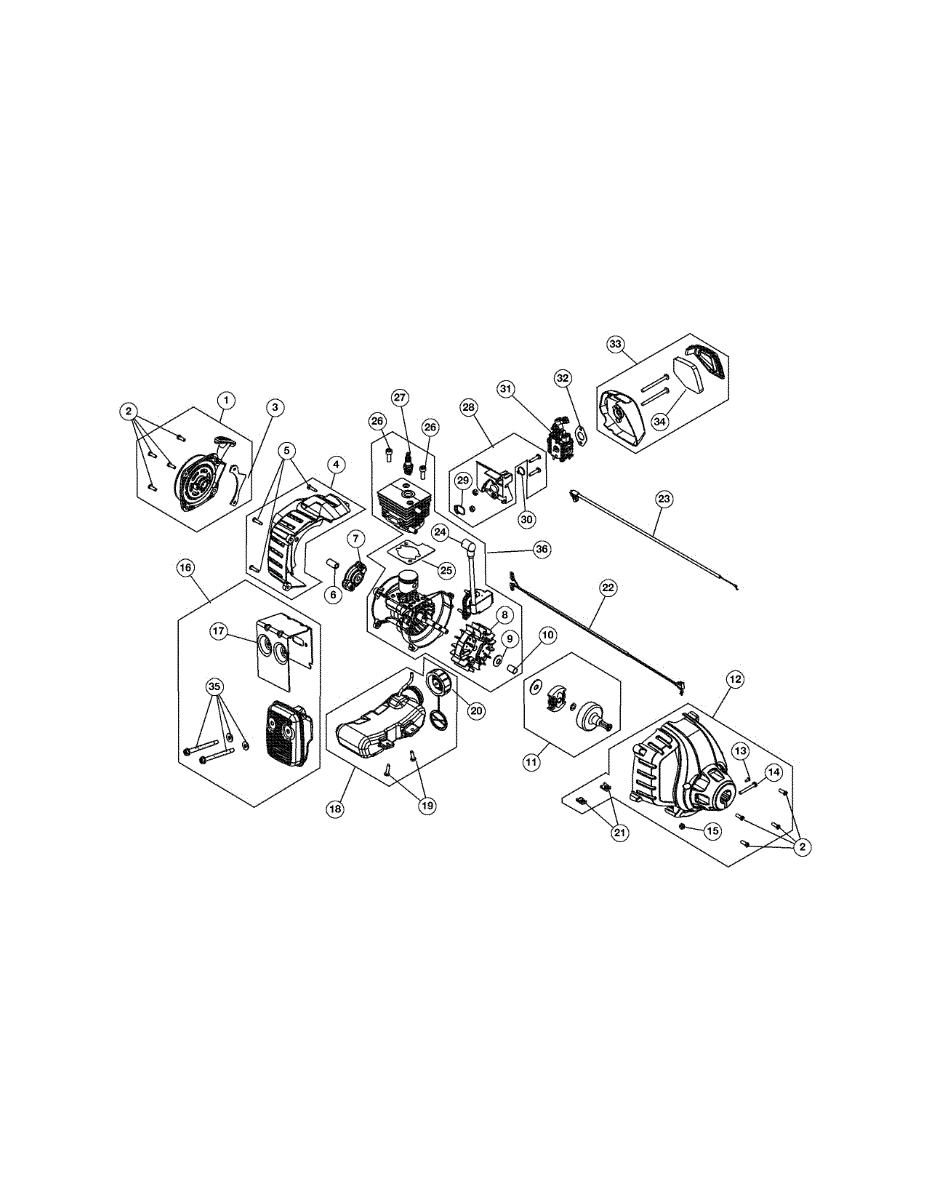

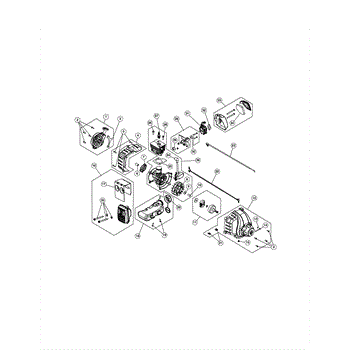

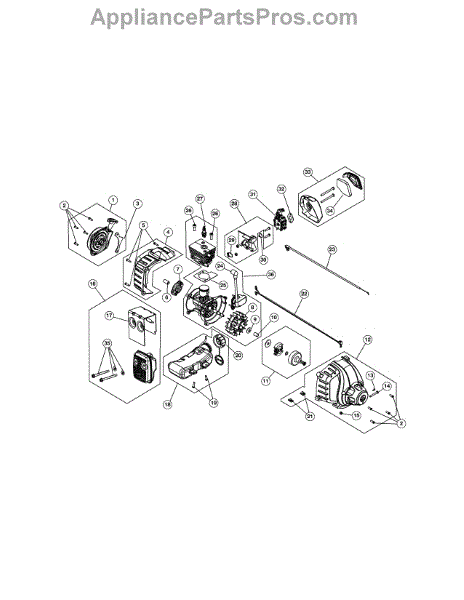

Parts for Craftsman 41DD386C799: Engine Assembly Parts

Also known as a rewind starter, the recoil starter assembly is the part in a string trimmer that drives the engine's combustion process. When the component is engaged, the engine can be started by hand to create sufficient speed to bring all of the operating systems on board. In cases where there is damage to the recoil starter assembly, the trimmer will not turn on.Wear and tear from frequent or extended use can cause the recoil starter assembly to fail. The most common symptom of a broken or damaged recoil starter assembly is a slack pull rope. If this happens, the recoil starter will need to be replaced as the equipment cannot be used without a working recoil starter. Replacing the part will require a set of work gloves and basic tools. The housing cap and rope should be removed before replacement.This recoil starter assembly is an authentic OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual part. The starter assembly is compatible with several string trimmers manufactured by Craftsman, MTD, and Troy-Bilt.

This replacement screw is useful for many different types of handheld outdoor equipment. Screws are used as a means to hold parts of the machine together. The screws also help to reduce the amount of vibration that occurs in the machine.These screws are used in outdoor equipment, so there is a chance they could corrode over time. In some cases, the screws may also lose their thread, or the heads of the screws could start to become worn down. Owners who notice issues with the screws, or who notice a missing screw should replace them to ensure the proper function of the machine. Failure to replace damaged screws could result in more difficulty replacing them after they wear down further.The screw works on various types of equipment including blowers and trimmers. It is compatible with a range of brands including Murray, Craftsman, Yard Machines, Bolens, Yard-Man, Craftsman, Ryobi, and McCulloch. This is a genuine OEM part sourced from the manufacturer, and it is sold individually.

Few parts fulfill as many roles on lawn mowers and other landscaping power tools than the cover screw. This screw serves to attach metal housing parts, assemblies, and shrouds to one another on equipment such as power vacuums, snow blowers, edgers, tillers, hedge trimmers, lawn tractors, leaf blowers, grass trimmers and cultivators. As these are extremely durable metal screws, they seldom fail under ordinary use. It should be noted, however, that they are most often used at connection and pressure points. Stresses at these junctions sometime loosen screws, causing them to be lost or occasionally resulting in stripped threads. It's also occasionally the case that these screws are lost during repair or routine maintenance of yard equipment because of their small size. Users should make sure to consult their owner's manuals for replacement steps and any special instructions. Because of their small size and the ease of losing them during repair work or maintenance, it's recommended to keep a supply of appropriately sized screws on hand. Most importantly, when replacing a part make sure to use a genuine OEM replacement part. They are manufactured according to the specs of the original parts and are perfect replicas.

This is a genuine replacement pawl assembly for select MTD engines. This pawl assembly attaches to the crankshaft in the motor. It is responsible for rotating the shaft and flywheel as a reaction to the recoil starter rope being pulled. The part is subject to constant motion and can wear down over time or otherwise fail. If the pawl assembly goes bad, the shaft and flywheel will not be able to rotate and the engine will not run properly, if at all. A replacement part like this model will solve the problem for compatible units. This genuine OEM pawl is manufactured by MTD to exact standards to provide a fit for compatible machines from Troy-Bilt, MTD, Cub Cadet, and Yard Man, including blowers and trimmers. This pawl assembly includes the metal housing, two plastic pawls, and two springs, which makes it a complete part that requires no additional purchase. This unit is sold as an individual piece. Ensure the engine is cool prior to repair and wear gloves to ensure hand protection when working on the moving parts of the engine. Disconnect the spark plug to protect from accidental engine engagement, as well.

The clutch assembly uses centrifugal force to connect the shafts and create the drive shaft motion that powers the machine. The drive shaft nests inside the other shaft, and over time these parts can wear and become damaged with regular use. Today's parts can even continue to function long past when they should, so it may not be apparent that a clutch assembly needs to be replaced until the entire unit is bad. If the engine is not performing as it should or if the drive shaft seems unstable, it may be time to replace the clutch assembly. This genuine OEM part includes everything needed for the job. This OEM clutch replacement is designed for use with various cultivators, edgers, and trimmers. It can be used on machines from MTD, RYOBI, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Murray, and Husky. This assembly includes the clutch, clutch drum, washer, and left-hand threaded screw. Always disengage the spark plug and allow the engine to cool completely before beginning repairs.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

This genuine MTD muffler assembly can be used as a replacement part for a string trimmer, a leaf blower, or a leaf vacuum. The muffler assembly contains a replacement muffler and the components that collectively fasten the muffler to the appliance. The purpose of a muffler for one of these outdoor appliances is to silence or soften the engine and to filter the air that exits the engine to direct the exhaust away from the person operating the appliance.A muffler might suffer damage in the lifespan of an appliance that could necessitate its replacement as well as the replacement of its associated components. If the muffler is no longer softening the noise of the appliance or if the exhaust blows unfiltered air directly toward the operator of the appliance, these are symptoms that the muffler should be removed and replaced with this genuine OEM part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This muffler assembly is compatible with the following brands: MTD, Cub Cadet, Troy-Bilt, and Craftsman.

This is a fuel tank for MTD string trimmers. It’s constructed from white resin, which combines the tank and mounting flanges in a one-piece, molded design. The gas cap is glossy black plastic, and the tank and primer leads are both already installed. There are two mounting screws included in the kit, making installation more convenient. This is a 2-cycle fuel tank designed for engines that run on a mixture of oil and gas. Ordinary gasoline can cause damage to the fuel lines. Tanks should ideally last for several years but can get damaged, causing a leak. Gas tank leakage is a significant safety issue and must be fixed immediately. Tanks may also need to be replaced if they become extremely soiled. To replace the tank, you will simply need to disconnect the old tank’s fuel lines and remove the two mounting screws. In addition to MTD trimmers, this tank is also used on some Troy-Bilt and Cub Cadet models. This is an OEM part sourced directly from the manufacturer, and it is sold individually.

The ignition coil replacement module assembly is used in lawn trimmers. It creates charges of high pulses of electric current. The ignition coil's current sends the voltages down the spark plug wire to the spark plug and then the engine. Signs the ignition coil may need replacing include poor performance, inability to engage the machine, and unusual noises. An ignition coil will wear out with routine use, or it can become damaged with improper usage. Replacing the ignition coil in a trimmer requires a screwdriver, socket set, adjustable wrench, and star bit screwdriver. Allow the engine to cool completely before disassembly. It can be achieved in about 30 minutes. Wear gloves for safety. Make notations of all removed pieces for easier reassembly after the replacement part has been installed.This replacement module is an authentic OEM part sourced from the manufacturer. It is compatible with several different lawn equipment brands, including MTD, Cub Cadet, and Troy-Built. The module is found in numerous trimmer machines. The replacement part is sold individually as one module assembly. Included with the assembly are the screws, spark plug boot, and rubber insulated wire. The piece is made from durable plastic and metal.

This is a replacement spark plug that is designed specifically to be used with select string trimmers. the spark plug is connected to the ignition module and is responsible for creating the spark that starts the internal combustion engine. Over time, the electrode on the spark plug will wear down. Other issues can also arise that cause the spark plug to foul or stop working. Spark plugs are part of routine maintenance on any engine, but most owners keep a spare or two around just in case of emergencies. In the event that the spark plug is bad, the engine will not start. This genuine OEM spark plug is manufactured by MTD and designed for use in select trimmers. It is compatible with over 50 models of string trimmers from MTD, Bolens, Murray, Troy-Bilt, Yard Man, and Cut Cadet. Owners will need to consult their product diagram or manual to find the exact gap for the spark plug when replacing them. Many models claim to come pre-gapped, but they can settle during shipping and should always be re-gapped prior to installation. This is sold as an individual unit. Be sure to wear gloves for hand protection when replacing spark plugs and performing other maintenance.

This is an insulator assembly includes the insulator, seals, and hardware. It is designed to create the right spacing between the cylinder and carburetor on many blowers and trimmers made by various manufacturers. The insulator assembly also keeps heat from moving between the other components. Over time, the insulator assembly can become damaged or crack. When this occurs, air can reach the engine and create a condition where the engine can't perform at its best. If this happens, the insulator assembly will need to be replaced. Take off the air filter, drain the fuel, and remove the intake assembly. The insulator can be taken off of the engine before the replacement is added. Use mounting screws to fit the insulator to the other components. Reassemble the other parts to use the tool.This insulator assembly is a genuine OEM replacement part sourced directly from the manufacturer. It is sold as an individual part. This component is made to be used in leaf blowers, tillers, and string trimmers manufactured by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Bolens, and Yard-Man.

The design and purpose of the O-ring is relatively self-explanatory. It is an “O” shaped ring used as a gasket in lawn and garden equipment. It is designed to sit within a groove and be compressed during assembly. It creates a perfect seal that blocks the path of liquids or gases from escaping or flowing into regions of the machine where they are not supposed to be.The O-ring may be damaged if an outdoor piece of equipment is struggling to start or run. After checking the air filter cover, removing the carburetor, and cleaning it thoroughly, the next step is to replace the O-rings, carburetor gasket, and air filter, followed by the spark plug. Regular maintenance of the carburetor and routine evaluation of the suitability of the O-ring is essential to proper mechanical maintenance.This O-ring is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. The manufacturer of this product is MTD. Examples of compatible products and machines includes trimmers, tillers, weed wackers, brush cutters, and leaf blowers or leaf vacuums. It is compatible for products made by the following brands: MTD, Cub Cadet, Craftsman, and Troy-Bilt.

These O rings are replacement parts intended for use in a number of gasoline-powered lawn trimmers. The O rings serve as gaskets and are placed at the entry and exit points in the carburetors where gasoline and air are mixed and the expansion powers the trimmer. Though constructed of durable material, periodically the flow of the air/fuel mix or the rush of expanding air will cause damage to occur to the O rings so they become less resilient and the carburetor functions less efficiently. In these cases, users often decide to replace not just the element of the carburetor but the O rings as well. Users may notice problems with the carburetor when they cannot get an adequate adjustment, allowing the trimmer to function smoothly. They may also have trouble getting the trimmers to start at all or run without smoking. To replace the O rings, remove the air filter cover and carburetor. Once the carburetor has been cleaned, and the gasket and filter replaced, add a fresh mix of 40:1 fuel. The trimmer should start immediately. These OEM certified O rings are compatible with Bolens, Troy-Bilt, Yard Machines, and Craftsmen trimmers.

This carburetor is a device for supplying a two-cycle engine with a mixture of air and fuel. This part comes pre-assembled and has a plastic choke lever along with a metal body. The primary purpose of a carburetor is to mix the right amount of fuel with air so that the engine runs properly. If enough fuel is not mixed with the air, the engine runs lean and can either stop running or gets damaged. On the other hand, if too much fuel is mixed with air, the engine runs rich, and it either floods, runs poorly, runs very smoky, or wastes fuel. The carburetor is in charge of getting the right mixture. If the carburetor is clogged, the engine will not get enough fuel. It may not start or may run rough. The procedure to replace the carburetor is quick and easy, taking only around 15 minutes, but it is recommended to work in a ventilated area. This carburetor works with outdoor power tools like the trimmer, leaf blower, and tiller. It is compatible with specific products from popular brands like Craftsman, MTD, Murray, and Troy-Bilt. It is sold individually and is supplied directly from the original equipment manufacturer.

A carburetor gasket is a thin rubber material that provides a seal between two parts. Its primary purpose is to prevent fuel and air leaks. This gasket is installed between the air cleaner and the carburetor. Over time, it can crack and tear due to heat and fuel exposure. When this happens, the carburetor may produce the wrong combustible mixture for the engine. In return, the engine may experience rough idling and flooding. A carburetor gasket replacement is necessary. MTD makes this carburetor gasket replacement. It is manufactured to fit string trimmer, leaf blower and tiller made by MTD, Bolens, Troy-Bilt, and Craftsman. This brand-new carburetor gasket is sold individually. A fully assembled carburetor and O-ring are sold separately.

This brand-new, original MTD air filter attaches inside the air filter housing of a string trimmer to block debris and dirt. Tiny particles can accumulate inside the machine and cause carburetor and engine problems. String trimmers come with pre-installed air filters, but when it becomes too dirty, it will not be able to filter the tiny particles efficiently. It may also cause overheating issues. When there's too much dirt accumulation inside the string trimmer, it may disrupt the carburetor and engine performance. Some symptoms include carburetor and engine spit back and rough idling. In some scenarios, it will lead to complete machine failure. Replacing the air filter is easy, only requires a screwdriver, and will take less than 10 minutes. Open the air filter cover and remove the dirty filter. Put the replacement filter into the air cleaner housing. Make sure it is aligned. Then, close the air cleaner cover. This genuine MTD air filter will only work with string trimmer models from MTD, Bolens, Yard Machines, Craftsman, and Cub Cadet. This air filter is sold individually.
