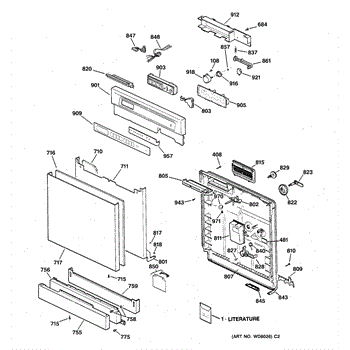

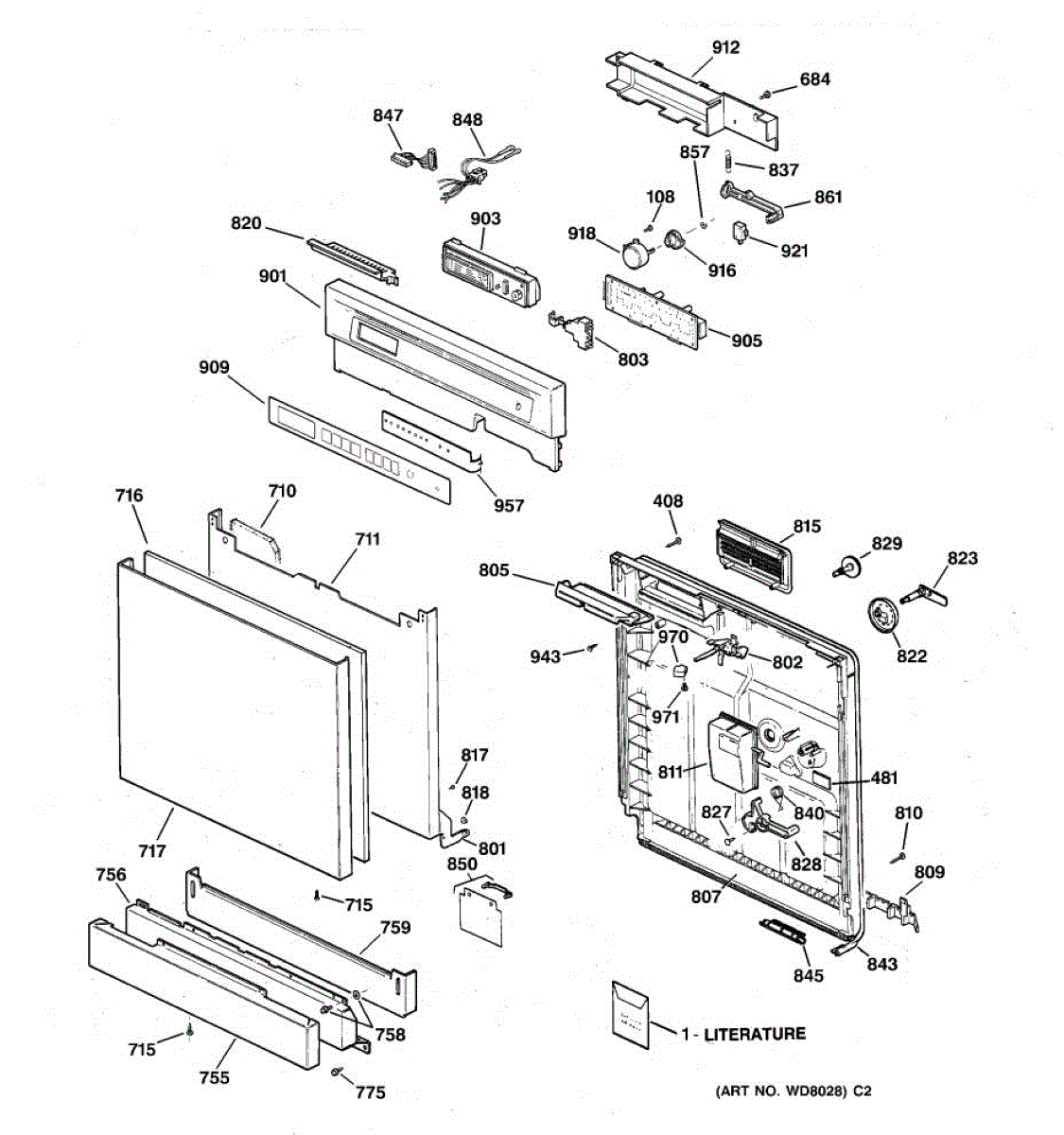

Parts for Ge GSD4220X73BB: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This PM sheet mini is a compact preventive-maintenance checklist used by service technicians to record routine inspections and basic maintenance tasks. It helps ensure consistent service and a clear record of performed maintenance. What it does:

• Provides a simple checklist for routine preventive maintenance and inspections
• Helps technicians note observed conditions and completed service steps
• Supports clearer communication during troubleshooting and follow-up repairs
• Useful for documenting maintenance that can prevent recurring issues

• This is a printed checklist/document—no installation required
• Keep with the appliance's service records or in the technician's service kit
• Replace if the sheet is missing, illegible, or damaged
• Not an electrical or mechanical replacement part; follow OEM service procedures for repairs

Stainless steel #6-20 screw (1/2" length) secures panels, brackets, and internal components. Replace if missing, stripped, or corroded for a tight fit.

Size: 8-32 x 5/8 inch.

Black. 8-18 x 5/16 inch.

Size: 10-16 ab.

Dishwasher won't start or stops mid-cycle? This door interlock switch assembly secures the door and completes the circuit for safe operation.

Size: 8-18 x 7/8 inch.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement hex head screw for dishwasher component mounting. Secures solenoids, valves, and internal parts. Order when original is rusted, stripped, or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Size: 10-12 x 1/2 inch.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

The Door Gasket is an OEM part for GE dishwashers. It forms a seal between the dishwasher door and tub which is critical for proper operation. The gasket ensures excess water and moisture do not leak from the dishwasher during active wash and rinse cycles. It also helps keep noise levels low by providing sound insulation. This gasket measures 3/8 x 89 inches.

Common causes of a bad door gasket include regular wear and tear, exposure to high temperatures and detergents, or physical damage. These factors can cause the gasket to lose its flexibility and sealing capability.

Symptoms of a bad Door Gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformation in the gasket
• The door not closing properly or securely
• Increased moisture around the dishwasher during or after cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Seals the bottom center of your dishwasher door to prevent leaks during wash cycles. Replace if water leaks from the door bottom. Verify fit by model.

Wire harness for dishwashers. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections are loose.

Replacement timer lever bracket for dishwashers. Secures the timer control mechanism in place. Order a new bracket if yours is cracked or broken.

This part is no longer available.

Fix a dishwasher that won't start or has no power with this power board housing. Protects control electronics from moisture and damage. DIY repair.

This small motor actuates the detergent dispenser mechanism in the dishwasher, opening the dispenser door at the correct time during the wash cycle to release detergent. It is driven by the control board and uses a cam to unlatch the dispenser lid. Replace this motor if the detergent dispenser fails to open during the cycle, leaving the soap cup full or detergent undissolved.

This switch sensor is a direct-replacement sensing device that detects the position/state of a moving component and sends that signal to the appliance control for reliable operation. It restores correct sensing when the original fails. What it does:

• Detects and reports a component's open/closed or engaged/disengaged position to the control
• Helps the appliance start and change cycles only when the mechanism is in the correct position
• Can resolve symptoms such as no response from the control, intermittent operation, or cycles that won't advance
• Provides a direct electrical/mechanical interface between the moving part and the control system

• One switch sensor

• Disconnect power to the appliance before starting any repair
• Match this part number to the failed sensor before installing
• Handle wiring and connectors carefully; avoid forcing tabs or pins
• Test operation after installation and restore power only when all connections are secure

Includes 12 screws.

Black plastic knob that covers the dishwasher door latch handle. Replace if your knob is missing, cracked, or broken. Installs over the latch lever.

Includes 12 screws.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
