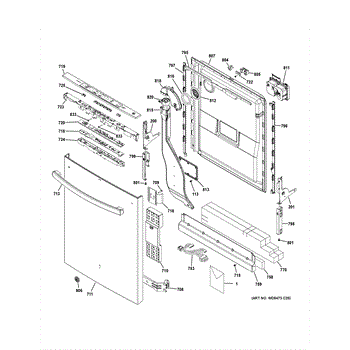

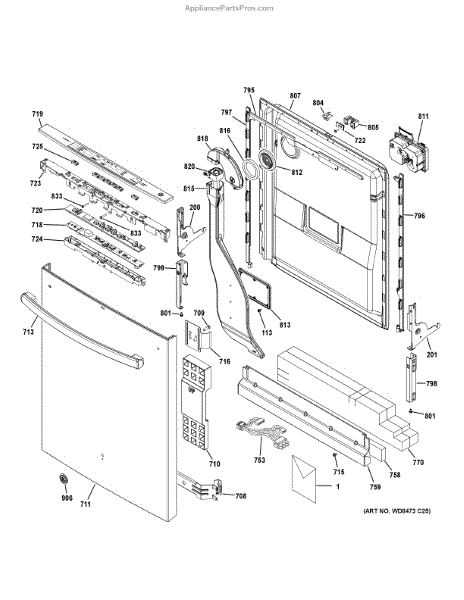

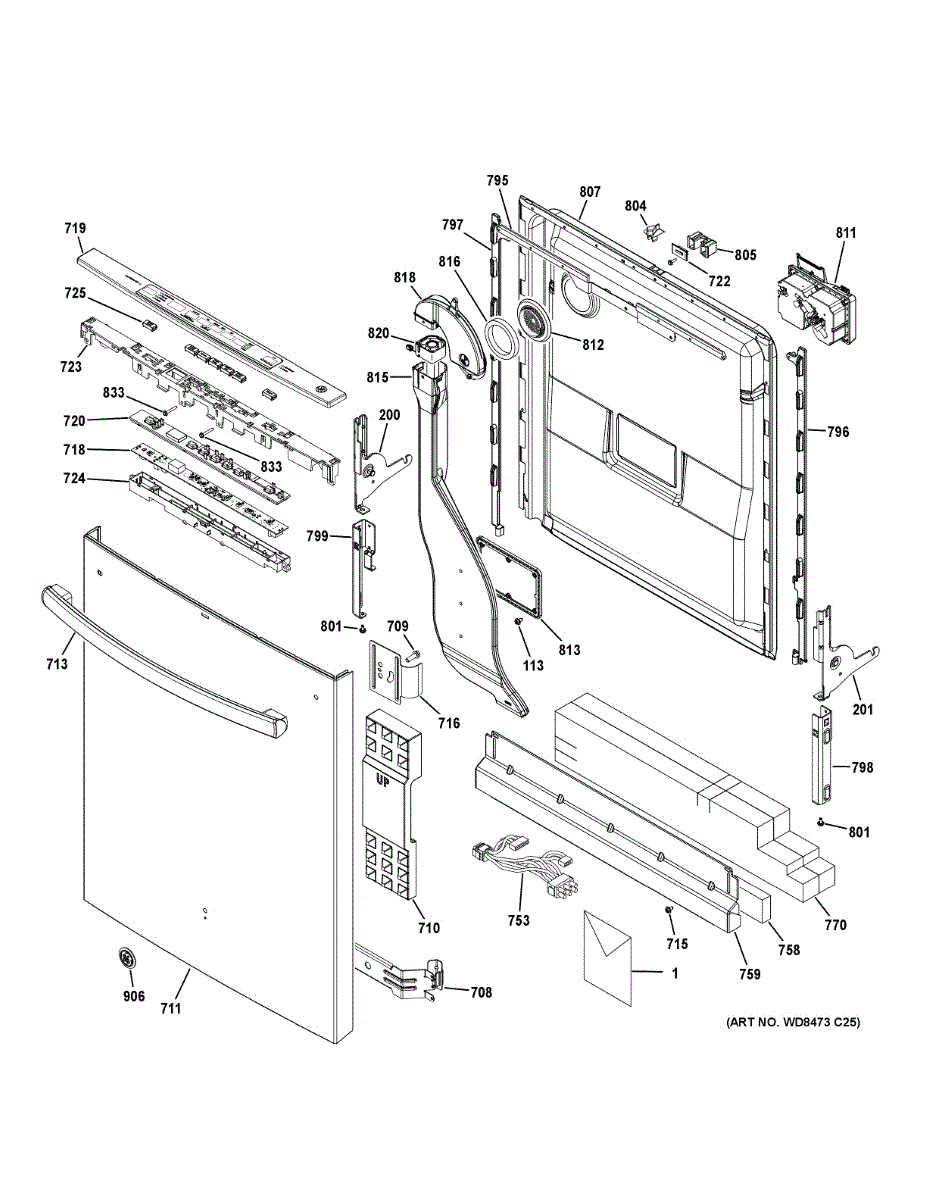

Parts for Ge PDT720SSH7SS: Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Pivoting hinge that supports and guides your dishwasher door. Replace if cracked, worn, or causing door sagging, misalignment, or scraping during operation.

This arm hinge assembly restores smooth, controlled movement of a hinged component in your dishwasher, helping maintain proper alignment and reliable operation. Replacing a worn or broken hinge can reduce binding, squeaks, and misalignment that affect performance. What it does:

• Provides the pivot point and support for a hinged assembly
• Maintains alignment to ensure correct engagement and sealing
• Helps ensure smooth opening/closing motion without binding
• Replaces a hinge arm that is cracked, bent, or worn
• Common signs: stiff or uneven movement, squeaking or popping noises, misalignment, or visible damage

• 1 arm hinge assembly

• Disconnect power and water before servicing
• Support the door or movable assembly to relieve tension while removing the hinge
• Note orientation and transfer any side-specific hardware from the original part
• After installation, check for smooth motion and proper alignment before restoring power and water

Dishwasher door brace assembly that provides structural support to the inner door panel. Replace if the brace is cracked, bent, or broken.

If your dishwasher door feels hot or runs inefficiently, this door insulation panel restores thermal barrier. Fits inside door to reduce heat transfer.

The Outer Door Assembly Kit is an OEM replacement part for GE dishwashers. It includes all of the key external door components needed for proper function, including the inner and outer door panels, sealing gaskets, locking mechanisms, and design elements.

Causes of a bad outer door assembly can include wear and tear over time, especially to sealing gaskets which are prone to cracking. Higher humidity levels can accelerate this. Physical damage such as dents or cracks in the plastic panels will also necessitate replacement.

Symptoms of a bad outer door assembly include:

• Water leaks into the interior due to compromised seals
• Difficulty closing and locking the door securely
• Gaskets that no longer create an airtight seal around the door perimeter
• Loose, sagging, or damaged door panels

This replacement part is compatible with Hotpoint, RCA, and Kenmore models.

Fix a cracked or broken dishwasher handle that won't open properly. Requires removing front panel with torx and hex screws. Video guide available.

Hex washer head screw for securing dishwasher brackets, panels, and internal assemblies. Replace if stripped, corroded, or missing during repairs.

Replacement mounting bracket that secures your dishwasher door handle. Needed when the original bracket is cracked, broken, or worn, causing loose handle attachment.

Fix a dishwasher that won't respond to button presses or has all lights stuck on. This control panel interface board restores operation. DIY repair.

Replace your dishwasher's control panel bezel and console cover assembly if cracked, discolored, or damaged. This front-facing trim piece covers and protects the control board area. Direct replacement for worn or broken console bezels.

Replaces a worn, cracked, or cloudy control panel lens on your dishwasher. Secures the lens to protect electronics and restore a clean appearance.

Structural frame that secures the control panel assembly in place. Replace if the panel is loose, sagging, or buttons don't respond properly. Verify fit.

The User Interface Housing is an OEM replacement part for GE dishwashers. Located at the front of the console, it houses the control panel responsible for cycle/option navigation.

The housing protects sensitive electronic components from water damage and physical impact. Its sturdy construction allows for responsive touch inputs without flex or play in the assembly.

Symptoms of a bad user interface housing include:

• Warping or cracks exposing circuitry to damage
• Faulty sealing allowing moisture penetration
• Difficulty registering button presses from structural defects
• Ill-fitting installation negatively impacting usability

Causes can be repetitive openings allowing entry of dirt/moisture into critical areas and use over the years breaking down seals and weakening materials.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replaces worn, cracked, or faded control panel overlay and button graphics. Restores clear labeling and a finished look to your dishwasher console.

Fix intermittent controls, no-start issues, or cycles stopping when the door moves. This door wire harness assembly restores power and signal connections.

Replace your missing or damaged dishwasher toe kick insulation panel. Blocks drafts and protects internal components. Easy DIY installation repair.

Insulation bag assembly for dishwashers. Installs around the tub to reduce noise and retain heat. Replace if torn, damaged, or missing for better sound dampening.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

Left-hand attachment strip secures trim and panels on your dishwasher for a clean, finished appearance. Replace if cracked, broken, or missing.

Secures your dishwasher door to the cabinet as a stable pivot point. Replace this bracket if cracked, broken, or worn to restore proper door alignment.

Secures and aligns the dishwasher door hinge assembly. Replace if your hinge bracket is cracked, bent, or broken to restore proper door fit and movement.

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

Replaces the inner-facing panel of your dishwasher door. Restores a clean barrier and protects the outer assembly from damage, cracks, or heavy staining.

Fix a detergent door that won't open during wash cycles. This dishwasher dispenser module restores proper detergent and rinse aid release timing.

Fits over the vent on your dishwasher door. Replace if cracked, broken, or loose. Allows steam to escape while protecting interior components.

Detergent not dispensing during wash cycle? This dishwasher detergent dispenser plate holds and releases detergent at the right time for proper cleaning.

Fix poor drying or excess moisture in your dishwasher with this replacement vent. Restores proper airflow and heat exhaust for non-fan models.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

This front foam diverter directs and channels detergent suds and rinse water inside the washer to help ensure proper detergent flow and consistent cleaning. A direct-fit replacement that restores correct foam routing in the dispenser area. What it does:

• Redirects foam and rinse water away from sensitive dispenser openings
• Helps prevent excess suds from disrupting cycle performance or leaving residue
• Restores intended detergent flow for more consistent wash and rinse results
• Fits into the dispenser assembly to maintain proper internal water paths

• One front foam diverter

• Disconnect power and turn off water supply before starting repairs
• Typically installs by snapping or sliding into the dispenser assembly; small fasteners or clips may need removal
• Verify correct orientation and secure clip engagement to avoid leaks or misalignment

Fix squealing noises during the drying cycle or moisture buildup. This vent fan assembly removes humid air and helps dishes dry properly in your dishwasher.

Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
