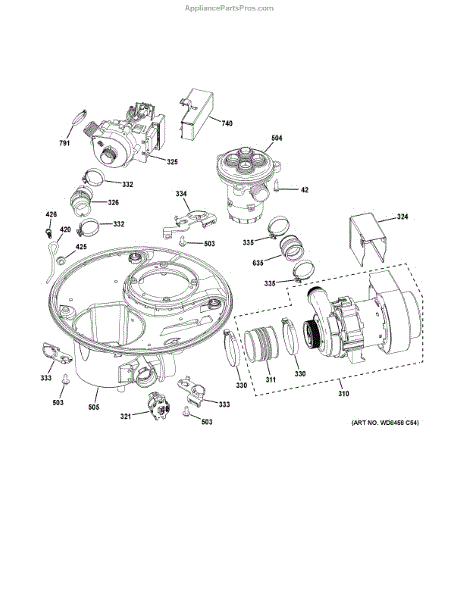

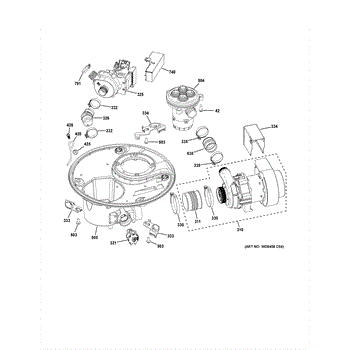

Parts for Ge PDT720SSH7SS: Sump & Motor Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a stainless steel hex washer-head screw used to fasten and secure components. Its integrated washer head provides a broad bearing surface for a tight, durable hold in appliance assemblies.

• Secures panels, brackets, and hardware to prevent looseness and vibration
• Restores proper fastening when originals are stripped, missing, or corroded
• Stainless construction helps resist rust in moisture-prone areas
• Common symptoms of a needed replacement include rattling, loose panels, or missing hardware

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct nut driver or socket for the hex head to avoid stripping
• Replace any damaged or missing fasteners in matched pairs or sets for even clamping
• Do not overtighten; snug to manufacturer torque guidance when available

The Circulation Pump is an OEM part for GE dishwashers. It is responsible for circulating water throughout the dishwasher. It pumps water from the bottom of the dishwasher and directs it to the spray arms, allowing for distribution of water and detergent to the dishes.

A bad Circulation Pump Kit can occur due to wear and tear over time, clogs or blockages in the pump, or electrical malfunctions.

Symptoms of a bad Circulation Pump include:

• Inadequate cleaning results.
• Noisy operation or unusual sounds.
• Water not properly reaching the dishes.
• Leaks or flooding within the dishwasher.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This dishwasher turbidity sensor assembly monitors water clarity in the sump and reports to the control so it can adjust wash time and rinses for optimal cleaning. Replacing a failed sensor can restore normal cycle decisions and performance.

• Measures wash-water clarity (soil/turbidity) and sends data to the control
• Helps optimize cycle length, number of rinses, and water usage
• A faulty sensor may cause unusually long or short cycles
• Can contribute to poor cleaning or failure to complete a cycle
• May set a sensor-related code in diagnostics on some models

• Disconnect power at the breaker and shut off water before servicing
• Access from the bottom/front of the dishwasher; place a towel to catch residual water
• Unplug the wire connector, rotate the sensor to unlock, and remove; ensure the seal seats properly when installing the new part
• After installation, check for leaks and run a test cycle

This shield wash pump circulates dishwasher wash water so dishes get cleaned and rinsed effectively. Replaces a failed or noisy pump to restore normal wash performance and water movement inside the tub. What it does:

• Circulates wash and rinse water through the spray arms for proper cleaning and rinsing
• Helps maintain consistent water flow and pressure during the wash cycle
• Reduces loud noise or grinding when a worn pump or motor is replaced
• Commonly replaced when the dishwasher pauses mid-cycle, won't complete cycles, or leaks from the pump area

• One complete shield wash pump assembly (pump with motor and mounting shield as shown)

• Recommended for users comfortable with appliance disassembly; disconnect power and water before starting
• Inspect seals and mounting gaskets and replace if worn to prevent leaks
• Tighten hose clamps and check hose routing during reassembly to avoid kinks or stress

The Single Speed Dishwasher Drain Pump Kit is an OEM replacement part for GE dishwashers. This important part works to drain water from the dishwasher at the end of each cycle. The pump ensures water is fully drained from the tub and pipes to prevent damage.

Causes of a bad drain pump can include normal wear and tear over extended use, blockages in the drain system, or failures in the electric motor.

Symptoms of a bad drain pump include:

• Incomplete or slow draining of water after cycles
• Water remaining in the bottom of the tub
• Strange noises or vibrations coming from the pump motor
• Leaks in or around the drain pump area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drain hose elbow creates a secure 90-degree connection in the dishwasher's drain line, helping route the hose cleanly while maintaining good flow. It supports a tight, leak-resistant turn where space is limited, reducing kinks and misrouting.

• Provides a 90-degree turn for the dishwasher drain hose to aid proper routing and flow
• Helps reduce kinks or crushing at tight bends that can slow or stop draining
• Forms a secure connection point to help prevent leaks at the hose junction
• Common symptoms of a failed or damaged elbow include leaks under the sink, visible cracks, kinks, or slow/poor draining

• Disconnect power and water supply; place a towel or pan to catch residual water
• Ensure the hose is fully seated on the elbow and secured with appropriate clamps per your model
• Route the drain line with a high loop or air gap as required by local code
• Run a short cycle and check all connections for leaks

This clamp kit replaces worn Piranha-style clamps used in the dishwasher's wash system. Restores a tight, reliable seal on internal connections to help prevent leaks and maintain proper water circulation for consistent cleaning results.

• Secures internal hose and pump connections within the wash system
• Helps stop water leaks caused by loose, stretched, or damaged clamps
• Supports proper circulation and wash performance by keeping joints sealed
• Common symptoms: water under the unit, drips at hose joints, loose connections, vibration or rattling from the sump area

• Disconnect power and shut off the water supply before servicing
• Access the sump/pump area from the front toe-kick or by pulling the unit out as needed
• Replace one connection at a time; position and fully seat the new clamp(s) on clean hose/barb surfaces
• Restore power/water and run a short cycle to check carefully for leaks before reinstalling panels

This clamp kit replaces worn Piranha-style clamps used in the dishwasher's wash system. Restores a tight, reliable seal on internal connections to help prevent leaks and maintain proper water circulation for consistent cleaning results.

• Secures internal hose and pump connections within the wash system
• Helps stop water leaks caused by loose, stretched, or damaged clamps
• Supports proper circulation and wash performance by keeping joints sealed
• Common symptoms: water under the unit, drips at hose joints, loose connections, vibration or rattling from the sump area

• Disconnect power and shut off the water supply before servicing
• Access the sump/pump area from the front toe-kick or by pulling the unit out as needed
• Replace one connection at a time; position and fully seat the new clamp(s) on clean hose/barb surfaces
• Restore power/water and run a short cycle to check carefully for leaks before reinstalling panels

This latch cam engages the door latch mechanism so the appliance door closes and stays secure during cycles. A worn or broken cam can prevent the door from latching or cause the door to feel loose. What it does

• Rotates with the latch to lock the door securely during operation
• Ensures the latch striker catches and holds the door closed
• Common symptom: door won't stay latched or appliance won't start
• Common symptom: door feels loose, noisy, or intermittently opens during cycles

• One latch cam

• Disconnect power before starting any repair to avoid shock or injury
• Inspect surrounding latch components and replace any visibly damaged parts
• Use basic hand tools; keep track of small fasteners and alignment during reassembly
• Test door operation several times after installation to ensure secure engagement

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This clamp kit replaces worn Piranha-style clamps used in the dishwasher's wash system. Restores a tight, reliable seal on internal connections to help prevent leaks and maintain proper water circulation for consistent cleaning results.

• Secures internal hose and pump connections within the wash system
• Helps stop water leaks caused by loose, stretched, or damaged clamps
• Supports proper circulation and wash performance by keeping joints sealed
• Common symptoms: water under the unit, drips at hose joints, loose connections, vibration or rattling from the sump area

• Disconnect power and shut off the water supply before servicing
• Access the sump/pump area from the front toe-kick or by pulling the unit out as needed
• Replace one connection at a time; position and fully seat the new clamp(s) on clean hose/barb surfaces
• Restore power/water and run a short cycle to check carefully for leaks before reinstalling panels

This drain pump hanger secures the washer's drain pump to the outer tub, keeping the pump and hoses aligned so the pump can remove water reliably. Use it to replace a cracked or broken support that lets the pump shift. What it does

• Holds the drain pump firmly in place and maintains proper pump alignment.
• Helps reduce pump vibration and noise from a loose or mispositioned pump.
• Prevents the pump from pulling on hoses or becoming dislodged during the spin/drain cycle.
• A worn or broken hanger can contribute to poor draining, intermittent drainage, or unusual pump noise.

• One drain pump hanger.

• Disconnect power to the washer before beginning any repair.
• Access typically via the washer's lower front or rear panel; follow for disassembly.
• Inspect and reuse mounting hardware and grommets if undamaged; replace if corroded or broken.

This rubber grommet provides a protective seal where hoses, wires or components pass through openings, helping prevent chafing and moisture intrusion. Use it to restore a tight fit and reduce wear at the penetration point. What it does:

• Seals and cushions openings to help prevent water leaks and air gaps.
• Protects wiring and hoses from rubbing on sharp metal edges that can cause wear or shorts.
• Reduces vibration and rattling by holding parts securely in place.
• Common symptoms of failure: visible cracking, missing or torn grommet, water dripping near the opening, or rubbing noises.

• Disconnect power to the appliance and turn off water supply before beginning any repair.
• Remove the access panel or boot as needed to reach the opening; press the grommet into the hole until fully seated.
• Inspect surrounding seals, hoses and wiring; replace any damaged components to prevent repeat issues.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

This sump manifold directs wash and drain water into the washer's pump assembly, ensuring proper drainage and circulation. Replaces a cracked or leaky housing to restore reliable water flow and help prevent leaks. What it does:

• Channels tub water to the drain pump so the washer can drain properly.
• Prevents leaks by sealing the pump inlet and connections.
• Commonly replaced when the manifold is cracked, warped, or leaking.
• Helps resolve symptoms like water pooling in the washer tub or visible leaks under the appliance.

• Disconnect power and water supply before starting any repair.
• Drain remaining water from the washer and remove front or rear access panel as needed.
• Inspect and replace any worn gaskets or seals when installing the new manifold.
• Tighten connections evenly; avoid overtightening plastic fasteners to prevent cracking.

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
