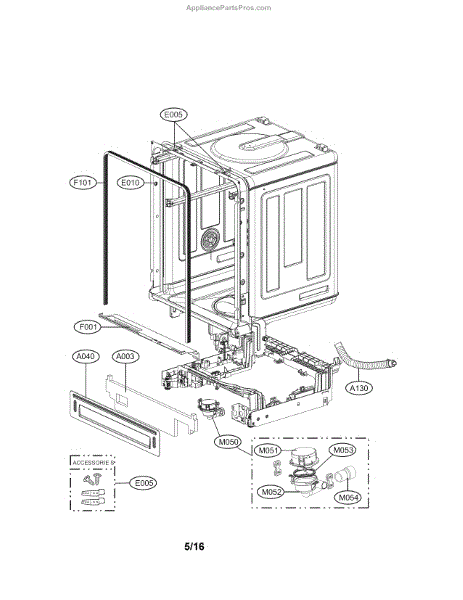

Parts for Lg LDF7774BD: Exploded View Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is the lower cover assembly for your dishwasher. It closes off the bottom of the cabinet to protect internal components and restore a clean, finished appearance. Replace if the panel is cracked, missing, or won't stay secured. What it does:

• Shields the lower chassis from dust, moisture, and impacts
• Helps contain operating noise at the base of the dishwasher
• Restores the front's finished look
• Common symptoms: broken tabs, warped or rattling panel, visible damage, missing cover

• 1 lower cover assembly

• Disconnect power and turn off the water supply before servicing
• Remove the existing lower cover's mounting screws/clips and take off the panel
• Position the new cover; align mounting holes and secure with existing hardware
• Confirm door clearance and recheck level before restoring power

This small sleeve bushing supports a pivoting or rotating joint in your dishwasher, providing a smooth bearing surface. Replacing a worn bushing helps restore quiet operation and protects mating parts from further wear. What it does

• Provides a low-friction surface between a shaft/pin and bracket
• Helps maintain proper alignment and reduces wobble at the joint
• Can quiet squeaks or grinding caused by wear
• Replacing a cracked or flattened bushing can improve smooth movement

• 1 bushing

• Disconnect power and shut off water before servicing
• Support the door or component attached to the joint to relieve tension
• Note orientation; transfer any spacers/washers in the same order
• Inspect the mating pin/shaft for wear and replace related parts if damaged

The Drain Pump is an OEM replacement part for LG dishwashers. It is a component responsible for removing water from the dishwasher tub during the drain cycles.

Symptoms of a bad dishwasher drain pump:

• Water not draining properly, leaving standing water in the tub
• Leaks or water pooling around the dishwasher base
• Loud or unusual noises coming from the drain pump during operation
• Error codes or warning lights related to drainage issues

Causes of a faulty drain pump can include clogging or obstructions in the pump or hose, mechanical wear and tear over time, or electrical malfunctions preventing the pump from operating correctly.

This OEM LG part is also compatible with Sears/Kenmore dishwasher models.

This frame assembly replaces a damaged or worn front cabinet frame to restore a secure fit and finished appearance. It provides a stable mounting surface for door components and helps maintain proper alignment. What it does:

• Replaces cracked, bent, or cosmetically damaged front frame pieces
• Restores proper fit and alignment for the door and trim
• Helps eliminate gaps that can trap debris or affect door operation
• Provides the original mounting points for associated trim and hardware

• One frame assembly

• Disconnect power and follow appliance-specific safety procedures before servicing
• Handle carefully to avoid scratching or damaging adjacent panels and trim
• Installation typically requires removing door/trim and fastening with existing screws or clips

The Pump Motor Assembly is an OEM component specifically designed for LG dishwashers. It houses both the wash and drain pump motors integrated within a singular assembly.

These motors work together to efficiently circulate water through spray arms during wash cycles for optimized cleaning performance. They also help drain dirty water at the end of each cycle, ensuring dishes are thoroughly rinsed.

Symptoms of a bad pump motor assembly include:

• Inadequate or incomplete wash and rinse performances
• Water failing to drain fully after cycles
• Leaks occurring due to ineffective pumps
• Abnormal sounds from the motor during the operation

Causes can include normal wear over time, failures in motor electronic components, or damage from foreign debris.

Replacing the pump motor assembly with this genuine OEM LG part restores optimized wash and rinse functions. It is also compatible with Sears/Kenmore dishwashers.

This replacement case is the outer housing that protects and supports internal components, restoring the appliance's structural integrity and appearance. It helps keep parts aligned and shields wiring from damage. What it does:

• Replaces a cracked, warped or broken outer housing that can expose internal components
• Restores a secure mounting surface so panels and covers fit correctly
• Reduces vibration or rattling caused by a loose or damaged case
• Helps prevent dust and debris from contacting internal parts

• One replacement case

• Disconnect power to the appliance before beginning any work
• Handle part carefully; edges may be sharp and fasteners may be small
• Basic hand tools are typically required; keep removed fasteners for reassembly
• Verify orientation and fit before tightening all fasteners; test appliance function after reassembly

This packing seal provides a replacement sealing surface to help maintain an airtight, watertight closure and reduce leaks or drafts around the appliance opening. It restores the original sealing function for reliable performance. What it does

• Replaces worn or damaged packing to re-establish a secure seal
• Helps prevent water leaks and air infiltration at the door or panel seam
• Reduces moisture buildup and helps maintain proper internal temperatures
• Commonly used when a visible tear, deformation, or hardening is present

• One packing seal

• Inspect mating surfaces and clean thoroughly before installing the new packing
• Align the packing evenly and seat it fully into the channel or groove
• Use gentle, even pressure to avoid stretching or tearing the seal

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This refrigerator damper assembly opens and closes the air passage between the freezer and fresh food sections. Replacing a sticking or broken damper restores proper airflow and more stable temperatures, helping resolve warm spots or food freezing in the refrigerator.

• Regulates cold-air flow from the freezer into the refrigerator to maintain set temperatures
• Operates a flap within the air duct under control of the appliance's control system
• Helps reduce temperature fluctuations and improve overall cooling performance

• Disconnect power before servicing
• Access from inside the fresh food compartment; remove shelves and the damper/duct cover
• Remove mounting screws and disconnect the wire harness; transfer any foam seals or clips from the old unit if needed
• Seat the gasket evenly to prevent air leaks and route wiring away from the moving flap

This drain hose channels wastewater from the appliance to your home drain. Replace a cracked, kinked, or clogged hose to stop leaks and ensure water exits the unit properly during operation.

• Routes water from the appliance to the household drain or drip pan
• Maintains a clear drainage path to prevent backups and leaks
• Damage, kinks, or blockages can restrict flow and cause draining issues
• Typical symptoms: standing water, slow or no drain, leaks, or drain-related error codes

• Disconnect power and shut off the water supply before servicing
• Keep a towel or shallow pan handy to catch residual water
• Note routing and orientation; transfer any existing clamps or seals from the old hose
• Secure connections fully and run a brief test to check for leaks

These top mounting brackets secure the dishwasher to the underside of the countertop to prevent shifting or tipping during use. Replace bent or missing brackets to maintain a stable, safe installation.

• Anchors the dishwasher to the countertop when top mounting is required
• Helps prevent forward tipping when racks are extended
• Restores a secure, level fit within the cabinet opening
• Common symptoms: loose or rocking unit; broken, bent, or missing brackets

• Disconnect power and water supply before servicing
• Pull the dishwasher forward enough to access mounting locations
• Position brackets flush under the countertop and fasten with manufacturer-approved hardware
• Ensure the dishwasher is level and anchored evenly on both sides

The Dishwasher Drain Hose Assembly is an OEM replacement part for LG dishwashers. It is a crucial component responsible for draining the used water from the dishwasher tub and directing it to the appropriate drainage system.

Symptoms of a bad drain hose assembly include:

• Water leaks or pooling around the dishwasher base
• Slow draining or incomplete draining of water
• Unpleasant odors or mold growth due to water buildup

Causes of a faulty drain hose assembly can include clogs or blockages in the hose, cracks or damage to the hose material, or issues with the connections or fittings.

This OEM LG part is also compatible with select Sears/Kenmore dishwasher models.

The Outer Door Seal is an OEM replacement part for LG dishwasher doors. Situated around the door opening, it creates a tight seal when closed to contain moisture, heat, and germs within the wash chamber. Proper door sealing is essential for sanitization, drying performance, and protection of surrounding cabinetry.

Causes can be deterioration of sealing material over extended use, cracks or deformities allowing passage of water and air, or damage from closing force on the rigid door.

Symptoms of a bad seal include:

• Visible leaks and water damage around the door interior and exterior
• Door failing to seal fully shut
• Musty odors escaping from uncontained air inside

This OEM LG part is also compatible with some Sears/Kenmore dishwashers.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
