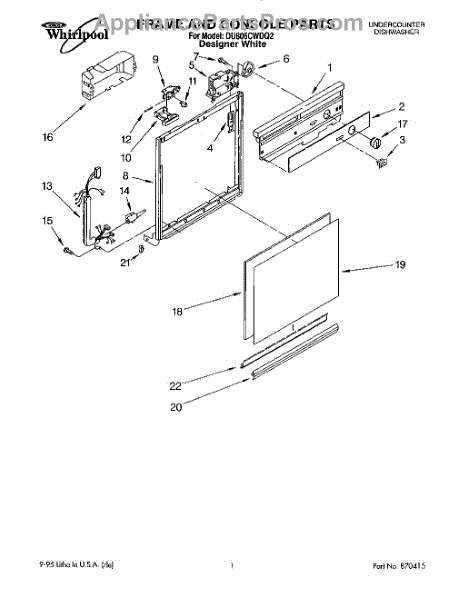

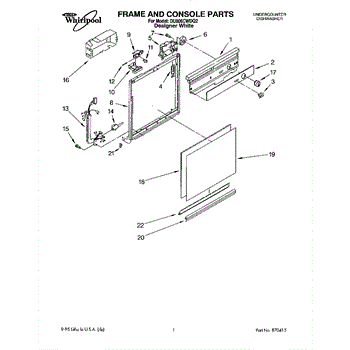

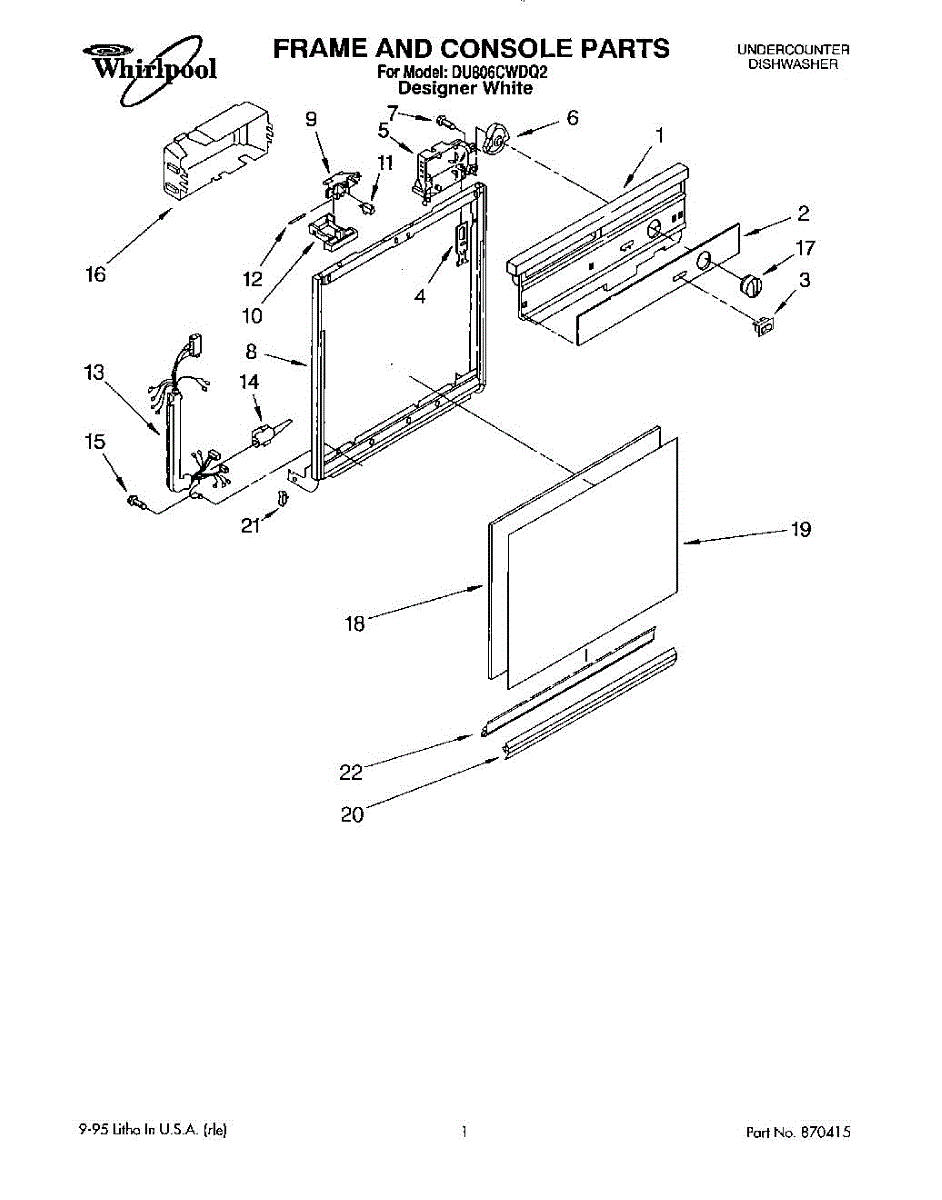

Parts for Whirlpool DU806CWDQ2: 01 - Frame And Console Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: Black. Instruction sheet included.

This replacement cam converts rotational motion into the precise movement needed by the appliance's linkage or latch assembly, restoring proper mechanical timing and part engagement. Use this cam to replace a worn, broken, or stripped cam and help return reliable operation. What it does

• Transfers motor or shaft rotation into controlled push/pull motion for linkages or latches
• Restores correct timing and movement when a plastic cam is cracked, worn, or slipping
• Helps resolve symptoms like intermittent or failed door/latch action, noisy operation, or improper cycle sequencing
• Works as a like-for-like mechanical replacement when the OEM cam has failed

• One replacement cam (single piece only)

• Disconnect power (and water supply if applicable) before beginning any repair
• Inspect mating shafts, linkages, and fasteners; replace any damaged hardware to prevent repeat failure

Size: 8-18 x 1/2 inch.

Color: White. For black use 3374711. For almond use 3374713.

The Latch Bolt is an OEM replacement part for Whirlpool dishwashers. This component is essential for securing the dishwasher door during operation, ensuring that it remains tightly closed to prevent water leaks and allow the dishwasher to run properly. The latch bolt engages with the door latch assembly, creating a secure seal.

Causes of a bad latch bolt can include regular wear and tear, damage from forceful closing of the dishwasher door, or misalignment that affects the latch's engagement.

Symptoms of a bad Latch Bolt include:

• The dishwasher door not staying closed
• Water leaking from the door during operation
• Difficulty in latching or unlatching the door
• The dishwasher not starting because it detects an open door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For black lever order WP3369457. For white use WP3369457. For biscuit use 3375062

Color: Black. For almond use WP3369457. For biscuit use 3375062. White is no longer available.

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Wire harness elbow connector for dishwashers. Replaces damaged, cracked, or broken electrical connectors that route power between components.

Size: 8-32 x 1/4 inch.

Black timer knob for dishwasher control panel. Replaces worn, cracked, or discolored knobs. Installs on timer shaft behind control console panel.

Color: White

Provides pivot point for dishwasher door spring to reduce wear. Replace if door drops, slams, or balance is off. Confirm fit with your model number.

This is a gray plastic or metal channel that holds the door gasket in place along the edge of the dishwasher door or tub. It keeps the seal properly seated so the door closes tightly and prevents water from leaking out during wash cycles. Replace this retainer if the door gasket keeps slipping out of position or if you notice water leaking around the door.

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: White.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: Almond.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint for repairing chipped, scratched, or rusted dishwasher racks. Brush-on formula restores appearance where coating is worn or missing.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

Gray protective caps cover damaged or rusting dishwasher rack tine tips. 125-pack slides over worn tine ends to restore your dishrack and protect dishes.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
