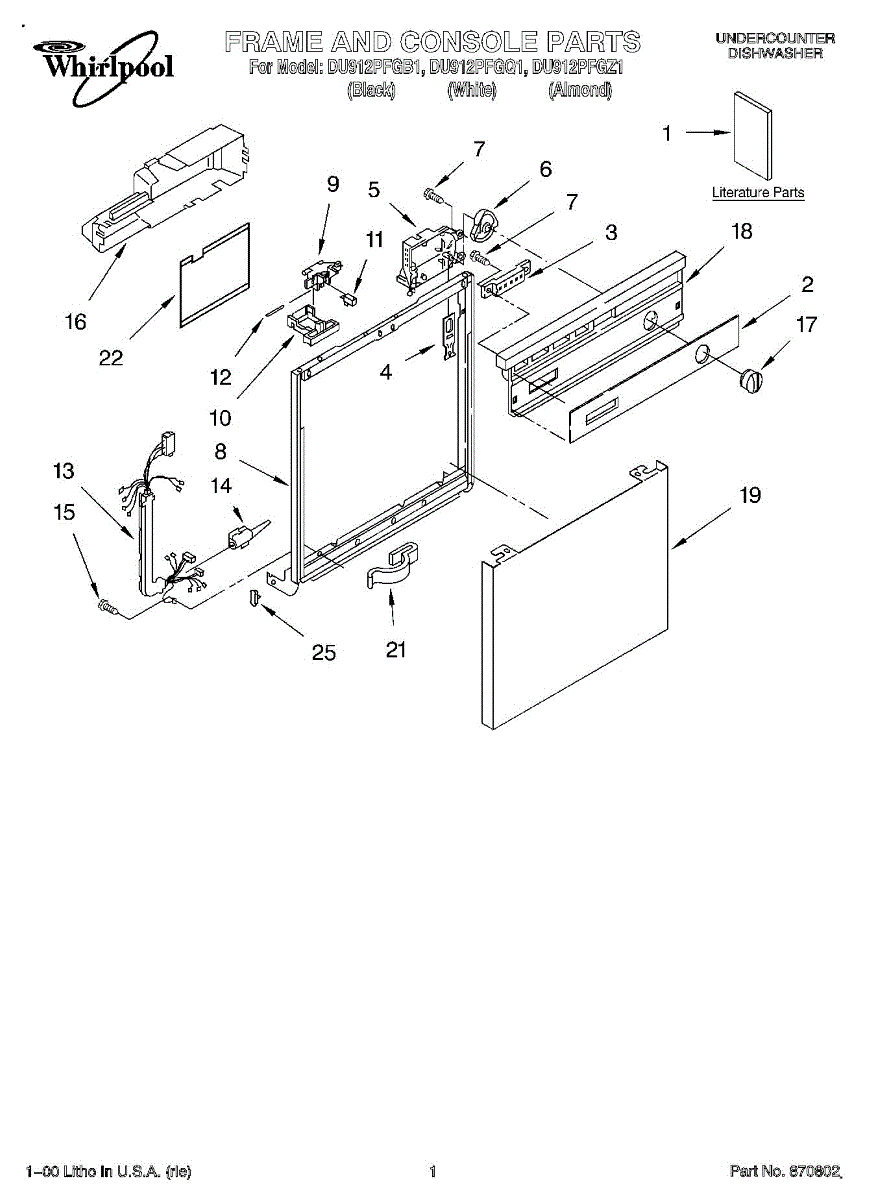

Parts for Whirlpool DU912PFGB1: 01 - Frame And Console, Literature Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fix a dishwasher timer that won't shut off or gets stuck in a cycle. Common repair when the dial is hard to turn or cycles run too long.

This premium dispenser cam engages the dispenser mechanism to control door/lever movement and ensure reliable dispense actions. It replaces a worn cam to restore proper dispenser function and consistent operation. What it does:

• Rotates and times the dispenser lever/door so the dispenser opens and closes correctly
• Transfers motion from the actuator to the dispenser linkage or switch
• Commonly used when the dispenser lever feels loose, doesn't return, or dispensing is intermittent
• Helps stop unwanted continuous dispensing caused by a worn cam surface

• Disconnect power (and water supply if applicable) before starting work
• Access the dispenser assembly; removal of the dispenser bezel or control housing may be required
• Handle small plastic parts carefully to avoid breaking tabs; align cam on shaft before reassembly
• Test dispenser operation after reassembly to ensure correct movement and sealing

Size: 8-18 x 1/2 inch.

Structural door frame for dishwashers. Mounts to the tub and supports the door panel. Replace if cracked, rusted, warped, or damaged from corrosion.

The Latch Bolt is an OEM replacement part for Whirlpool dishwashers. This component is essential for securing the dishwasher door during operation, ensuring that it remains tightly closed to prevent water leaks and allow the dishwasher to run properly. The latch bolt engages with the door latch assembly, creating a secure seal.

Causes of a bad latch bolt can include regular wear and tear, damage from forceful closing of the dishwasher door, or misalignment that affects the latch's engagement.

Symptoms of a bad Latch Bolt include:

• The dishwasher door not staying closed
• Water leaking from the door during operation
• Difficulty in latching or unlatching the door
• The dishwasher not starting because it detects an open door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For black lever order WP3369457. For white use WP3369457. For biscuit use 3375062

Color: Black. For almond use WP3369457. For biscuit use 3375062. White is no longer available.

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Wire harness elbow connector for dishwashers. Replaces damaged, cracked, or broken electrical connectors that route power between components.

Size: 8-32 x 1/4 inch.

Black timer knob for dishwasher control panel. Replaces worn, cracked, or discolored knobs. Installs on timer shaft behind control console panel.

Black timer knob for dishwasher control panel. Replaces worn, cracked, or discolored knobs. Installs on timer shaft behind control console panel.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: White. For almond use WP8054178. For biscuit use WP8054178. For black use WP3379375.

Color: Bisque. For almond use WP8054178. For white use WP3379376. For black use WP3379375.

Color: Black. For almond use WP8054178. For white use WP3379376. For bisque use WP8054178.

Provides pivot point for dishwasher door spring to reduce wear. Replace if door drops, slams, or balance is off. Confirm fit with your model number.

Color: White.

Color: Almond.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint for repairing chipped, scratched, or rusted dishwasher racks. Brush-on formula restores appearance where coating is worn or missing.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

Gray protective caps cover damaged or rusting dishwasher rack tine tips. 125-pack slides over worn tine ends to restore your dishrack and protect dishes.

High-temperature adhesive secures gaskets, seals, and feet in hot zones. Replace when parts loosen or seals fail. Confirm fit with your model number.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
