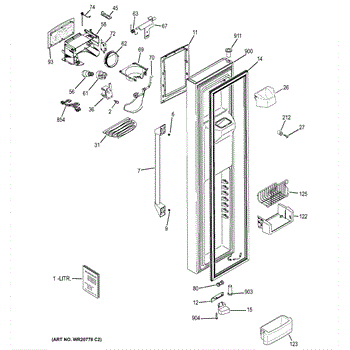

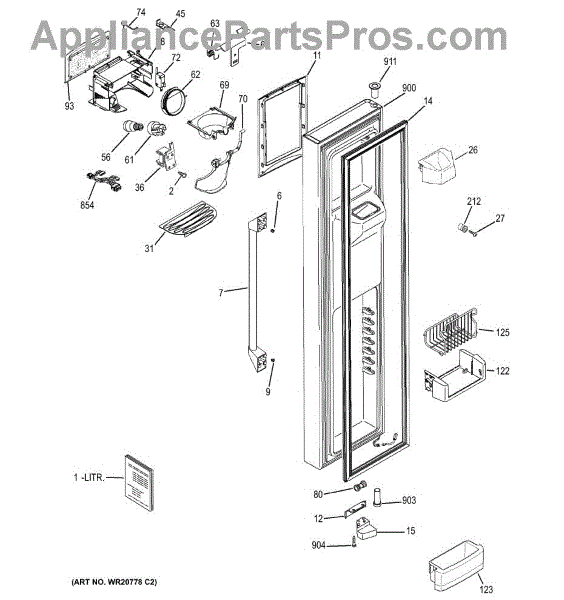

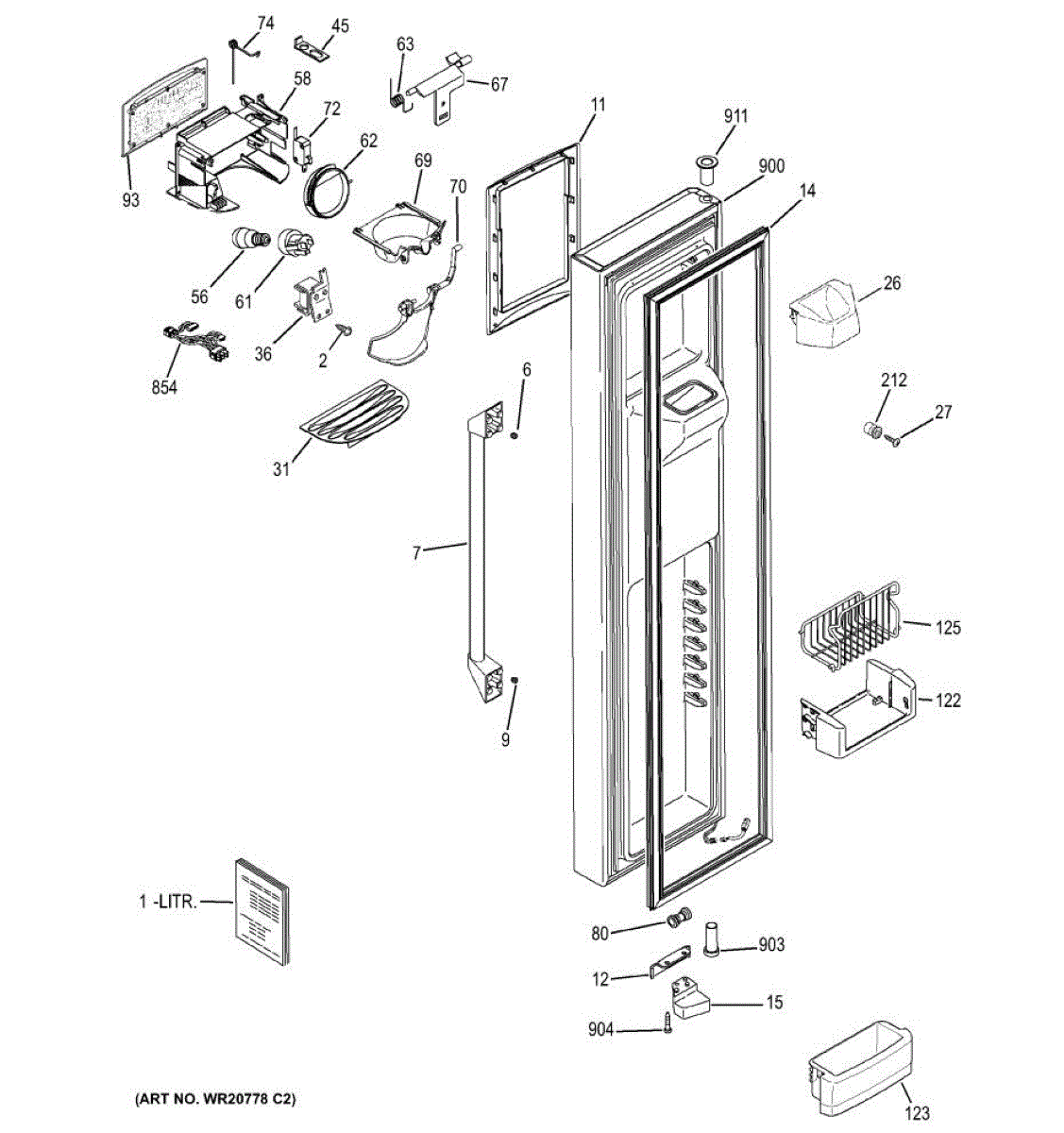

Parts for Ge CSCP5UGXDFSS: 01 - Freezer Door Parts

This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A stainless-steel handle fastener that secures the refrigerator door handle to the door assembly for a solid, wobble-free grip. Use to restore a loose, stripped, or missing handle attachment point. What it does:

• Secures the door handle to the door/handle mounting point so the handle stays tight and aligned.
• Stops handle movement, wobbling, or rattling caused by a worn or missing fastener.
• Replaces a corroded or damaged fastener to restore a secure connection.
• Stainless finish resists corrosion at the handle mounting point.

• Disconnect power to the appliance before starting work whenever access to internal parts is required.
• Use the correct screwdriver or bit; turn carefully and avoid sideways force on the handle.
• Do not overtighten—over-torquing can strip threads or crack surrounding trim.
• Keep removed hardware and any trim pieces for reassembly; inspect handle and threaded inserts for damage.

For the same part in white, purchase WR02X13424.

This door gasket seals the refrigerator/freezer compartment to keep cold air inside and help maintain consistent temperatures. A tight seal reduces frost buildup and lowers energy use while helping food stay fresher. What it does

• Forms an airtight seal around the door to prevent warm air from entering
• Helps maintain proper internal temperature and reduce compressor run time
• Reduces frost and ice buildup by keeping humidity out of the compartment
• Common symptoms of a failing gasket: visible gaps, cold air leaks, increased frost, or higher energy bills

• Clean the door frame and gasket channel before installation for a secure fit
• Warm the gasket slightly to aid installation if needed; avoid overstretching
• Unplug the appliance or disconnect power before working on the door for safety

The Freezer Door Cam Closure is an OEM replacement part for GE side-by-side refrigerators. As a primary security component, it utilizes a cam mechanism to firmly latch the freezer door shut.

Causes of failure include wear from years of operation, and broken or misaligned cam parts reducing secure closure power.

Symptoms involve:

• Air leaks detectable around door seals when closure frozen
• Freezer door no longer clamping fully closed
• Light penetration into gasket if door poorly seated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This ice guide directs ice from the ice maker into the bin or dispenser, reducing jams and misfeeds for smoother ice delivery. Durable molded plastic fits into the ice path to keep cubes aligned as they drop. What it does

• Guides ice from the ice maker to the storage bin or dispenser chute
• Helps prevent cubes from getting stuck or misdirected during harvest
• Maintains a clear path to reduce clumping and improve dispensing consistency
• Replaces a cracked, broken, or missing plastic guide

• One ice guide

• Disconnect power to the appliance before starting any work
• Remove the ice bin or access panels as needed for clear access
• Usually installs by snapping into place or securing with the existing fastener(s); do not force parts

Color: Black - It measures about 7-1/2 inches wide by 4 inches deep. For Chrome, order WR17X12320.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

The Dispenser Light is an OEM part for GE refrigerators. It illuminates the water and ice dispenser area, providing visibility when accessing these features in low-light conditions. This light enhances user convenience and helps to ensure accurate and spill-free operation.

Causes of a bad dispenser light can include burnout from regular use, electrical issues, or damage from moisture or impacts. A faulty light can compromise visibility and the overall functionality of the dispenser area.

Symptoms of a bad dispenser light include:

• The light not turning on when using the dispenser
• Flickering or dim illumination
• Complete failure of the light to activate
• Inconsistent or intermittent lighting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser housing shield replaces the plastic housing that protects and supports the refrigerator dispenser assembly, restoring a clean, secure dispenser opening and helping prevent leaks or damage. Ideal for cracked, warped, or broken dispenser trim. What it does

• Covers and protects the dispenser opening and internal dispenser components
• Provides a stable mount for dispenser controls and actuators
• Helps prevent water from leaking into the cabinet around the dispenser
• Restores appearance and function when the dispenser trim is cracked, split, or warped

• Disconnect power and water supply before starting any work
• Remove the dispenser bezel or door trim to access the housing; keep fasteners for reassembly
• Handle plastic parts gently to avoid cracking; use appropriate trim tools if needed

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser ice funnel guides cubed or crushed ice from the door chute into your glass for clean, accurate dispensing. Replace a cracked or missing funnel to stop stray ice and keep the dispenser area tidy. What it does:

• Directs ice from the dispenser chute into your container to minimize scatter and spills
• Common fix for ice missing the glass, shooting to the side, or creating a mess at the dispenser
• Replace when the funnel is cracked, warped, loose, or has broken mounting tabs
• Helps restore smooth, consistent ice dispensing

• 1 dispenser ice funnel

• Disconnect power to the refrigerator; turn off the water supply if working around the dispenser area
• Remove the dispenser front panel/trim to access the funnel
• Release screws or locking tabs, remove the old funnel, and reuse existing hardware
• Seat and align the new funnel, secure it, restore power, and test ice dispensing

The ice dispenser paddle is the front lever you press with a glass to activate ice dispensing from the freezer door. Replacing a cracked or sticking paddle restores dependable dispensing and keeps the dispenser area looking clean and finished.

• Transfers your push to the dispenser switch to start the ice dispensing cycle
• Helps ensure consistent activation when dispensing cubed or crushed ice
• Common failure signs: cracked or broken paddle, lever feels loose or sticks, must press very hard, intermittent or no ice when pressed
• Cosmetic wear at the dispenser opening

• Disconnect power to the refrigerator before servicing
• Remove the drip tray and carefully release the dispenser trim/control panel to access the paddle
• Remove mounting screws or tabs, note lever orientation, and transfer any reusable hardware from the old paddle
• Reassemble, restore power, and test dispenser operation

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This union connector joins two sections of appliance water tubing to maintain a watertight supply line for icemakers or dispensers. It's a direct replacement piece that helps stop leaks and restore proper water flow. What it does

• Connects two water tubing segments to create a sealed junction for appliance water supply lines
• Stops leaks or drips at a damaged or corroded tubing connection
• Restores proper water flow to icemakers, dispensers, or other water-fed components
• Compatible with standard appliance water tubing sizes where this OEM connector is specified

• Turn off the appliance water supply (and unplug appliance if advised) before beginning work
• Remove the damaged connector and clean tubing ends before installing the new union
• Hand-start fittings, then tighten securely; check for leaks with the water supply back on

This dispenser interface assembly restores the electronic user interface for your refrigerator's ice and water dispenser. It reads button selections and sends commands to the dispenser system, helping resolve a dead display or unresponsive dispenser controls.

• Manages ice/water selection, dispenser lighting, and lock functions
• Interprets button presses and signals the auger motor, water valve, and related control circuits
• Failure can present as no response from buttons, no backlight/display, inability to switch cubed/crushed ice, or intermittent operation
• Replacing a failed interface can restore normal dispenser control

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim carefully and access mounting screws to reach the interface
• Transfer wire harness connectors one at a time, matching orientation to avoid miswiring
• Handle the electronics with care; avoid static discharge and verify door switch/lever alignment before reassembly

This fixed freezer module shelf provides a secure mounting surface for the freezer control/module assembly, keeping electronics and components stable for reliable operation. Designed as a direct replacement for damaged or missing shelves. What it does

• Secures the freezer control/module assembly to prevent shifting or vibration
• Provides a stable platform to maintain correct component placement
• Prevents contact between module components and other internal parts
• Commonly replaced when the shelf is cracked, broken, or the module feels loose

• Disconnect power to the appliance before beginning any repair
• Handle plastic parts carefully to avoid cracking; use basic hand tools
• Confirm correct orientation and seating of the shelf before reassembling panels

This rubber grommet secures the appliance's base grille, helping keep the grille fitted and reducing vibration and rattle. It's a simple replacement part to restore a snug, finished look at the appliance base. What it does:

• Cushions and retains the base grille in place to prevent gaps and movement
• Helps reduce vibration noise and rattling from a loose grille
• Restores proper fit where a grommet is cracked, torn, or missing

• One (1) grommet for the base grille

• Disconnect power to the appliance before beginning any service
• Typically installs by pressing into the grille or cabinet opening—no special tools required
• Inspect surrounding grille tabs or mounting points and replace any damaged hardware as needed

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal
