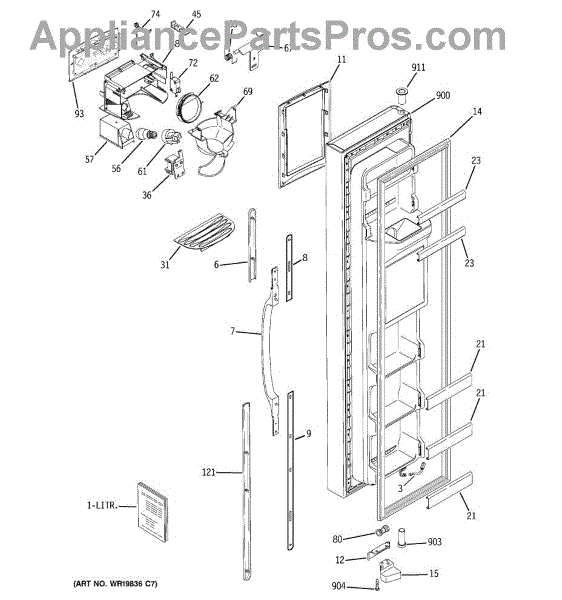

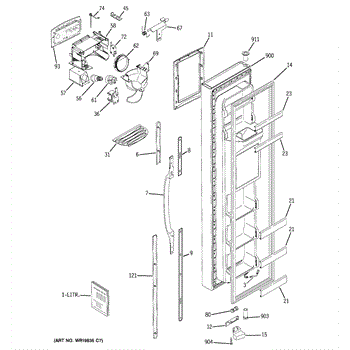

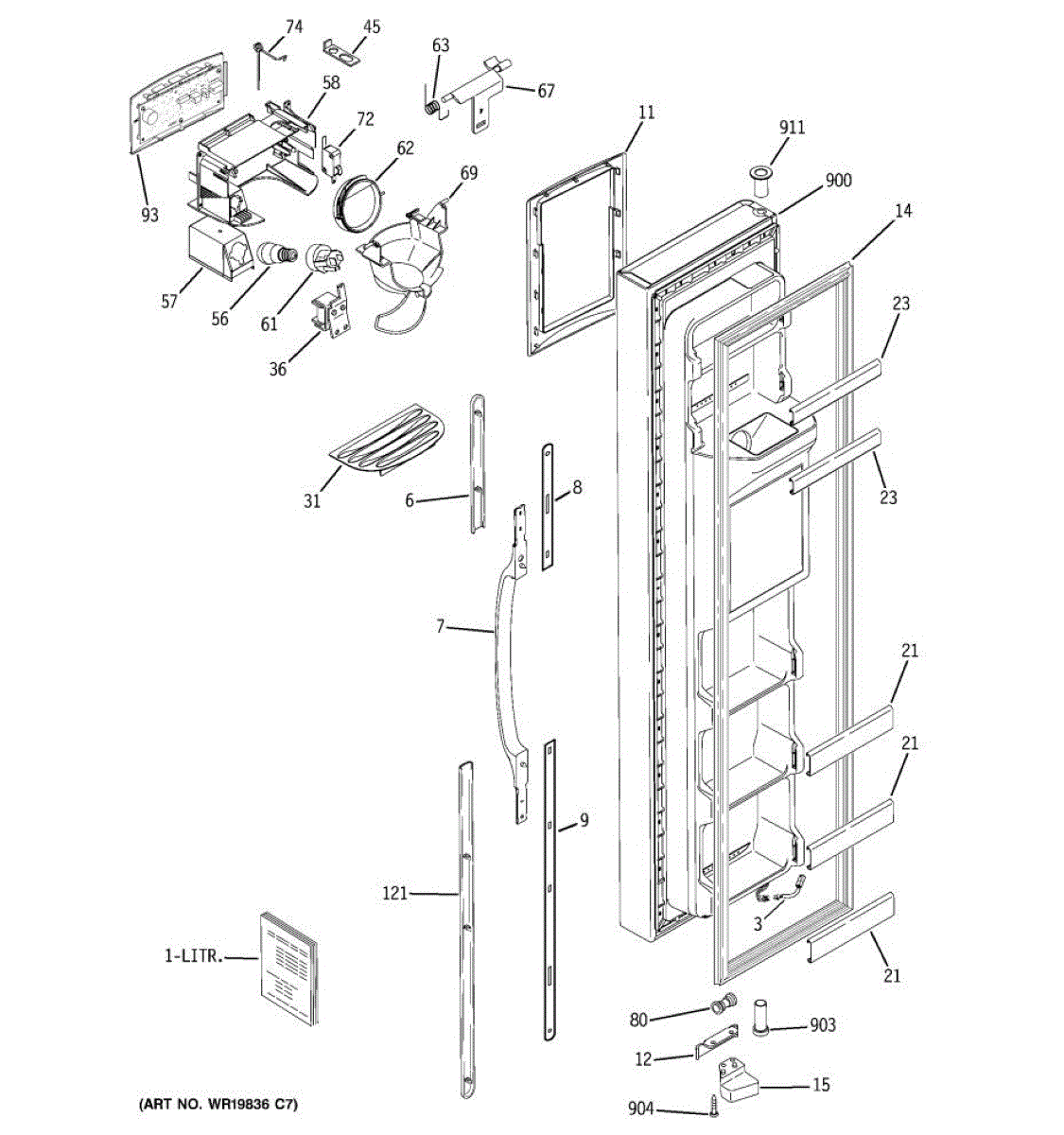

Parts for Ge ESS23XGSBCC: 01 - Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This cam closure is the small plastic latch that helps the freezer door align and stay closed, restoring a tight seal for efficient cooling and preventing frost buildup. Fits the freezer door hinge area and replaces worn or broken closures. What it does:

• Guides and secures the freezer door into the closed position for a reliable seal
• Replaces broken, cracked, or missing cam closures that let the door sag or catch
• Helps reduce air leaks that can cause frost buildup or higher energy use
• Works with the freezer hinge/cam assembly to maintain proper door alignment

• Disconnect power before working on the refrigerator to avoid electrical or injury risk.
• Remove the freezer door or inner liner panels as required to access the cam closure; follow the refrigerator model service manual.
• Install the cam in the correct orientation and ensure smooth door movement and alignment before reassembly.
• If hinges, screws, or adjacent parts are damaged, inspect/replace those parts as needed for a lasting repair.

This front door shelf is a replacement freezer door bin that restores lost door storage and helps keep frozen items organized and accessible. Built to match the original fit and function for a secure door storage solution. What it does:

• Replaces a cracked, broken or missing freezer door shelf to restore door storage
• Holds frozen foods and small items that sit on the freezer door
• Keeps items organized and prevents them from falling out when the door opens
• Matches original mounting points to maintain proper fit and alignment

• Unplug or disconnect power to the appliance before servicing
• Remove food and empty the door before replacing the shelf
• Align the shelf with the door mounting points and press into place until it snaps or seats securely
• If original mounting clips or supports are damaged, replace them to ensure a proper fit

This replacement front door shelf restores lost freezer door storage and secures small frozen items in the door bin. It snaps into the freezer door to replace cracked, broken or missing shelves and tidy up door storage. What it does:

• Provides a stable bin on the freezer door to hold small containers, ice packs and boxed items
• Replaces cracked, chipped or bowed shelves that allow food to fall or shift when the door opens
• Restores original door organization and prevents items from sliding out
• Designed to match the OEM mounting points for a direct fit (verify fit for your model)

• Remove food and any retained items from the door before beginning
• Shelf typically snaps into place; lift out the old shelf and align the new shelf with the door mounting brackets until it clicks
• No electrical disconnect required, but use caution around sharp edges and wear gloves if needed
• If the shelf does not seat easily, check for obstructions or damaged mounting tabs before forcing it

This lower front trim piece attaches to the refrigerator base to cover and protect the grille area while keeping the appliance's front panel looking finished. It restores appearance and helps keep debris away from vents and components. What it does:

• Covers the lower front grille opening for a finished, OEM appearance
• Protects underlying vents and components from dust and accidental contact
• Helps direct airflow around the condenser/vent area for proper operation
• Replaces damaged, cracked, or missing trim to improve aesthetics

• One grille recess lower front trim

• Disconnect power to the refrigerator before attempting installation
• Typically secures with snap tabs and/or screws; align tabs and press or fasten as required
• Handle carefully to avoid scratching the finish and to prevent breakage of plastic tabs
• Obtain OEM replacements for secure installation

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

The Dispenser Light is an OEM part for GE refrigerators. It illuminates the water and ice dispenser area, providing visibility when accessing these features in low-light conditions. This light enhances user convenience and helps to ensure accurate and spill-free operation.

Causes of a bad dispenser light can include burnout from regular use, electrical issues, or damage from moisture or impacts. A faulty light can compromise visibility and the overall functionality of the dispenser area.

Symptoms of a bad dispenser light include:

• The light not turning on when using the dispenser
• Flickering or dim illumination
• Complete failure of the light to activate
• Inconsistent or intermittent lighting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spring restores the return tension on the refrigerator's dispenser recess door so it closes properly after use. Replacing a weak or broken spring helps keep the dispenser area tidy and operating as intended.

• Provides the closing force for the dispenser recess door
• Helps reduce warm air and moisture entering the dispenser area when the door is at rest
• Replaces a stretched, bent, or broken spring
• Common signs: door won't close on its own, sags open, or feels loose/floppy

• Disconnect power and shut off water before servicing the dispenser
• Use caution—spring is under tension; wear eye protection and gloves
• Note orientation and pre-load during removal; transfer the new spring exactly as found
• Operate the door by hand to ensure smooth return before reassembling trim

This lever links the dispenser actuator/solenoid to the recess (chute) door in your refrigerator dispenser. It opens the flap during dispensing and helps it close afterward to maintain a proper seal and reduce frost and moisture.

• Couples the solenoid/actuator to the dispenser recess door flapper
• Opens the chute door for dispensing; returns it closed when released
• Helps maintain an air seal at the dispenser to limit warm-air leaks
• Common symptoms of a worn or broken crank: chute door won't open/close, frost or condensation around the dispenser, poor sealing

• Unplug the refrigerator before servicing
• Remove the dispenser trim/panel to access the recess-door mechanism
• Note spring/linkage positions and transfer them to the new crank
• Verify smooth movement and proper door seal before reassembly, then restore power and test

Bisque

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly
