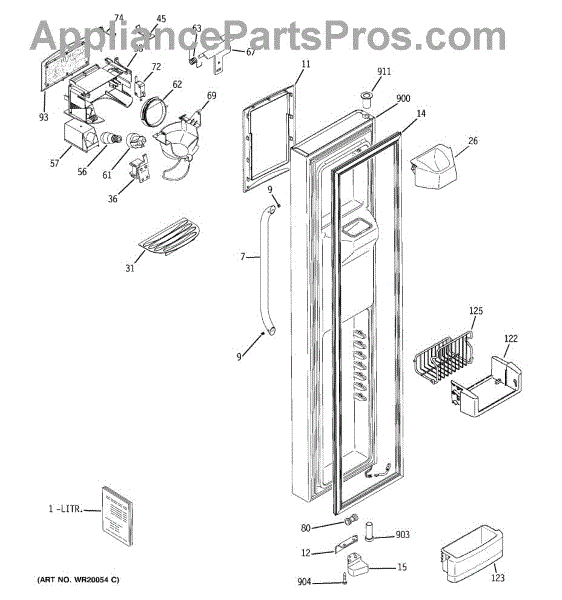

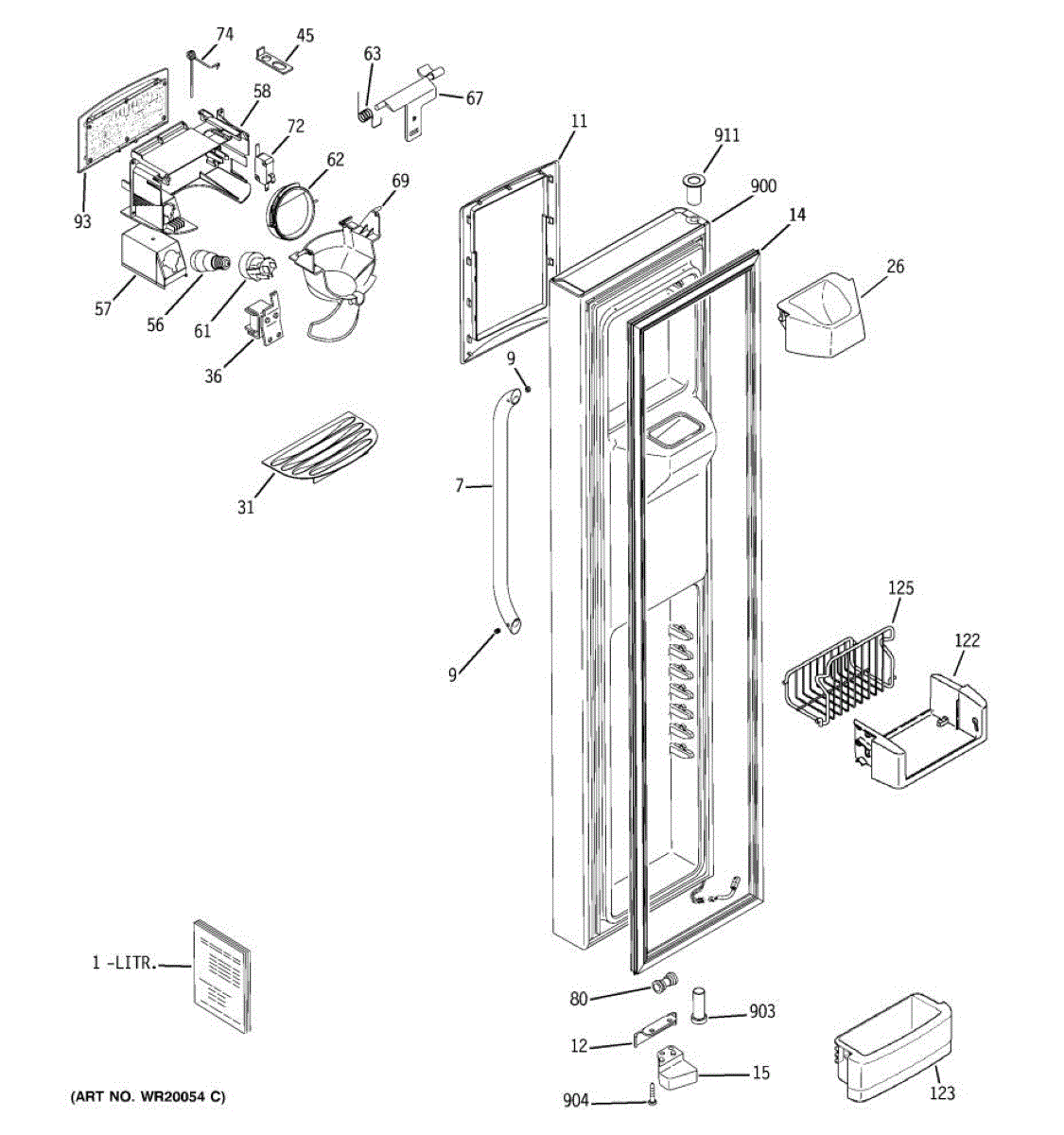

Parts for Ge GSS25LSTCSS: 01 - Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


A stainless-steel handle fastener that secures the refrigerator door handle to the door assembly for a solid, wobble-free grip. Use to restore a loose, stripped, or missing handle attachment point. What it does:

• Secures the door handle to the door/handle mounting point so the handle stays tight and aligned.
• Stops handle movement, wobbling, or rattling caused by a worn or missing fastener.
• Replaces a corroded or damaged fastener to restore a secure connection.
• Stainless finish resists corrosion at the handle mounting point.

• Disconnect power to the appliance before starting work whenever access to internal parts is required.
• Use the correct screwdriver or bit; turn carefully and avoid sideways force on the handle.
• Do not overtighten—over-torquing can strip threads or crack surrounding trim.
• Keep removed hardware and any trim pieces for reassembly; inspect handle and threaded inserts for damage.

This recessed trim piece replaces a bowed or damaged trim that surrounds a refrigerator recessed handle, restoring a clean appearance and secure fit. It covers the trim opening and helps keep the handle area sealed and finished. What it does:

• Replaces bent, warped or bowed recessed trim around the door handle area
• Restores the finished look and helps hold the handle trim in place
• Reduces gaps where dirt or moisture can collect near the handle
• Helps prevent the trim from catching or snagging when opening the door

• Disconnect power to the appliance before starting work when required for your model
• Remove door handle or existing trim per your model's service instructions to access trim
• Align trim in the recess and snap or fasten into place; avoid forcing or prying to prevent damage
• If trim clips are broken, replace clips as needed

The Door Stop is an OEM component for GE refrigerator models. It is a small component located at the base of the refrigerator door that stops the door from opening past 90 degrees.

Symptoms of a bad door stop include:

• Door being able to open past 90 degrees
• Hitting other parts of the refrigerator or interior shelves

Causes of a bad door stop include cracking or breaking of the plastic material due to impact or excess force on the door over its lifespan. Small flaws present during manufacturing could also lead to premature wear. With its compact design and durable plastic, the door stop safely limits door movement.

This OEM GE part is also compatible with some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM part for GE refrigerators. It forms a seal around the freezer door to prevent warm air from entering and cold air from escaping, maintaining the internal temperature and efficiency of the appliance. It measures 24 inches wide by 20 inches high.

Causes of a bad freezer door gasket can include wear and tear over time, cracking or drying out of the rubber material, or damage from repeated use.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The door not sealing properly
• Increased energy consumption
• Visible cracks or tears in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Freezer Door Cam Closure is an OEM replacement part for GE side-by-side refrigerators. As a primary security component, it utilizes a cam mechanism to firmly latch the freezer door shut.

Causes of failure include wear from years of operation, and broken or misaligned cam parts reducing secure closure power.

Symptoms involve:

• Air leaks detectable around door seals when closure frozen
• Freezer door no longer clamping fully closed
• Light penetration into gasket if door poorly seated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This ice guide directs ice from the ice maker into the storage bin to help prevent spills and misfeeds. It replaces a cracked, worn or misaligned guide so ice drops cleanly into the bin. What it does:

• Guides ice cubes from the dispenser/ice maker outlet into the ice bin to reduce jams and spillage
• Helps keep cubes aligned for smooth dispensing and bin storage
• Addresses symptoms like ice falling outside the bin, frequent jams, or a broken/missing chute
• Molded plastic design resists normal freezer conditions

• Disconnect power to the refrigerator before starting work
• Remove the ice bin and any obstructing trim to access the guide
• Align tabs with mounting slots and press until the guide snaps into place; do not force
• If icy buildup is present, defrost or clear ice before installing to ensure proper fit

The Dispenser Drip Tray is an OEM part for GE refrigerators. It serves as a catchment area for any drips or spills that may occur during the dispensing process. It helps prevent water or ice from dripping onto the floor or making a mess on the front of the refrigerator. For white order WR17X11654.

Causes of a faulty or damaged dispenser drip tray can include regular use, accumulation of debris, or cracks. These factors can result in issues such as water or ice leaking onto the floor, an unsightly appearance, or difficulties in cleaning and maintenance.

Symptoms of a bad dispenser drip tray may include:

• Water or ice leaking from the dispenser area
• Cracks or damage to the drip tray
• Difficulty in removing and cleaning the drip tray

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

The Dispenser Light is an OEM part for GE refrigerators. It illuminates the water and ice dispenser area, providing visibility when accessing these features in low-light conditions. This light enhances user convenience and helps to ensure accurate and spill-free operation.

Causes of a bad dispenser light can include burnout from regular use, electrical issues, or damage from moisture or impacts. A faulty light can compromise visibility and the overall functionality of the dispenser area.

Symptoms of a bad dispenser light include:

• The light not turning on when using the dispenser
• Flickering or dim illumination
• Complete failure of the light to activate
• Inconsistent or intermittent lighting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This light reflector directs and protects the appliance lamp, improving illumination and preventing direct bulb contact. It restores proper light focus so interior areas are evenly lit and bulbs remain securely positioned. What it does:

• Reflects and directs light from the lamp for better interior visibility
• Shields the bulb from contact with food or components
• Helps maintain consistent light output and coverage
• Commonly replaced when light appears dim, uneven, or the reflector is cracked or missing

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove the bulb before installing the reflector; handle bulbs and reflector with care to avoid damage
• Use only compatible replacement parts and follow the appliance manufacturer's instructions

The Refrigerator Dispenser Arm Kit is an OEM component for GE French door refrigerator models. This kit contains the arm mechanism responsible for dispensing ice and water from the external dispenser tap.

Proper functioning of the dispenser arm allows for effortless access to ice and water directly from the refrigerator door. Over time, cold temperatures, mineral deposits, and high usage can cause mechanical failure.

Symptoms of a problematic refrigerator dispenser arm kit include:

• Ice or water dispensing slower than normal or in inconsistent amounts
• Blockages that prevent full dispensing
• Leaks or drips around the dispenser tap area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Dispenser Arm Kit is an OEM component for GE French door refrigerator models. This kit contains the arm mechanism responsible for dispensing ice and water from the external dispenser tap.

Proper functioning of the dispenser arm allows for effortless access to ice and water directly from the refrigerator door. Over time, cold temperatures, mineral deposits, and high usage can cause mechanical failure.

Symptoms of a problematic refrigerator dispenser arm kit include:

• Ice or water dispensing slower than normal or in inconsistent amounts
• Blockages that prevent full dispensing
• Leaks or drips around the dispenser tap area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fixed freezer module shelf supports and secures the freezer module assembly, restoring stable storage and preventing items from shifting or contacting the module. It's a direct replacement for a cracked, warped, or missing shelf. What it does:

• Holds and supports the freezer module assembly so it stays properly positioned.
• Keeps stored items from contacting or damaging the module.
• Replaces shelves that are cracked, broken, or bent and that allow items to slide or fall.
• Reduces rattling or movement caused by a loose or broken shelf.

• Disconnect power to the refrigerator before servicing to prevent electrical hazard.
• Empty the freezer area and remove loose shelves or bins that block access.
• Align the shelf with its mounting points and seat it gently; do not force or modify the part.
• If fasteners are present, reuse OEM fasteners or replace with manufacturer-specified hardware.

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal
