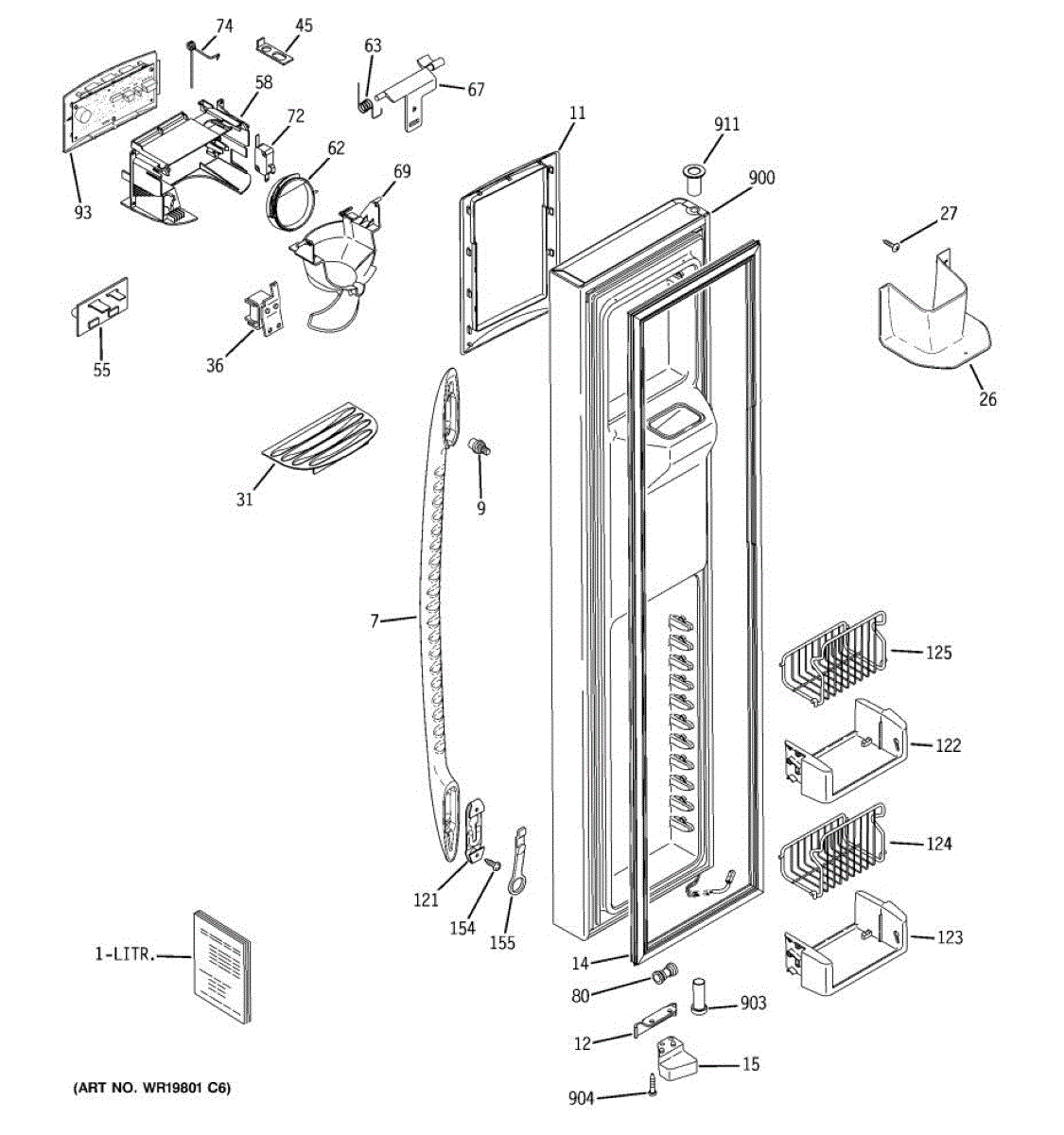

Parts for Ge PSF26PGTBBB: 01 - Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This stainless-steel handle fastener secures the appliance door handle to the door assembly, restoring a solid, rattle-free grip and proper handle alignment. Designed to replace a worn, loose, or missing fastener quickly and easily. What it does:

• Secures the door handle to the appliance door so the handle stays firmly attached
• Stops handle wobble, clicking, or partial detachment when opening or closing the door
• Restores proper handle alignment and feel after a stripped or corroded fastener
• Matches OEM finish for a consistent look with stainless-steel handles

• One stainless-steel handle fastener

• Disconnect power to the appliance before beginning any repair
• Access may require removing the handle or inner trim; follow for guidance
• Use appropriate hand tools and tighten the fastener until snug—do not over-torque

The Door Stop is an OEM component for GE refrigerator models. It is a small component located at the base of the refrigerator door that stops the door from opening past 90 degrees.

Symptoms of a bad door stop include:

• Door being able to open past 90 degrees
• Hitting other parts of the refrigerator or interior shelves

Causes of a bad door stop include cracking or breaking of the plastic material due to impact or excess force on the door over its lifespan. Small flaws present during manufacturing could also lead to premature wear. With its compact design and durable plastic, the door stop safely limits door movement.

This OEM GE part is also compatible with some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM part for GE refrigerators. It forms a seal around the freezer door to prevent warm air from entering and cold air from escaping, maintaining the internal temperature and efficiency of the appliance. It measures 24 inches wide by 20 inches high.

Causes of a bad freezer door gasket can include wear and tear over time, cracking or drying out of the rubber material, or damage from repeated use.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The door not sealing properly
• Increased energy consumption
• Visible cracks or tears in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Freezer Door Cam Closure is an OEM replacement part for GE side-by-side refrigerators. As a primary security component, it utilizes a cam mechanism to firmly latch the freezer door shut.

Causes of failure include wear from years of operation, and broken or misaligned cam parts reducing secure closure power.

Symptoms involve:

• Air leaks detectable around door seals when closure frozen
• Freezer door no longer clamping fully closed
• Light penetration into gasket if door poorly seated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This ice guide directs ice from the ice maker into the storage bin to help prevent spills and misfeeds. It replaces a cracked, worn or misaligned guide so ice drops cleanly into the bin. What it does:

• Guides ice cubes from the dispenser/ice maker outlet into the ice bin to reduce jams and spillage
• Helps keep cubes aligned for smooth dispensing and bin storage
• Addresses symptoms like ice falling outside the bin, frequent jams, or a broken/missing chute
• Molded plastic design resists normal freezer conditions

• Disconnect power to the refrigerator before starting work
• Remove the ice bin and any obstructing trim to access the guide
• Align tabs with mounting slots and press until the guide snaps into place; do not force
• If icy buildup is present, defrost or clear ice before installing to ensure proper fit

This 8-18 x 7/8 inch stainless steel screw secures appliance panels, brackets and components for a safe, stable fit. Its machine thread and corrosion-resistant finish make it suitable for interior and mildly exposed locations. What it does:

• Fastens panels, brackets or trim where an 8-18 x 7/8" screw is specified
• Restores secure mounting for loose or rattling parts
• Resists corrosion to help maintain fit over time
• Provides the correct thread size to prevent stripping when installed properly

• One 8-18 x 7/8 in stainless steel screw

• Use the correct driver and engage threads straight to avoid cross-threading
• Tighten until snug; avoid over-torquing which can strip threads or damage parts
• Replace only with identical size and thread type to ensure proper fit
• Disconnect power and follow appliance safety guidelines before working on the unit

Color: black. It measures about 8 inches wide by 4-1/2 inches deep. For stainless, order WR17X12133

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

Replacement dispenser housing shield that protects internal dispenser components and restores a clean, finished appearance. Fits the dispenser area and helps prevent damage from spills or impacts while improving dispenser alignment and usability. What it does:

• Shields internal dispenser parts from spills, debris and everyday wear.
• Restores proper fit and finish to the dispenser opening for consistent cup placement.
• Common replacement when the dispenser guard is cracked, broken, warped or missing.
• Helps reduce risk of leaks and keeps controls and mechanisms covered.

• Disconnect power to the appliance before starting any repair.
• Typically requires removal of the dispenser front or trim; basic hand tools recommended.
• Retain or transfer any clips, screws or brackets during replacement.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Chute Funnel is an OEM part for GE refrigerators. It directs ice from the dispenser to the glass.

Causes of a bad ice chute funnel can include wear and tear over time, cracking or breaking due to frequent use, or damage from attempting to clear jams or blockages.

Symptoms of a bad ice chute funnel include:

• Ice spilling or missing the glass during dispensing
• Difficulty in dispensing ice or frequent jams
• Cracks or visible damage to the funnel
• Ice buildup or blockages in the dispenser chute

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal
