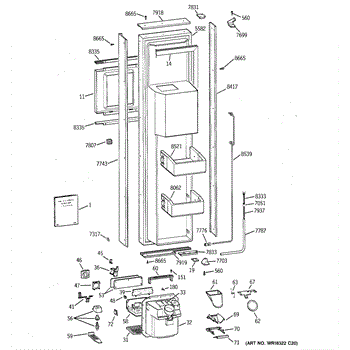

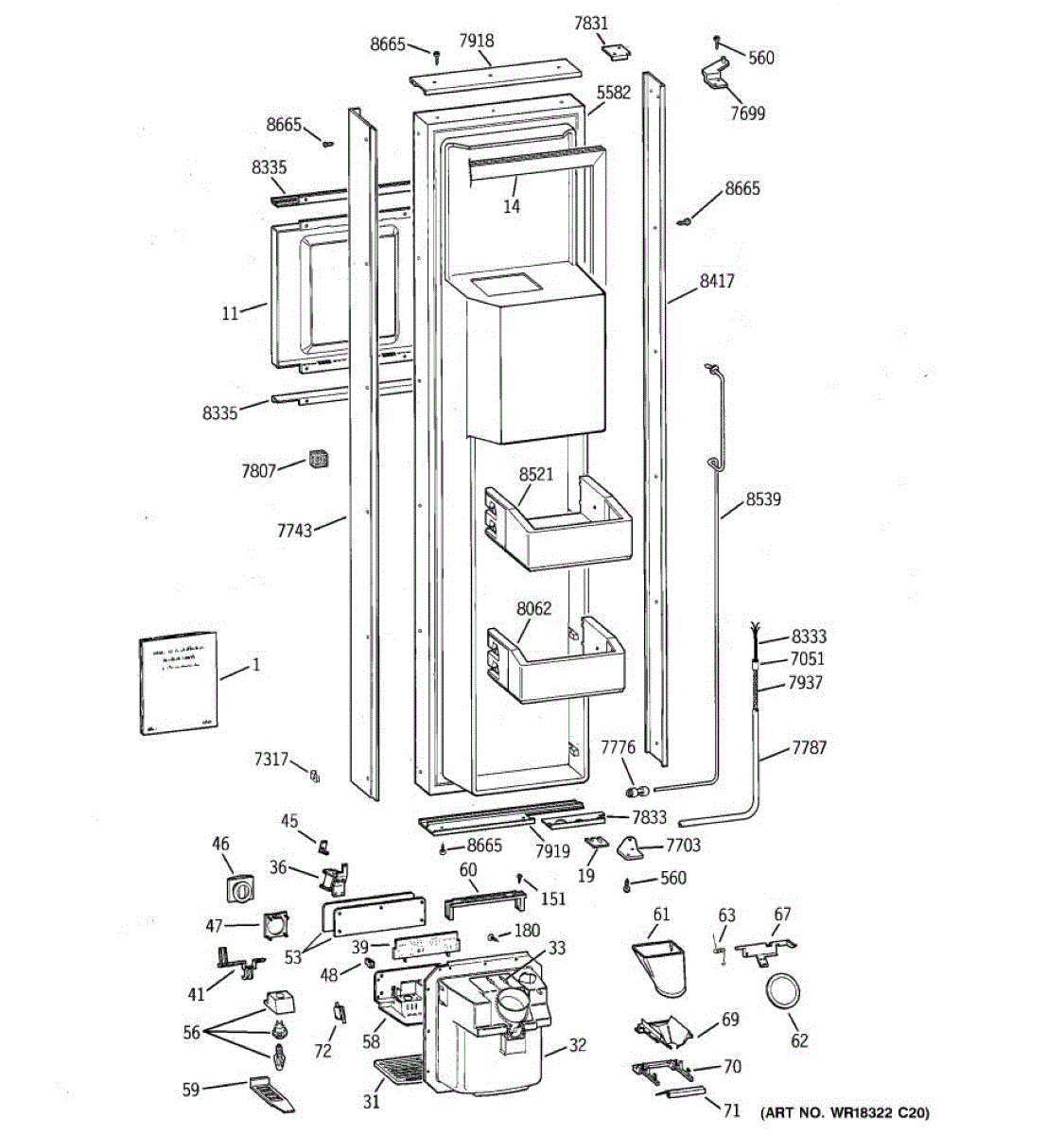

Parts for Ge ZISB48DCA: 01 - Freezer Door Parts

Replace cracked or discolored dispenser trim recess on your refrigerator. Restores a clean appearance to the dispenser area. Simple snap-in installation.

Creates an airtight seal to keep cold air in. Replace if torn, warped, or leaking to restore proper sealing and temperature control. Confirm fit by model.

Thin leveling spacer that corrects height and alignment gaps in refrigerator components. Replace when worn, missing, or needed for proper fit.

Replacement .060 shim for refrigerator door alignment. Installs between door and cabinet to ensure proper spacing and seal. Needed when worn or missing.

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Color: clear. It's 7 watts 130 volts.

This shield protects the dispenser recess area from spills and damage, located around the water/ice dispenser opening. Replace if the shield is cracked, stained beyond cleaning, or creates gaps allowing debris entry.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Links the dispenser solenoid to the ice chute door in your refrigerator. Replace if the crank is broken, cracked, or worn, preventing proper closure.

Color: Black.

Color: Black.

Replacement 8-18 x 9/16 machine screw for securing panels, brackets, and internal components. Needed when fasteners are stripped, missing, or worn.

8 - 18 x .375

This screw handle trim replaces the small decorative cover that hides and secures the mounting screw on a range/oven handle, restoring a finished look and preventing debris buildup around the screw. What it does:

• Covers the handle mounting screw and provides a clean finished appearance
• Helps keep crumbs and grease out of the screw cavity
• Stops a loose or missing trim from catching on clothing or hands
• Restores cosmetic look after handle removal or damage

• One screw handle trim

• Safety first: unplug the appliance or shut off power to the range before working
• Remove the handle screw, fit the trim over the screw area, then reinstall and tighten the screw securely (do not overtighten)
• Use the correct screwdriver and avoid forcing the trim; check alignment before final tightening
• If the original mounting hardware is damaged, replace it with OEM hardware

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

Size: Large.

Size: 1/4 inch diameter.

Replace your refrigerator's door hinge to restore proper door alignment and operation. Needed when the existing hinge is cracked, broken, or worn out.

Freezer side bottom door hinge.

Connects refrigerator water supply tubing to the appliance for dispenser and ice maker. Replace if cracked, loose, damaged, or leaking at the connection point.

Freezer side top hinge shim. For bottom hinge shim use WR2X8593.

Freezer side bottom hinge shim. For top hinge shim use WR2X8592.

This bottom freezer door trim piece provides a finished edge and helps seal the freezer door while restoring the appliance's appearance. It replaces a cracked, dented, or missing lower door trim for a clean, consistent look. What it does:

• Covers and protects the lower edge of the freezer door, keeping the door looking finished
• Helps maintain an even door seal by supporting the door edge where trim mounts
• Commonly replaced when trim is cracked, warped, bent, or cosmetically damaged
• Matches factory fit and mounting locations for straightforward replacement

• One bottom freezer door trim piece

• Designed for bolt- or snap-on installation; remove power to the appliance before starting work
• Handle trim carefully to avoid scratching finish; use non-marring tools as needed
• Small fasteners or clips may be required

This fiberglass sleeve protects and insulates tubing and wiring, helping prevent chafing and damage where lines pass through openings or near sharp edges. It's a simple, durable way to extend component life and reduce noise from rubbing. What it does:

• Provides abrasion protection for water lines, hoses, and electrical wiring
• Adds thermal insulation to help reduce condensation and exposure to temperature extremes
• Cushions components where they pass through metal or plastic panels to prevent wear
• Helps reduce rubbing noises caused by vibration or movement

• Disconnect power and water supply before starting
• Inspect surrounding areas for sharp edges or corrosion; replace sleeve if frayed or damaged
• Slide sleeve over the hose or wire; trim to length with scissors if needed and ensure full coverage of exposed areas
• Use appropriate clamps or zip-ties as required to secure the sleeve without compressing it

Freezer door side trim.

Replacement mounting screw that secures panels and internal components in your freezer. Replace stripped, rusted, or missing fasteners to restore stability.
