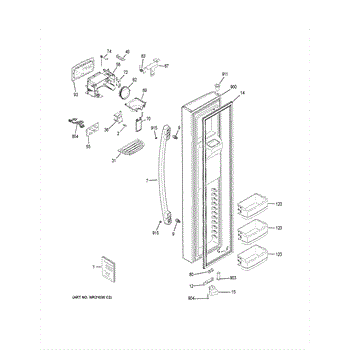

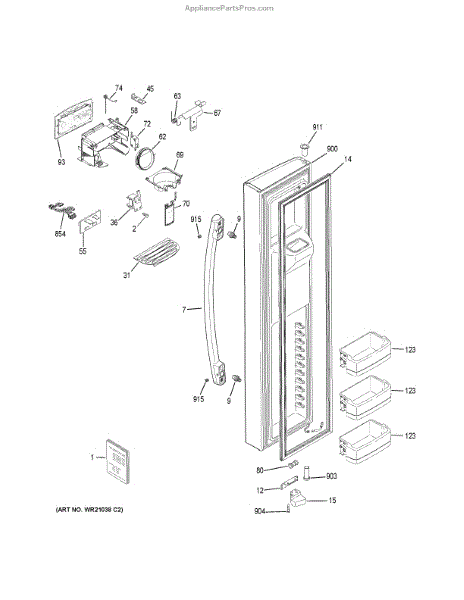

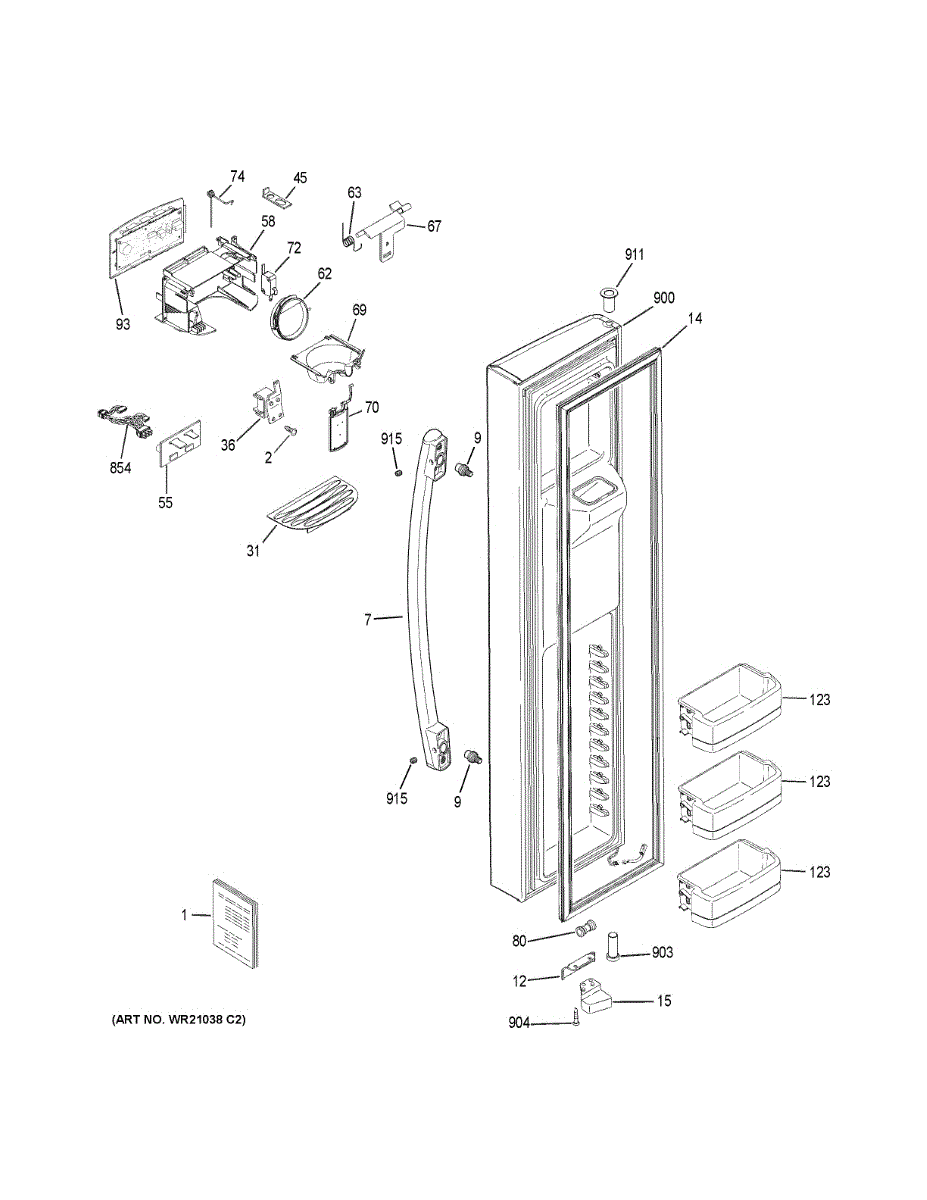

Parts for Ge PSS28KSHGCSS: Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

The Arc Handle is an OEM part for GE refrigerators. It is designed to provide a sturdy and ergonomic grip for opening and closing the refrigerator door. The handle measures approximately 34 inches long by 2 inches wide.

Causes of a bad arc handle can include wear and tear from frequent use, accidental impacts, or stress from excessive force. A faulty handle can compromise the convenience and safety of using the refrigerator.

Symptoms of a bad Arc Handle include:

• The handle feeling loose or wobbly
• Cracks or visible damage on the handle
• Difficulty in opening or closing the door
• The handle detaching from the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

The Door Stop is an OEM component for GE refrigerator models. It is a small component located at the base of the refrigerator door that stops the door from opening past 90 degrees.

Symptoms of a bad door stop include:

• Door being able to open past 90 degrees
• Hitting other parts of the refrigerator or interior shelves

Causes of a bad door stop include cracking or breaking of the plastic material due to impact or excess force on the door over its lifespan. Small flaws present during manufacturing could also lead to premature wear. With its compact design and durable plastic, the door stop safely limits door movement.

This OEM GE part is also compatible with some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM part for GE refrigerators. It forms a seal around the freezer door to prevent warm air from entering and cold air from escaping, maintaining the internal temperature and efficiency of the appliance. It measures 24 inches wide by 20 inches high.

Causes of a bad freezer door gasket can include wear and tear over time, cracking or drying out of the rubber material, or damage from repeated use.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The door not sealing properly
• Increased energy consumption
• Visible cracks or tears in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fresh Food Door Closure Cam is an OEM replacement part for GE refrigerators. It is a component located inside the fresh food door that works together with the door latch mechanism. The door closure cam has a pivoting arm that engages the latch to securely fasten the door shut when closed. For the same part in white, purchase WR02X10637.

Causes of failure include wear and tear over time from repeated usage, damage due to accidental mishandling of the door, or an impact that causes misalignment of the cam.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing properly
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GRILL RECESS is an OEM replacement part for GE refrigerators. Located below the external dispenser bar, it captures any accidental spills or overflow during beverage dispensing.

Causes for failure can include warping or cracking from prolonged exposure to wet environments. Mineral buildup may impact drainage.

Symptoms include:

• Puddles forming around the base of the dispenser due to missed spills
• Drain holes becoming blocked inhibiting proper runoff
• Damage preventing secure fastening of the drip tray in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

This dispenser housing shield covers the refrigerator dispenser opening to restore appearance and help direct water or ice into cups. It replaces a cracked, faded, or damaged dispenser trim for a cleaner dispense area. What it does:

• Replaces damaged or faded dispenser trim for a neat, finished look
• Helps guide water and ice into containers and protects underlying components
• Reduces drafts and light from the dispenser opening
• Commonly replaced if cracked, warped, or cosmetically worn

• Remove power to the appliance before beginning work to reduce shock risk
• Typically installs with clips or screws—inspect fasteners and the surrounding trim for damage
• Handle carefully to avoid scratching the finish during installation

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Chute Funnel is an OEM part for GE refrigerators. It directs ice from the dispenser to the glass.

Causes of a bad ice chute funnel can include wear and tear over time, cracking or breaking due to frequent use, or damage from attempting to clear jams or blockages.

Symptoms of a bad ice chute funnel include:

• Ice spilling or missing the glass during dispensing
• Difficulty in dispensing ice or frequent jams
• Cracks or visible damage to the funnel
• Ice buildup or blockages in the dispenser chute

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door hinge thimble—also called a hinge bushing—is a small sleeve that fits into the refrigerator door's hinge bore to act as a bearing for the hinge pin, helping the door open and close smoothly and stay aligned.

• Provides a low-friction bearing surface between the hinge pin and door
• Helps maintain proper door alignment and closing performance
• Can reduce squeaks, scraping, or binding caused by a worn or missing bushing
• Replace if cracked, deformed, or if the door sags or doesn't swing smoothly

• Disconnect power and support the door before removing hinge hardware
• Remove hinge cover and screws, lift door off the hinge pin, and access the thimble in the door
• Pull out the old thimble and press the new thimble fully into the hinge bore
• Reinstall and align the door; verify gasket seal and hinge fasteners are secure

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads
