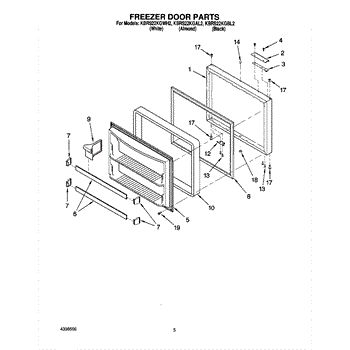

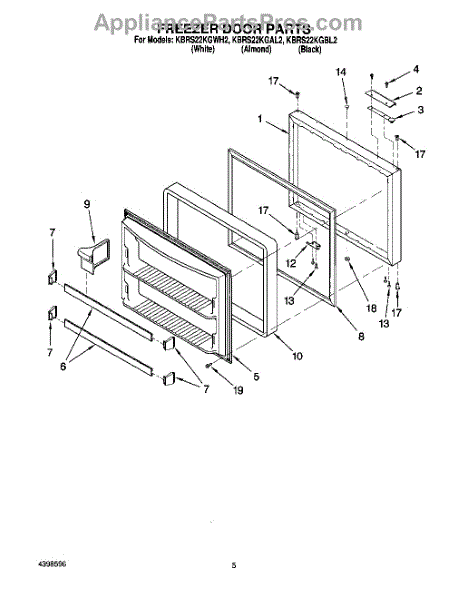

Parts for Kitchenaid KBRS22KGBL2: 03 - Freezer Door Parts

The Door Shelf Bar End Cap Kit is an OEM part for Whirlpool refrigerators. The kit consists of two end caps that secure the door shelf bar in place, ensuring that the shelf stays stable and can support items stored on it.

Causes of a bad end cap can include wear and tear over time, physical damage due to impact, or plastic degradation from repeated use and exposure to varying temperatures. These factors can lead to the end caps becoming loose or broken, compromising the integrity of the door shelf bar.

Symptoms of a bad end cap include:

• Door shelf bar not staying in place
• Items falling off the shelf
• Visible cracks or damage to the end caps
• Difficulty in securing the door shelf bar properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Size: 23 3/4 inches x 31 1/2 inches. For white order WP12550116Q.

The Freezer Door Gasket is an OEM part for Whirlpool refrigerators. It creates a seal around the freezer door, keeping cold air inside and preventing warm air from entering, which helps maintain the proper temperature and efficiency of the freezer. This gasket measures approximately 23 3/4 inches by 31 1/2 inches.

You should replace the freezer door gasket if it becomes damaged or worn out. Common causes of a bad gasket include wear and tear from regular use, exposure to temperature fluctuations, or physical damage from cleaning or handling.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The freezer door not sealing properly
• Increased energy consumption
• Warmer than usual temperatures inside the freezer
• Visible cracks, tears, or deformation of the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

This door stop replaces the small bumper that cushions and limits the door's travel so the door closes smoothly and avoids hard impacts. It restores normal door movement and reduces noise from slamming or catching. What it does

• Acts as a bumper/stop to limit how far the door opens or closes
• Cushions the door to prevent hard impacts and reduce noise
• Helps keep the door aligned and prevents catching or uneven closing
• Commonly replaced when the stop is worn, cracked, missing, or deformed

• One door stop

• Disconnect power (unplug or switch off breaker) before starting any repair
• Removal/installation typically requires basic hand tools and access to the door hinge/stop area
• Align the new stop in the same position as the old one and secure per the appliance's hinge/trim layout
• Reuse the original fasteners unless replacements are specified

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

A direct-replacement Plug B push button for the appliance control panel that restores tactile operation for the associated function. Ideal for replacing cracked, worn, or missing buttons so controls respond and look right again. What it does:

• Replaces the Plug B push button on the appliance control/interface so the linked control works properly.
• Provides the tactile surface users press to select a setting, cycle, or function.
• Common symptoms this part can fix: button is cracked, sticking, missing, or no longer actuating the switch.
• Cosmetic refresh when a button is faded or damaged.

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Replacement typically requires removing the control panel or trim; keep screws and small parts organized.
• Handle the button and panel clips gently to avoid breaking plastic retainers.

A white plastic button plug that replaces a missing or damaged control-panel button cover. Restores the panel's appearance and helps keep the control area cleaner for reliable button use. What it does:

• Replaces a cracked, broken, or missing control-panel button plug
• Covers unused or damaged button openings to improve appearance
• Helps reduce dirt and moisture entry around the button area
• Snap-in design restores a flush, finished look to the control panel

• Typically snaps into the control panel—press evenly until fully seated
• No specialized tools required in most installations
• Disconnect power to the appliance before servicing

This screw secures appliance panels and components to keep assemblies stable and aligned during normal use. It's a direct-fit fastener used where the factory requires a specific screw shape and thread. What it does:

• Fastens trim, panels, brackets, or internal components to the cabinet or frame
• Restores secure mounting when original fasteners are missing or stripped
• Helps eliminate rattling, vibration, or loose parts caused by a missing screw
• Matches OEM fit and fastening points for correct assembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Replace only the damaged or missing screw; confirm orientation and thread engagement before final tightening
• Disconnect power and follow all safety precautions before servicing appliances
