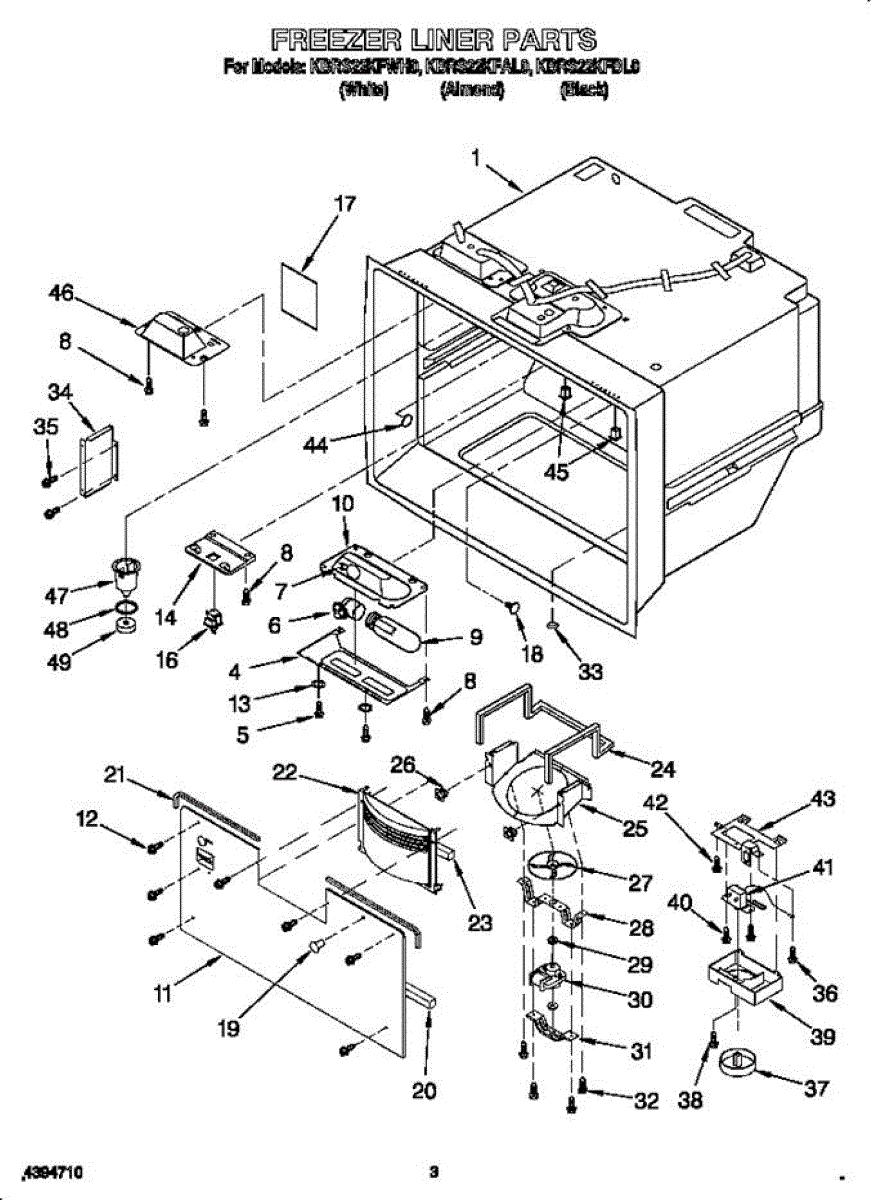

Parts for Kitchenaid KBRS22KFBL00: Freezer Liner Parts

This replacement light bulb restores clear, dependable illumination so you can easily see inside your appliance and check status at a glance. Replacing a burned-out or dim lamp improves visibility, convenience, and day-to-day safety.

• Provides light when the door opens or the light switch is turned on
• Helps you view contents and monitor progress without guesswork
• Addresses no-light, dim, or flickering conditions
• Installs in the designated light socket on compatible models

• Disconnect power to the appliance before servicing
• Allow the bulb and surrounding area to cool completely
• Handle glass with a clean cloth or gloves; skin oils can shorten bulb life
• Install gently without overtightening; use only the type/rating specified for your model

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: White.

A replacement door gasket that restores a tight seal around the oven door to help maintain proper cooking temperature and improve efficiency. Fits Whirlpool ovens and ranges that use part A3189394. What it does

• Seals the oven cavity to reduce heat loss and help maintain consistent cooking temperatures.
• Helps prevent heat from escaping around the door, improving energy use and cook results.
• Worn, torn, or flattened gaskets can cause uneven baking or longer cook times.
• Replacing a damaged gasket can reduce hot spots on the exterior and nearby cabinetry.

• Disconnect power and ensure the oven is completely cool before starting.
• Remove the old gasket by pulling it out of the door channel; clean the channel before installing the new gasket.
• Press the new gasket into the channel around the full perimeter, working from one corner and ensuring an even fit.

This evaporator fan blade is the rotating plastic impeller that moves cold air from the evaporator across the freezer and refrigerator compartments, restoring proper airflow for even cooling. What it does:

• Circulates air over the evaporator coil so cooled air is distributed through the appliance
• Helps maintain even temperatures throughout the fridge and freezer sections
• Worn or damaged blades can cause reduced airflow, weak cooling, or abnormal fan noise
• Replacing the blade can restore normal airflow when the motor and housing are otherwise functional

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access typically requires removing the evaporator cover in the freezer compartment
• Inspect the motor shaft and blade hub for damage and ensure the blade seats securely on the motor
• If fan noise or continued airflow problems persist after installation, verify the evaporator fan motor and mounting components

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator fan motor spins the freezer fan to move air across the evaporator coils and circulate it through both compartments. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Circulates cold air from the evaporator throughout the freezer and fresh-food sections
• Helps maintain even temperatures and stable cabinet conditions
• Common symptoms: no fan sound or airflow in the freezer, refrigerator warming while freezer may stay colder, intermittent starting/stalling, or squealing/grinding from the fan area
• Supports temperature recovery after door openings by maintaining airflow

• Unplug the refrigerator before servicing
• Access from the freezer: remove shelves/ice bin and the rear panel to reach the motor
• Transfer the fan blade and mounting hardware in the same orientation; avoid damaging evaporator fins or wiring
• When testing, hold the freezer door switch closed—the fan runs only with the switch engaged

Size: 8-18 x 3/8 inch.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Size: 8-18 x 3/8 inch.

This thermostat is a temperature safety device that opens the circuit if temperatures climb beyond the safe threshold. Replacing a failed thermostat helps protect the appliance from overheating and restores normal heating performance.

• Monitors internal temperature and cuts power if it overheats
• Helps prevent damage to components from excessive heat
• Common failure signs include no heat, intermittent heat, or the unit shutting off on high heat
• Shows continuity when cool and open when tripped

• Disconnect power before service; verify no voltage is present
• Access location varies by model; note wire positions and transfer one at a time
• Mount firmly against the intended surface for proper sensing
• After replacement, verify airflow/venting and clear lint/debris to avoid repeat trips

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run
