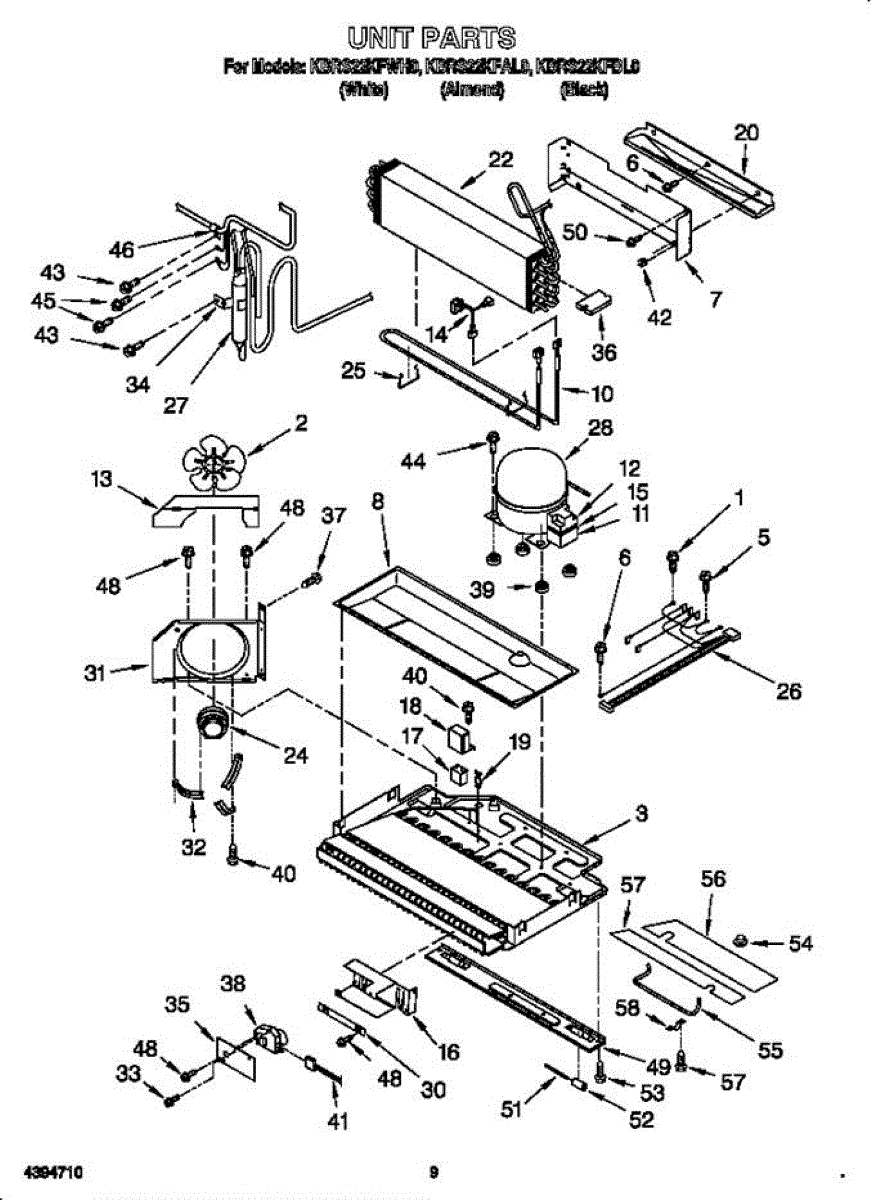

Parts for Kitchenaid KBRS22KFBL00: Unit Parts

Mounting screw for refrigerators. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during appliance repair.

8-32 x .312 inch mounting screw for washers. Replaces lost, stripped, or damaged screws that secure panels, brackets, and components inside the unit.

Fixes frost buildup on freezer coils and warm fridge temps. This defrost heater melts ice during automatic cycles. Moderate DIY, requires access panel removal.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Frost buildup on freezer wall or evaporator coils? This defrost thermostat triggers the defrost cycle to prevent ice accumulation. DIY-friendly repair.

Refrigerator not cooling or compressor won't start? This start device assembly includes relay and overload. DIY-friendly 15-minute repair for most models.

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component. Professional installation recommended.

Fridge warm but freezer cold? Frost buildup on coils? Your defrost timer may be failing. This control manages automatic defrost cycles. 15-min DIY fix.

Hex head screw for trash compactor assembly. Replaces lost, stripped, or damaged screws during repairs. Essential hardware for securing components.

Size: 8-18 x 3/8 inch.

Secures covers, brackets, and internal panels in your refrigerator. Replace missing, stripped, or corroded screws to restore tight mounting.
