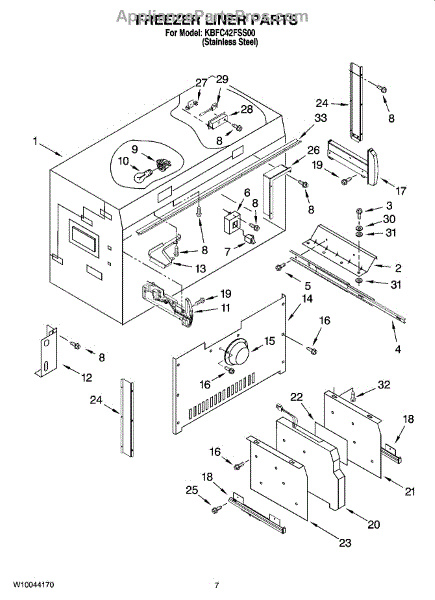

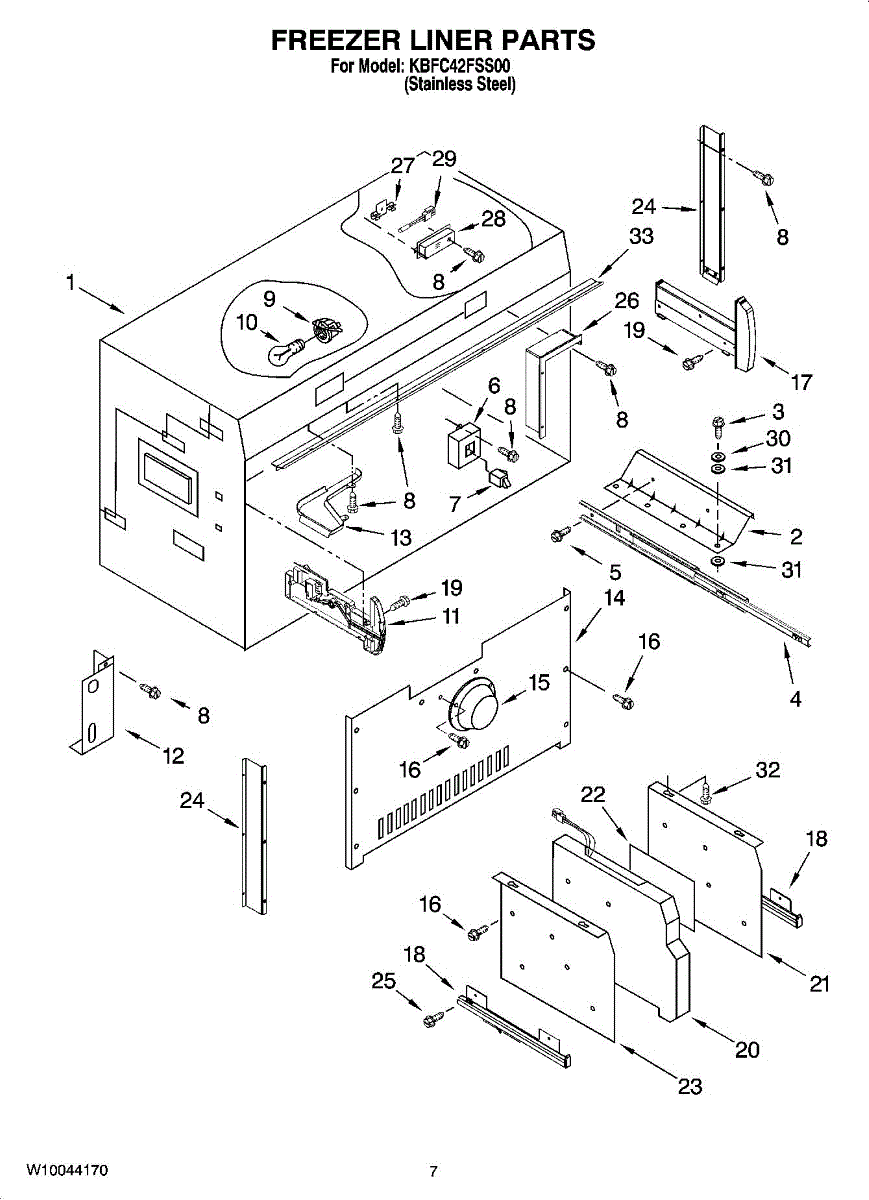

Parts for Kitchenaid KBFC42FSS00: 05 - Freezer Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is specifically designed to hold the light bulb securely in place, providing illumination within the refrigerator compartment. The socket ensures a proper electrical connection for the bulb to function efficiently.

Causes of a bad light bulb socket can include corrosion, loose wiring connections, or physical damage to the socket. These factors can result in a malfunctioning or non-functional light bulb.

Symptoms of a bad light bulb socket may include:

• Flickering or intermittent lighting
• A completely non-functional light bulb
• Difficulty in removing or inserting a new bulb into the socket.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool light bulb is an OEM replacement part responsible for providing illumination within the appliance, typically found in the interior of a refrigerator or oven. This incandescent bulb features a small screw-in base and clear glass. It operates at 120 volts and has a power rating of 25 watts. Its primary function is to emit light when the appliance's door or lid is opened, allowing users to see and access the contents inside.

Causes of a bad light bulb can include regular wear and tear from frequent use, electrical surges, or damage from handling. Over time, light bulbs naturally burn out and require replacement to maintain adequate lighting inside the refrigerator.

Symptoms of a bad light bulb include:

• The refrigerator or freezer compartment being dark when the door is opened
• Flickering or dim lighting
• A completely non-functional light bulb

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement slide guides and supports the oven rack so it moves smoothly and stays aligned during use. Replacing a worn slide restores stable rack movement and helps prevent the rack from catching or sagging. What it does:

• Guides an oven rack or drawer so it opens and closes smoothly
• Keeps the rack aligned to prevent tipping or sagging under load
• Reduces binding, sticking, or noisy operation when sliding the rack
• Addresses symptoms like a rack that falls, jolts, or won't slide evenly

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; retain any original fasteners unless replacements are provided
• Replace them as well for best results

This slide is a replacement drawer guide that helps a dishwasher/drawer or appliance compartment open and close smoothly and stay aligned. It restores stable, low-friction movement for worn or damaged guides. What it does

• Guides and supports the drawer or compartment as it slides in and out
• Reduces sticking, binding, or uneven movement caused by a damaged guide
• Helps keep the drawer aligned and prevents sagging or dropping
• Works as a wear item replacement when original guide is cracked, worn, or broken

• One slide/drawer guide

• Designed for direct replacement
• Remove power and empty the drawer/compartment before starting any repair
• Keep fasteners and mounting clips from the old part for reuse if undamaged

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This thermistor clip secures the refrigerator/freezer temperature sensor in the correct position for accurate temperature readings and consistent cooling. It helps keep the sensor stable so the control can properly monitor and adjust appliance temperature. What it does:

• Holds the thermistor/sensor in place on evaporator or cabinet surfaces to ensure reliable contact
• Helps prevent sensor movement that can cause incorrect temperature readings or erratic cooling cycles
• Supports proper airflow around the sensor for accurate thermostat feedback
• Simple, passive mounting solution that maintains sensor location after service

• Includes: 1 thermistor clip

• Designed for a direct replacement; remove power to the appliance before servicing
• Handle the sensor and wiring gently to avoid damage to the probe or connector
• Confirm sensor location per manufacturer guidance before clipping to ensure correct placement

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages
