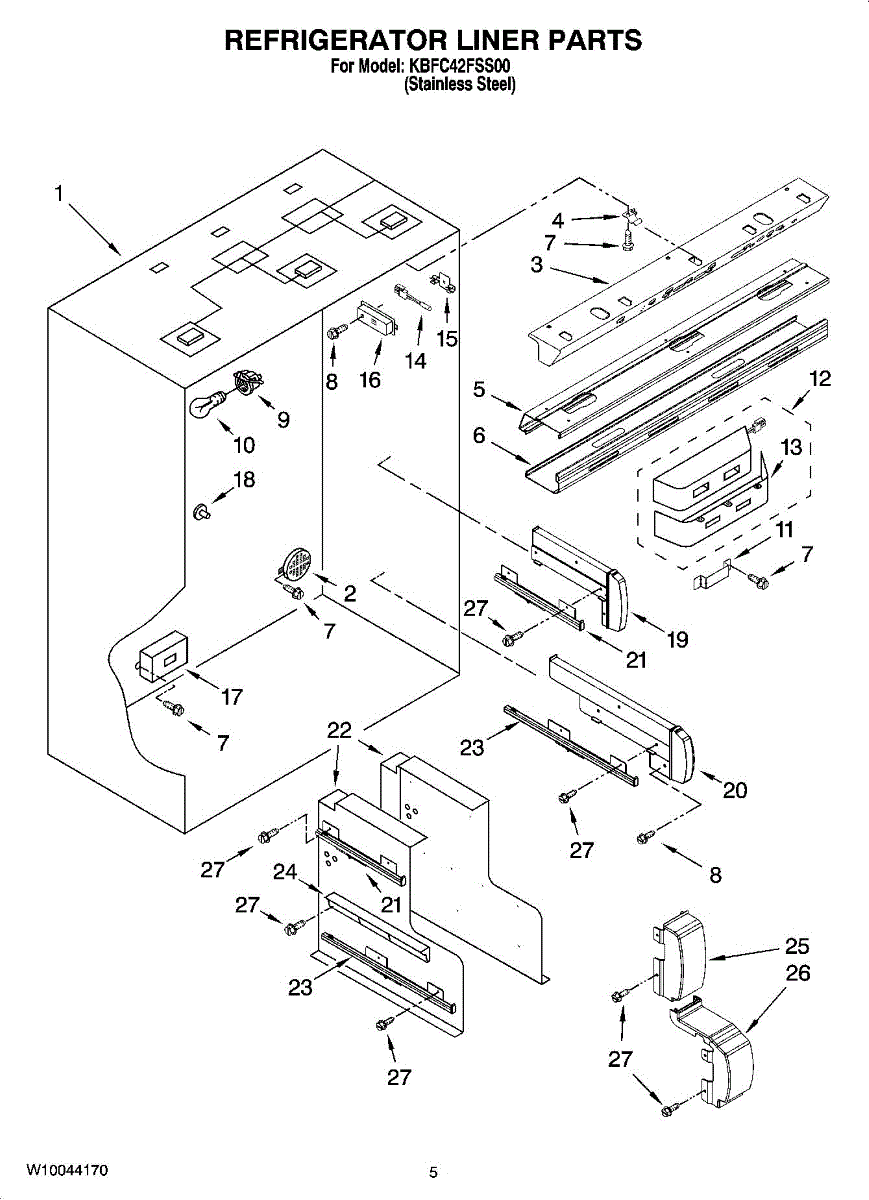

Parts for Kitchenaid KBFC42FSS00: 04 - Refrigerator Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is specifically designed to hold the light bulb securely in place, providing illumination within the refrigerator compartment. The socket ensures a proper electrical connection for the bulb to function efficiently.

Causes of a bad light bulb socket can include corrosion, loose wiring connections, or physical damage to the socket. These factors can result in a malfunctioning or non-functional light bulb.

Symptoms of a bad light bulb socket may include:

• Flickering or intermittent lighting
• A completely non-functional light bulb
• Difficulty in removing or inserting a new bulb into the socket.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool light bulb is an OEM replacement part responsible for providing illumination within the appliance, typically found in the interior of a refrigerator or oven. This incandescent bulb features a small screw-in base and clear glass. It operates at 120 volts and has a power rating of 25 watts. Its primary function is to emit light when the appliance's door or lid is opened, allowing users to see and access the contents inside.

Causes of a bad light bulb can include regular wear and tear from frequent use, electrical surges, or damage from handling. Over time, light bulbs naturally burn out and require replacement to maintain adequate lighting inside the refrigerator.

Symptoms of a bad light bulb include:

• The refrigerator or freezer compartment being dark when the door is opened
• Flickering or dim lighting
• A completely non-functional light bulb

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

This thermistor clip secures the refrigerator/freezer temperature sensor in the correct position for accurate temperature readings and consistent cooling. It helps keep the sensor stable so the control can properly monitor and adjust appliance temperature. What it does:

• Holds the thermistor/sensor in place on evaporator or cabinet surfaces to ensure reliable contact
• Helps prevent sensor movement that can cause incorrect temperature readings or erratic cooling cycles
• Supports proper airflow around the sensor for accurate thermostat feedback
• Simple, passive mounting solution that maintains sensor location after service

• Includes: 1 thermistor clip

• Designed for a direct replacement; remove power to the appliance before servicing
• Handle the sensor and wiring gently to avoid damage to the probe or connector
• Confirm sensor location per manufacturer guidance before clipping to ensure correct placement

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

Left hand side

Right hand side

This replacement divider helps separate and organize items inside a refrigerator shelf or drawer for neater storage and reduced shifting during normal use. It restores the original partitioning that keeps foods arranged and accessible. What it does:

• Provides a stable partition to keep foods and containers separated
• Prevents items from sliding together when shelves or drawers move
• Helps maintain organized storage for easier access and visibility
• Replaces cracked, broken or missing dividers that compromise organization

• One replacement divider

• Unplug or disconnect power to the appliance before beginning any service
• Remove the shelf or drawer per your model's instructions to access the divider
• Align the divider into the existing slots or mounts and press into place until secure
• If any clips or supports are damaged, replace them before use; avoid forcing parts to prevent breakage
