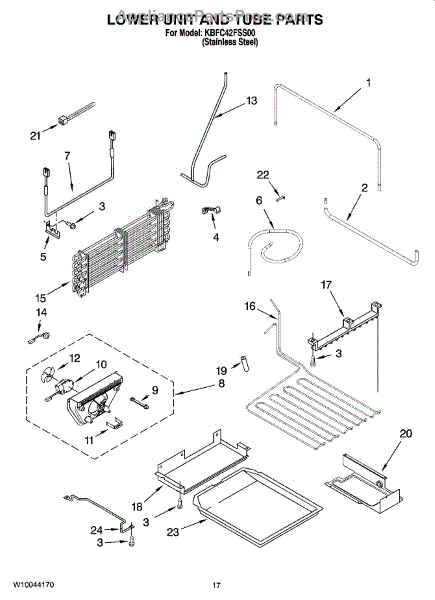

Parts for Kitchenaid KBFC42FSS00: 10 - Lower Unit And Tube Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This heater assembly provides the high heat source used to dry clothes faster by warming the air inside the dryer. It replaces a failed or damaged heating element to restore normal drying performance and temperature. What it does:

• Generates the heated air needed for effective drying
• Commonly replaced when dryer produces little or no heat
• Can cause tripped thermal cutoff or heating-circuit issues when failed

• One heater (heating element) assembly as shown

• Disconnect power before starting; this part involves live-voltage components
• Inspect associated thermostats, fuses, and wiring; replace faulty safety parts as required
• Handle the element carefully — edges may be sharp and terminals can be damaged by rough handling

This fan scroll is the molded blower housing that directs airflow from the motor to the exhaust path, restoring proper air movement for drying, cooling, or ventilation. It replaces a cracked, warped, or clogged scroll to improve airflow and system performance. What it does:

• Channels and concentrates air from the blower wheel toward the exhaust or heat exchanger
• Helps maintain proper airflow for efficient drying/cooling operations
• Can resolve symptoms like reduced airflow, longer cycle times, or overheating due to restricted flow
• Reduces air turbulence and abnormal noises caused by a damaged or misaligned housing

• One fan scroll

• Disconnect power before beginning any repairs to avoid shock or injury
• Installation typically requires access to the blower/motor compartment; follow OEM service instructions
• Inspect the blower wheel and motor shaft for damage or debris while replacing the housing
• Handle carefully to avoid bending or cracking the new scroll; reassemble panels and seals to maintain proper airflow

Instruction sheet included.

This evaporator fan motor circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments. Replacing a weak or failed motor restores proper airflow for consistent cooling and ice production.

• Moves air over the evaporator to maintain even temperatures
• Common failure signs: freezer getting warm, fridge section not cooling well, weak or no airflow from vents, intermittent humming or squealing, motor not running
• May help resolve frost buildup around the evaporator due to poor airflow
• Electrical component; match connectors and orientation during install

• Unplug refrigerator before service; wear cut-resistant gloves
• Access from the rear of the freezer/evaporator cover; remove shelves/panels as needed
• Transfer any mounting hardware, grommets, or fan blade from the original if not reusable
• Ensure fan spins freely and blade is correctly oriented before reassembly

Instruction sheet included.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Wire Harness with Bi-Metal

This damper heater is the heater element used with the refrigerator air-damper assembly to help prevent frost and condensation buildup around the damper. Replaces a failed heater to restore proper damper operation and airflow. What it does:

• Warms the damper area to reduce ice and condensation that can block the damper
• Helps ensure the fresh-food and freezer compartments share airflow as intended
• Commonly replaced when frost or ice accumulates near the damper or when the damper fails to open/close smoothly
• Works as part of the damper/air control system; does not include the full damper housing or actuators unless specified

• Disconnect power to the appliance before replacing this part to avoid shock or injury
• Access may require removing interior panels or the damper housing; follow OEM instructions for your model
• Inspect the damper housing and actuator for damage or ice buildup when replacing the heater

A replacement drain pan that captures defrost and condensation water to keep it contained and away from the cabinet and floor. Restores the appliance's normal water-collection path and helps reduce leaks. What it does:

• Collects melting ice and condensation from the evaporator to prevent water from pooling under the appliance.
• Channels collected water toward the drain system so it evaporates or exits as designed.
• Stops common symptoms like puddles or moisture under the unit and musty odors caused by standing water.
• Fits under the evaporator/coil area to restore proper water management.

• Disconnect power to the appliance before service to avoid electrical hazards.
• Remove the required access panels or move the appliance per the manufacturer's guidance to reach the pan.
• Lift out the old pan carefully—it may contain standing water—and position the replacement so the drain outlet and routing match the OEM layout.
• After installation, restore power and check for proper water flow during a defrost cycle; inspect surrounding seals and tubing for proper seating.
