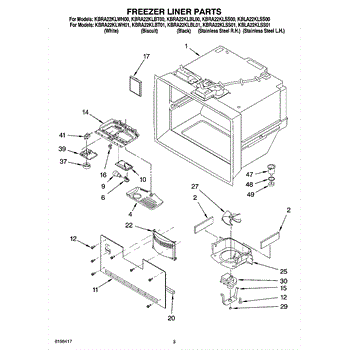

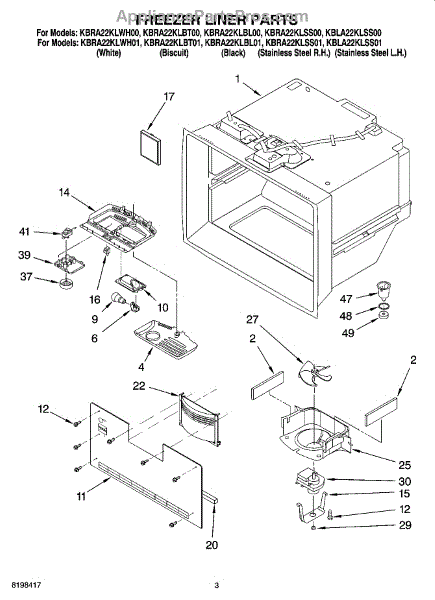

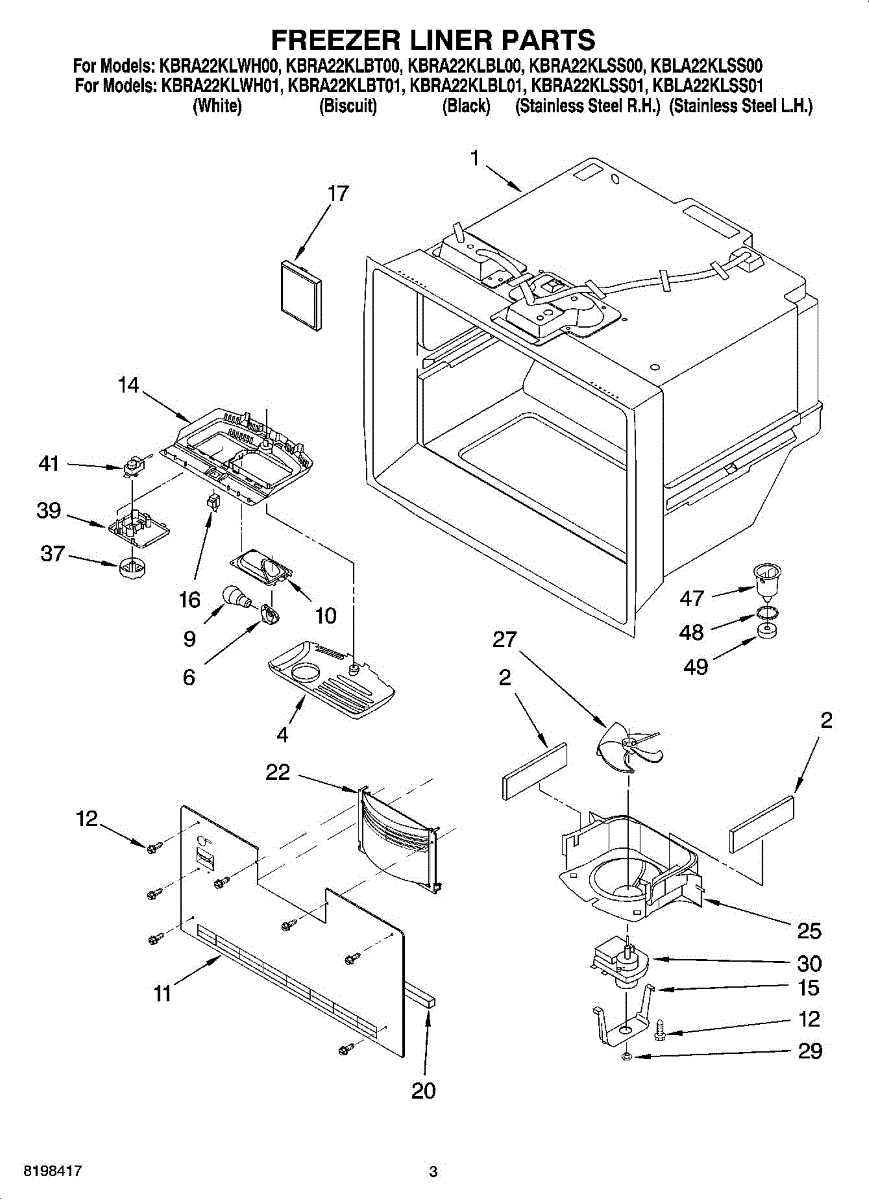

Parts for Kitchenaid KBLA22KLSS01: 02 - Freezer Liner Parts

This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

This electronic freezer control module manages the freezer's temperature and defrost cycles so the compartment runs on schedule and helps protect stored food. It replaces a failed or intermittent control board to restore normal freezer operation. What it does:

• Regulates freezer temperature by running compressor and fans per thermostat/temperature sensor inputs
• Controls automatic defrost cycles and related timing functions
• Can correct intermittent cooling or defrost issues caused by a faulty control board
• Stop error codes or unresponsive control behavior when the original board is defective

• One freezer control module (single electronic control board)

• Disconnect power to the appliance before starting—risk of electric shock
• Handle the board by the edges and avoid static discharge; use an anti-static strap if available
• Verify connector orientation and secure all wiring harnesses before restoring power

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement refrigerator door gasket seals the cabinet to maintain consistent temperatures and help keep food fresh. It restores a tight seal to reduce drafts, condensation, and frost buildup around the door. What it does:

• Creates an airtight seal between the door and cabinet to help keep cold air in
• Helps prevent warm spots, excess frost, and water/ice buildup inside the compartment
• Can improve cooling consistency and reduce extra runtime from a leaking seal
• Replaces torn, stretched, or flattened seals that no longer close fully

• Disconnect power to the appliance before starting any work
• Clean the door flange and remove old gasket before fitting the new seal
• Press the gasket evenly into the retainer channel and check that the magnetic edge engages all around
• Allow 24 hours for the gasket to fully seat against the cabinet; reposition if gaps are visible

Restore the clean look and proper ventilation of your microwave with this air grille. It covers the upper front vent opening, helps guide airflow through the vent path, and shields internal components for reliable performance.

• Covers the upper/front vent opening while allowing proper airflow
• Helps secure the charcoal filter on many recirculating models
• Restores appearance and fit when the original grille is cracked or missing
• Common fix for a loose, rattling, or broken vent cover

• Disconnect power to the microwave before servicing
• Open the door (most models), remove the screws along the top edge, and slide the old grille to release its tabs
• Position the new grille, ensure tabs engage fully, and reinstall the screws without overtightening

This evaporator fan shroud directs airflow from the evaporator fan to the refrigerator's cooling coils, improving cold-air circulation and helping maintain even temperatures in the fresh and freezer compartments. What it does:

• Channels airflow from the evaporator fan to the evaporator coils for efficient heat exchange
• Protects the fan motor and blades from contact with ice and debris
• Helps reduce uneven cooling or warm spots caused by disrupted airflow
• Fits into the evaporator compartment and mates with the fan assembly

• Intended for use in the evaporator compartment;
• Disconnect power to the appliance before accessing internal components to avoid shock or injury
• Handle the shroud gently to avoid damaging tabs or mounting points during removal/installation
• Reassemble panels and test cooling operation after installation

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This grommet isolates the refrigerator's fan motor from its mounting bracket to reduce vibration and noise while keeping the motor secure. Replacing worn or missing grommets helps stop rattles and prevents the fan blade from rubbing.

• Cushions the fan motor to maintain proper alignment and clearance
• Absorbs vibration to help reduce humming, buzzing, or rattling sounds
• Helps keep the motor stable so the blade doesn't contact the shroud
• Common signs of failure include excess vibration, noise, or a loose fan motor

• Disconnect power to the refrigerator before servicing
• Access the fan motor area (rear of unit or inside the freezer, depending on model) and support the motor
• Remove mounting hardware and seat the new grommet fully in the bracket/mount
• The fan blade spins freely with even clearance before reassembling and restoring power

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. It is responsible for circulating air over the evaporator coils, which helps to maintain a consistent temperature throughout the refrigerator and freezer compartments. It operates at a power requirement of 115V, 60Hz, and 0.14A, featuring a shaft that measures 1/8" in diameter and 5/8" in length.

Causes of a bad evaporator fan motor can include electrical failures, wear and tear from continuous use, or obstruction from debris that hinders the fan's movement. A malfunctioning fan motor can lead to uneven cooling and compromised performance of the refrigerator.

Symptoms of a bad evaporator fan motor include:

• Inconsistent temperatures in the refrigerator or freezer
• Unusual noises coming from the fan area
• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement freezer control knob lets you easily set and adjust the freezer temperature. It restores a smooth, positive grip for changing settings and replaces a cracked, worn, or missing dial. What it does

• Fits onto the freezer temperature control shaft to select colder or warmer settings
• Provides a firm, easy-to-turn grip so settings stay where you set them
• Commonly replaced when the knob is cracked, stripped, loose, or missing
• Helps restore basic temperature control when the selector cannot be turned properly

• Disconnect power to the appliance before servicing
• Most installs are tool-free: pull the old knob straight off the control shaft and push the new knob on until it seats
• Align any indicator mark on the knob with the control pointer before use
• If the control shaft is damaged or the knob won't seat, do not force—inspect the underlying control and replace as needed

This is the mechanical cold-control thermostat for the freezer. It senses temperature and switches the cooling system on and off to maintain your selected setting, restoring steady freezer temps and normal compressor cycling.

• Regulates freezer temperature by opening/closing electrical contacts to control cooling
• Symptoms of a failing control include freezer too warm or too cold
• Unit runs constantly, won't start, or won't shut off at set point
• Temperature knob feels unresponsive or no distinct "click" when turned

• Disconnect power before servicing
• Access the control housing; note wiring and transfer leads one at a time
• Route the sensing tube exactly as original; do not kink, pinch, or cut it
• Set to a mid setting after install and allow up to 24 hours for temps to stabilize

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run
