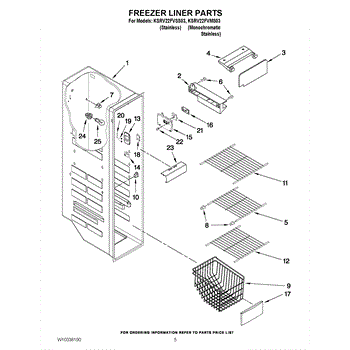

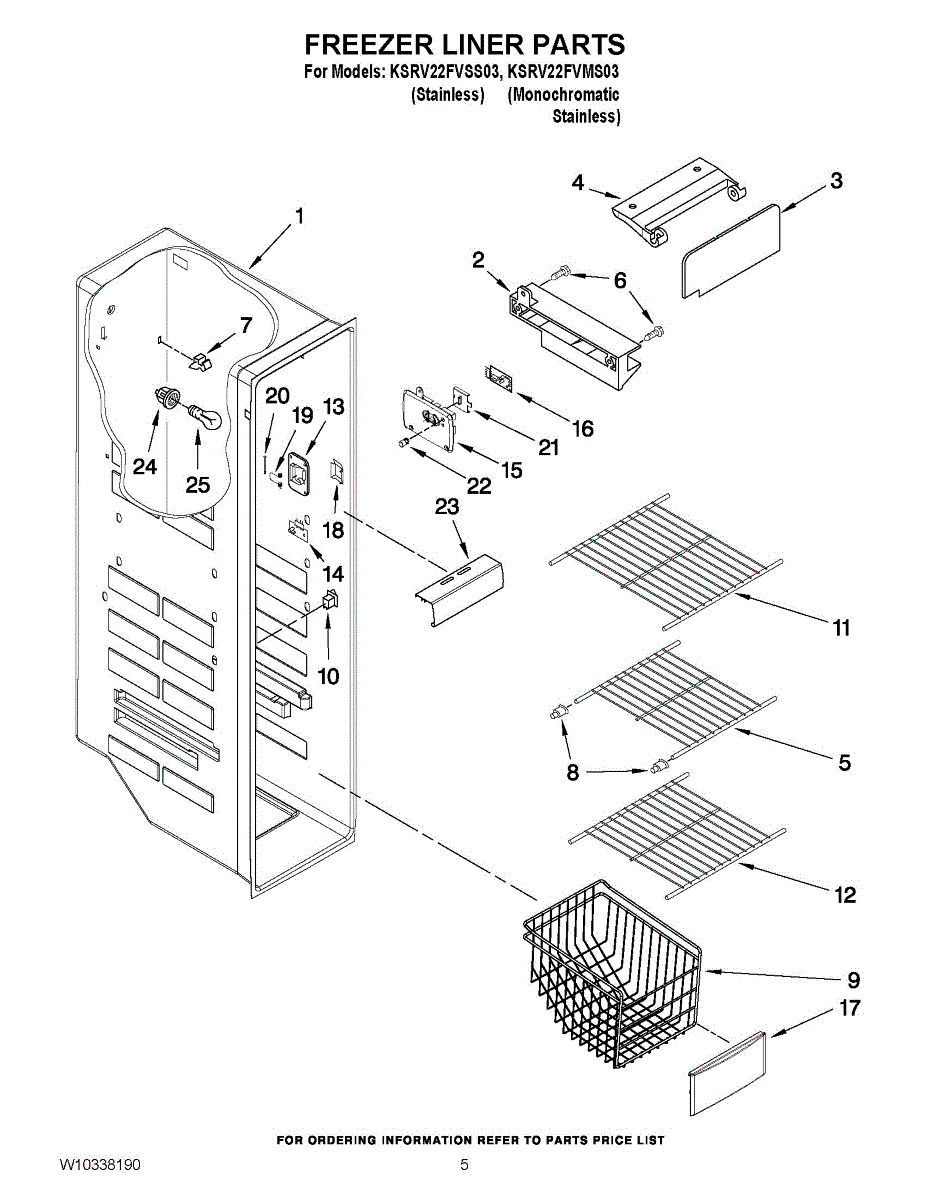

Parts for Kitchenaid KSRV22FVMS03: 04 - Freezer Liner Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This is a protective cover that fits over the ice maker compartment inside the refrigerator or freezer section. It shields the ice maker mechanism and helps maintain proper temperature around the ice-making components. Replace this cover if it is cracked, warped, or missing, which can allow warm air into the ice maker area and reduce ice production.

Ice maker cover loose or broken? This bracket secures the front cover to your ice maker assembly. Simple 5-minute DIY repair with basic tools and video guide.

Approximate measurement: 13.5" x 9.5"

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Secures air duct to housing, maintaining proper airflow alignment. Replace if broken or loose to prevent air leaks. Confirm fit with your model.

Mounting cup fits into the freezer liner to support the ribbed shelf post. Replace cracked or missing cups to restore proper shelf stability and level.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

Approximate measurement: 15" x 11"

Replacement wire shelf for refrigerator freezer compartment. Installs inside freezer to organize frozen foods. Order if shelf is broken, missing, or worn.

Molded housing that shields the infrared emitter in your refrigerator's ice level optics system. Replace if cracked, broken, or missing to protect the board.

Ice maker stopped working or not producing ice? This control board monitors ice levels and regulates production. DIY-friendly repair, most installs in 10-20 minutes.

Ice maker stopped working or not producing ice? This control board monitors ice levels and regulates production. DIY-friendly repair, most installs in 10-20 minutes.

Protective cover for the ice maker's infrared emitter sensor in the freezer compartment. Replace if cracked, broken, or missing to shield the sensor.

Fix ice clumping and frost buildup in your dispenser chute. This flipper spring returns the ice door to closed position, keeping warm air out. Easy DIY fix.

Ice maker not dispensing or flipper assembly loose? This small pin secures the flipper emitter mechanism for reliable ice dispensing. Simple fix.

This slide is the replacement rack or drawer support that restores smooth, stable movement and keeps interior racks or drawers aligned. It helps parts glide in and out without binding or sagging. What it does:

• Replaces a worn or broken rack/drawer support to restore smooth sliding motion
• Keeps the rack or drawer level and prevents tilting or falling when extended
• Reduces noise and binding from damaged or loose slide hardware
• Commonly replaced when drawers or racks stick, sag, drop, or slide unevenly

• One replacement slide

• High-level home repair — unplug the appliance or shut off power before working near electrical components
• Remove the rack/drawer and follow OEM instructions for accessing and fastening the slide
• Use basic hand tools; keep fasteners and clips from the old slide to match new installation
• If the slide secures to water or electrical assemblies, turn off the water or power and consult the OEM guide.

This replacement receiver lens covers and protects the appliance's infrared/receiver area and indicator light while allowing signals and status lights to show through clearly. It restores proper protection and visibility for the sensor/indicator assembly. What it does:

• Protects the IR/receiver and indicator area from dust, spills, and impact
• Allows remote/IR signals and indicator lights to pass through without obstruction
• Replaces cracked, discolored or missing lens that can hide status lights or reduce signal clarity
• Helps maintain original appearance of the control/console area

• Disconnect power to the appliance before beginning any repair.
• Remove the control console or front panel per the service manual to access the lens.
• Handle the lens gently to avoid scratching; seat it into the bezel until it snaps or rests securely.

Replace your refrigerator light lens cover to restore interior lighting. Install when cracked, yellowed, or broken. Verify fit with your model number.

Replaces a worn or heat-damaged refrigerator light socket to restore interior lighting. Install when bulbs won't light despite replacement. Confirm fit by model number.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
