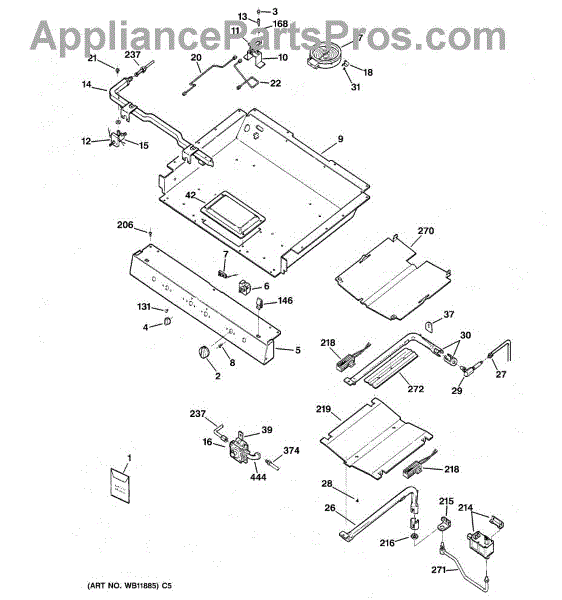

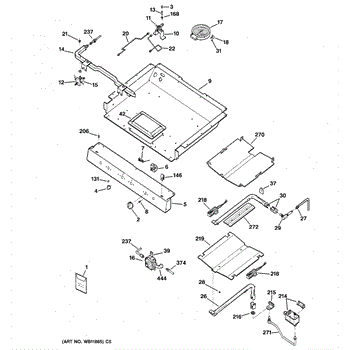

Parts for Ge JGB920TEC2WW: 01 - Gas & Burner Parts

Anti-tip kit.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

This is a replacement set of white top-burner control knobs for gas and electric ranges, restoring safe, easy burner control and a clean finished look to your cooktop. The kit replaces worn, cracked, or missing knobs so you can adjust heat reliably. What it does:

• Replaces damaged or missing top-burner control knobs to restore user control and appearance
• Provides a tactile, indexed grip for precise burner setting selection
• Helps prevent accidental knob slippage or mis-setting from worn controls
• Compatible with standard splined valve shafts used on many GE ranges

• Four white top-burner control knobs

• Turn all controls off and ensure the cooktop is cool before replacing knobs
• Knobs typically pull straight off the valve stems and push on the replacement; no tools required for most installs
• If knobs are tight or stuck, gently wiggle while pulling; do not force with metal tools that could damage the shaft

Liquid propane

Liquid propane

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

Size: 8 - 32 inch.

This valve switch includes a gray hub and sparks at the 7 o'clock position. For the orange hub valve switch order WB24K10002.

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

This Bake Burner Assembly is an OEM part for GE ovens and ranges. The bake burner assembly includes both the igniter and the burner tube. It is responsible for producing the flame that heats the air inside the oven cavity during baking and broiling.

Causes of a bad bake burner can include wear and tear from frequent use, clogging or blockage of gas ports, or damage from exposure to high temperatures and spills.

Symptoms of a bad bake burner include:

• Uneven baking or cooking results
• The oven not heating up properly or taking too long to reach the desired temperature
• Visible damage or corrosion on the burner
• The oven emitting unusual smells or noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

This gas valve control regulates the flow of gas to a burner in your range, enabling reliable ignition and precise flame adjustment. Replacing a worn valve restores smooth knob operation and consistent burner performance.

• Meters gas to a single burner as the control knob is turned
• Works with the ignition system to light and sustain the flame
• Typical symptoms include a burner that won't ignite or lights intermittently
• Flame will not adjust or is unstable; knob feels tight, sticky, or turns without proper control

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the appliance to cool and work in a well-ventilated area
• Note the valve's orientation; transfer any model-specific fittings or hardware from the original valve as needed
• After reassembly, restore gas and check all connections with an approved leak-detection solution; verify proper ignition and flame control

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.
