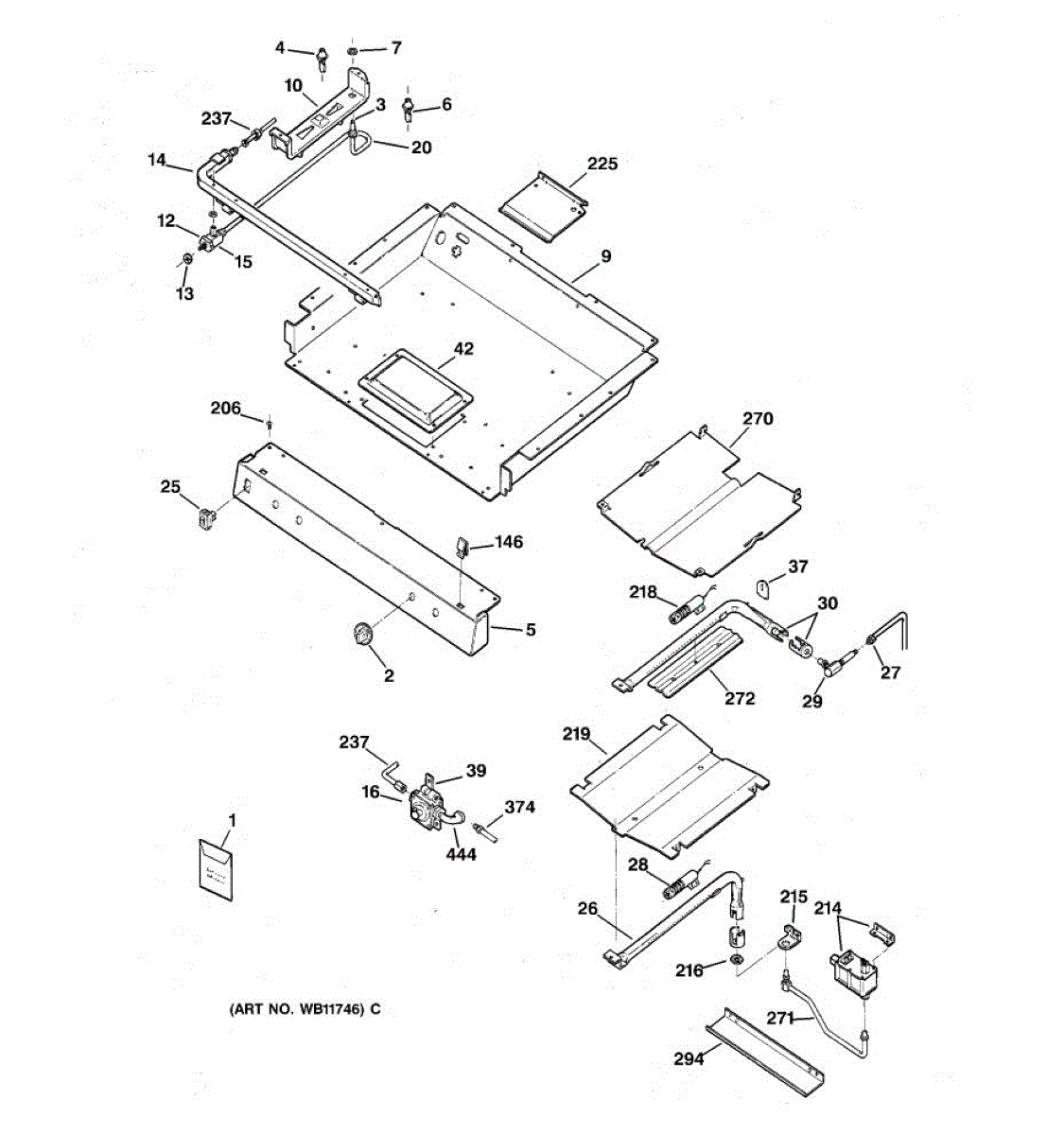

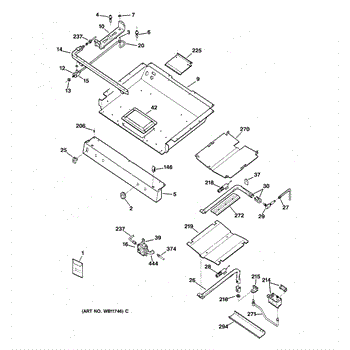

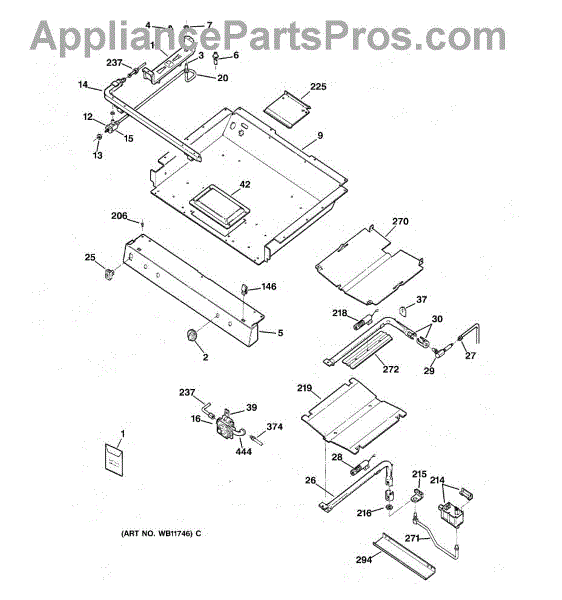

Parts for Ge JGBP79BEW1BB: 01 - Gas Burner Parts

Anti-tip kit.

Liquid propane. Small burner.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

Restore smooth, controllable flame on a gas cooktop burner. This surface burner valve regulates gas flow to an individual top burner, allowing precise adjustment from low simmer to full boil and helping stop leaks when turned off.

• Controls gas flow to one surface burner
• Common failure signs: burner won't light or is very weak, knob turns hard or feels loose, gas odor at the valve, flame will not adjust smoothly
• Helps ensure reliable ignition and steady flame once replaced

• Disconnect gas and power before servicing; ventilate the area if gas odor is present
• Label and transfer the knob shaft orientation and any mounting hardware from the original
• Check and reuse the correct orifice and inlet fittings from the old valve if required by your model
• After installation, perform a leak check on all connections with approved leak-detection solution

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

Color: Black

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

Size: 10-32 GXTT FLP.595 S

This dual-type oven safety valve controls gas flow to the oven burners, restoring safe, reliable delivery of fuel for baking and broiling. Use it when the oven won't heat or gas flow needs proper regulation. What it does:

• Regulates and shuts off gas to the oven bake/broil circuits for safe operation
• Replaces a faulty valve that can cause no heat, intermittent ignition, or gas flow issues
• Works as the control point between the gas supply and oven burners to ensure proper fuel delivery
• Designed for direct replacement in compatible GE ovens

• One oven safety valve (dual type)

• Turn off gas supply and electrical power before starting any work
• Only connect fittings per manufacturer orientation; tighten and test all gas connections for leaks
• After installation, run a full ignition and leak test before normal use

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

Inner

Includes 12 washers.

Includes 12 washers.

Includes 12 screws.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Package of 12
